Maggi BEST960OS 565mm Radial Arm Crosscut Saw 7.5HP
This item may incur additional shipping costs and lead times.
Product Details

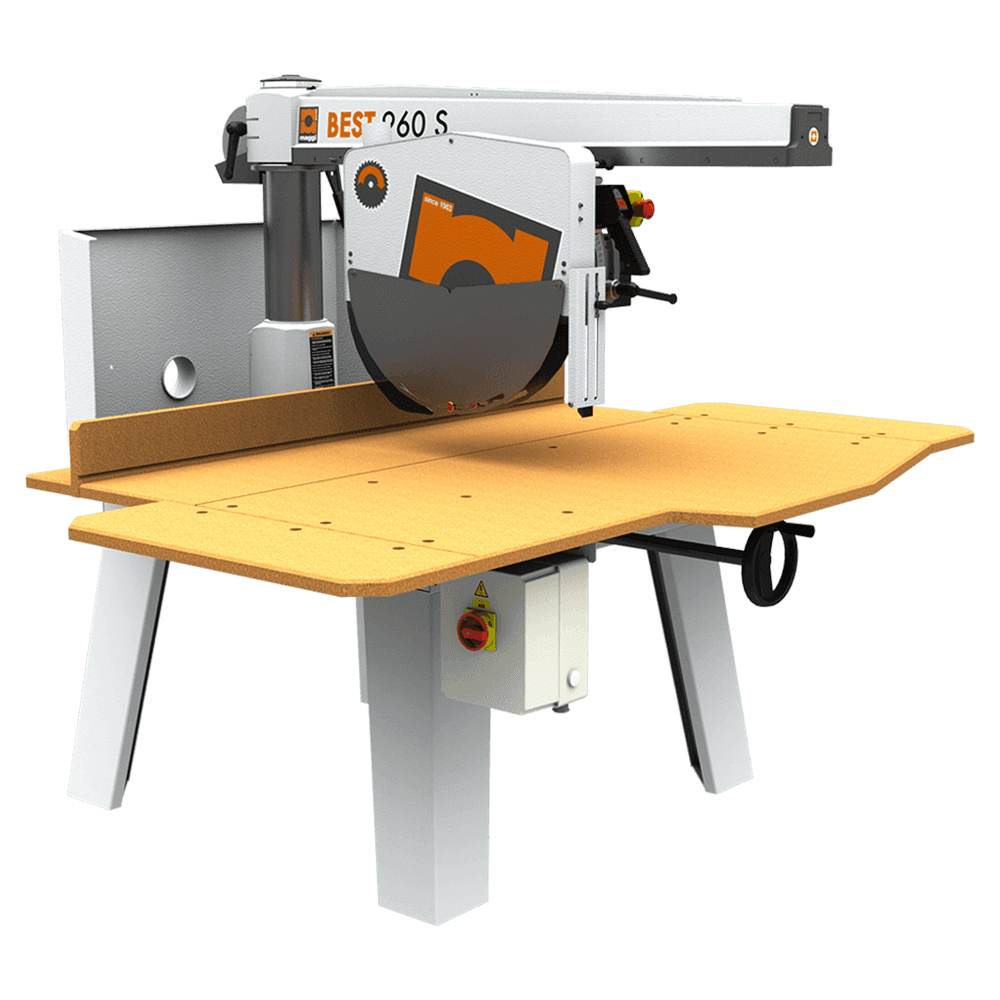

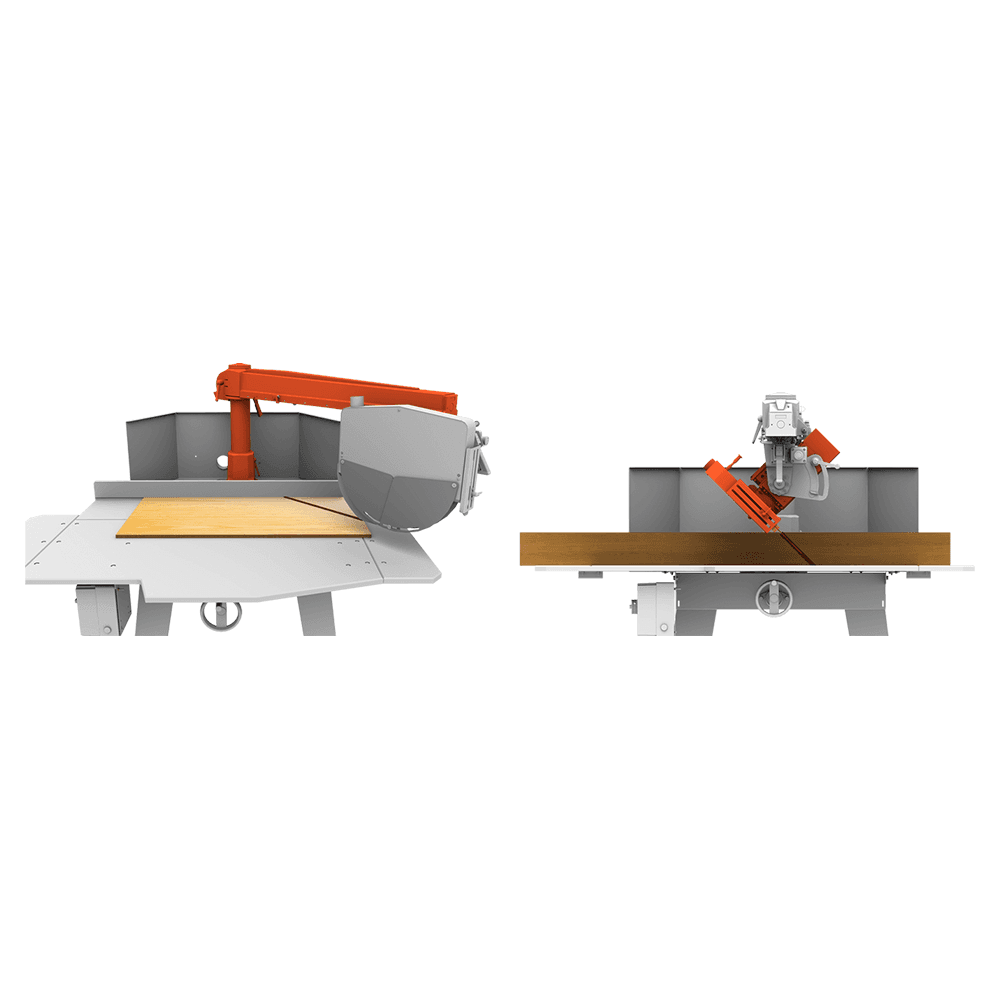

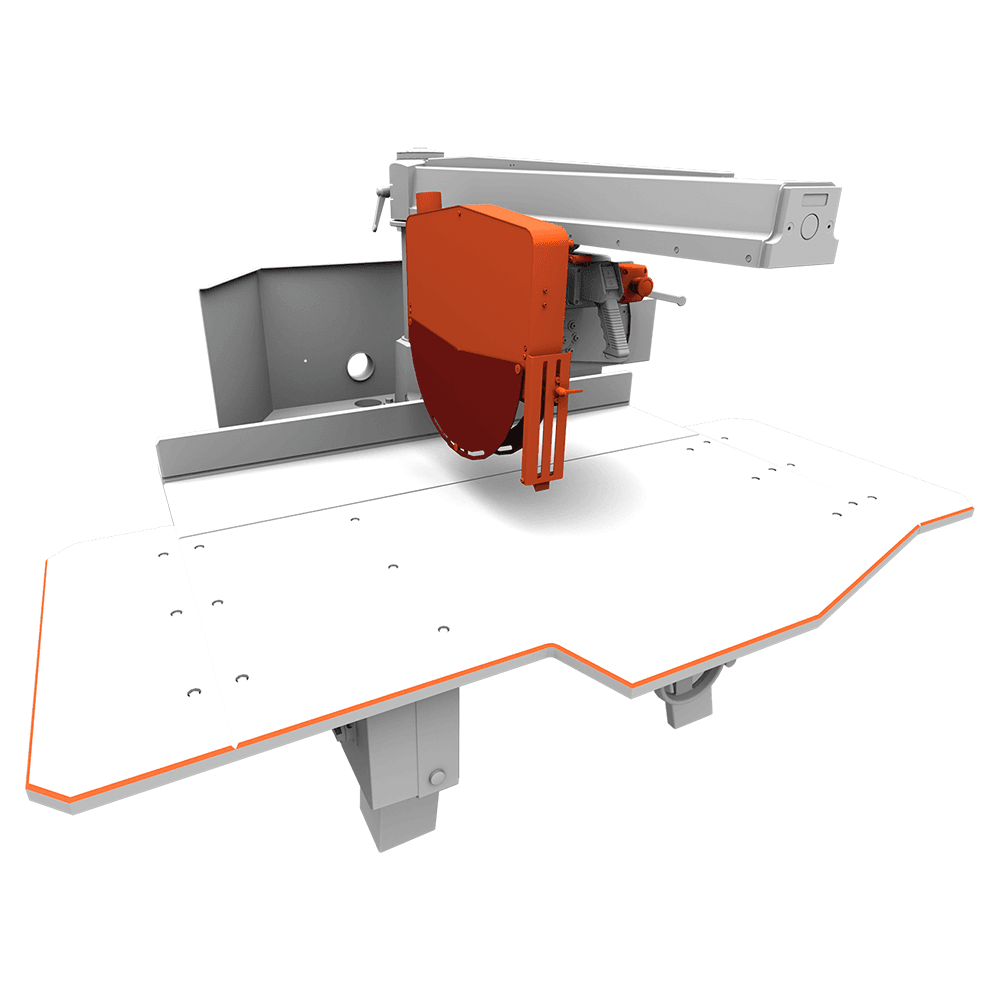

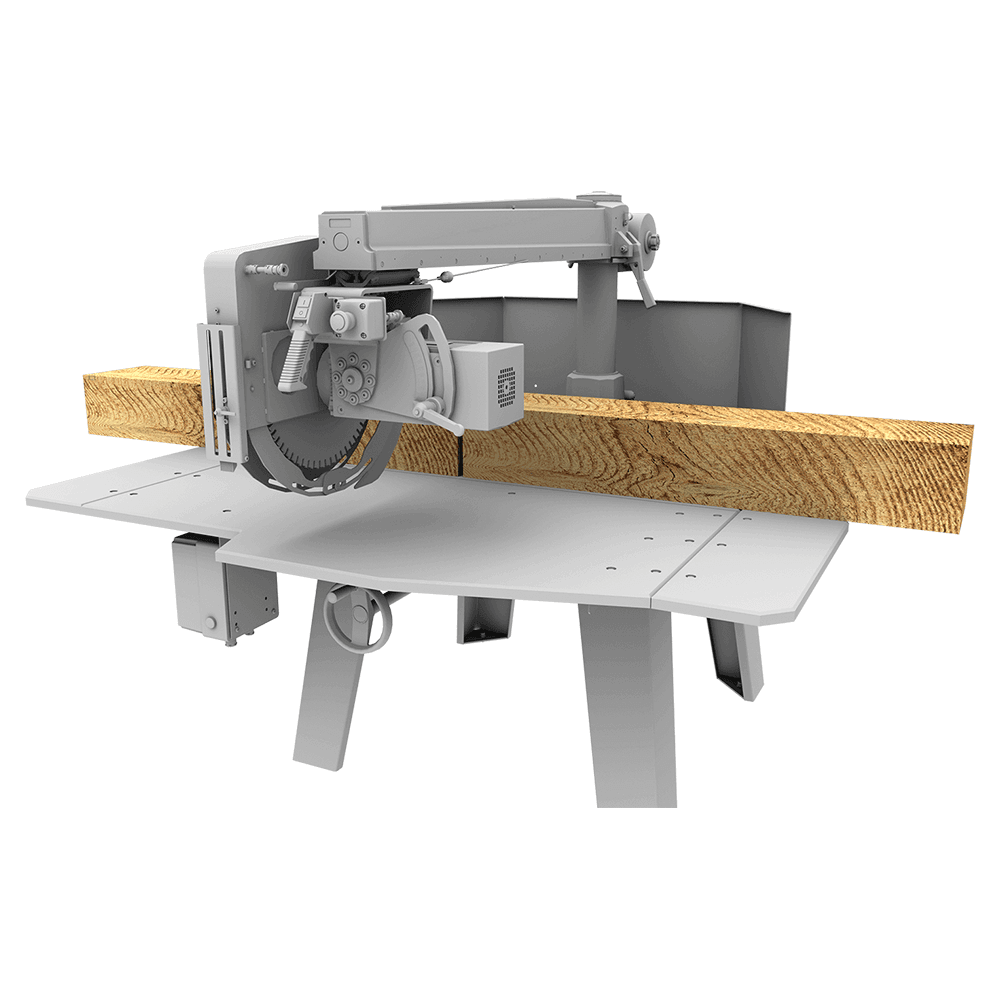

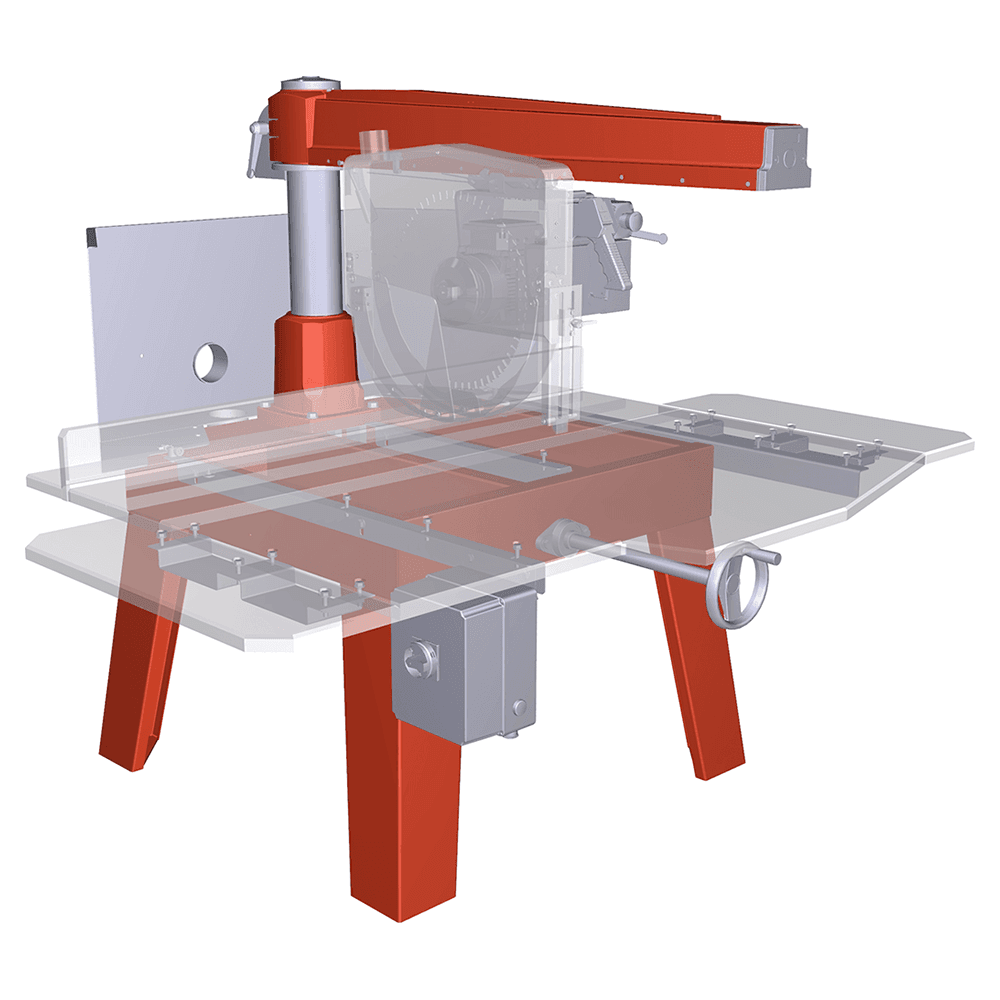

Radial-arm saw for straight (90°) cross cutting and bevel cutting at 45° left and right. The movement of the cutting unit along the arm, on guides and ball bearings, is manual, aided by a return spring, so is the blade tilting with mechanical locking system from 0° to 45° left at any intermediate angle. The pillar group is made of cast-iron and fixed on a solid frame and legs made of steel. Working bench in MDF. Manufactured according to EC standards. Versatile: Swivelling arm up to 45° left and right and left tilting cutting-head (0° to 45° with stop and lock at any intermediate angle) allow many different cutting operations for the greatest versatility. Safe: Sound-insulated, full-cover blade guard with safety microswitch, anti-kickback, well-dimensioned working bench and emergency button definitively contribute to the operator safety during the cutting process. Solid and Accurate: Rugged steel construction, arm and base made of cast iron. Interchangeable, tempered-steel made guides. Cutting head sliding on 8 ball bearings for a smooth, precise and effortless carriage mouvement. Top of the Range: 7.5 HP Motor and max. cutting height up to 200 mm make this machine ideal for carrying out heavy-duty working process, like cutting of beams and/or different types of building structures. Very quick set-up thanks to the front lifting handle for the cutting-height adjustment. Features: • Automatic return-spring • Self-braking motor • Electrical system equipped with motor-overload protection and emergency button • Sound-insulated blade guard made of steel • Front-lifting handle to adjust the cutting height • Well-dimensioned rear hood, ready to be connected to a dust collector • MDF working bench • Lockable switch • Package: recyclable cardboard box • Blade not included • Max. cutting height: 200 mm • Max. cutting width: 850mm x 20mm H • Min. cutting width: 770mm x 125mm H • Max. length of workpiece: Infinito • Max. cutting width for ripping: non consentita • Height of blade at 45° from the table: 0 - 135 mm • Min. and Max. cutting width at 45° (right): 470 - 590 mm • Min. and Max. cutting width at 45° (left): 280 - 400 mm • Height of blade from working bench: 0 - 40 mm • Blade bore diameter: 30 mm • Motor: HP/KW 7.5/5.5 RPM 2800 • Working bench dimensions: 1970 x 1285 x 25 mm • Diameter of dust collection nozzle on blade guard: 60 mm • Diameter of dust collection nozzle on rear hood: 100 mm ( n.2) • Overall dimensions of full-assembled machine and net weight: 1970 x 1740 x H 1720 mm / 362 Kg • Dimensions and gross weight - Half Assembled Machine: 1700 x 1250 x H 1190 mm - 432 Kg
Specifications
| Box Quantity | 1 |
| Blade Diameter | 565mm |
| Battery Voltage | |
| Amps | |
| Battery Capacity | |
| Blade Type | Saw |
| Product Type | Radial Arm Crosscut Saw |
| Battery Type | |
| Power Type | |
| Depth of Cut | |
| Speed |
