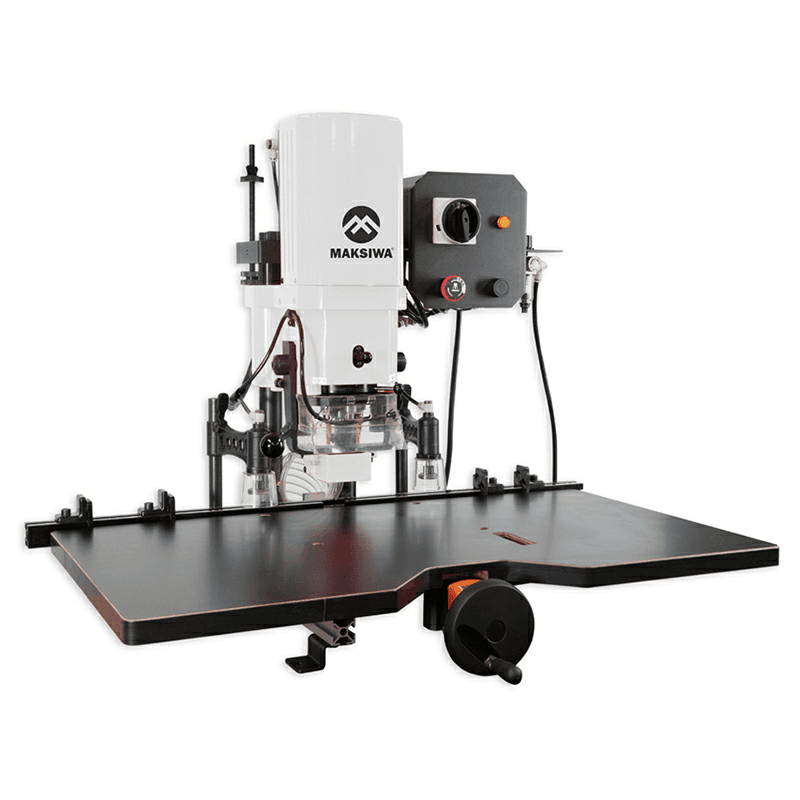

Hinge Boring Machine, 110V/1-Phase

The HBM.1000 is a versatile boring and insertion machine for precise hinge assembly. It streamlines setup and operation, making it easy to bore and insert hardware effi ciently for system and hinge connections.

Features:
• Vertical boring and component insertion
• Works with hinges, mounting plates, and connectors
• Simple setup and easy operation
• Compatible with system boring


Technical Information • Electrical specs: 1 Phase 110V 13.6 AMP/ 220V 6.8 AMP
• Motor Specs 1: HP/1.1 KW 3400 RPM
• Table Size: 18" x 31 - 1/2"
• Machine table height: 5 - 3/8" 136MM
• Machine table depth: 2- 3/4" 70MM

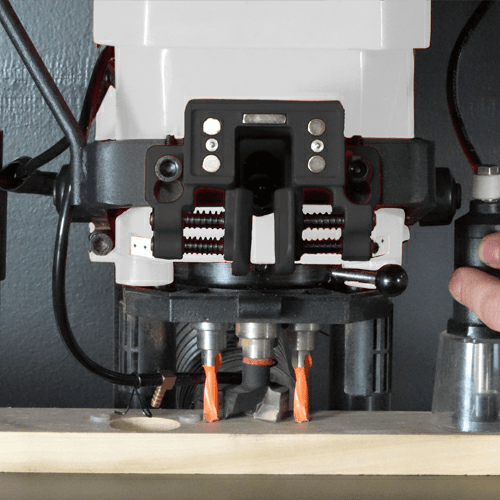

• Hinge boring Bit Diameter: Carbide Tipped - 35mm
• Hinge boring Bit Rotation: Right
• Hinge boring shank: 10MM
• Hinge boring Length: 57MM
• Drill bits Diameter Carbide Tipped - 8MM
• Drill boring Bits Rotation Left
• Drill boring shank: 10 MM
• Machine Dimensions (LxWxH): 33 - 7/16" X 28- 3/8" X 31- 1/2"
• Number of Stops: 2 Left/2 Right
• Maximum Depth of Stroke: 4 - 5/16" 110MM
• Boring distance center spindle: 0 - 2 3/4" 0 - 70 MM
• Air requirement: 90 PSI - 3 SCFM
• Machine Weight: 50Kg 110lb.
• Avg Noise emissions: 78dB
