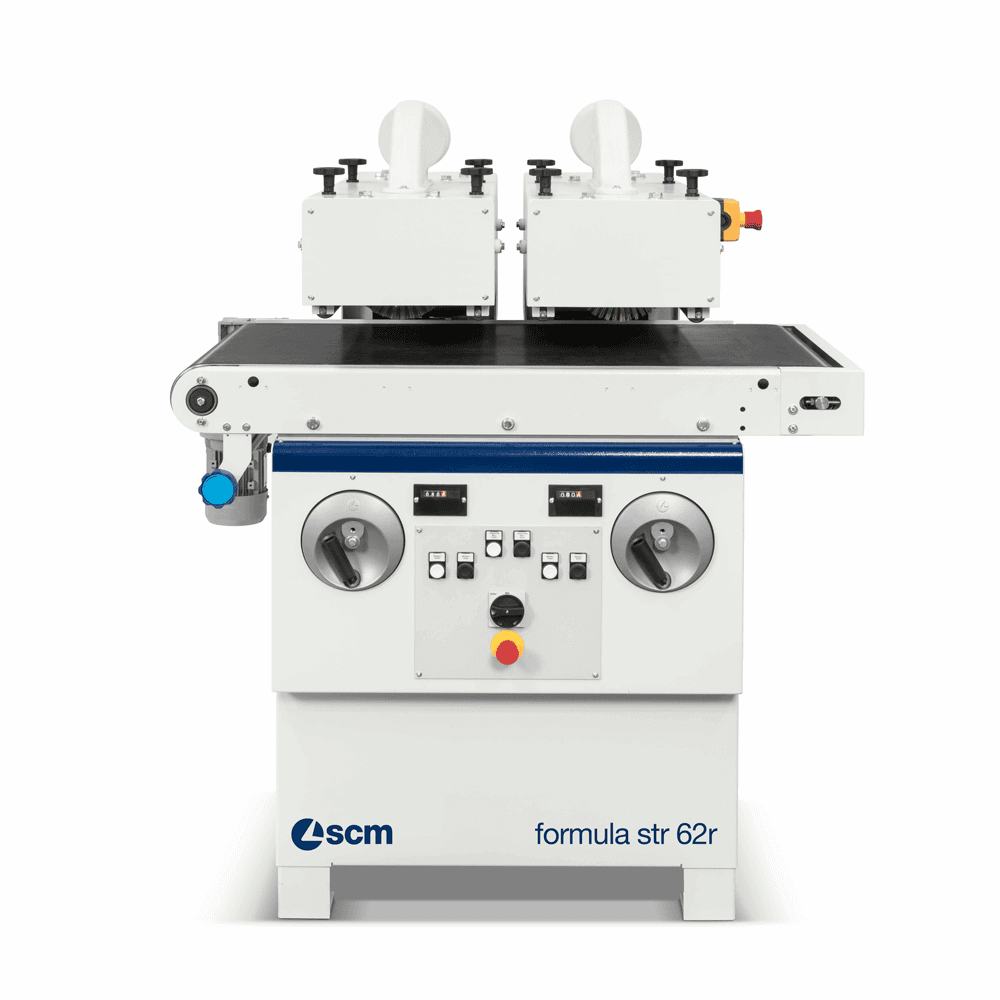

SCM Formula STR 62R 6HP 23-5/8" Fixed Speed Brushing Machine, 3 Phase
This item may incur additional shipping costs and lead times.
Product Details
The standard formula rustication units/brushing machines are the ideal solution for rustication processing that highlight the hardwood vein or to sand the surfaces of cupboard doors/details in solid wood and veneered or MDF panels.

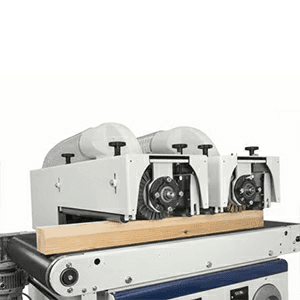

Advantages: Perfect Finish: • The double operating unit allows to obtain the request finish in a single passage.

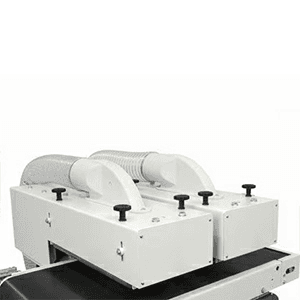

Effective Extraction System: • The large diameter exhaust hoods grants an optimal dust extraction.

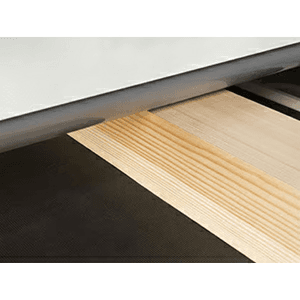

The Best Adherence: • Thanks to the rubber belt with vertical grooves.

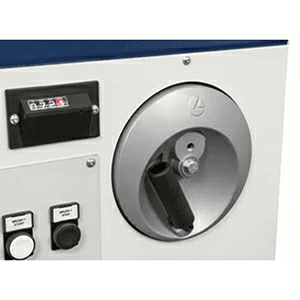

Operating Units Lifting: • By means of handwheels and numerical readout.
Technical Data: • Number of Machining Units: 2 • Working Width(mm): 600 • Max. Working Height(mm): 300 • Machining Unit Motor Power @ 50 Hz(kW): 4 • Feed Speed Motor Power @ 50 Hz(kW): 0.37 • Exhaust Outlets Diameter(mm): 2 x 150 • Brushes Speed(rpm): 1500 • Feed Speed(m/min): 3 ÷ 20 • Brush Diameter(mm): 190 / 190 • Net Weigth(kg): 750 • Dimensions (Width x Depth x Height)(mm): 1300 x 1200 x 1550
Specifications
| Box Quantity | 1 |
| Product Type | Brushing Machine |
| Voltage | |
| Belt Size | |
| Phase | 3 |
| Drive Motor | |
| Horsepower | 6 HP |
| Feed Motor Power (HP) | |
| Sanding Belt Speed (FPM) | |
| Drum Diameter (In.) | |
| Minimum Board Thickness (In.) | |
| Style (Type) | |
| Motor Power (HP) | |
| Motor Phase | |
| Table Lift Motor Power | |
| Table Size (L x W) (In.) | |
| Sanding Belt Size (In.) | |
| Electrical Controls | |
| Table Height from Floor (In.) | |
| Maximum Board Thickness (In.) | |
| Maximum Board Width (In.) | |
| Prewired Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Recommended Circuit Size (Amps.) | |
| Wiring Remarks | |
| Motor Current (Amps) | |
| Dust Port Outside Diameter (In.) | |
| Air Required | |
| Table Tilt (Deg.) | |
| Motor Voltage (V.) | |
| Minimum Board Length (In.) | |
| Feed Rate (FPM) | |
| Platen Size (In.) | |
| Warranty |
