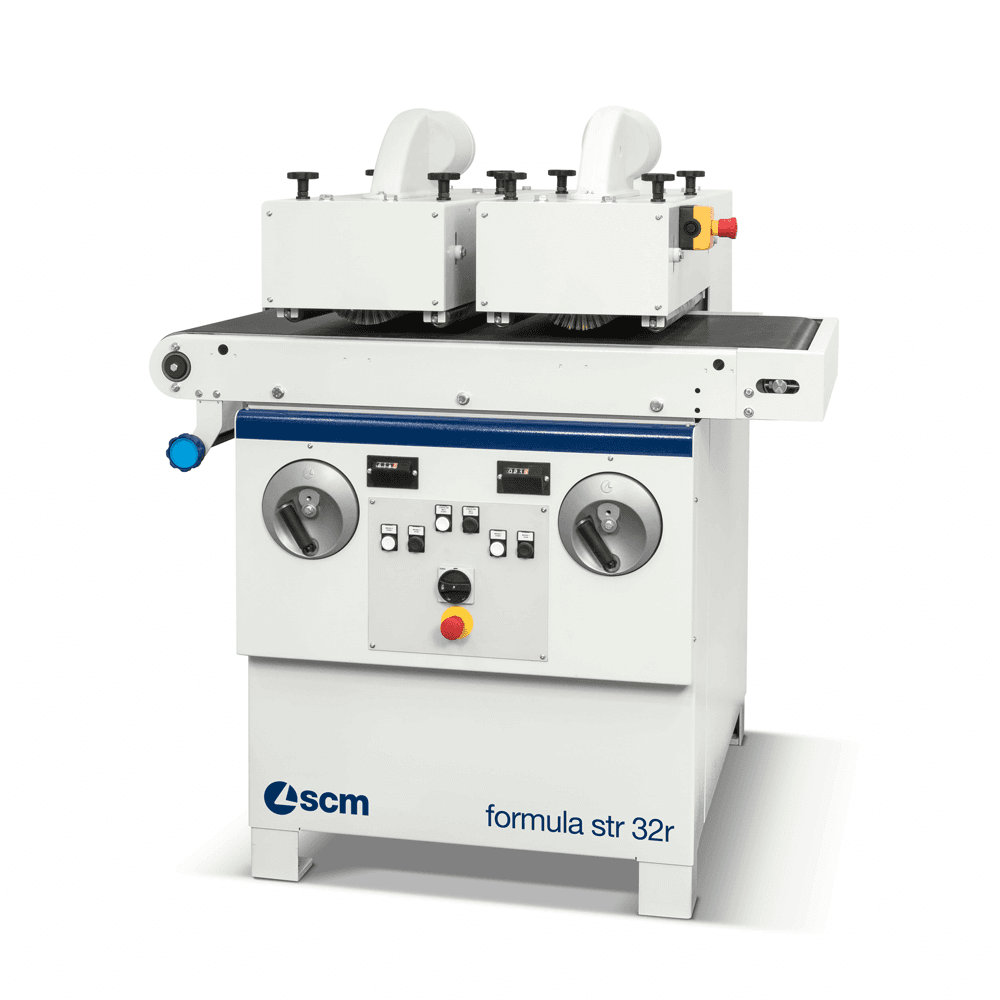

SCM Formula STR 32R 4HP 11-3/5" Fixed Speed Brushing Machine, 3 Phase

The standard formula rustication units/brushing machines are the ideal solution for rustication processing that highlight the hardwood vein or to sand the surfaces of cupboard doors/details in solid wood and veneered or MDF panels.

Advantages:
Perfect Finish:

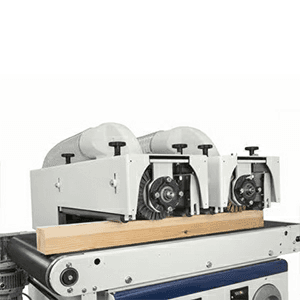

• The double operating unit allows to obtain the request finish in a single passage.

Effective Extraction System:

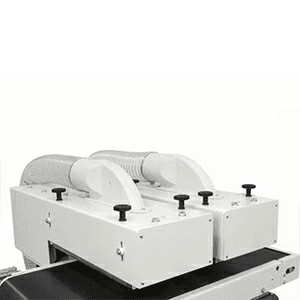

• The large diameter exhaust hoods grants an optimal dust extraction.

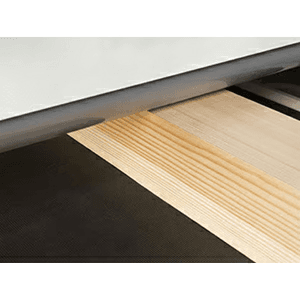

The Best Adherence:
• Thanks to the rubber belt with vertical grooves.

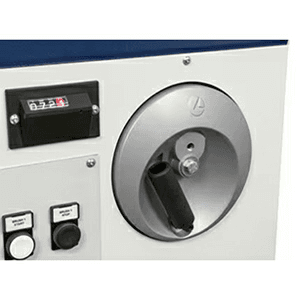

Operating Units Lifting:
• By means of handwheels and numerical readout.

Technical Data:
• Number of Machining Units: 2
• Working Width(mm): 300
• Max. Working Height(mm): 300
• Machining Unit Motor Power @ 50 Hz(kW): 3
• Feed Speed Motor Power @ 50 Hz(kW): 0.22
• Exhaust Outlets Diameter(mm): 2 x 150
• Brushes Speed(rpm): 1500
• Feed Speed(m/min): 3 ÷ 20
• Brush Diameter(mm): 190 / 190
• Net Weigth(kg): 440
• Dimensions (Width x Depth x Height)(mm): 1300 x 900 x 1300
