SCM Startech CN P Falt Table CNC 8 Vertical/6 Horizontal Spindle, 3 Phase
This item may incur additional shipping costs and lead times.
Product Details

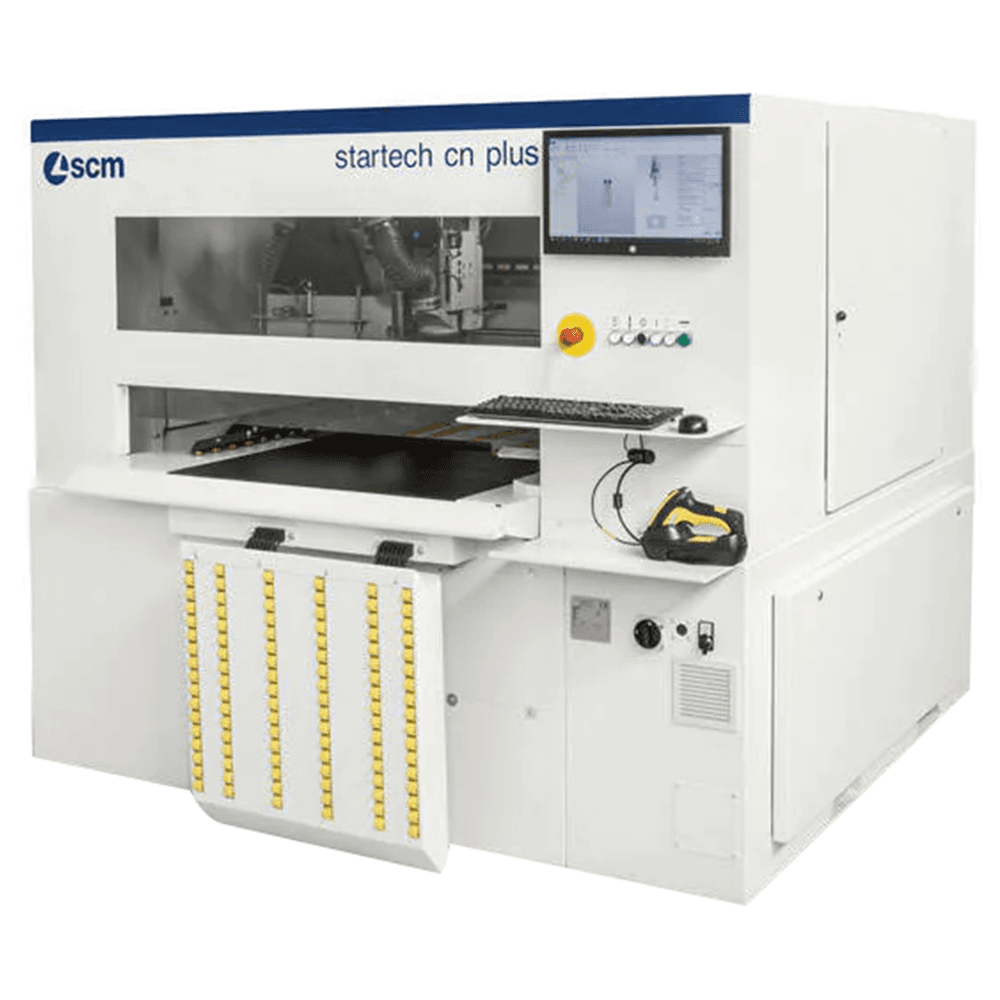

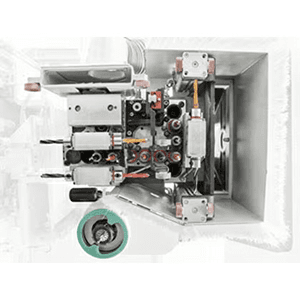

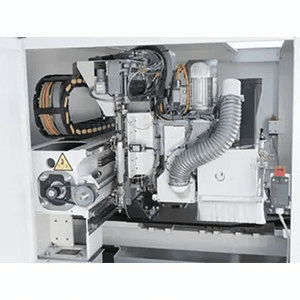

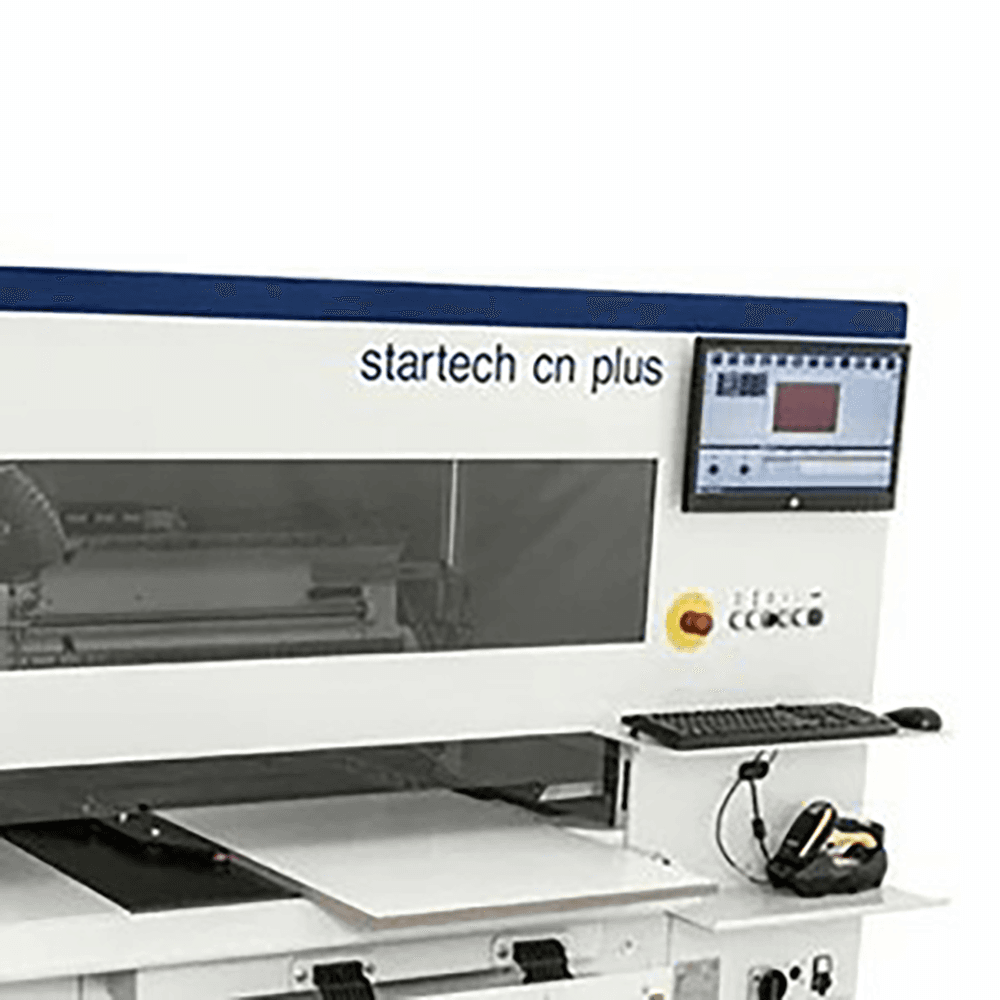

Startech cn plus has been designed for the small-medium woodworking workshops but also for larger companies that produce customised products, with in house prototype development departments. Thanks to the 8 independent vertical spindles, the 6 horizontal spindles, the blade in "X" . There is a machine version with router. Features: • Flexible: No operator′s intervention for the worktable and machine set-up according to the panel dimensions • Performing: Tooling and machining operations reduced to the minimum, with 40 m/min axes speed • Compact: With its 5 m2 overall dimensions, it can be installed in reduced spaces • Simple: Easy-to-use machine and for every investment capability • Automatic side-alignment device (startech cn plus) with pneumatic positioning and managed by the drilling-routing program • Removable side supports to adjust and support long work-pieces • Possibility to import and export the drilling programs, even when created with a CAD/CAM software in the office, through USB key • Drilling Head: With 14 independent spindles (8 vertical spindles and 6 horizontal spindles), integrated blade in X direction and possibility to add an optional routing group (startech cn plus) with 5,5 kW motor power • Drilling from the Top: The drilling head positioned above the panel allows an accurate machining which can be verified in the cabinet assembly phase: the system uses the outside of the panel (in sight) as a reference and thus any differences in thickness are always on the inside of the cabinet (non in sight). Furthermore, the positioning of the drilling head upper the working chips and dust grants a better cleaning and a reduced maintenance
Advantages:
Effective: • The operating unit above the panel allows a very precise and cleaned working. Furthermore any panel thickness imperfection is hidden inside the furniture (part not in sight)
Maximum Versatility: • The machine version with routing unit with electrospindle 5.5 kW motor power is suitable for all machining
Totally Automatic: • Thanks to the automatic side alignment device the panel is loaded, into the machine and recovered at the end of the boring-milling program, without any other intervention required by the operator
A "Maestro" at Your Disposal: • 19" PC with integrated software. The SCM "Maestro cnc" software allows to create projects and geometrical drawings to be automatically converted in drilling-routing programs for the machine
Technical Data: • Max./Min. Panel Dimensions In X-Y-Z (mm): 3050X900X60/200X80X10 • Drilling/Grooving Working Area(m/min): 40/40/10 • Vertical Spindles(No.): 8 (5X-3Y) • Horizontal Spindles(No.): 6 (2+2X-2Y) • Blade, Diameter/Thicknesser(mm): 125/6 • Spindles/Blade Rotating Speed(g/min): 4200/5500 • Electrospindle Rotating Speed(g/min): 18.000 • Power(kva): 15,2 (20,7 With Electrospindle)
Specifications
| Box Quantity | 1 |
| Product Type | Shapers |
| Power | |
| Phase | 3 |
| Length | |
| Width | |
| Height | |
| Horsepower | |
| Rangeof Speeds | |
| Electrical Controls | |
| Table Inserts (In.) | |
| Reversible | |
| Spindle Size Under Nut (In.) | |
| Recommended Circuit Size (Amps.) | |
| Table Travel (In.) | |
| Maximum Diameter Cutter Above Table (In.) | |
| Wiring Remarks | |
| Table Opening | |
| Maximum Diameter Cutter Below Table (In.) | |
| Motor Phase | |
| Router Bit Collet Included | |
| Dust Collection Minimum CFM Required (CFM) | |
| Fence Travel (Major and Minor) (In.) | |
| Spindle Stroke | |
| Motor Voltage (V.) | |
| Table Size (In.) | |
| Fence Size (L x H) (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Maximum Spindle Diameter (In.) | |
| Style (Type) | |
| Spindle Pivot | |
| Spindle Travel (In.) | |
| Digital Readouts | |
| Prewired Voltage (V.) | |
| Table T-Slot (In.) | |
| Spindles Included | |
| Sliding Table Size (In.) | |
| Motor Power | |
| Table Insert Opening Diameter (In.) | |
| Table Height from Floor (In.) | |
| Warranty | |
| Control | |
| Control Panel | |
| Rotational Speeds | |
| Display Resolution | |
| Repeat Accuracy | |
| Extraction Connections | |
| Drive Motor | |
| Range of Speeds |
