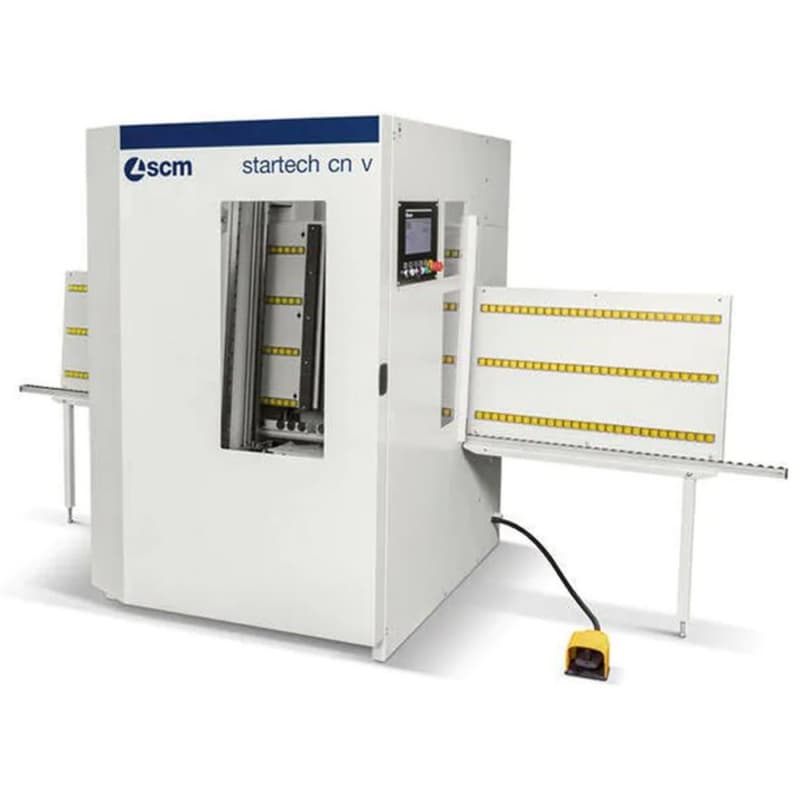

SCM Startech CN V Vertical CNC 8 Vertical/6 Horizontal Spindle, 3 Phase
This item may incur additional shipping costs and lead times.
Product Details

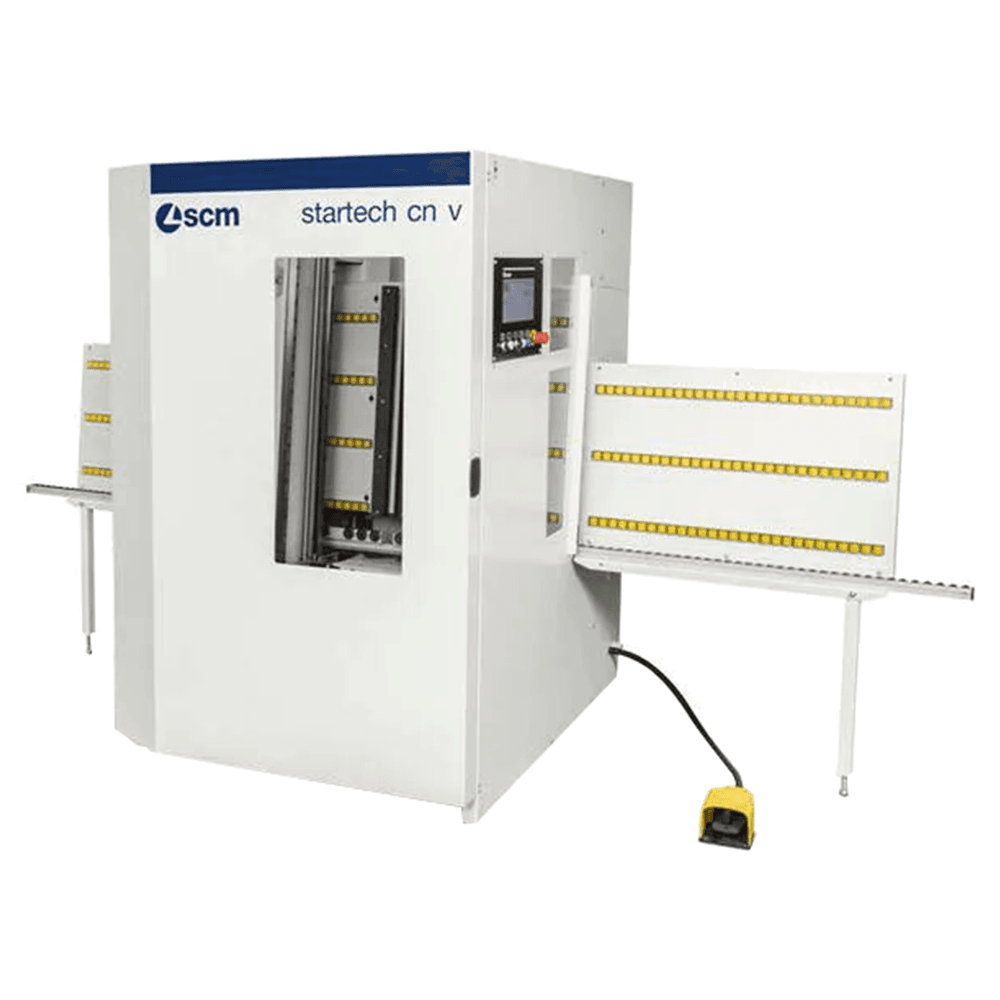

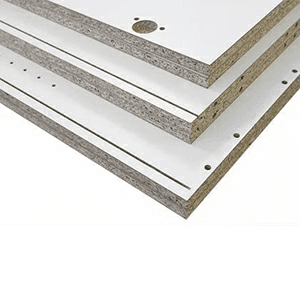

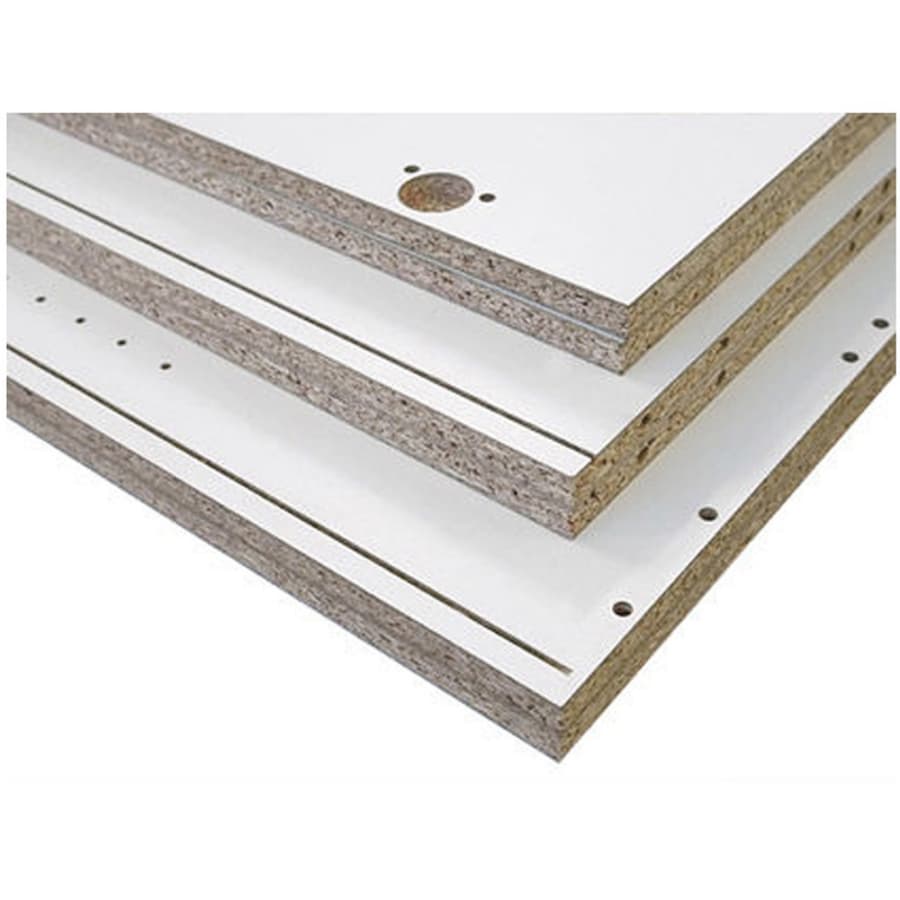

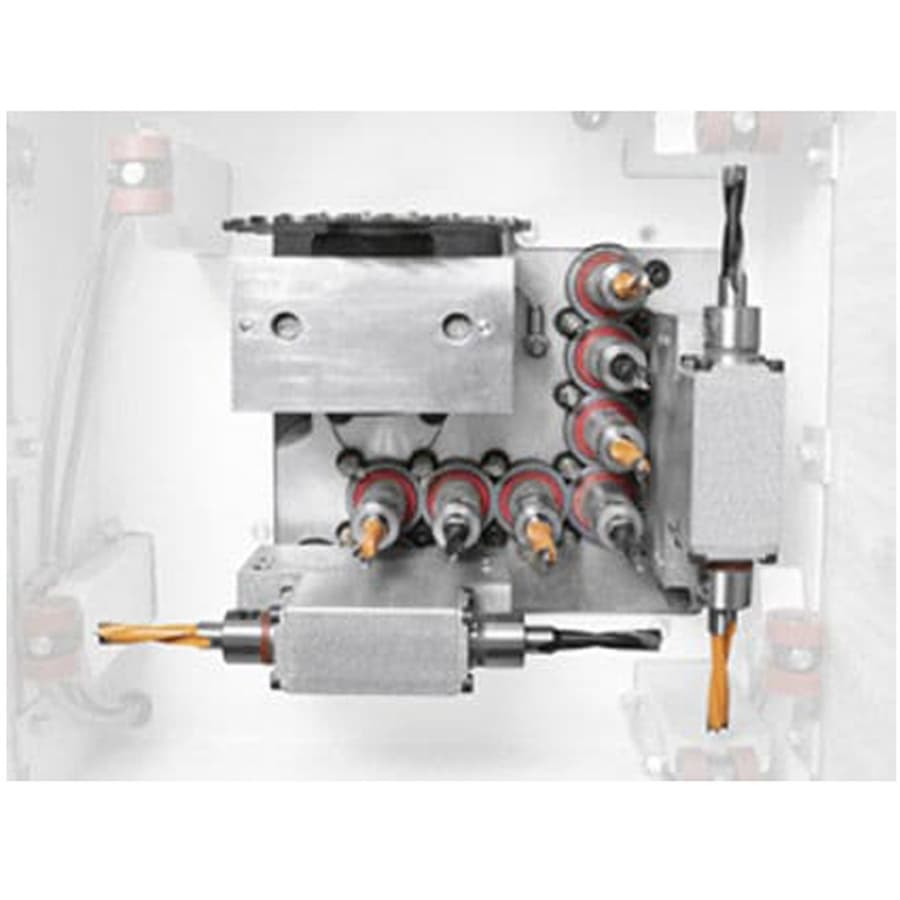

Startech cn v is the new CNC drilling machine with fixed work table and mobile workpiece. Features: • Vertical drilling on the panel surface • Horizontal drilling on all four sides • grooving with integrated disc cutter along "X" axis • Flexible: Automatic machine with simple and intuitive interface for a fast programming • Performing: Tooling and machining operations reduced to the minimum, with 20 m/min axes speed • Compact: With its 5,5 m2 overall dimensions, it does not require wide spaces • Unmissable: For every investment capability with unbeatable price/performance ratio • Drilling Head: With 11 independent spindles and integrated blade in X direction • Numerical Control: NC 10" colour touch-screen display and self-diagnosis and signalling system of errors or damages. Head tooling and machining cycle programming without using any mouse or keyboard and with automatic optimization
Advantages:

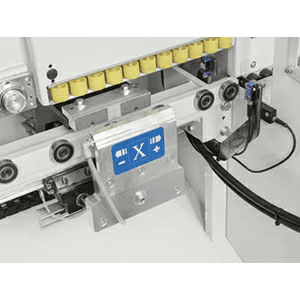

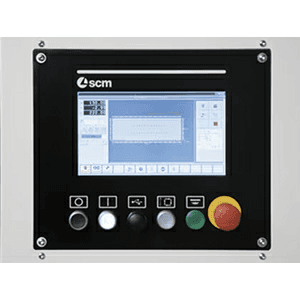

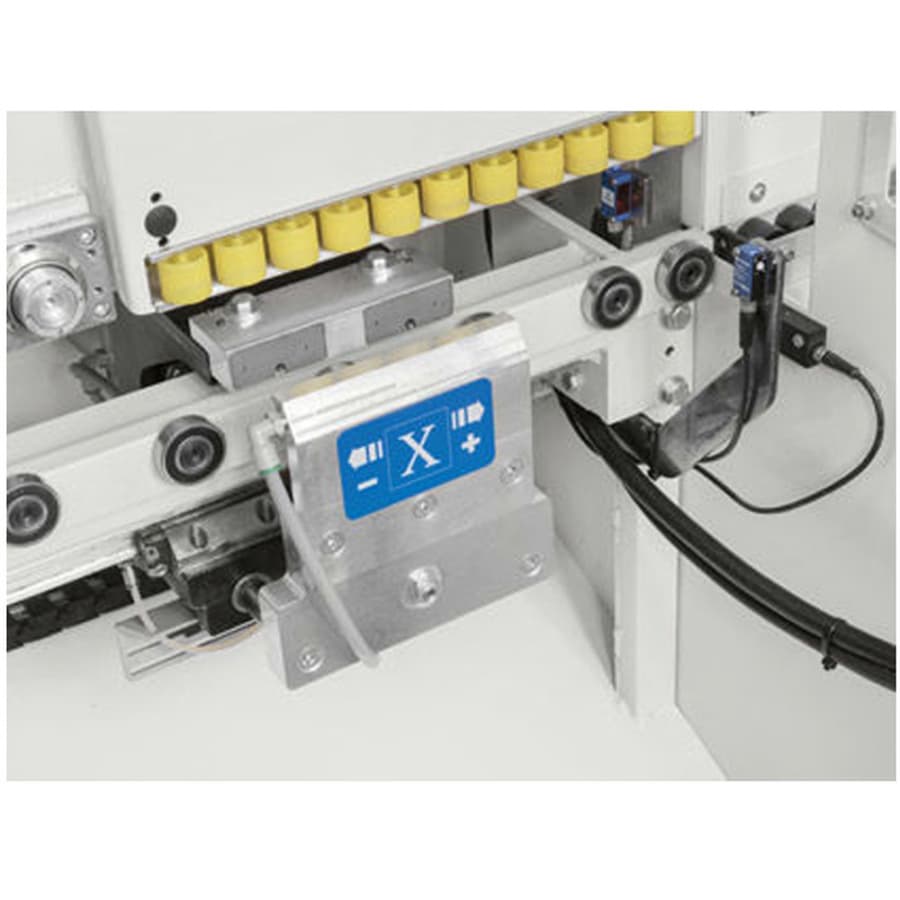

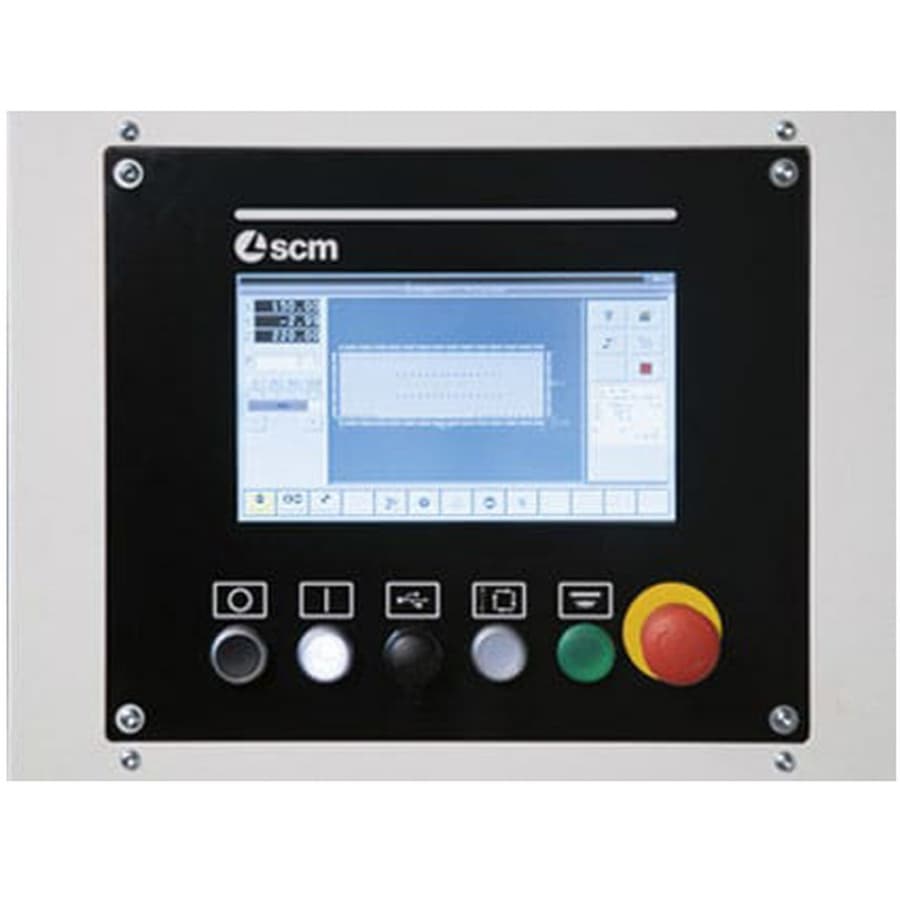

Effective: • The operating head above the panel allows a very precise processing and an reference always certain Precise: • Work piece stability and high working quality guaranteed by the mobile clamp with floating opening Versatile: • Thanks to the 7 independent vertical spindles, the 4 horizontal spindles (1 +1 X and 1 + 1 Y) and the blade in X, elements of finished furniture can be produced without having to reposition the bits and with no operator’s intervention for the work table set up and machine when varying dimensions and panels Ease of Use: • With the 10" control with touch-screen function. Possibility to import drilling programs from SCM Maestro software

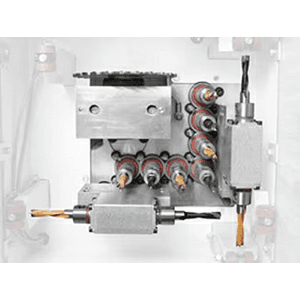

Technical Data: • Max. Panel Dimensions X-Y-Z(mm): 3000 x 900 x 50 • Min. Panel Dimensions X-Y-Z(mm): 300 x 90 x 10 • Max Speed X-Y Axes: 20 Drilling Head: • Spindles (X Axis)(n.): 2 (1+1) • Spindles (Y Axis)(n.):2 (1+1) • Spindles (Z Axis)(n.): 7 (4X-4Y di cui uno in comune) • Lama Integrata Fissa, Con Taglio in Direzione: X • Blade Diameter(mm): 125 • Blade Thickness(mm): 6 • Motor Power(kW): 2,2 • Spindles Rotating Speed(giri/min): 4460 • Blade Rotation Speed(giri/min): 5700
Specifications
| Box Quantity | 1 |
| Product Type | Shapers |
| Power | |
| Phase | 3 |
| Length | |
| Width | |
| Height | |
| Horsepower | |
| Rangeof Speeds | |
| Electrical Controls | |
| Table Inserts (In.) | |
| Reversible | |
| Spindle Size Under Nut (In.) | |
| Recommended Circuit Size (Amps.) | |
| Table Travel (In.) | |
| Maximum Diameter Cutter Above Table (In.) | |
| Wiring Remarks | |
| Table Opening | |
| Maximum Diameter Cutter Below Table (In.) | |
| Motor Phase | |
| Router Bit Collet Included | |
| Dust Collection Minimum CFM Required (CFM) | |
| Fence Travel (Major and Minor) (In.) | |
| Spindle Stroke | |
| Motor Voltage (V.) | |
| Table Size (In.) | |
| Fence Size (L x H) (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Maximum Spindle Diameter (In.) | |
| Style (Type) | |
| Spindle Pivot | |
| Spindle Travel (In.) | |
| Digital Readouts | |
| Prewired Voltage (V.) | |
| Table T-Slot (In.) | |
| Spindles Included | |
| Sliding Table Size (In.) | |
| Motor Power | |
| Table Insert Opening Diameter (In.) | |
| Table Height from Floor (In.) | |
| Warranty | |
| Control | |
| Control Panel | |
| Rotational Speeds | |
| Display Resolution | |
| Repeat Accuracy | |
| Extraction Connections | |
| Drive Motor | |
| Range of Speeds |
