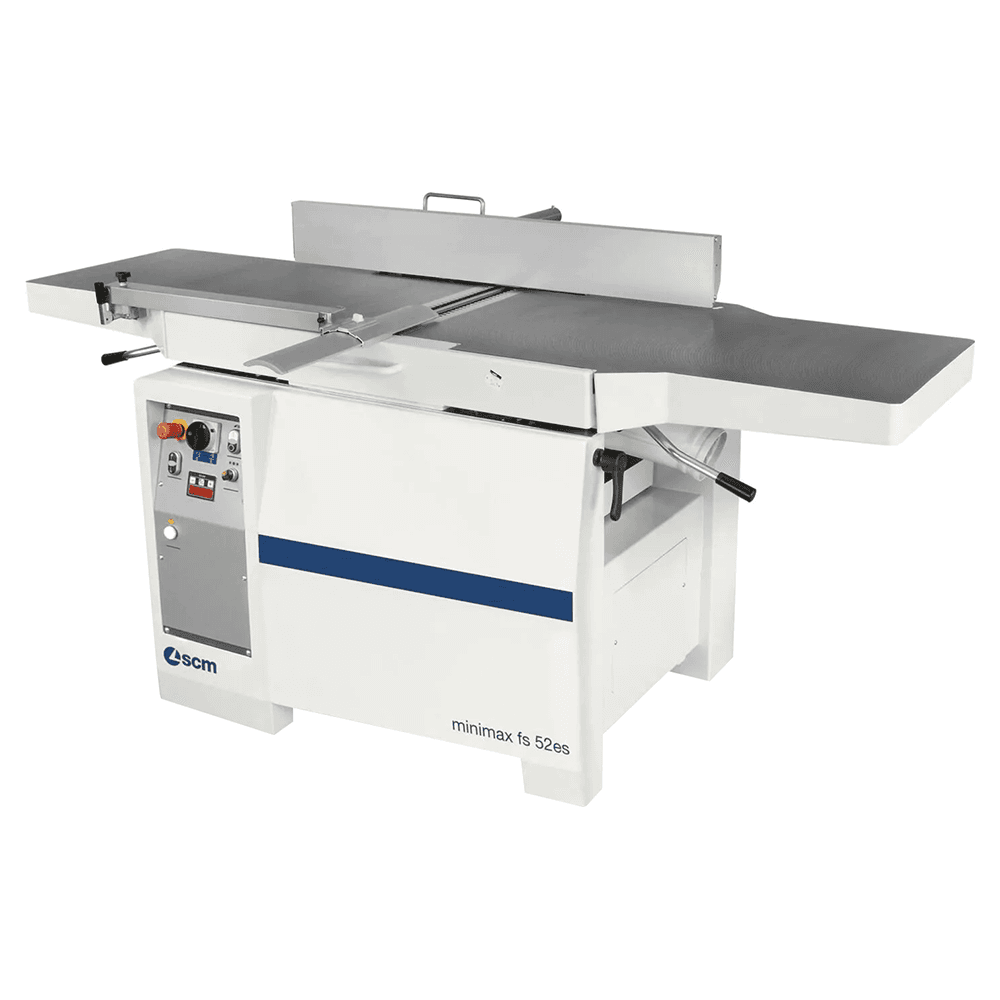

SCM Minimax FS 52ES - X Combined Planer-Thicknesser with Xylent Cutterblock, 1 Phase
This item may incur additional shipping costs and lead times.
Product Details
Surfacing-thicknessing machine, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry. Discover the "Xylent" cutterhead, available for this machine.

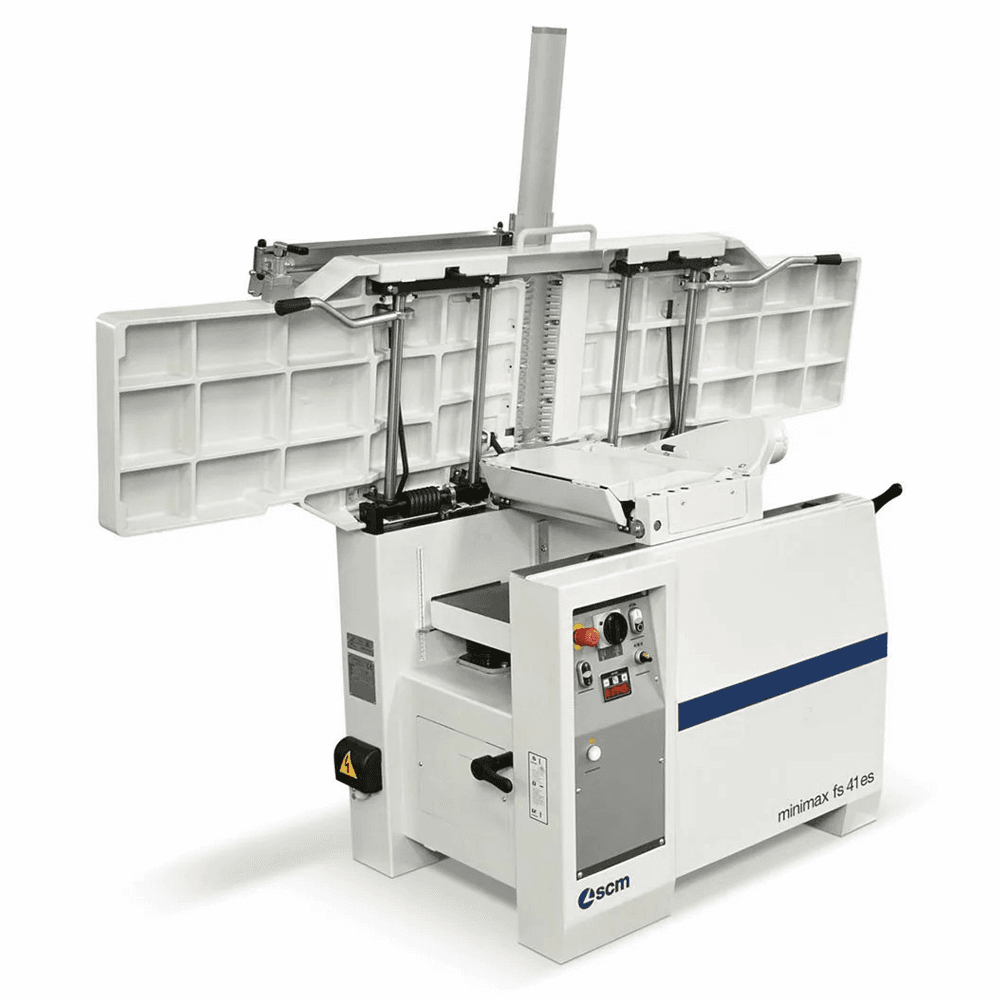

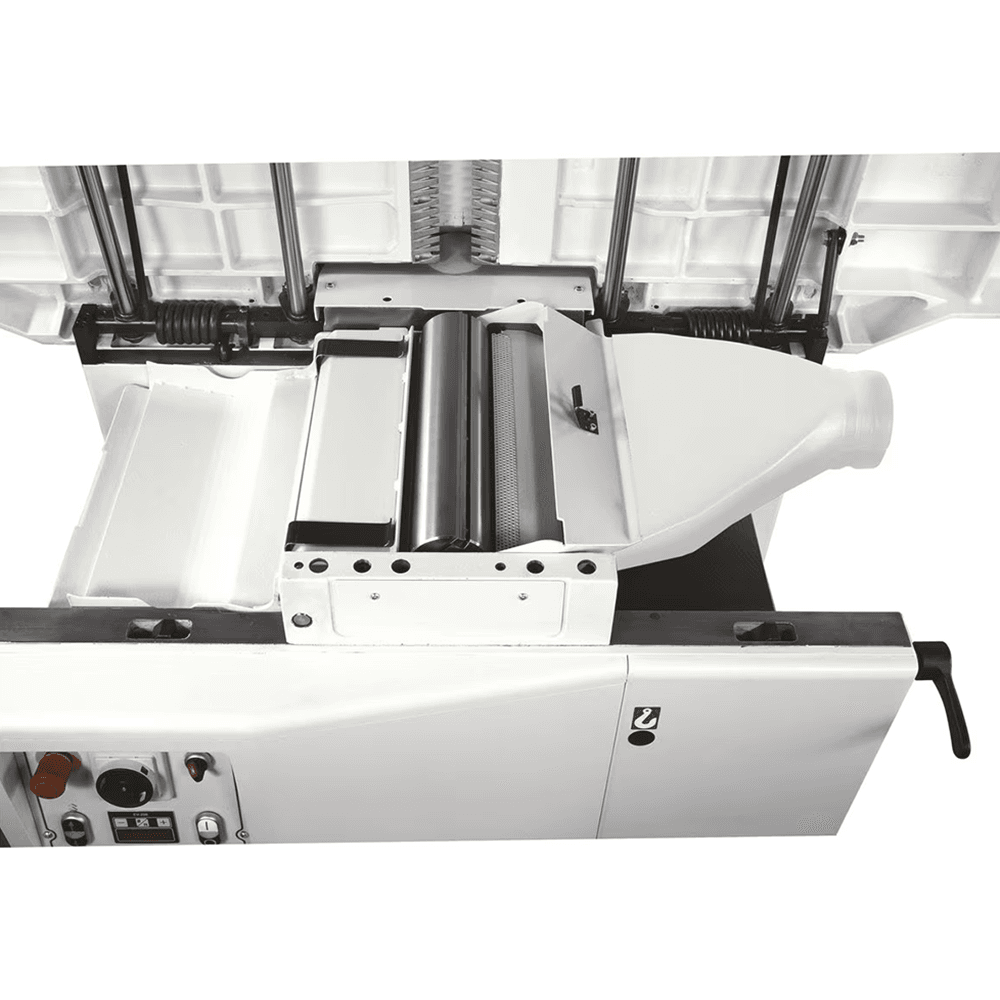

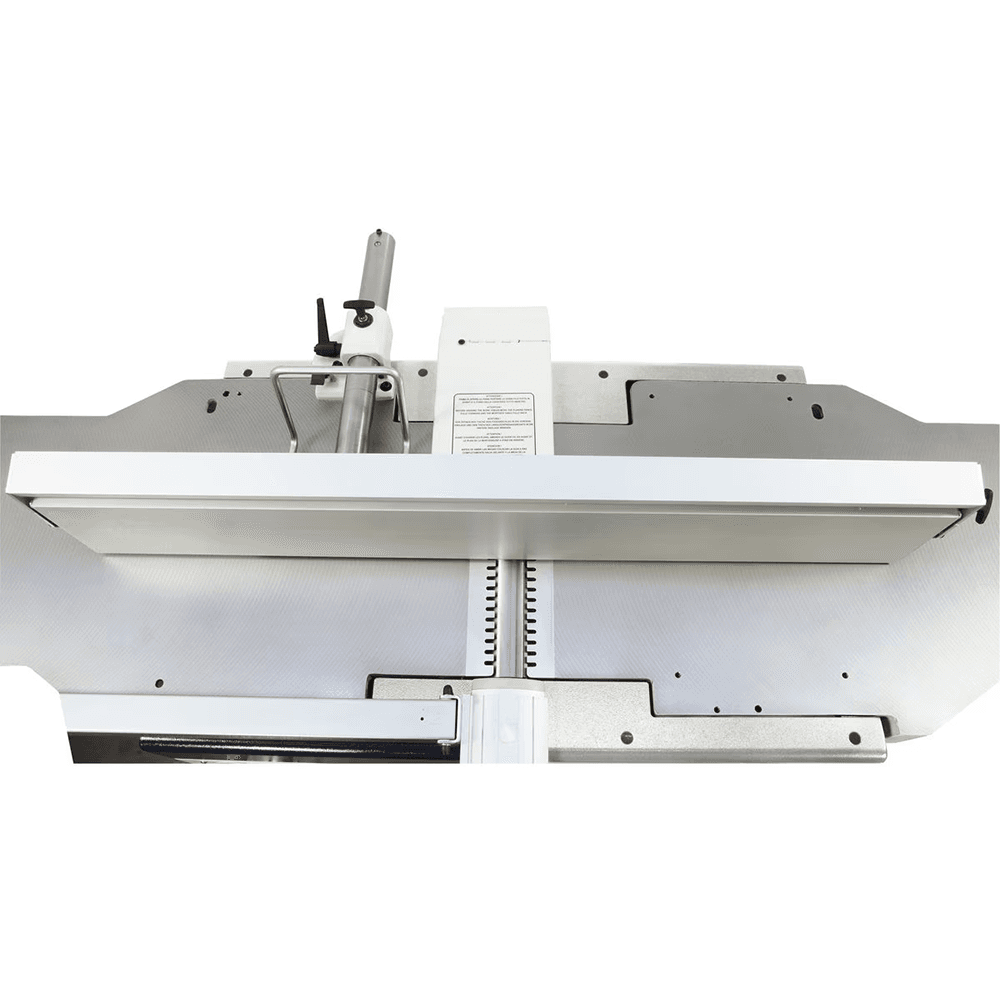

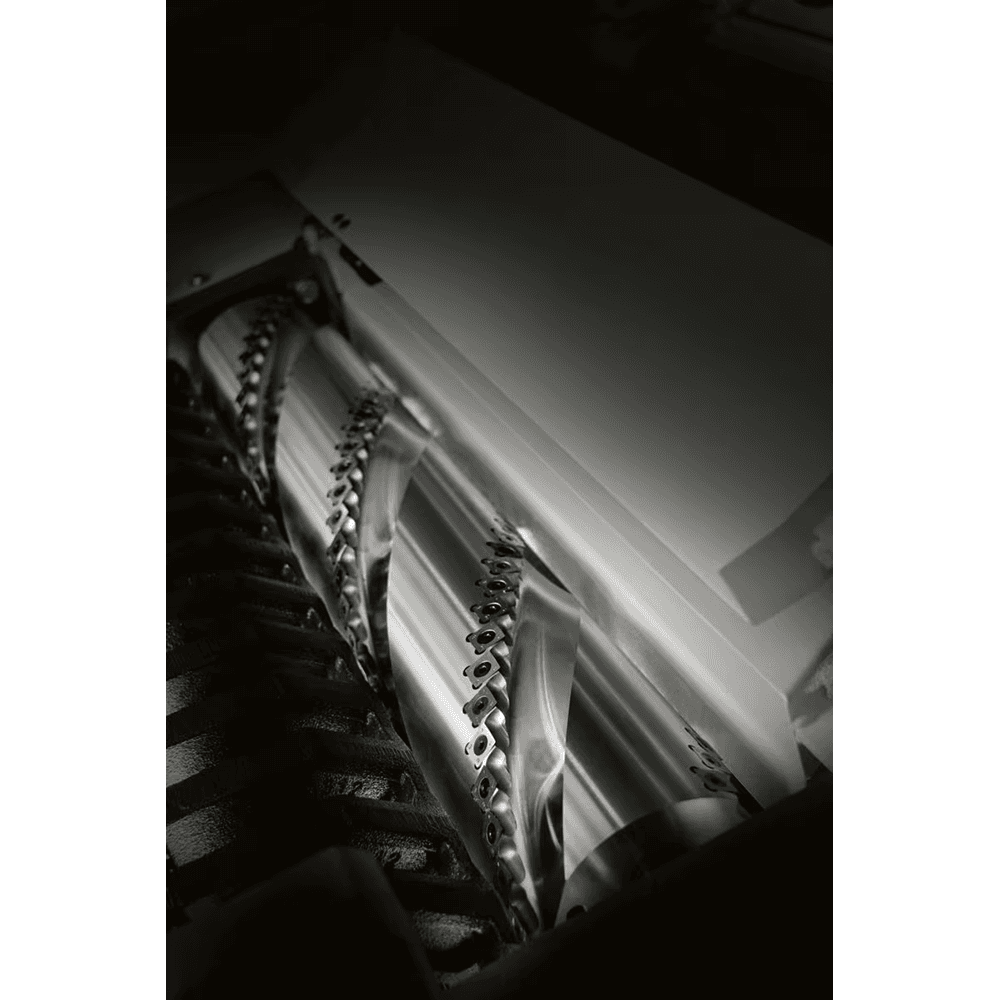

Advantages: Perfect Finish: • An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing Stability Over Time: • Comfortable and precise planing. The Elite S series adopt ergonomic solutions like the 2200 mm surfacing tables, in ribbed cast iron, with simultaneous opening towards the inside of the machine with a 90° angle. For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threads dust protected. High Rigidity: • High rigid fence with a smooth movement thanks to the central locking on round bar. "Xylent" Spiralknife Cutter Block with 3 Series of Knives: • The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Technical Data: • Working Width(mm): 520 • Cutterblock Diameter/No. of Standard Knives(mm): 120/4 • Dimension of Standard Knives(mm): 520 x 30 x 3 • Max. Stock Removal(mm): 5 • Surfacing Tables Total Length(mm): 2250 • Thicknessing Table Dimensions(mm): 520 x 775 • Feed Speed On Thicknesser(m/min): 5/8/12/18 • Min. ÷ Max. Working Height On Thicknesser(mm): 3 ÷ 240 • Three-Phase Motors Starting From(kW/Hz): 7 (9)/50 (60)
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | |
| Phase | 1 |
| Length | |
| Horsepower | |
| Drive Motor | |
| Product Type | Jointers |
| Voltage | |
| Width | |
| Rabbeting Capacity (In.) | |
| Table Size (L x W) (In.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | |
| Number of Knives | |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
