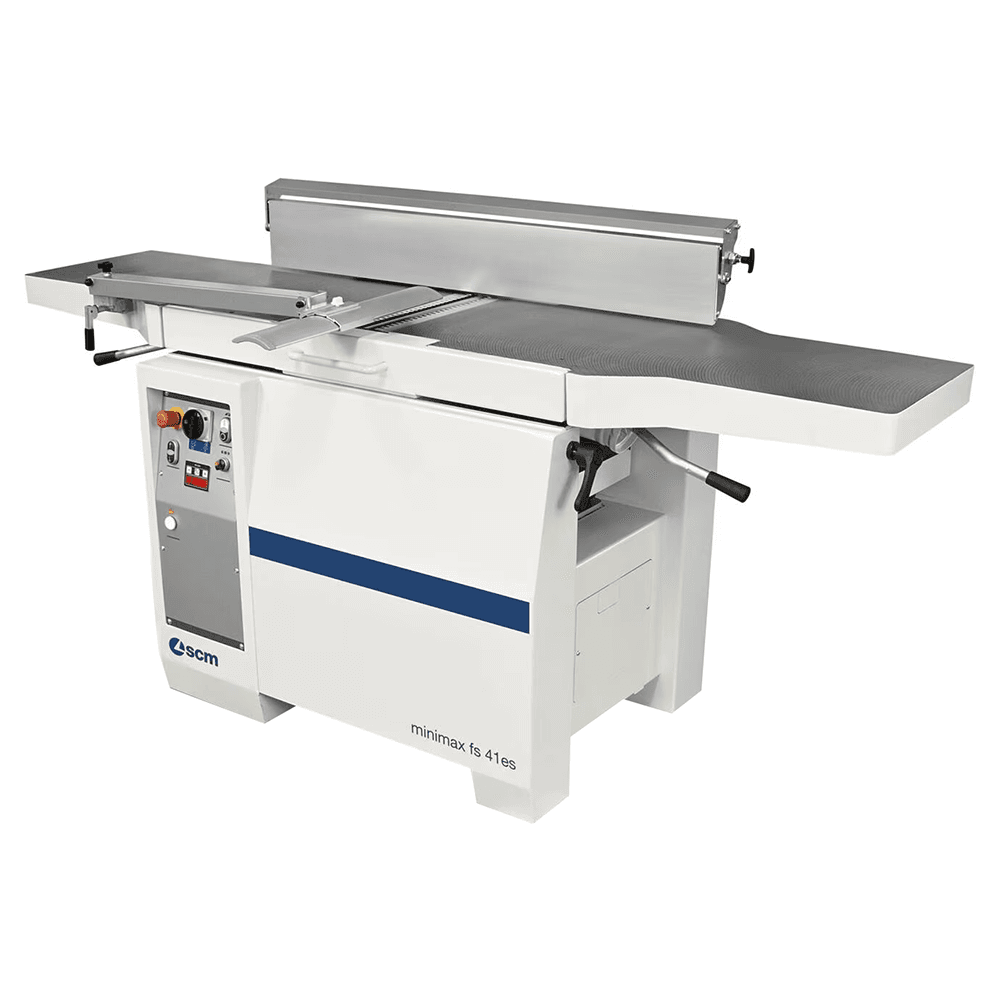

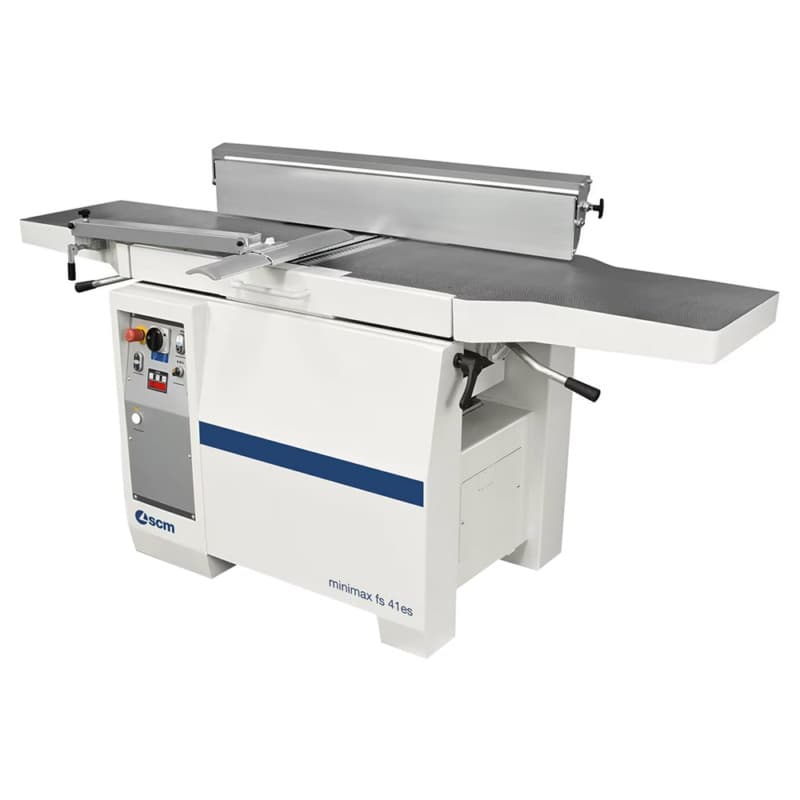

SCM Minimax FS 41ES - X Combined Planer-Thicknesser with Xylent Cutterblock, 3 Phase
This item may incur additional shipping costs and lead times.
Product Details
Surfacing-thicknessing machine, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry. Discover the "Xylent" cutterhead, available for this machine.

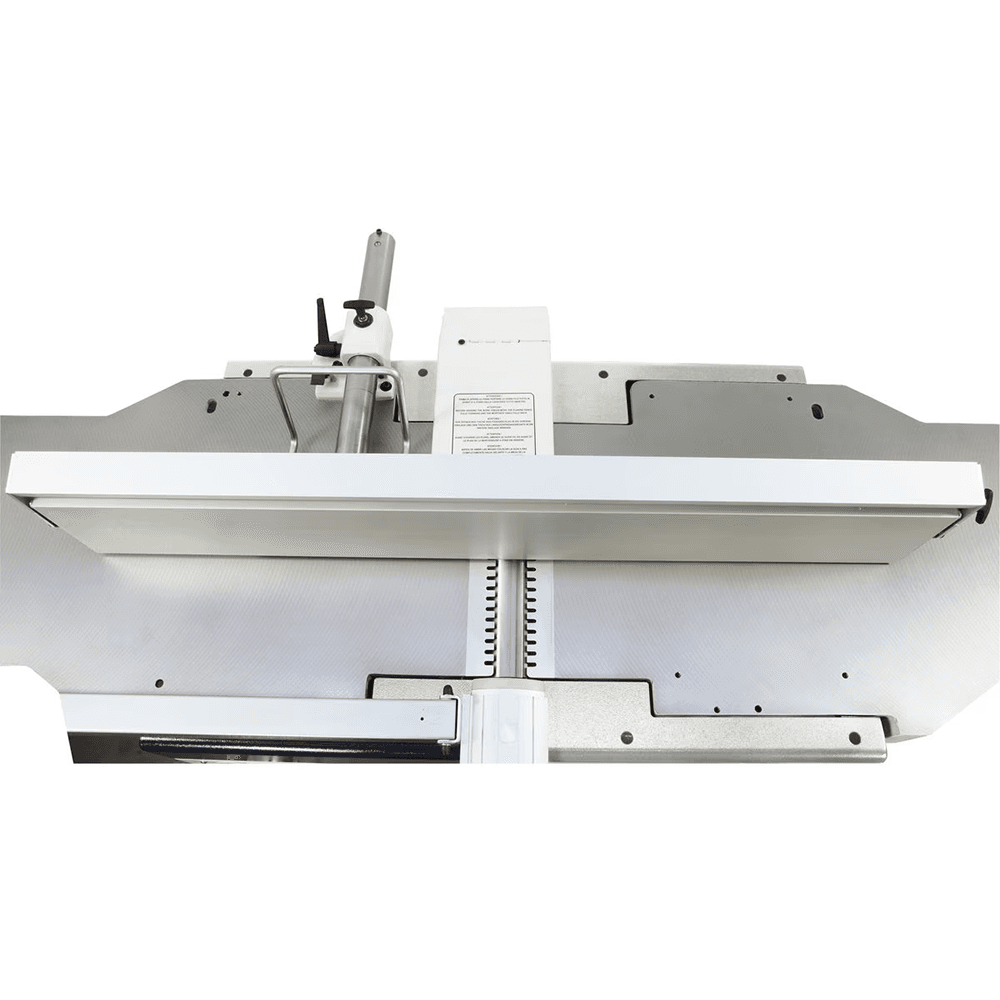

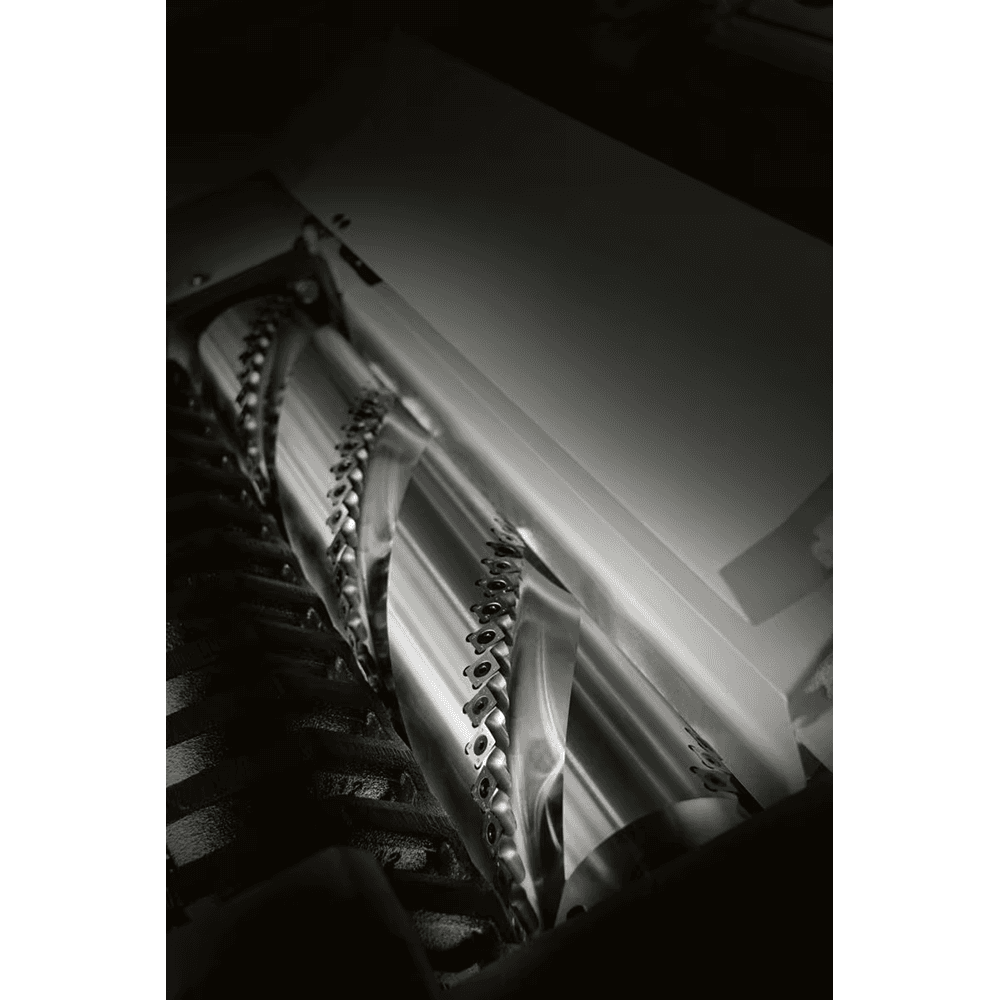

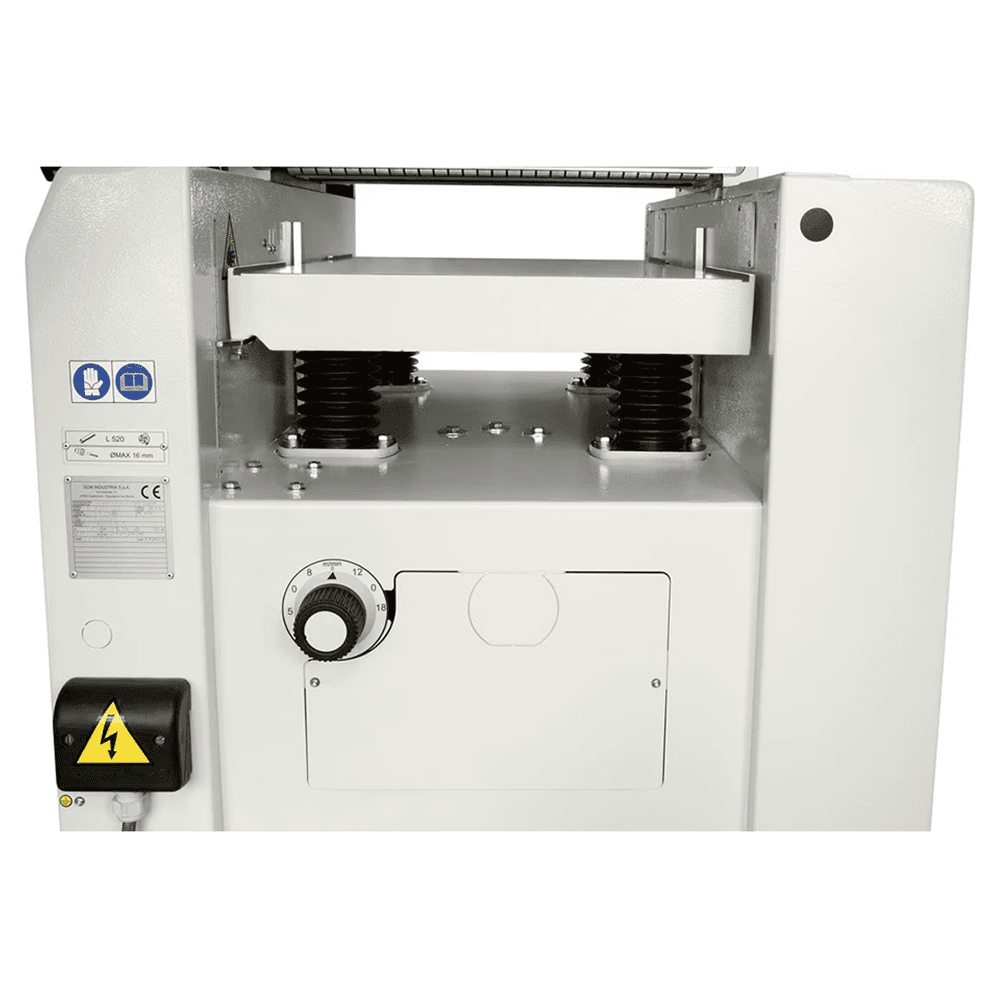

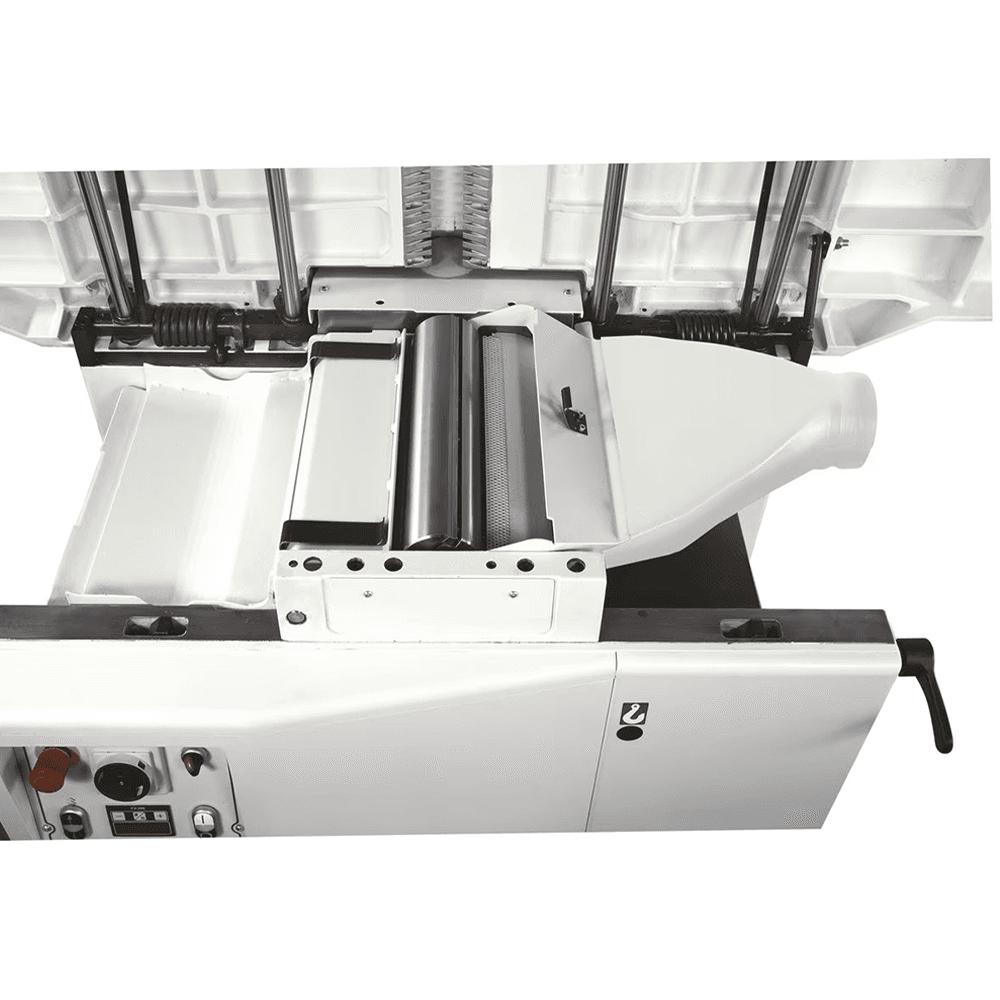

Advantages: Perfect Finish: • An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing. Stability Over Time: • For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected. High Rigidity: • High rigid fence with a smooth movement thanks to the central locking on round bar. "Xylent" Spiralknife Cutter Block with 3 Series of Knives: • The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement. Technical Data: • Cutterhead Working Width(mm /inches): 410/16 • With XYLENT Spiral helical Cutterhead: • Cutterblock Diameter/No° of Standard Knives Dimension Of Standard Knives(mm/N°,mm): 95/66, 15 x 15 x 2.5 • Max. Stock Removal(mm): 5 • Jointer Table Length(mm/inches): 2200/86.6 • Planer Table Dimensions(mm/inches): 410 x 775/16 x 30.5 • Planer Feed Speeds(m/min): 6/12 • Min. - Max. Planer Working Height(mm): 3 - 240/0.12 - 9.5 • Three-Phase Motor(Hp): 8 • Fence Tilt(Degrees): 0 - 45
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | |
| Phase | 3 |
| Length | |
| Horsepower | |
| Drive Motor | |
| Product Type | Jointers |
| Voltage | |
| Width | |
| Rabbeting Capacity (In.) | |
| Table Size (L x W) (In.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | |
| Number of Knives | |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | |
| Motor Current (amps) | |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
