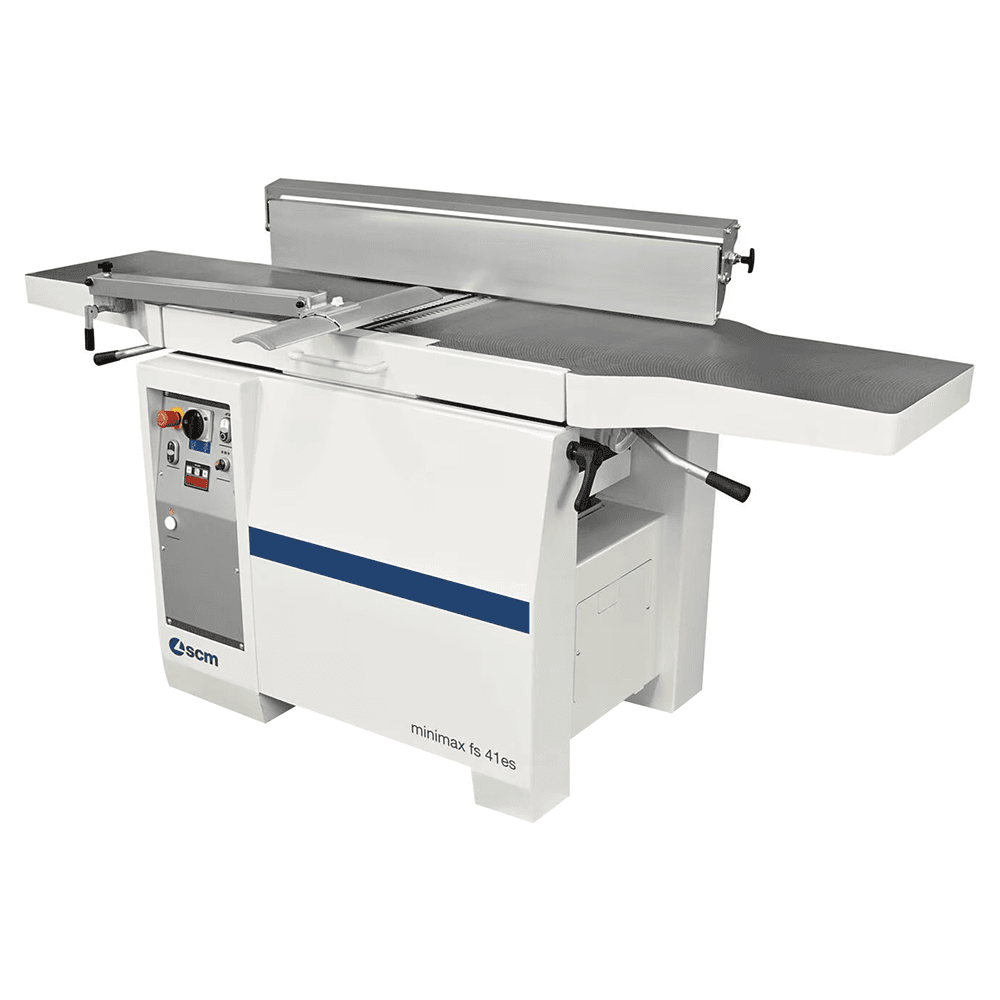

SCM Minimax FS 41ES - X Combined Planer-Thicknesser with Tersa Cutterblock, 1 Phase

Surfacing-thicknessing machine, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry. Discover the "TERSA" cutterhead, available for this machine.

Advantages:
Perfect Finish:

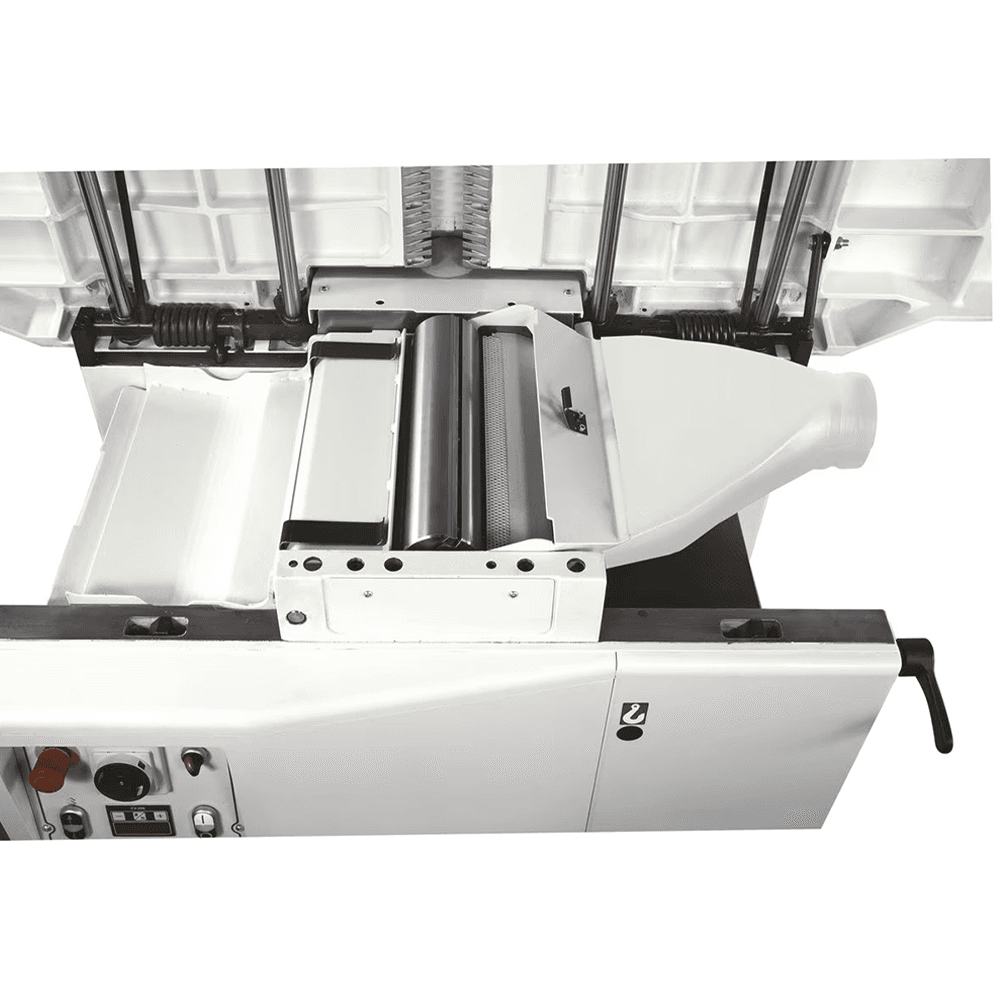

• An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.

Stability Over Time:

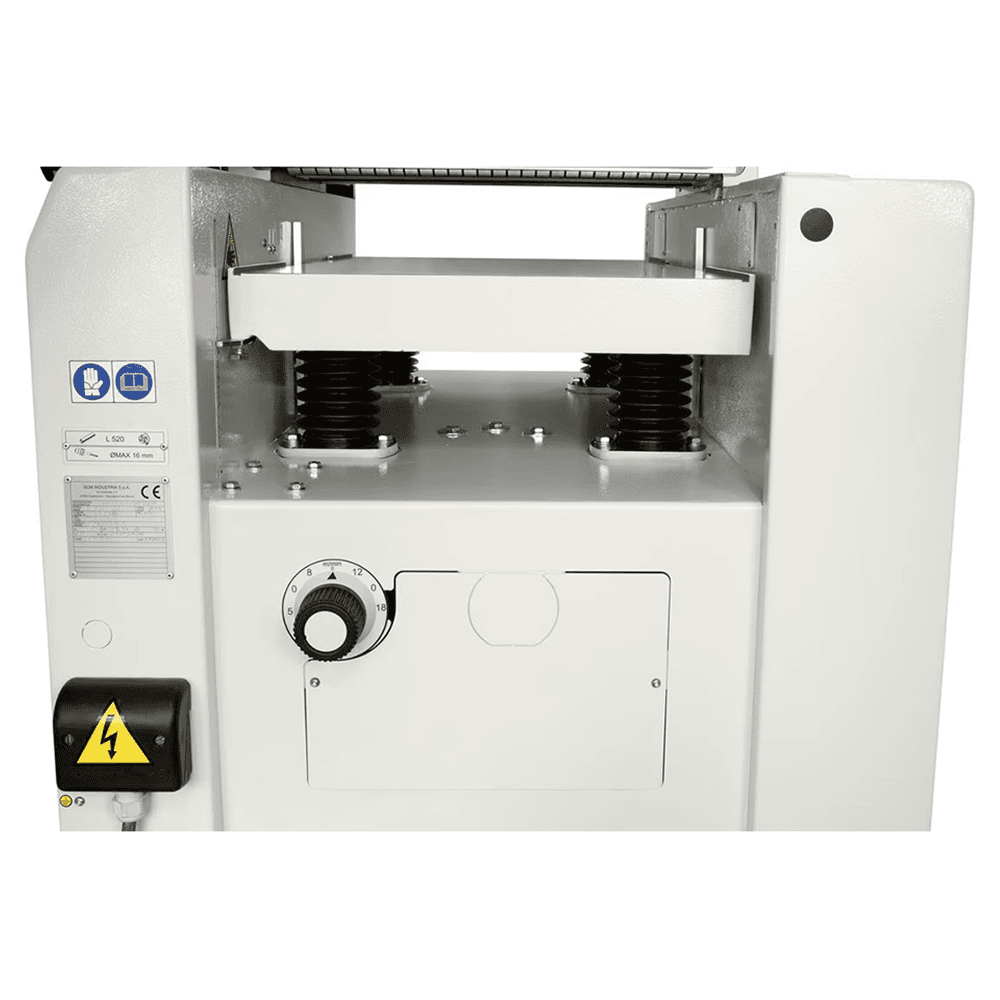

• For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.

High Rigidity:

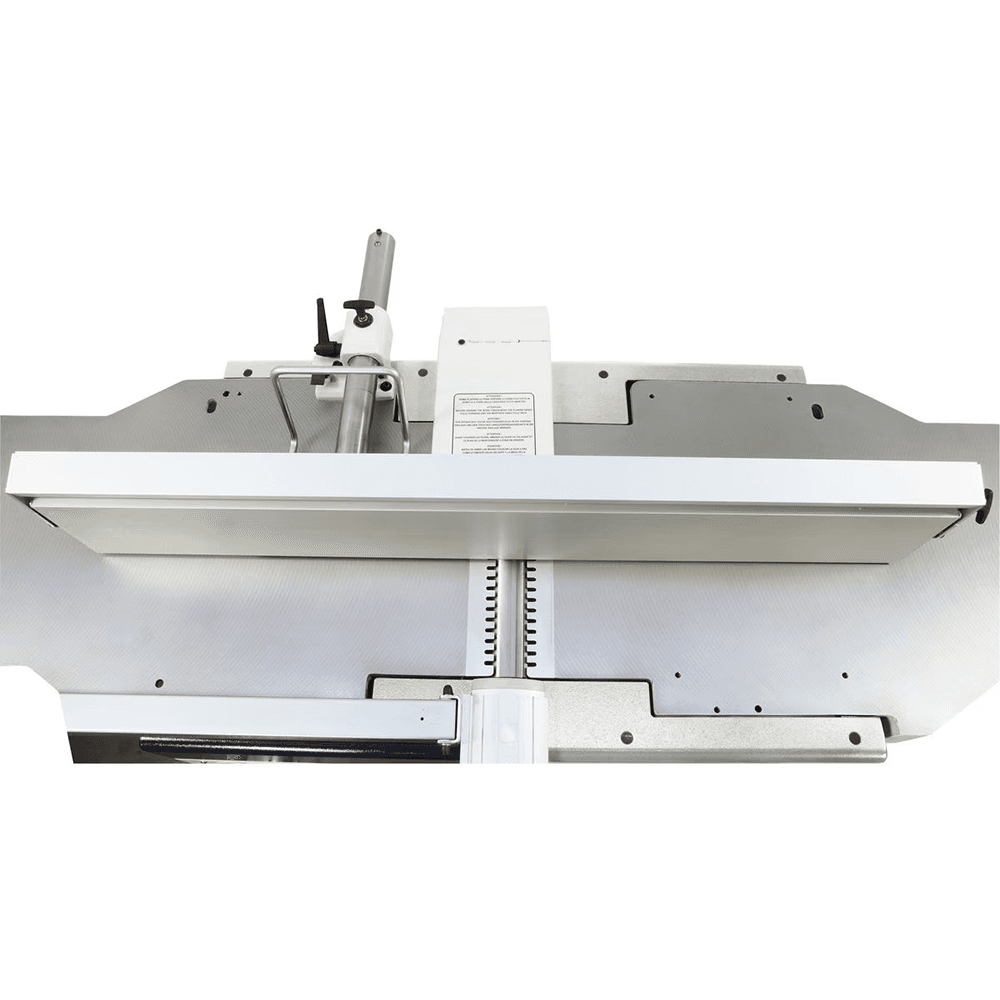

• High rigid fence with a smooth movement thanks to the central locking on round bar.

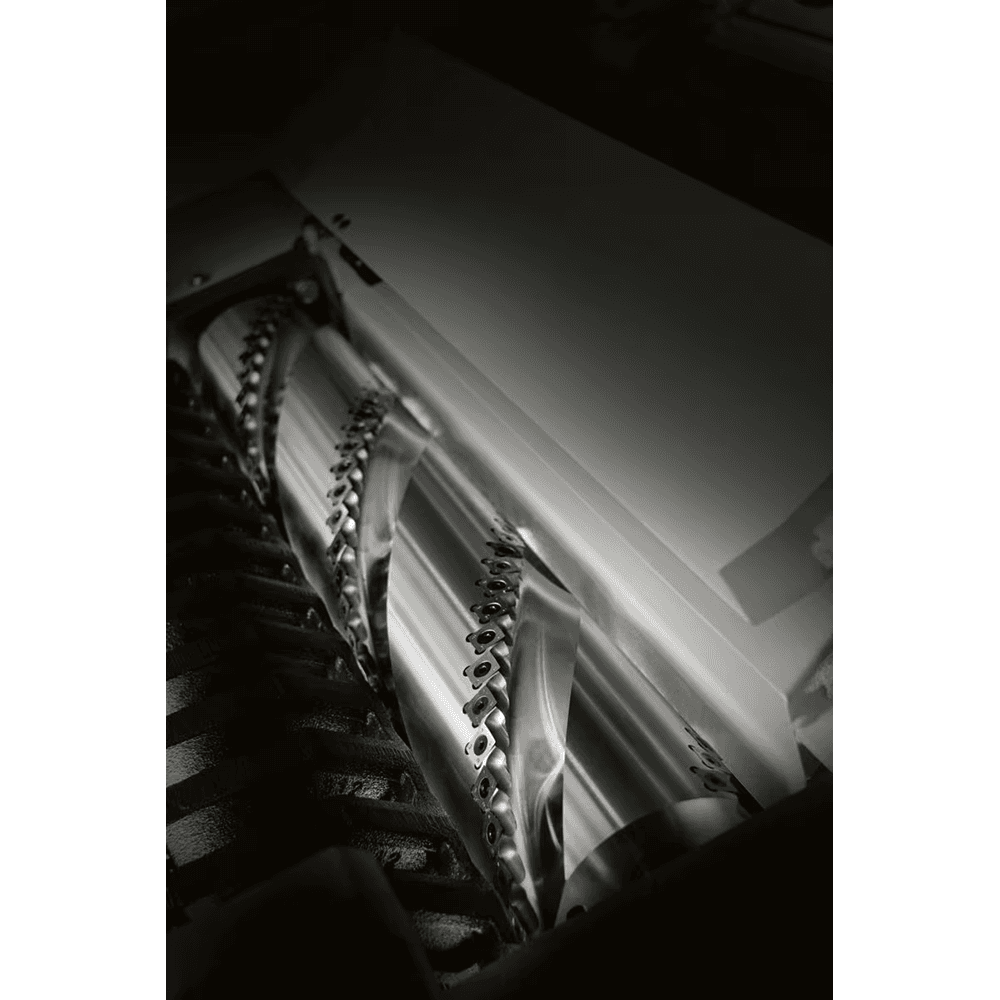

"Xylent" Spiralknife Cutter Block with 3 Series of Knives:
• The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Technical Data:
• Cutterhead Working Width(mm /inches): 410/16
• With TERSA Straight-knife Cutterhead:
• Cutterblock Diameter/No° of Standard Knives Dimension Of Standard Knives(mm/N°,mm): 95/4, 410 x 30 x 3
• Max. Stock Removal(mm): 5
• Jointer Table Length(mm/inches): 2200/86.6
• Planer Table Dimensions(mm/inches): 410 x 775/16 x 30.5
• Planer Feed Speeds(m/min): 6/12
• Min. - Max. Planer Working Height(mm): 3 - 240/0.12 - 9.5
• Three-Phase Motor(Hp): 8
• Fence Tilt(Degrees): 0 - 45
