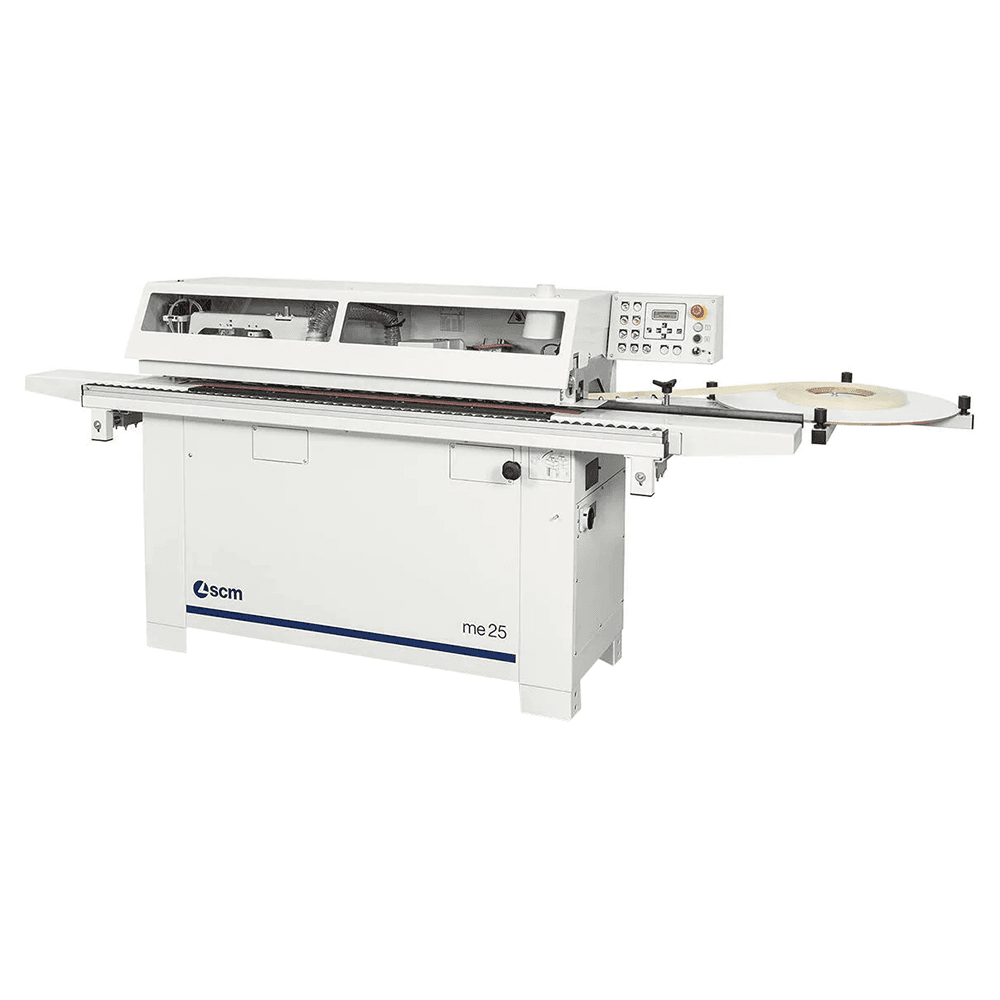

SCM ME 25 Minimax 3mm Tooling Edgebander with Single-Blade End Trim Unit, 3 Phase
This item may incur additional shipping costs and lead times.
Product Details
Automatic edge bander with glue pot to edge band, with great flexibility, with melaminic edges, PVC and ABS up to 3mm and wooden strips up to 5 mm. Machine for professional craftsmen and joineries.

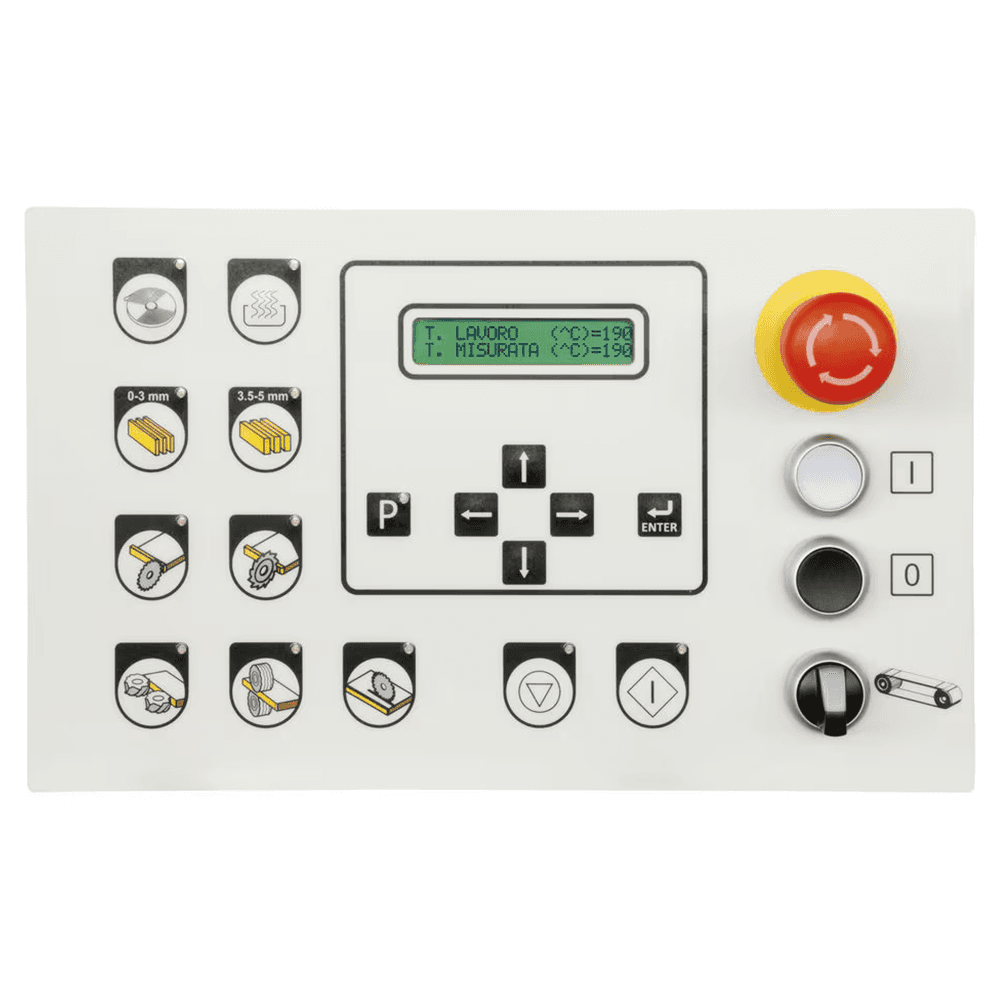

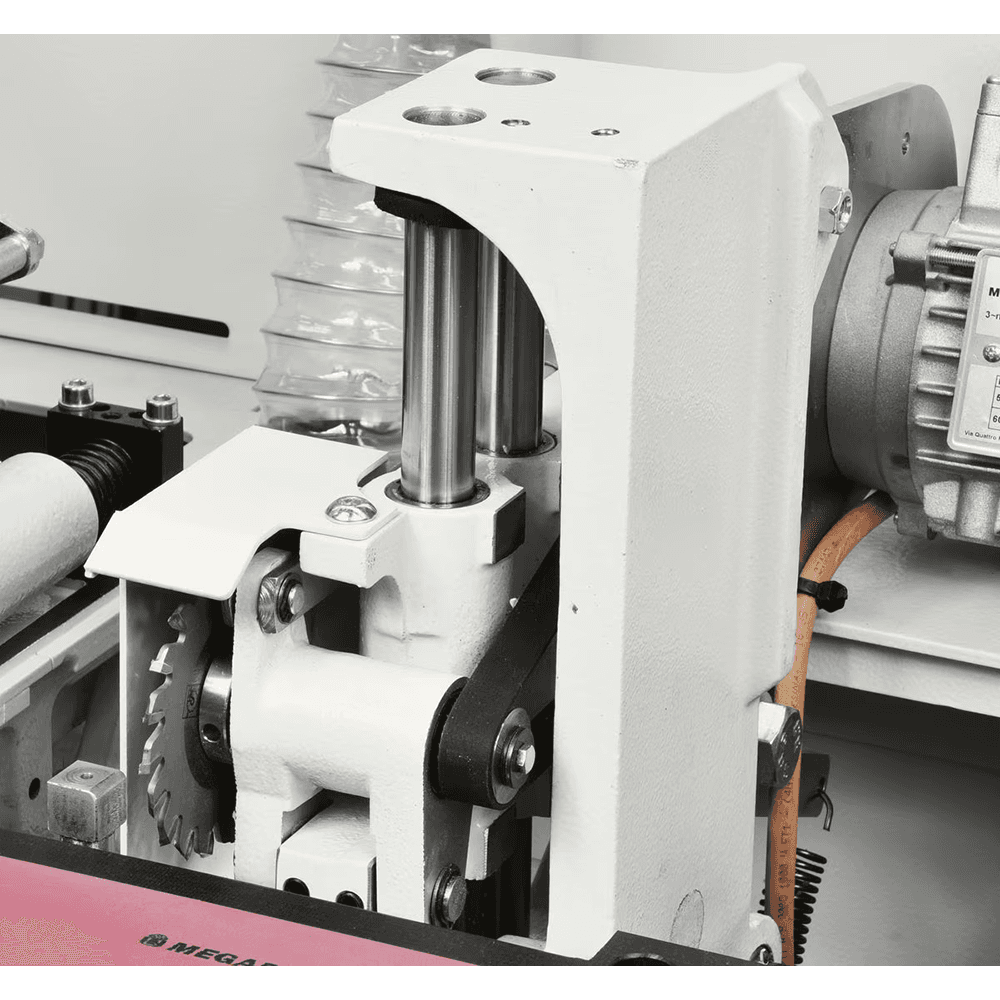

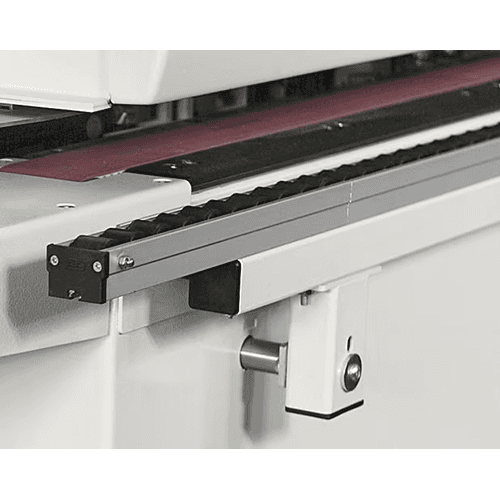

Advantages: Designed for a Perfect Finish: • The very best finishing of the panel edge is also guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generatedby the pinion of a traditional feed track and ensures a smooth and linear panel movement. Always Precise When Cutting: • Absolute precision offered by the unit, with a cutter and an independent asynchronous. Simple and Intuitive: • Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc. Perfect Radius on PVC/ABS Edges: • High finishing quality of plastic material edges thanks to the radius knives that ensure the complete elimination of any marks left from the rimming unit tools, all equipped with fronte and vertical copiers and a user-friendly device for exclusion of the unit when it is not in use.
Technical Data: • Work Table Dimensions(mm): 2600 x 530 • Min. ÷ Max. Thickness of Rolled Edges(mm): 0,4 ÷ 3 • Max. Thickness of Edges in Strips(mm): 5 • Min. ÷ Max. Panel Height(mm): 12 ÷ 50 • Min. Panel Length/Width(mm): 190/65 • Feed Speed(m/min): 7
Specifications
| Box Quantity | 1 |
| Phase | 3 |
| Product Type | Edgebanders |
