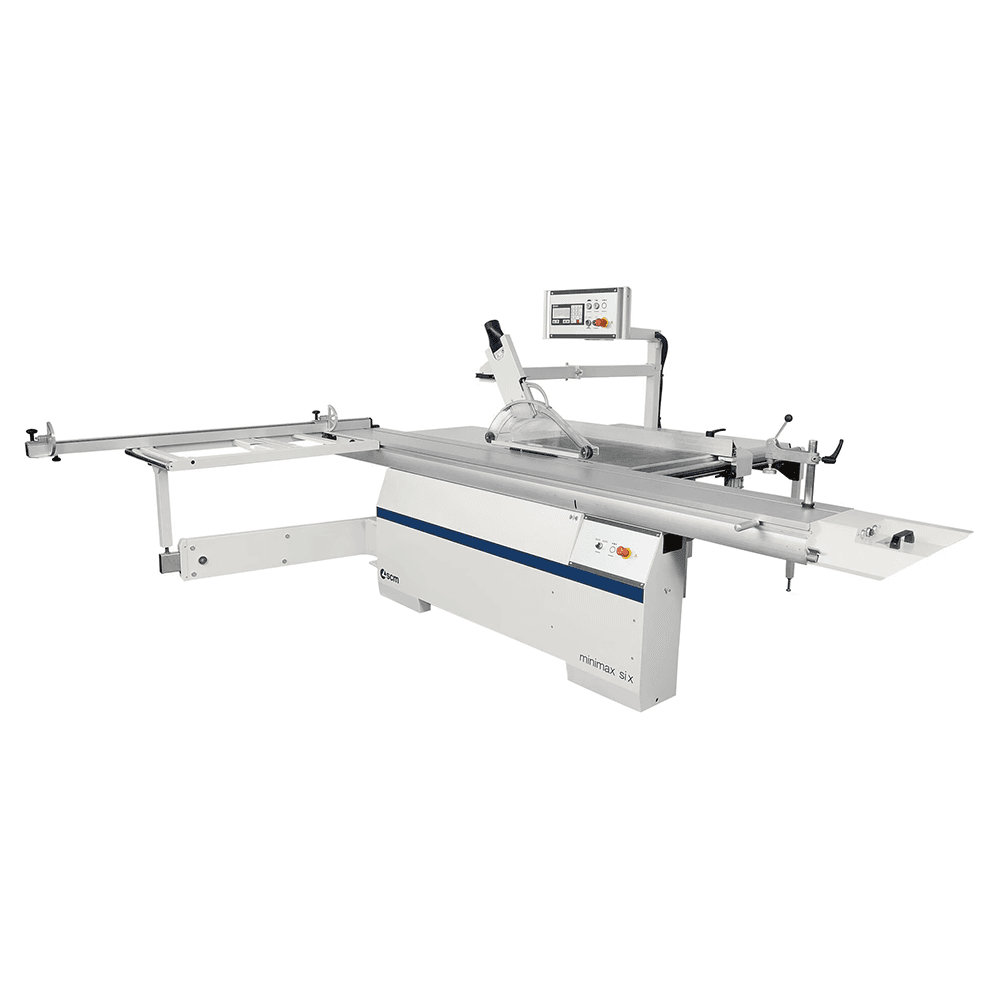

SCM Minimax SI X Ready 3UP, 11HP, 3NC Sliding Table Saw
This item may incur additional shipping costs and lead times.
Product Details
Features: • Exceptional accuracy and smoothness to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting • Parallel Fence. Sliding of the parallel fence support on round bar with micrometric adjustment. The support can be also equipped with digital readout for fence position with detecting system on magnetic band (option). The fence can be easily excluded from the working area when it isn’t used • Squaring Frame and Fence. Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence with the inclined metric scale and two reversible stops can be used to square panels measuring 3200x3200 mm and for tilted cuts at up to 45° on both sides of the frame • Programmed Movement. The "Ready" control manages the powered and programmed movement of the saw blade unit increasing productivity and working quality • Ready 3 / Ready 3 UP Automatic positioning of the parallel fence, from "Ready" control (3 axes). Programmed or manual fence movement with a hold-down drive for the maximum versatility. In addition, the Ready 3 UP version has the control on the mobile control panel. (option) • Pushbuttons integrated in the Sliding Carriage. The possibility to start or stop the blades motors from the pushbuttons located at the ends of the carriage considerably helps when machining large dimensioned panels. (option)

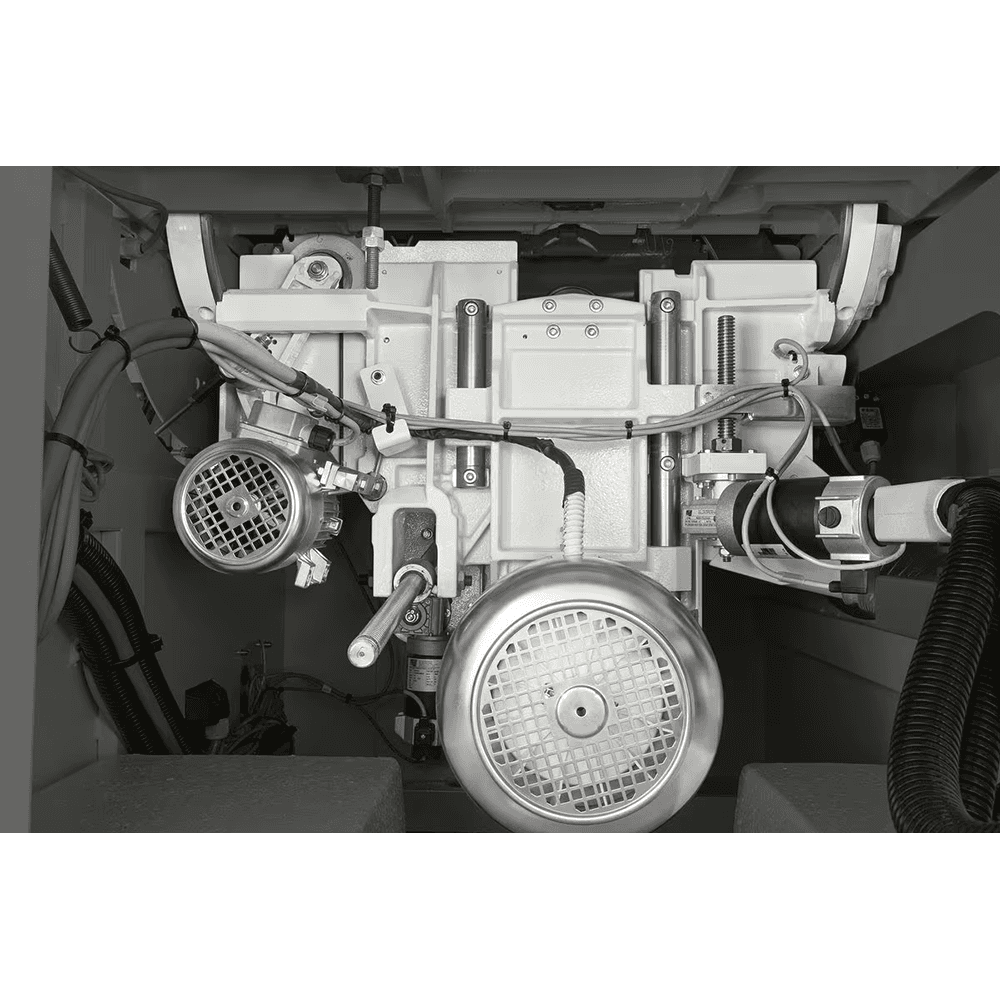

Advantages: Circular saw with ±46° double tilting; now at everybody′s reach. New Saw Unit: • With a stiff cast-iron structure which can accommodate a blade of 400 mm diameter with scoring blade mounted. It ensures a perfect and easy cutting of veneer panels and thick solid wood material with very high thickness both at 90° and tilted cuts at ±46°. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard

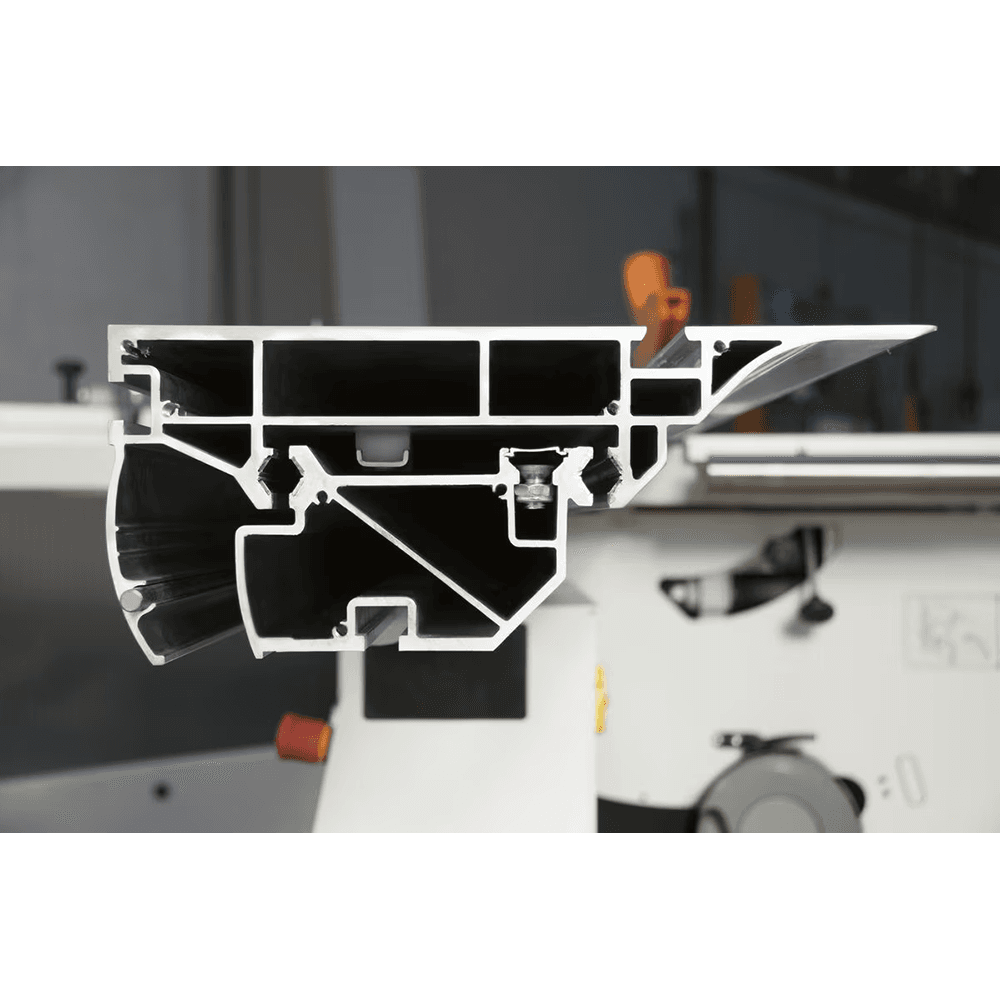

Unrivalled Cutting Finishing: • Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.

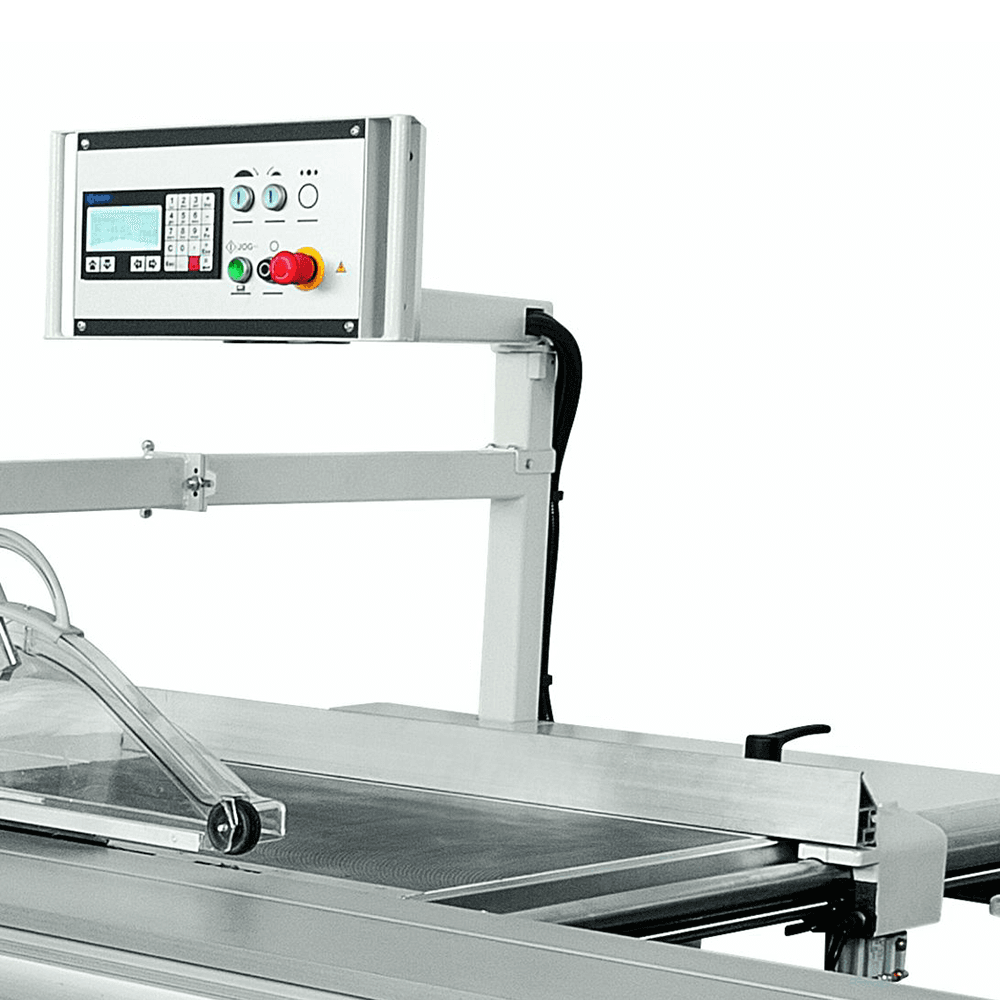

Automatic Positioning of the Parallel Fence, from "Ready" Control (3 axes): • Programmed or manual fence movement with a hold-down drive for the maximum versatility. In addition the Ready 3 UP version has the control on the mobile control panel.
Technical Data: • Max. Sawblade Diameter with Scoring Blade Installed(mm): 400 • Max. Sawblade Projection From Table at 90°/+45°/-45°(mm): 136/97/60 • Cutting Width on Parallel Fence(mm): 1270 • Squaring Stroke(mm): 2600÷3200 • Three-Phase Motors Starting From(kW/Hz): 7 (8)/50 (60)
Specifications
| Box Quantity | 1 |
| Product Type | Sliding Table Saw |
| Maximum Cutting Length | |
| Table Height | |
| Height | |
| Width | |
| Number of Teeth | |
| Length | |
| Horsepower | 11 HP |
| Voltage | |
| Blade Diameter | |
| Arbor | |
| Phase | |
| Maximum Tilt | |
| Table Size (In.) | |
| Table Height from Floor (In.) | |
| Style | |
| Distance Between Sliding Table and Blade (In.) | |
| Prewired Voltage (V.) | |
| Maximum Diameter of Dado (In.) | |
| Speed | |
| Maximum Rip Left of Blade (In.) | |
| Maximum Width of Dado (In.) | |
| Motor Power | |
| Saw Blade Diameter | |
| Table Type | |
| Maximum Rip Right of Blade (In.) | |
| Motor Voltage (V.) | |
| Dust Port Outside Diameter (In.) | |
| Miter Gauge Type | |
| Table Size with Full Extensions (In.) | |
| Table T-Slot (In.) | |
| Motor Phase | |
| Arbor Diameter (In.) | |
| Recommended Circuit Size (Amps.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Motor Current (Amps) | |
| Table Size with Extensions (In.) | |
| Maximum Depth of Cut at 90 Degrees (In.) | |
| Maximum Depth of Cut at 45 Degrees (In.) | |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | |
| Warranty | |
| Cutting Height | |
| Main Saw Blade Change | |
| Saw Blade Thickness | |
| Cutting Width | |
| Sliding Table Length | |
| Control | |
| Display Resolution | |
| Control Panel | |
| Cutting angle/height | |
| Cutting Width Control | |
| Extraction Connection | |
| Saw Blade Tilting Range |
