Why the Maksiwa BMD 3200 IR Dominates Professional Workshops
The Maksiwa BMD 3200 IR sliding panel saw delivers professional-grade performance with its 10HP 3 phase 220V motor and advanced CNC rip fence touch screen sliding table saw technology. This diamond series sliding panel saw 10HP model features a massive 126 inch sliding panel saw professional capacity, making it the preferred choice for cabinet shops, furniture manufacturers, and custom woodworking operations. Built with precision engineering and robust construction, the BMD 3200 IR handles everything from delicate veneer work to heavy solid wood processing. The intuitive touch screen control panel simplifies complex operations while maintaining the accuracy demanded by professional craftsmen.
How 10HP Power and CNC Controls Transform Panel Cutting
• 10 HP Three-Phase Motor with Variable Speed Control (3000/4000/5000 RPM) – Delivers consistent power through dense hardwoods and engineered materials without bogging down during heavy cuts
• CNC Programmable Rip Fence with Touch Screen Interface – Eliminates setup time and measurement errors with precise digital positioning for repeatable cuts within 0.001-inch accuracy
• 126-Inch Aluminum Sliding Table with Ball Bearing Carriage – Supports full 4x8 sheets effortlessly while maintaining perfect alignment through the entire cut stroke
• Dual Blade System with 8000 RPM Scoring Motor – Prevents tear-out on veneered panels and laminates with independent 3/4 HP scoring blade control
• Cast Iron Construction with Precision Ground Surfaces – Minimizes vibration and maintains flatness under heavy production loads for superior cut quality
• Digital Angle Display with Motorized Tilt (0-45 degrees) – Provides precise bevel cuts with electronic positioning and digital readout for consistent results
BMD 3200 IR Performance vs Standard Sliding Panel Saws Specification Maksiwa BMD 3200 IR Industry Standard Motor Power 10 HP three-phase with variable speed 5-7.5 HP single or three-phase Rip Fence Control CNC programmable with touch screen Manual adjustment with scale reading Sliding Table Capacity 126 inches with ball bearing carriage 96-108 inches with standard rollers Blade Tilt Control Motorized with digital angle display Manual handwheel with analog scale Scoring Blade Speed 8000 RPM independent 3/4 HP motor 6000-7000 RPM with 1/2 HP motor Warranty Coverage 2-year comprehensive with US support 1-year limited warranty Professional Features That Justify the Investment
The BMD 3200 IR transforms high-volume production environments through its advanced automation features. Cabinet shops report 30% faster setup times thanks to the programmable CNC rip fence, which stores frequently used dimensions and recalls them instantly. The touch screen interface eliminates guesswork by displaying exact blade height, angle, and fence position in real-time. Professional woodworkers appreciate the sliding table saw ball bearing carriage system that glides effortlessly under load, reducing operator fatigue during long production runs.

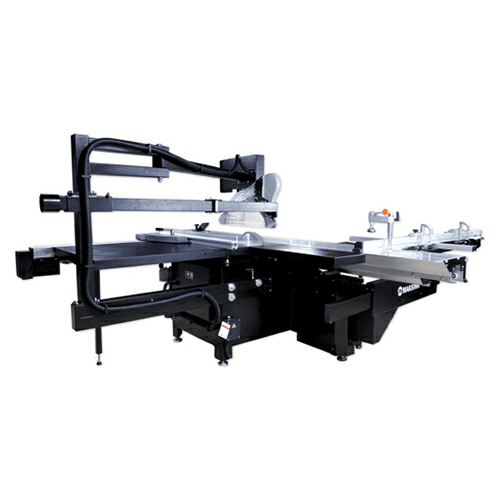

Quality control becomes effortless with the diamond series precision. The cast iron table sliding panel saw construction dampens vibration while maintaining perfect flatness across the entire work surface. This stability proves crucial when cutting expensive veneered panels or achieving tight tolerances for high-end furniture components. The overhead guard dust collection sliding saw system captures debris at the source, maintaining visibility and reducing cleanup time between jobs.
Advanced Safety and Dust Management Systems

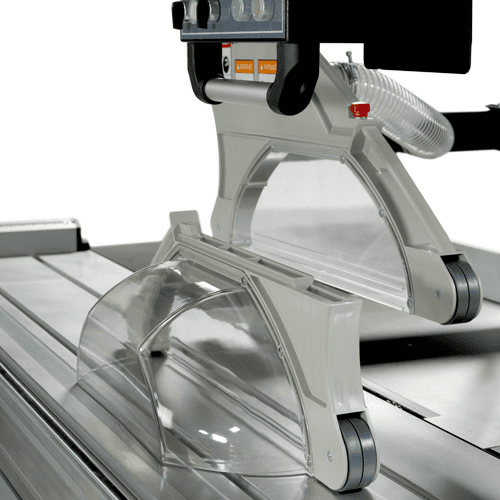

Safety integration goes beyond basic guards with the BMD 3200 IR's intelligent control system. Emergency stops are positioned within easy reach while the touch screen displays blade status and safety warnings. The dual overhead guard with swing-away function provides complete blade protection while allowing quick access for blade changes. Professional woodworking panel saw CNC features include soft-start motor control that prevents sudden blade engagement, reducing kickback risk during startup.
The integrated dust collection system connects to standard shop vacuum systems through dual 4-inch ports. Efficient chip removal maintains cut quality while protecting sensitive electronics from sawdust accumulation. The scoring blade 8000 RPM motor generates fine chips that evacuate cleanly through the dedicated scoring unit port, preventing buildup that could affect cut precision.
Complete Setup and Operation Guide for Maximum Productivity How Cast-Iron Construction Handles Continuous Production Demands
The BMD 3200 IR's foundation begins with precision-cast iron tables that resist warping under thermal cycling and heavy loads. Unlike welded steel alternatives, the cast iron construction maintains flatness within 0.002 inches across the entire surface, crucial for achieving professional results. The main table measures 35 inches by 21 inches, providing ample support for workpieces while the extended outfeed table handles long boards without sagging.
During operation, the mass of cast iron dampens vibration from the powerful 10HP motor, resulting in cleaner cuts and extended blade life. Professional shops running two-shift operations report consistent performance without the drift common in lighter machines. The precision-ground surfaces require minimal maintenance while providing decades of reliable service under demanding production conditions.
Why Workshop Managers Choose BMD 3200 IR Over Competitors
Production efficiency drives the BMD 3200 IR's design advantages over standard sliding panel saws. The CNC rip fence eliminates the walk-around time required with manual fences, keeping operators positioned for optimal control. Touch screen programming allows complex cut sequences to be stored and recalled, reducing setup time from minutes to seconds on repeat jobs.

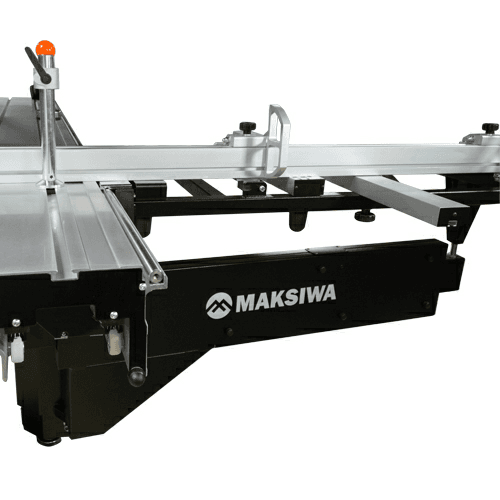

Build quality becomes apparent in component selection and engineering details. The aluminum sliding table uses precision extrusions rather than welded assemblies, maintaining straightness under load while resisting wear. Ball bearing carriages operate smoothly after years of service, unlike roller systems that develop flat spots and binding. The separate 3/4 HP scoring motor provides independent speed control, optimizing performance for different materials without compromising main blade operation.
Peace of Mind with Maksiwa's Professional Support
Maksiwa backs the BMD 3200 IR with a comprehensive 2-year warranty covering all major components and control systems. US-based technical support provides expert assistance during setup and operation, with factory-trained technicians available for complex troubleshooting. The warranty includes free video call installation service, ensuring proper setup and initial operator training.
Parts availability remains consistent through Maksiwa's North American distribution network, with critical components stocked for immediate shipping. The modular design allows individual component replacement without major disassembly, minimizing downtime during service. Regular software updates enhance functionality while maintaining compatibility with existing programs.
Your Complete Guide to BMD 3200 IR Operation
How do I adjust the rip fence position on the BMD 3200 IR?

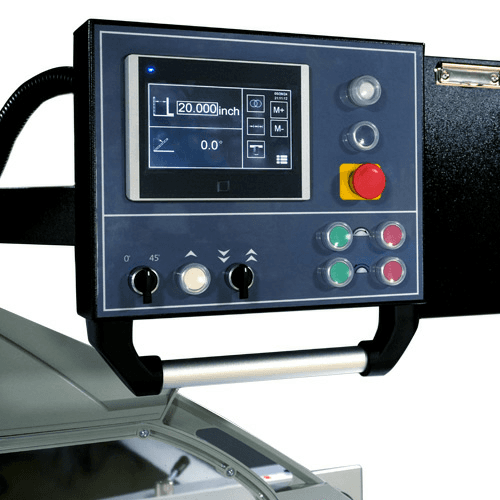

To adjust the rip fence, enter the desired measurement on the touch screen and press the positioning button - the CNC system moves the fence automatically to within 0.001-inch accuracy in under 10 seconds.
What blade sizes work with the BMD 3200 IR scoring system?
The scoring system accepts 4-3/4 inch blades with 20mm bore, running at 8000 RPM independent of main blade speed for optimal performance across different materials.
How much space does the BMD 3200 IR require for installation?
Plan for 132 inches length by 137 inches width with 75 inches height clearance, plus additional outfeed space for handling full sheets and long boards safely.
Can the touch screen control both blade height and angle simultaneously?
Yes, the touch screen controls blade height, angle, and rip fence position independently or in programmed sequences, with digital displays showing exact settings in real-time.
What dust collection requirements does the BMD 3200 IR have?
The system requires minimum 1000 CFM dust collection connected to dual 4-inch ports for optimal chip removal and visibility during cutting operations.
How do I change between the three main blade speeds?
Select blade speed through the touch screen interface - options include 3000, 4000, and 5000 RPM optimized for different materials and blade types.
What electrical requirements are needed for BMD 3200 IR installation?
The saw requires 3-phase 220V service at 40 amps with proper grounding, typically installed by qualified electricians familiar with industrial machinery requirements.
Can I program cut sequences for repetitive production work?
The CNC system stores multiple programs with fence positions, blade angles, and heights, allowing quick setup for repeat jobs and complex cutting sequences.
How do I access the sliding table lock feature?
The sliding table lock engages through a lever mechanism, preventing table movement during material loading and providing stability for precise positioning of heavy panels.
What maintenance schedule does Maksiwa recommend for the BMD 3200 IR?
Follow weekly lubrication of sliding components, monthly cleaning of dust collection ports, and quarterly inspection of belts and electrical connections for optimal performance.
What Workshop Professionals Say About Performance
by Juan S.
"Two years running three shifts daily, the BMD 3200 IR maintains precision cuts without drift - the CNC fence saves us 20 minutes per setup compared to our old manual system."
by Larry W.
"The touch screen interface reduced training time for new operators from weeks to days, while the ball bearing sliding table still glides like new after 18 months of heavy use."
by Don W.
"Scoring blade performance on laminated panels exceeded expectations - zero tear-out on edge banding applications that previously required hand finishing."
Imagine Your Workshop with Professional-Grade Precision
The Maksiwa BMD 3200 IR sliding panel saw represents the pinnacle of professional woodworking technology, combining 10HP 3 phase 220V power with CNC rip fence touch screen sliding table saw precision. Its 126 inch sliding panel saw professional capacity handles the largest projects while maintaining accuracy measured in thousandths. Ready to eliminate setup time, reduce waste, and increase production capacity?
