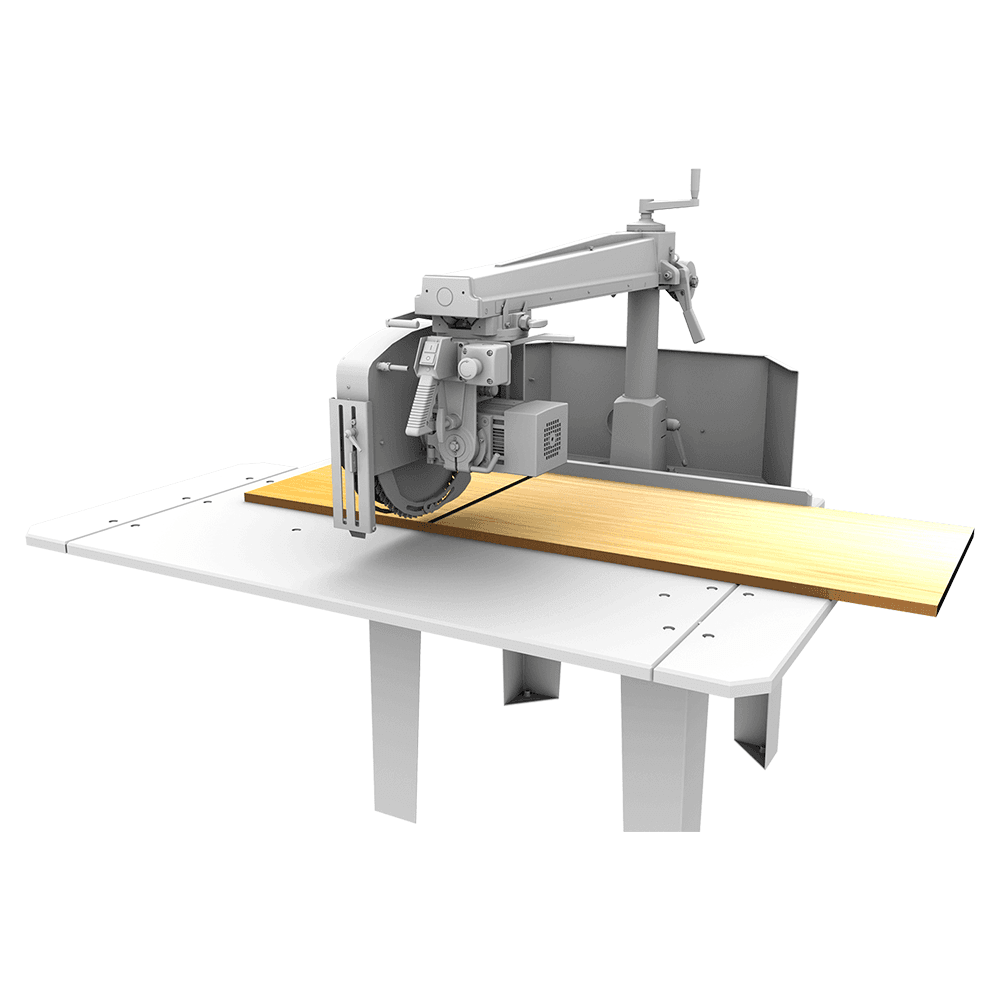

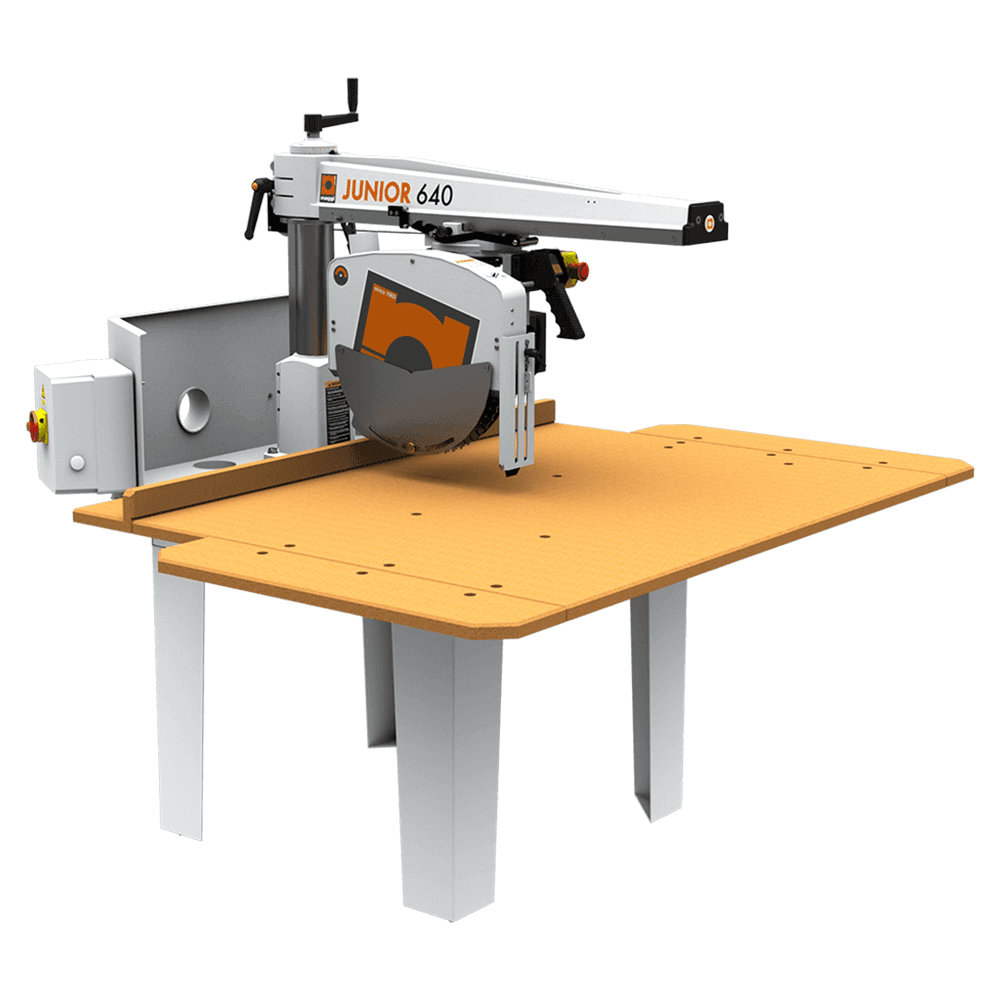

Maggi JUN640CE 400mm Radial Arm Crosscut Saw 4HP Single Phase

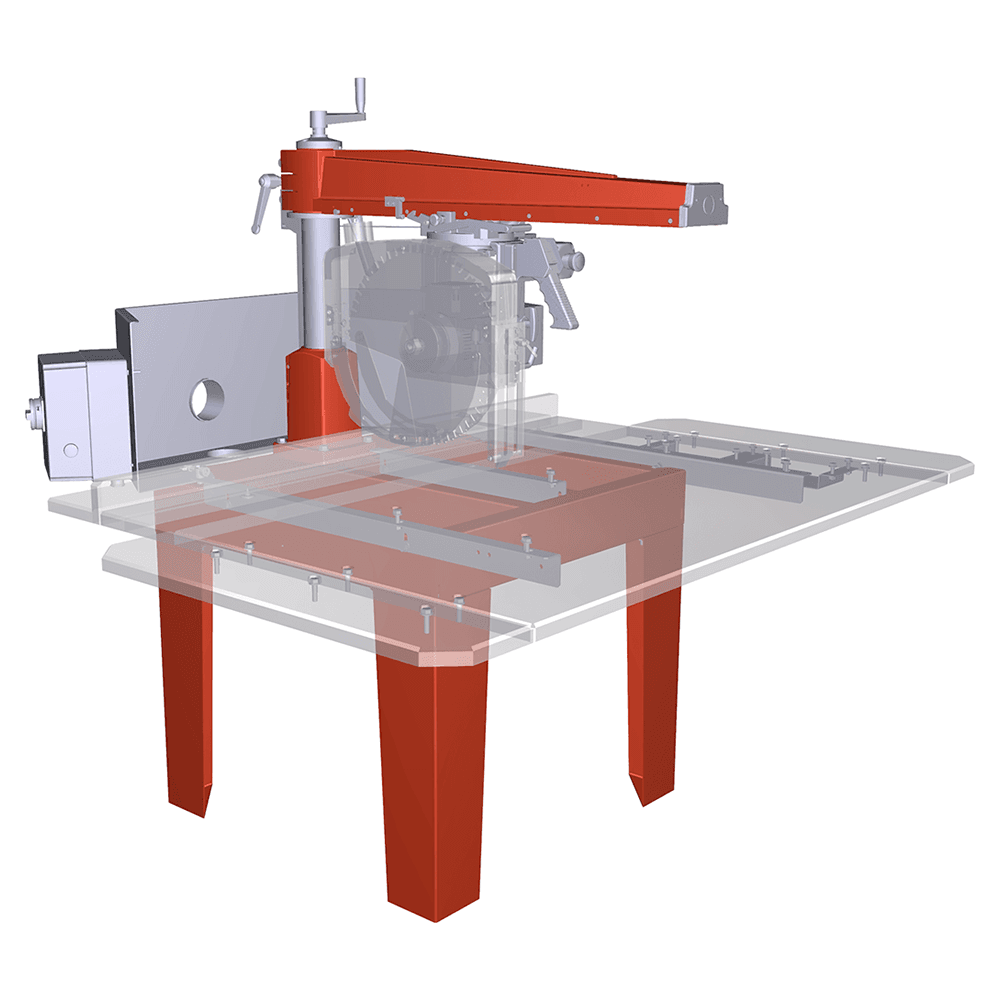

Radial-arm saw for straight (90°) cross cutting, and bevel cutting at 45° left and right. The movement of the cutting unit along the arm, on guides and ball bearings, is manual, aided by a return spring, so is the blade tilting with mechanical locking system at 45° left. The pillar group is made of cast-iron and fixed on a solid frame and legs made of steel. Working bench in MDF. Manufactured according to EC standards.

Versatile:

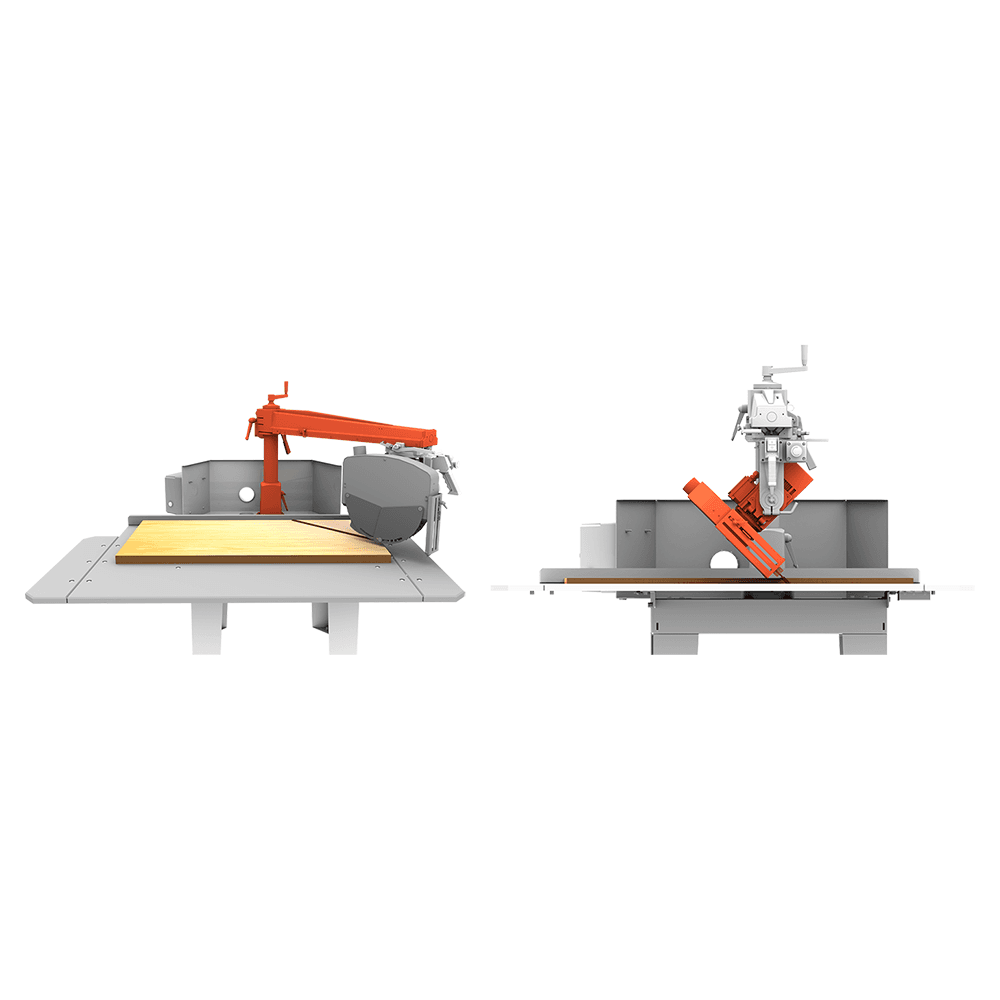

Swivelling arm up to 45° left and right and left tilting cutting-head (stop and lock at 45°) allow many different cutting operations for the greatest versatility.

Safe:

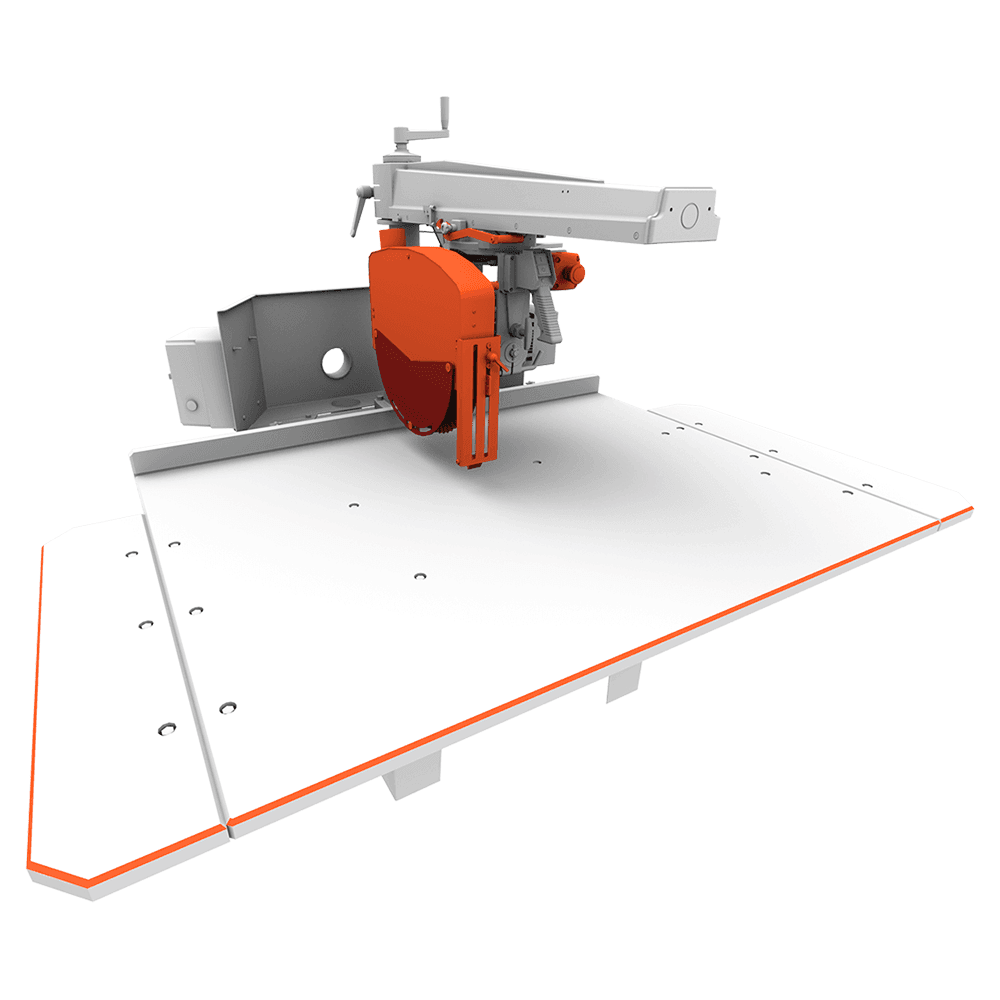

Sound-insulated, full-cover blade guard with safety microswitch, anti-kickback, well-dimensioned working bench and emergency button, definitively contribute to the operator safety during the cutting process.

Solid and Accurate:
Rugged steel construction, arm and base made of cast iron. Interchangeable, tempered-steel made guides. Cutting head sliding on 8 ball bearings for a smooth, precise and effortless carriage mouvement.

The Most Popular:
Cutting width up to 545 mm. All-around performance. Well-suited also for the hobbyist.

Features:
• Automatic return-spring
• Self-braking motor
• Electrical system equipped with motor-overload protection and emergency button
• Sound-insulated blade guard made of steel
• Well-dimensioned rear hood, ready to be connected to a dust collector
• MDF working bench
• Lockable switch
• Package: recyclable cardboard box
• Blade not included
• Max. cutting height: 125 mm
• Max. cutting width: 545 mm x 20 mm H
• Min. cutting width: 610 mm x 125 mm H
• Max. length of workpiece: Infinito
• Height of blade at 45° from the table: 0 - 80 mm
• Min. and Max. cutting width at 45° (right): 315 - 380 mm
• Min. and Max. cutting width at 45° (left): 125 - 190 mm
• Height of blade from working bench: 0 - 45 mm
• Blade bore diameter: 30 mm
• Motor: HP/KW 4/3 RPM 2800
• Working bench dimensions: 1690 x 1155 x 25 mm
• Diameter of dust collection nozzle on blade guard: 60 mm
• Diameter of dust collection nozzle on rear hood: 100 mm ( n.2)
• Overall dimensions of full-assembled machine and net weight: 1690 x 1560 x H 1580 mm / 220 Kg
• Dimensions and gross weight - Half Assembled Machine: 1380 x 920 x H 960 mm - 246 Kg
