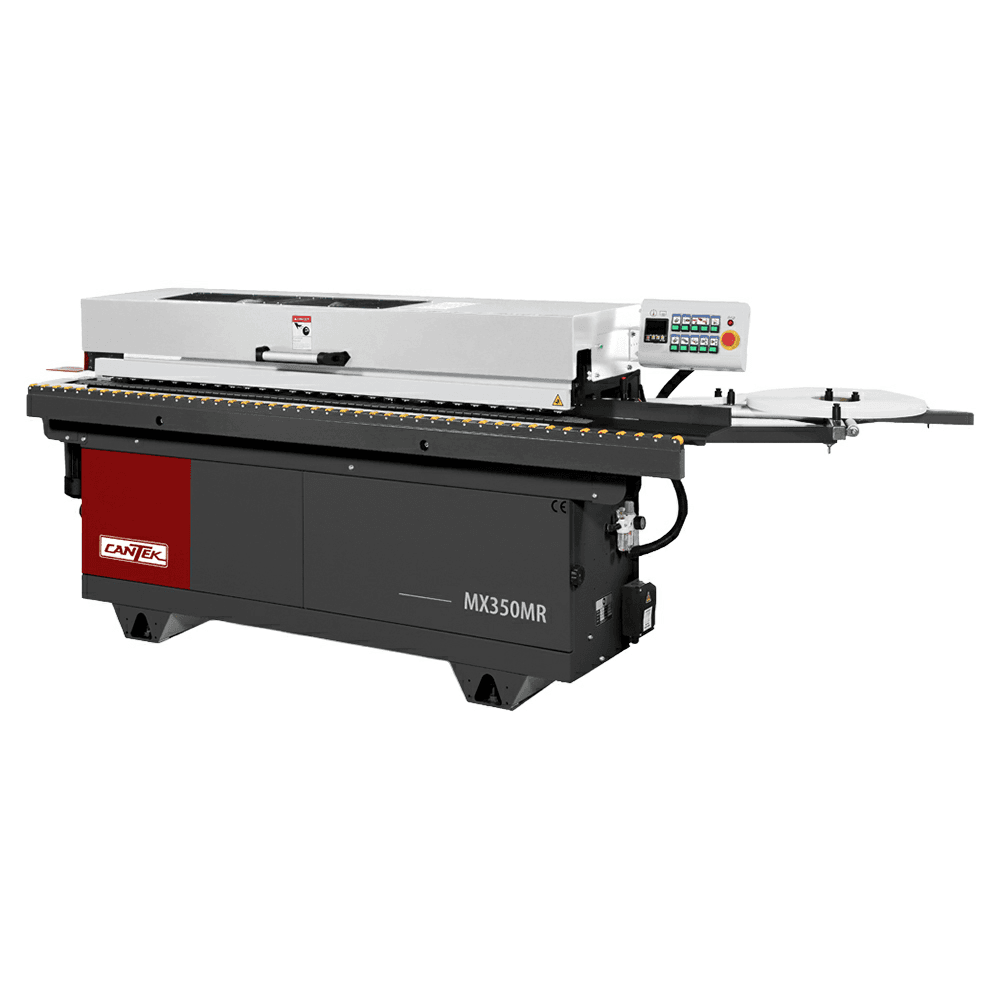

Cantek MX350 High Frequency Automatic Edgebander with Premilling, 1 Phase

The Cantek MX350MR Automatic Edgebander is an entry-level edgebander with pre-milling that is the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX350MR can output high-quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. A special feature of this machine is the dual purpose end trim system which can either flush trim or radius trim the end of the panel. Additionally, the machine is equipped with flush trimming, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm and 3mm.

Features:
• Cantek 230 V Compact Edgebander with Pre-Milling, 1 Phase
• Compact design makes it the ideal edgebanding solution for small workshops
• Pre-milling the panel ensures optimum edge quality prior to edgebanding
• Dual purpose end trim and radius trimming system activated from the control panel
• Precise adjustments for optimum edge quality
• Chain feed system ensures consistent feeding of material for consistent results
• PLC control system with LED display and keypad
• Workpiece is fed by chain
• Edge coil support plate: Ø 800 mm (31.5"), for PVC/ABS
• Automatic edge feeding with a thickness capacity of 0.4-3 mm
• Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears
• 1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot
• Spring-loaded pressure unit with (2) pressure rollers (1 chrome and 1 rubber)
• Heavy-duty pressure beam with extendable workpiece support
• Heated infeed fence for preheating the panel for optimum glue penetration
• Mechanical digital readouts for convenient and quick adjustment to the working units and thickness


Specifications:
• Feeding Speed: 23 FPM
• Panel Thickness: 0.472-1.77"
• Edge Thickness: 0.0158"-0.118"
• Minimum Panel Width: 3.54"
• Minimum Panel Length: 8 3/4"
• Working Table Height: 33.7"
• Extraction Connection: 3 x 4" = 1,200 CFM
• Air Consumption: 8.83 CFM
• Premilling Spindle Speed: 9000 RPM
• Top/Bottom Trimmer RPM: 10500 RPM
• Machine Weight: 1162 lbs
• Max. Machine Dimensions (LxWXH): 126" x 47-1/4" x 47-1/4"
• Shipping Dimensions (LxWxH): 111" x 28.4" x 52"
• Shipping Weight: 1452 lbs
• Electrical Requirements: 230/1/60 = 35 amps - 230/3/60 = 19 amps


Motor Power:
• Feed Motor: 1 HP
• Pre-Milling Motor: 2 HP
• End Trim Motor: 1/3 HP
• Top and Bottom Trimming Motor: 3/4 HP
• Buffing Motor (1 phase): 0.16 HP
• Heated Infeed Fence: 1/2HP
• Glue Pot: 1-3/4 HP
• Total Connected Power: 8 HP
