Cantek 230 V Automatic Edgebander, 1 Phase

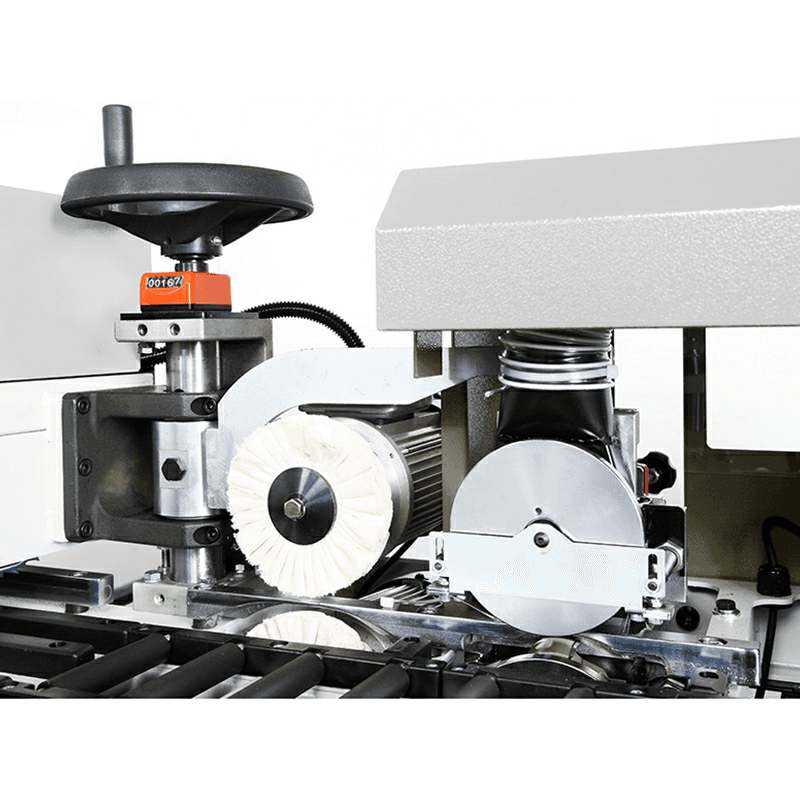

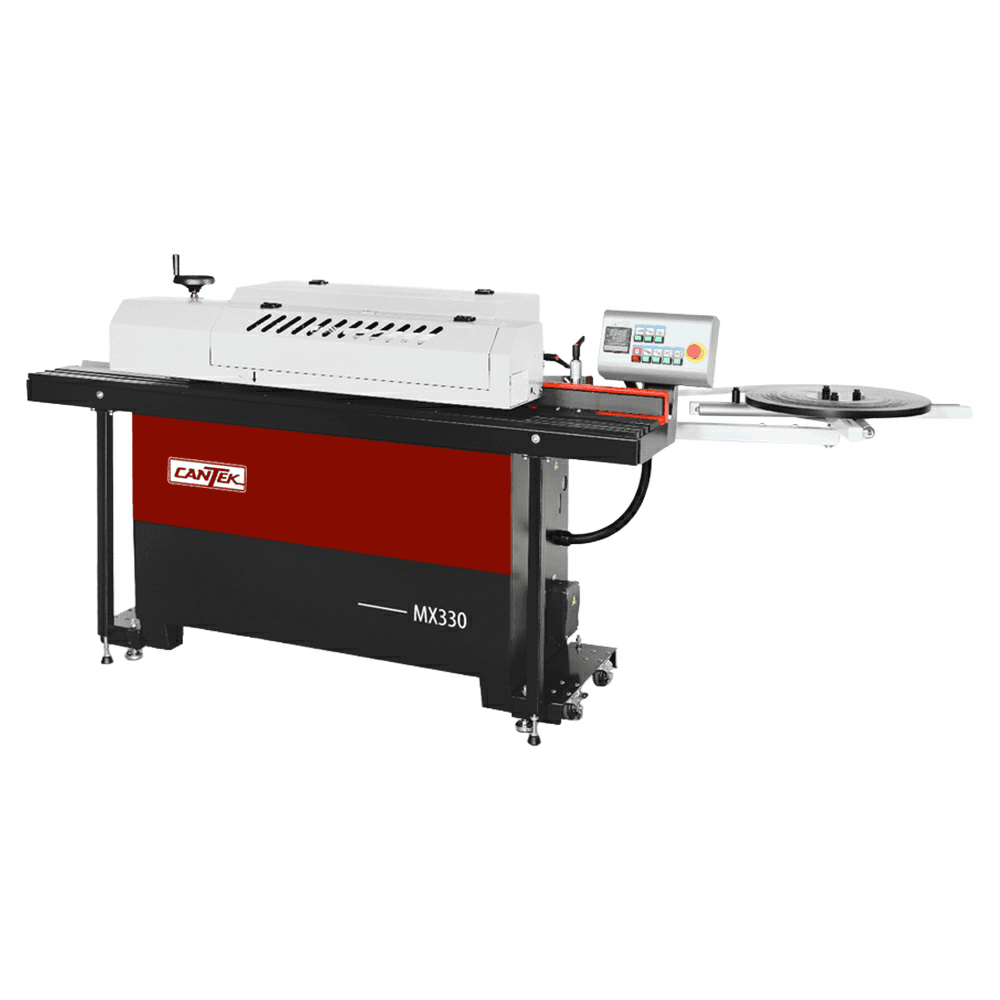

The Cantek MX330 Automatic Edgebander is a compact entry-level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX330 can output high-quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm and 3mm.

Features:
• Compact design makes it the ideal edgebanding solution for small workshops
• Precise adjustments for optimum edge quality

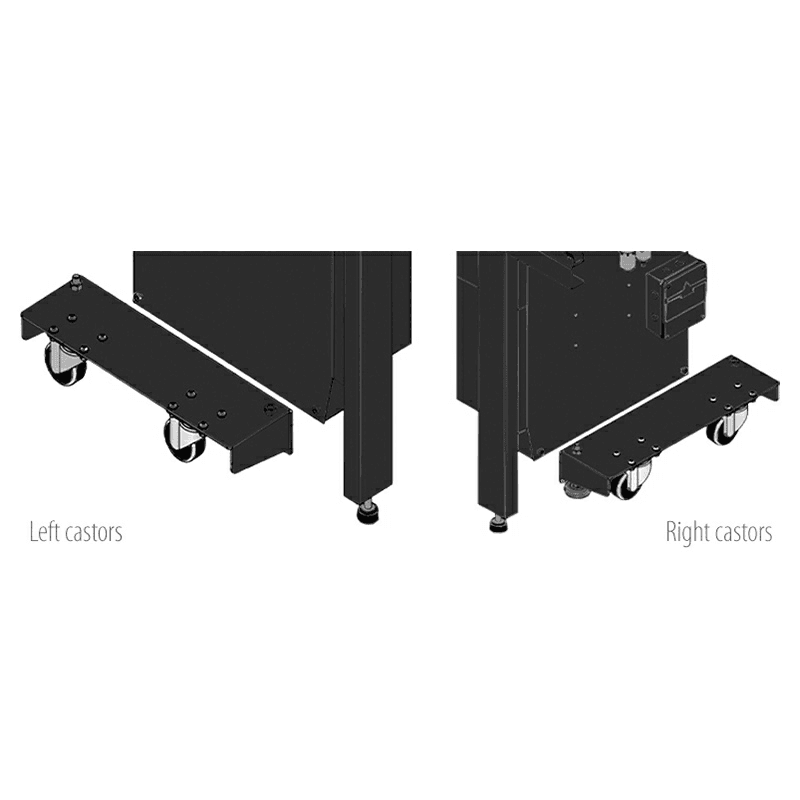

• Castor wheel adding mobility to your edgebander

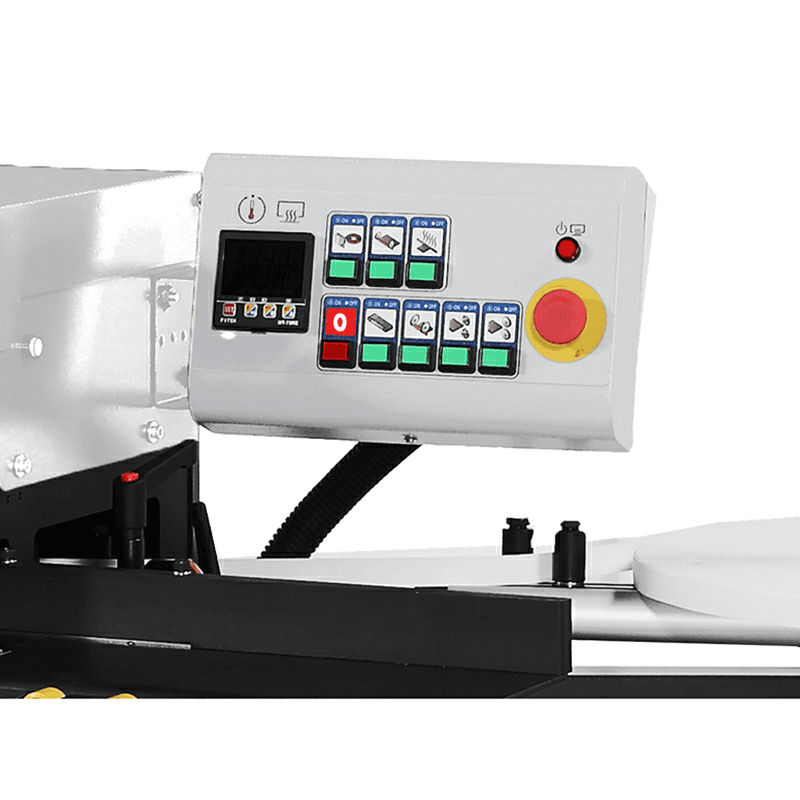

• PLC control system with LED display and keypad

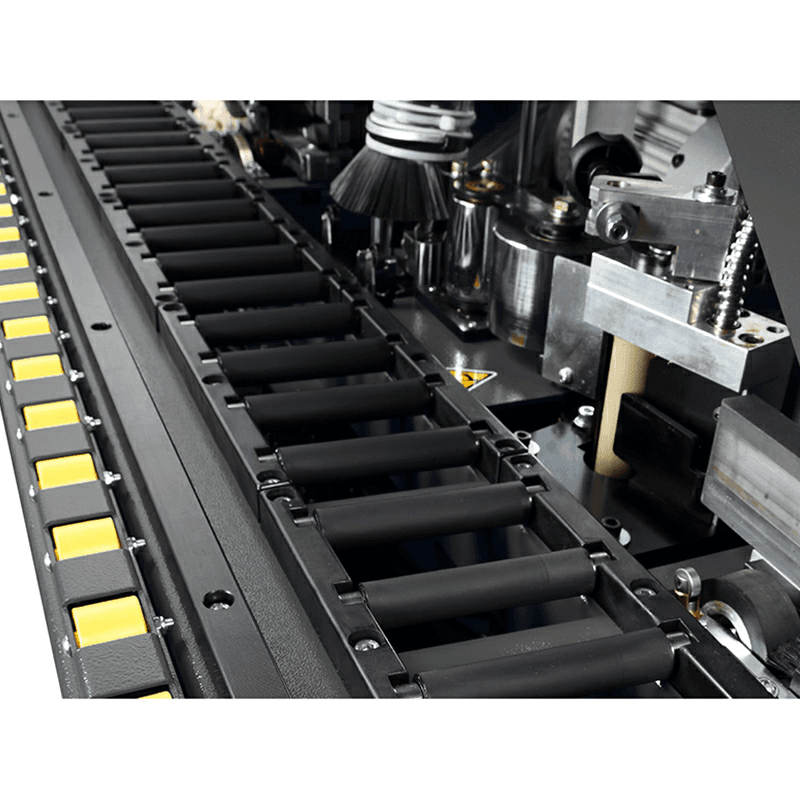

• Workpiece is fed by upper conveyor belt and idle table rollers

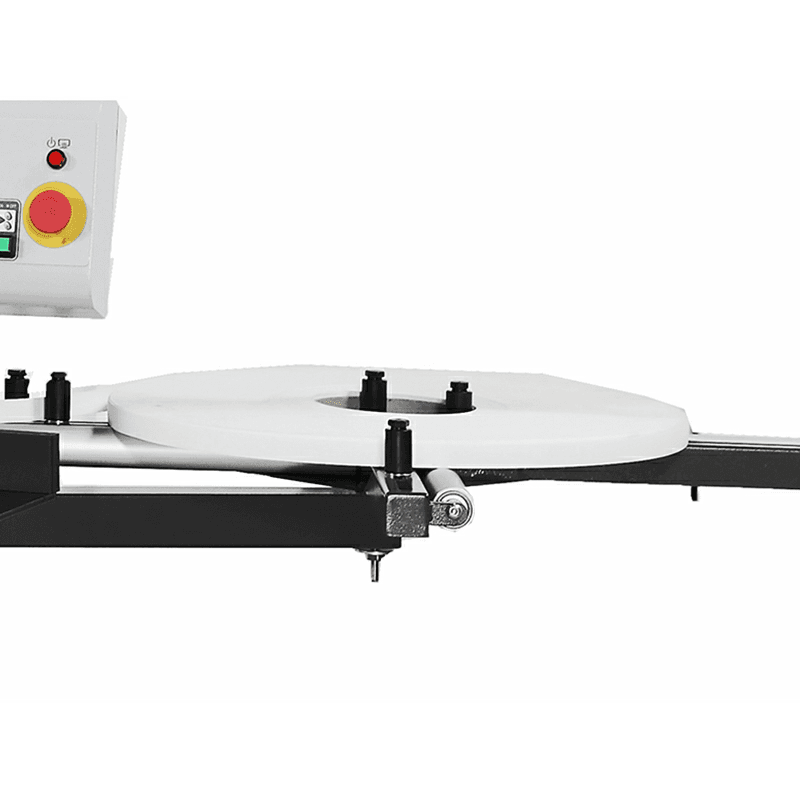

• Edge coil support plate: Ø 800 mm (31.5") for PVC/ABS
• Automatic edge feeding with a thickness capacity of 0.4-3 mm
• Coiled edge bands up to 2 mm in thickness in Hard-PVC/ABS are cut with guillotine shears

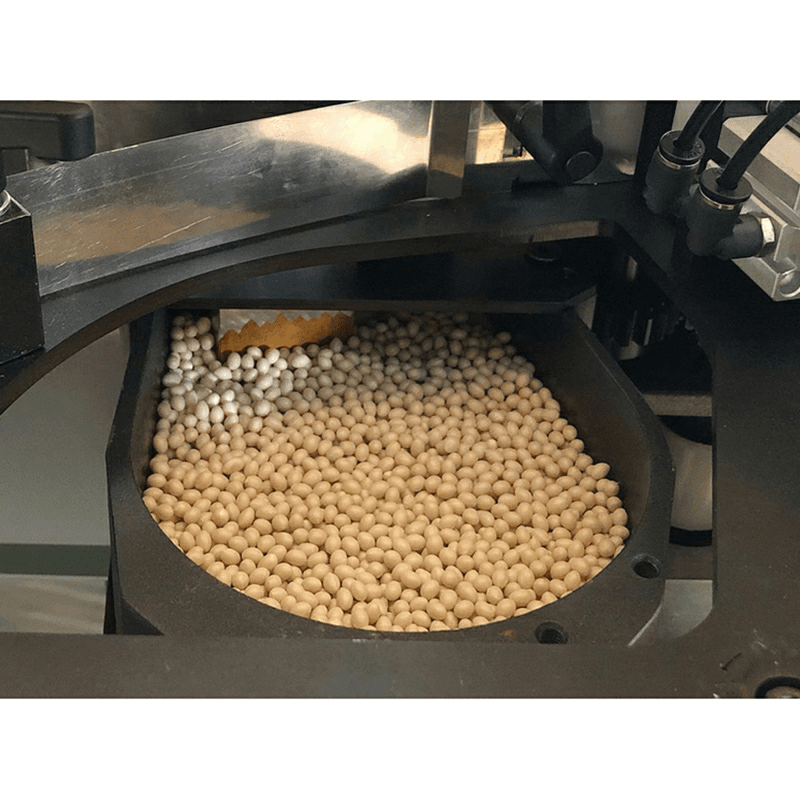

• 2 kg (2.6 lb) Teflon-coated hot-melt glue pot

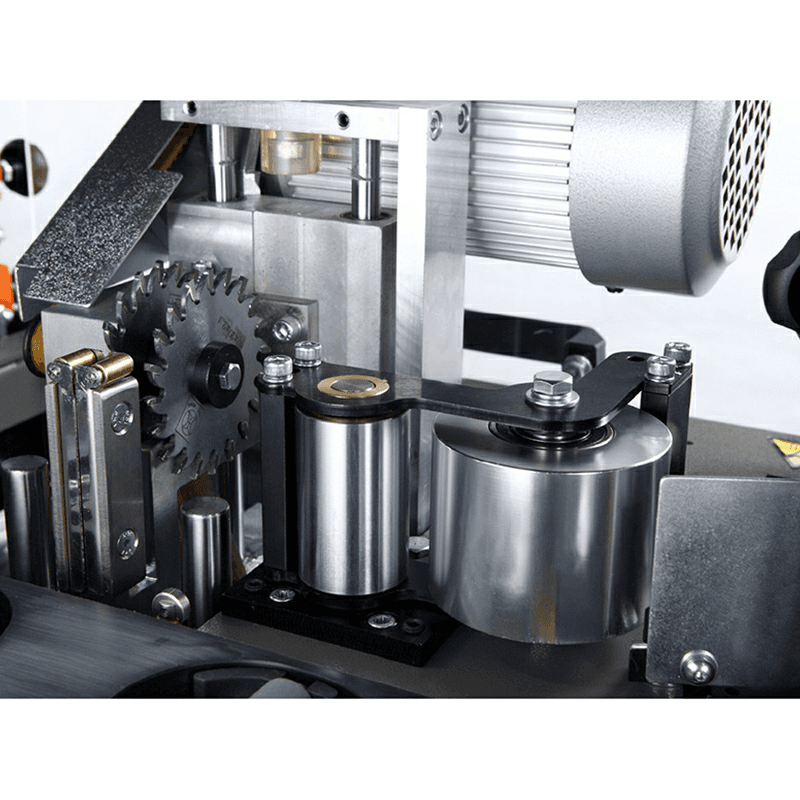

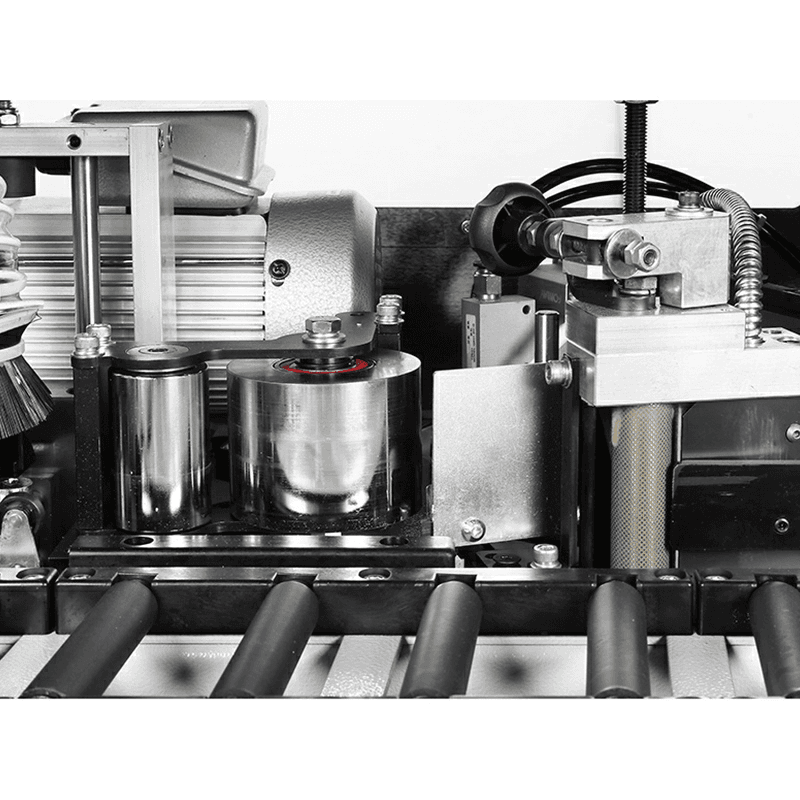

• Spring-loaded pressure unit with (2) chrome pressure rollers
• Heavy-duty pressure beam with extendable workpiece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration
• Mobility wheels allow you to move your edge bander in and out of position to save you work space

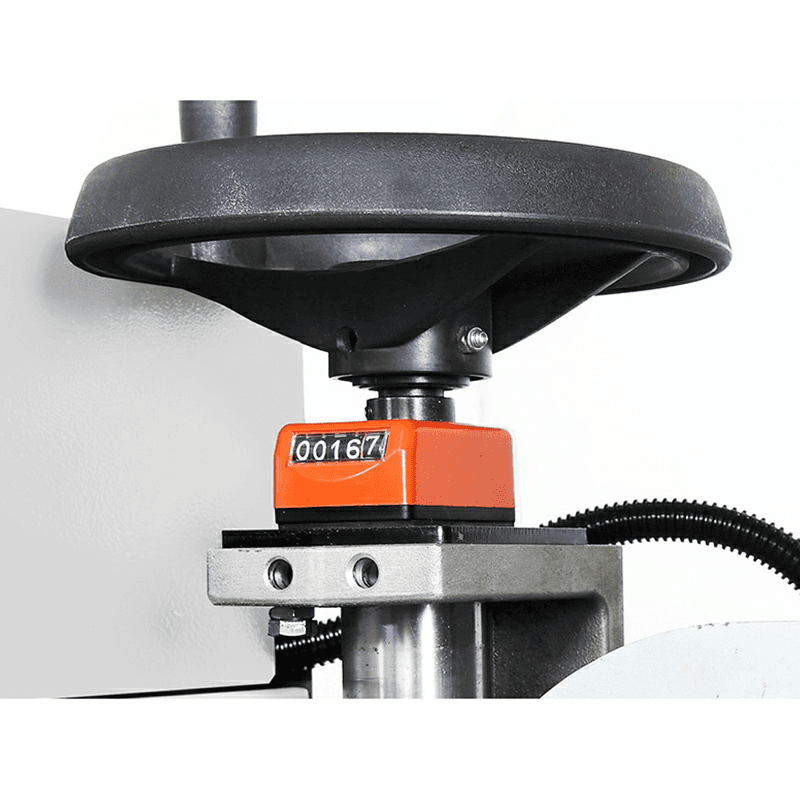

• Mechanical digital readouts for convenient and quick adjustment to the working units and thickness


Specifications:
• Feeding Speed: 16.4 FPM
• Panel Thickness: 0.472-1.77"
• Edge Thickness: 0.0158"-0.0787"
• Min. Panel Width: 4.73"
• Min. Panel Length: 9.45"
• Working Table Height: 33.7"
• Dust collection Outlet Dia.: 2 x 4" = 800 CFM
• Total Connected Power: 4.5 HP
• Air: 6 CFM / 85 – 100 PSI
• Max. Machine Dimensions (LxWXH): 110" x 61" x 49.4"
• Machine Weight: 766 lbs.
• Shipping Dimensions (LxWxH): 89" x 29" x 52"
• Shipping weight: 1021 lbs.
• Electrical Requirements: 230/1/60 = 30 amps
