Rotary Phase Converter 25HP/25 kVA, 3PH, Model ADX25
This item may incur additional shipping costs and lead times.
Product Details

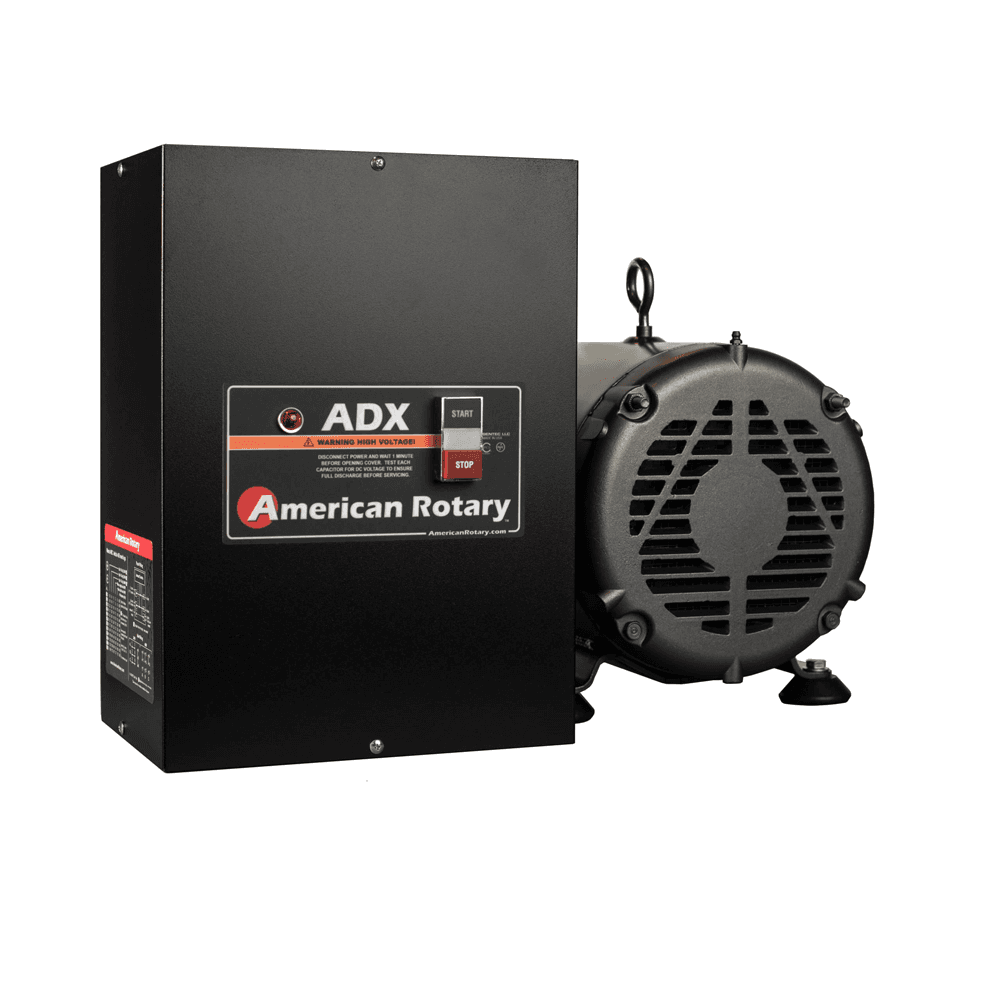

ADX-25 Smart Phase Converter - Extreme Duty Series
American Rotary's ADX Model includes all the features and benefits of thier AD Model
but also has thier Current Transient Reactor (also known as CTR) in it. This CTR Controller, along with our MicroSmart Controller, allows higher amounts of current to be drawn through the phase converter. This produces more torque while maintaining voltage and power with precision for sensitive equipment.
These ADX Models are perfect for hard starting loads such as Air Compressors, HVAC, Refrigeration and equipment such as Wide Belt Sanders that have a long start time to get up to speed.
The ADX Smart Series Rotary Phase Converter is designed for high inertia/friction loads. They have current control to provide consistent torque while starting high inertia, extremely hard starting loads, yet are precise enough for CNC applications.
Best for: High Inertia/friction loads such as pumps, fans, compressors, blowers, lathes, high RPM CNC, dust collectors and fly wheels.
Control Panel:
• Push Button ON/OFF Switch w/ PowerGuard Protection
• Heavy Duty Performance, 100% Power
• Powder-Coated Steel Enclosures for an attractive and durable appearance
• Integrated Protection in case of power interruption
• Easy access terminal block wiring connections
• Best Warranty in the Industry
Idler / Generator
• Designed and engineered specifically for phase conversion
• Achieve optimized voltage and current balance throughout the full load of the converter
• Soft Start Rating by drastically reducing in- rush current upon startup
• Runs cool, quietly and efficiently with or without load applied
• Manufactured in the USA by Baldor Electric
General Specifications
Model: 25
Efficiency: >98% (at Power Factor of .9)
Idle Power Consumption (kW): 0.74 ($0.07/hr)
Single Phase Requirements
Input Voltage: 208-250
Frequency (hZ): 50/60
Minimum Wire Size: 4
Minimum Breaker Size: 80
Three Phase Specifications
Voltage Balance: 0-5%
Maximum Starting Load: 12.5hp / 35 amps
Maximum Running Load: 25hp / 70 amps
Physical Specifications
Idler Insulation Class: F
Idler RPM: 1750
Idler L x D x H: 18.75" x 11.75" x 18.5"
Panel H x W x D: 20" x 14" x 8"
Panel Style: Nema 1 / Type 1 Indoor
Total Weight (lbs): 290
Specifications
| Box Quantity | 1 |
