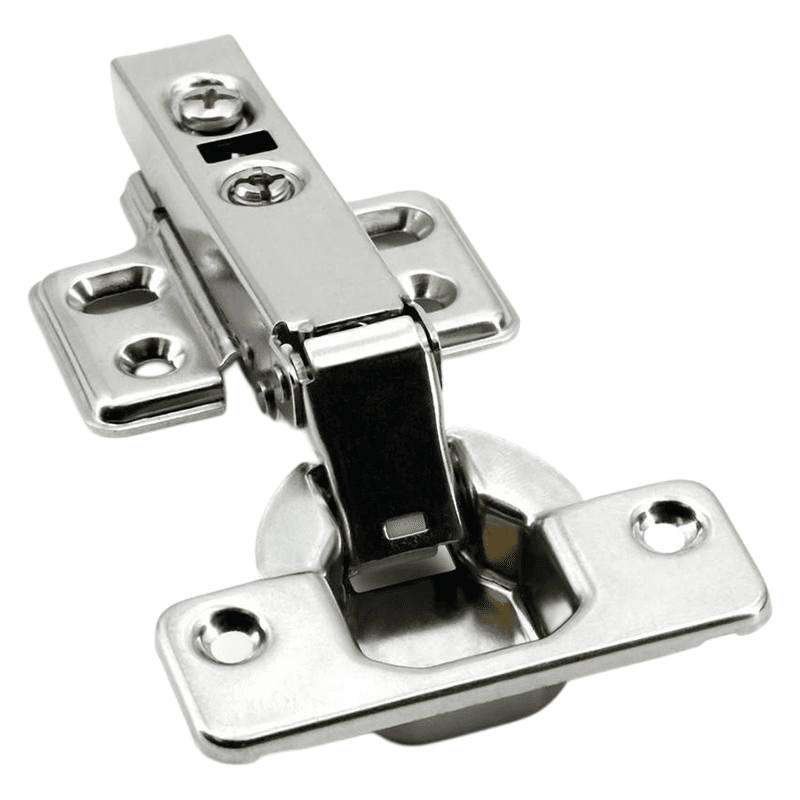

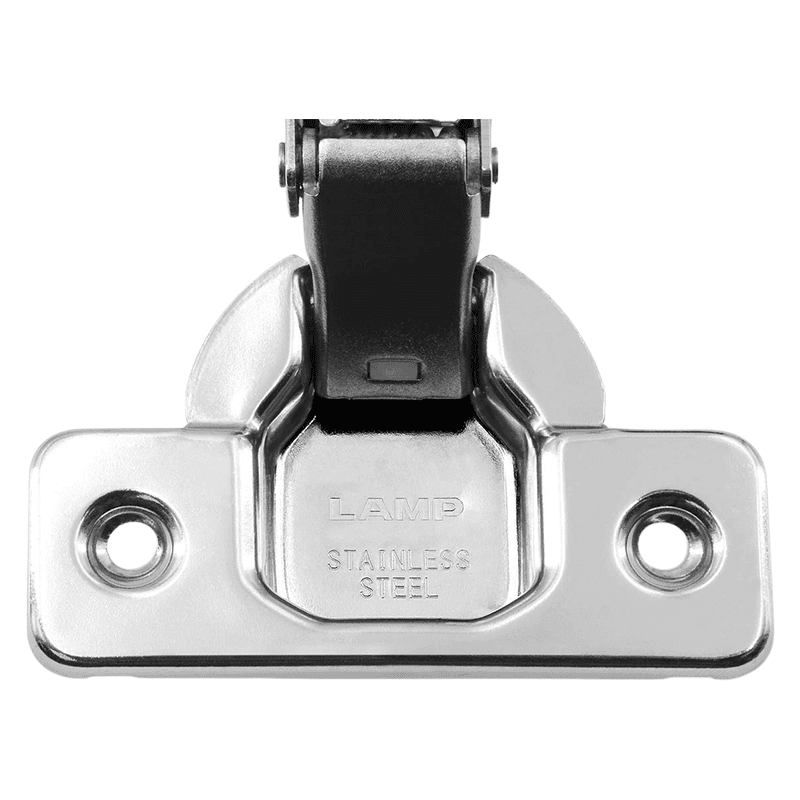

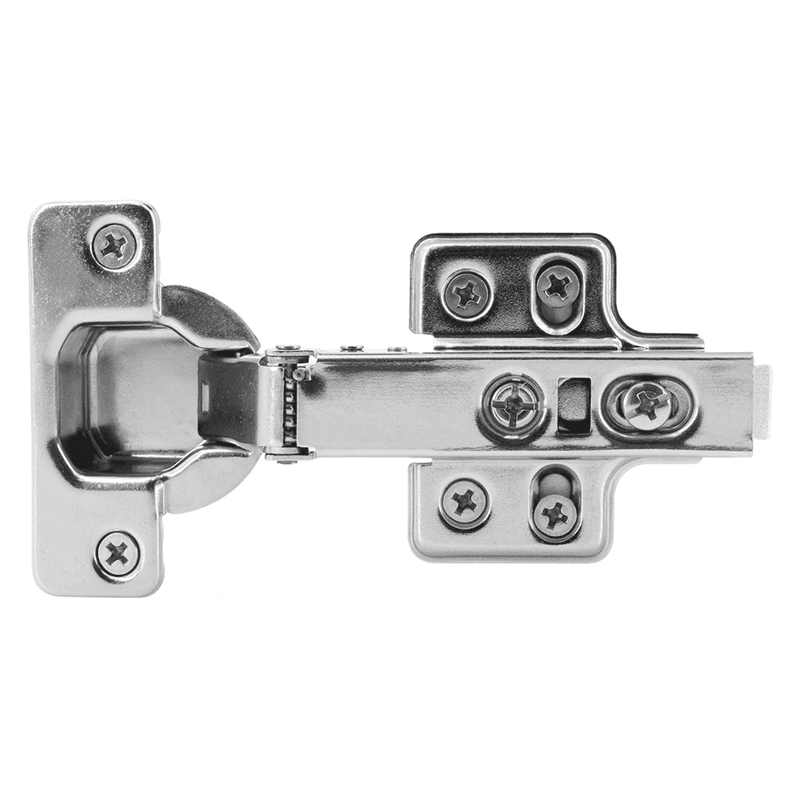

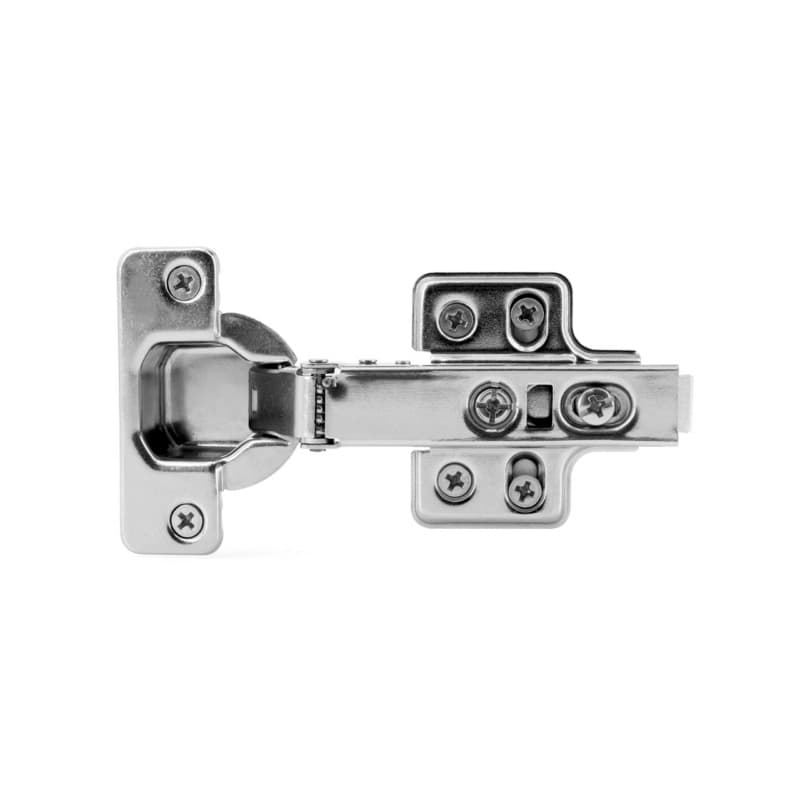

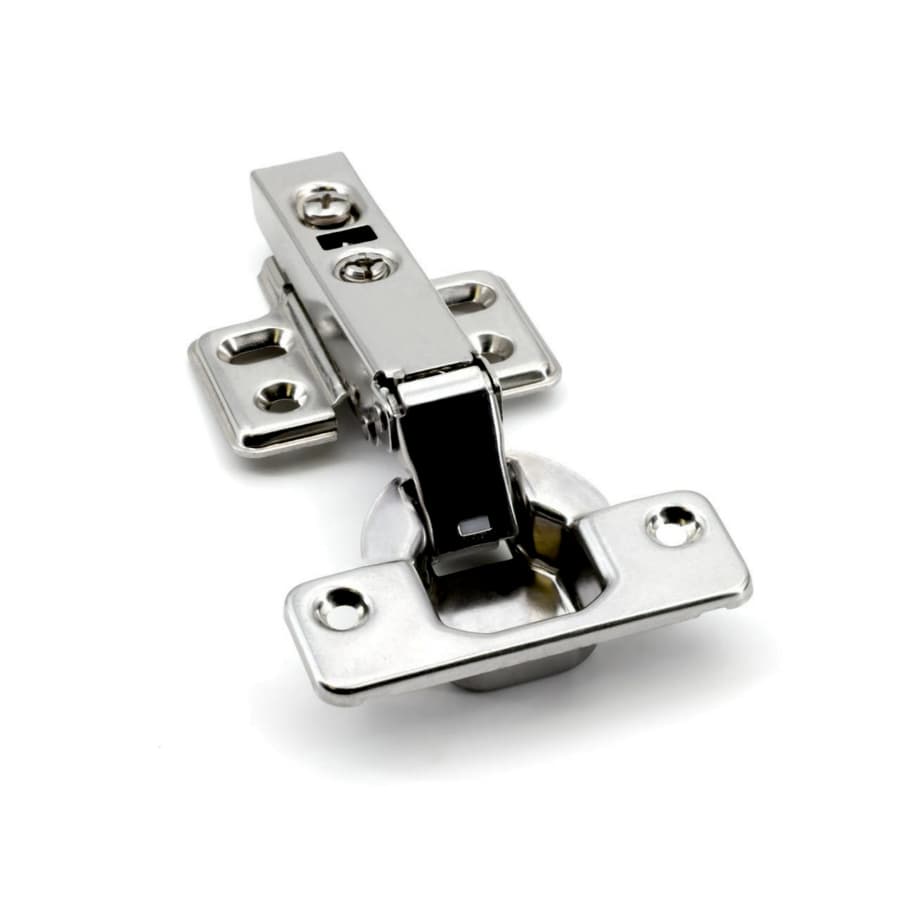

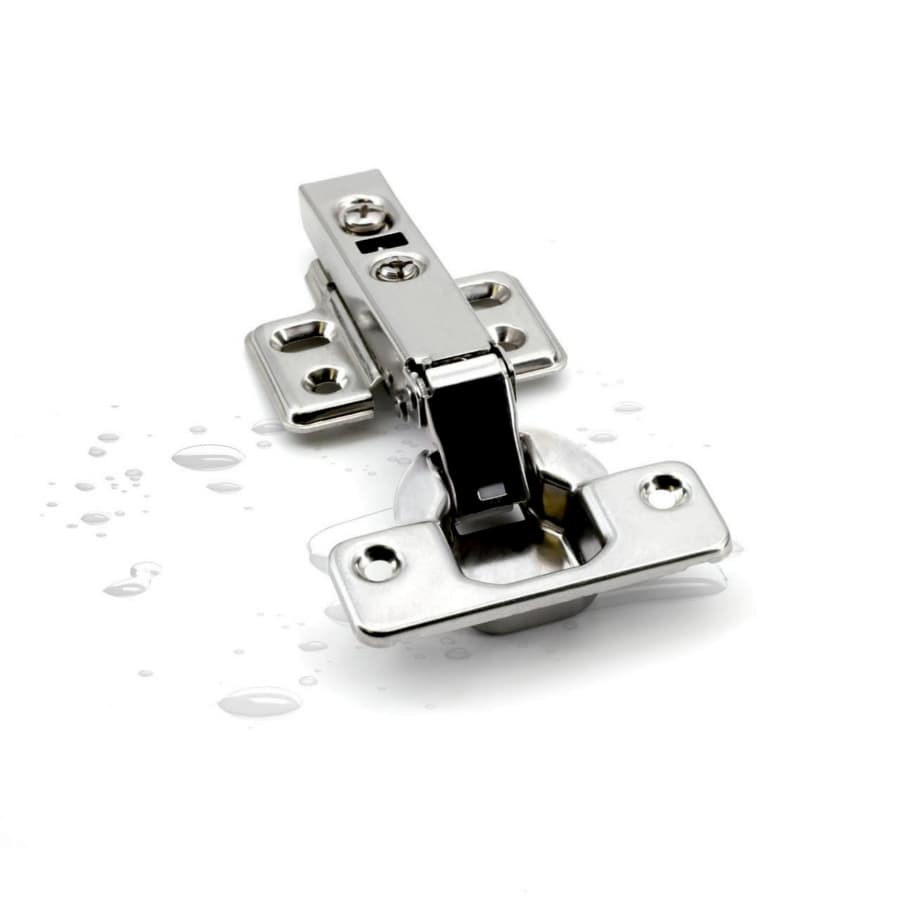

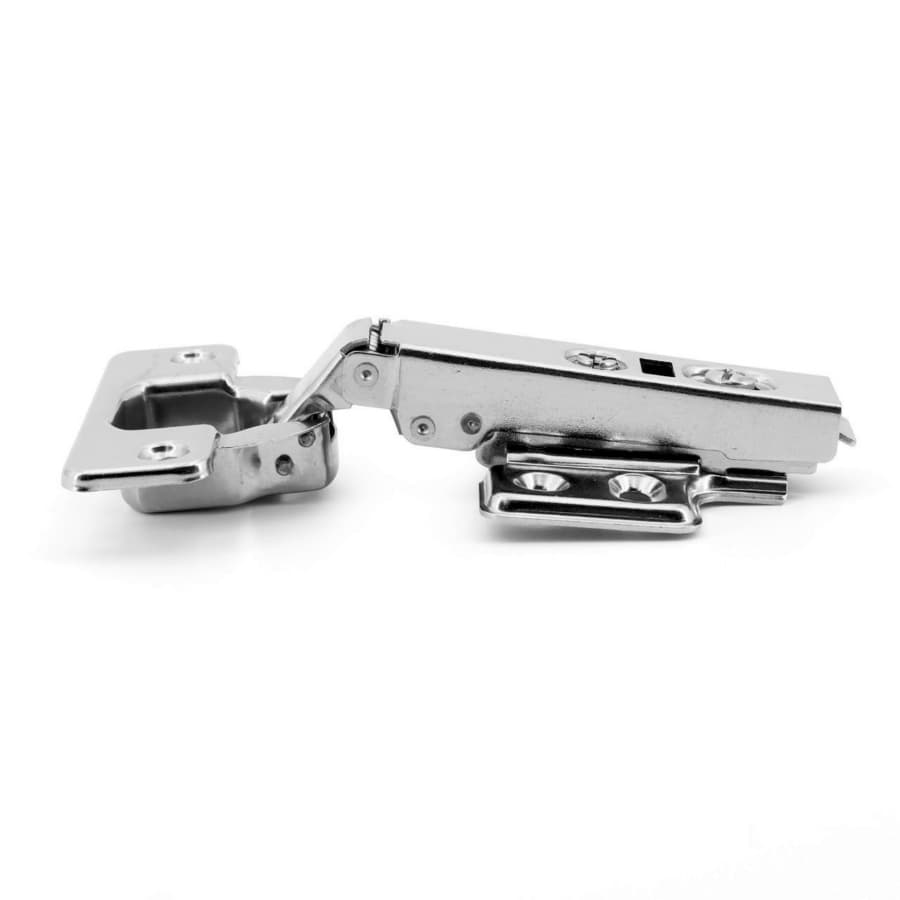

101° Opening Standard Euro Hinge with Damper, 19 Overlay, Stainless Steel, Screw-On
20 items
Product Details

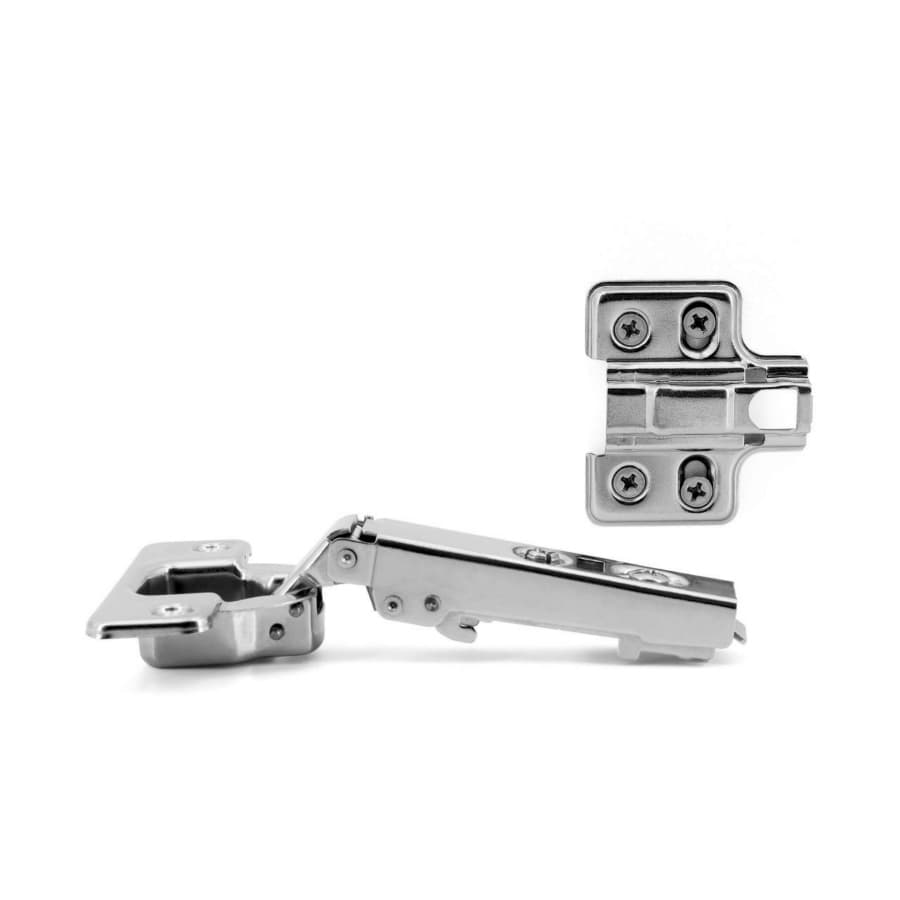

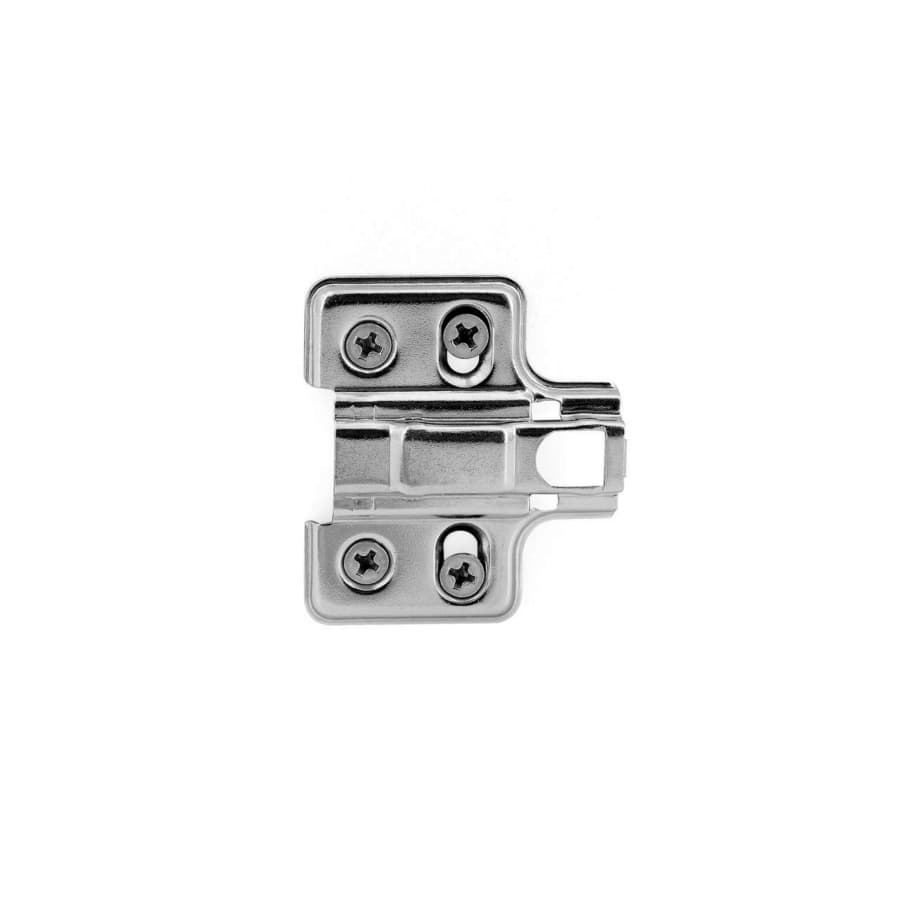

Features: • 101° opening standard euro hinge with damper in stainless steel finish • Stainless steel hinge body construction allows for usage in outdoor environments • Passed 500 hour salt spray test • Resin casing protects damper from corrosive elements • Convenient clip-on mounting system with easy release dismount lever. (180SUS-P6T mounting plate sold separately) • Soft-close version prevents the door from slamming shut • Overlay: 9/16" ~ 3/4" (15 ~ 19mm) • Door Thickness: 9/16" ~ 13/16" (15 ~ 20m) • 3-Way Adjustable (Overlay, Depth, Vertical) • Durable, successfully passed 30,000 cycle-test
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | 19mm |
| Closing Type | |
| Opening Angle | 101° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Polished |
| Boring Pattern | |
| Cup Diameter | 35mm |
| Cup Depth | |
| Material | Stainless steel, Plastic, SPCC |
| Cabinet Type |
