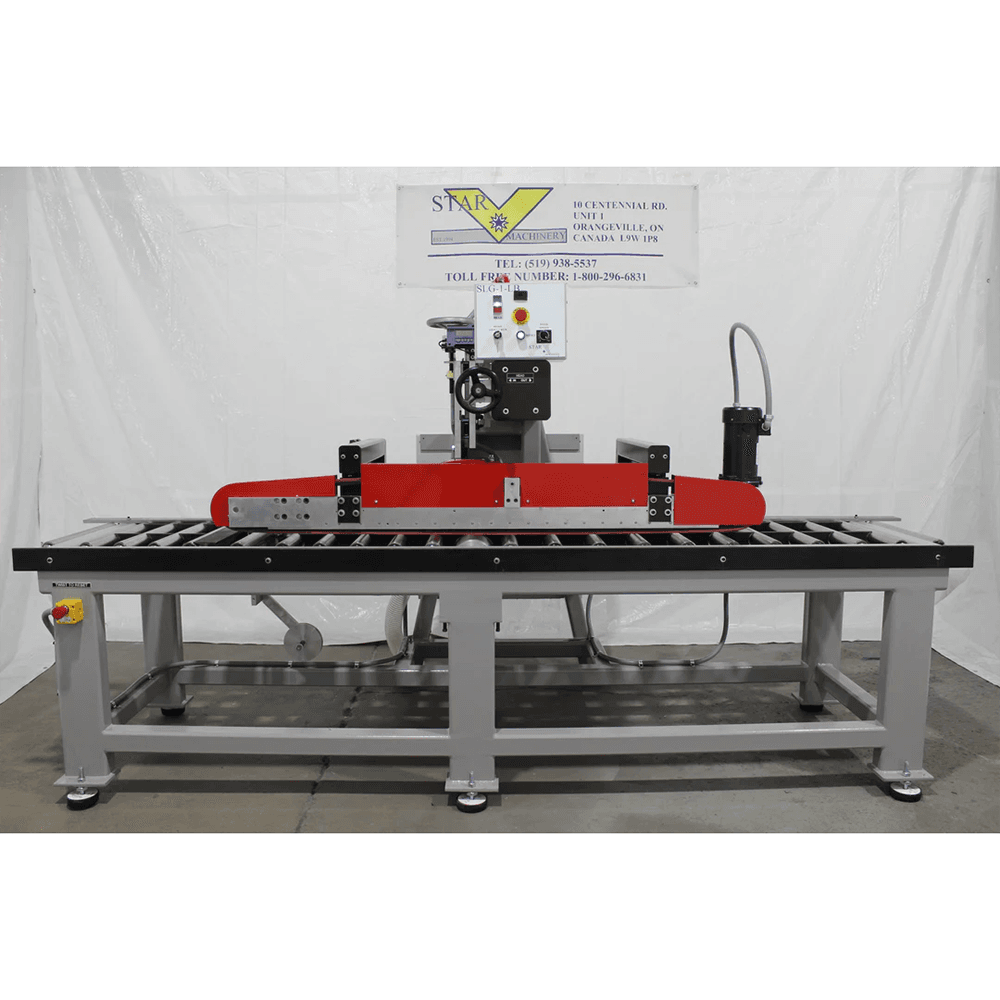

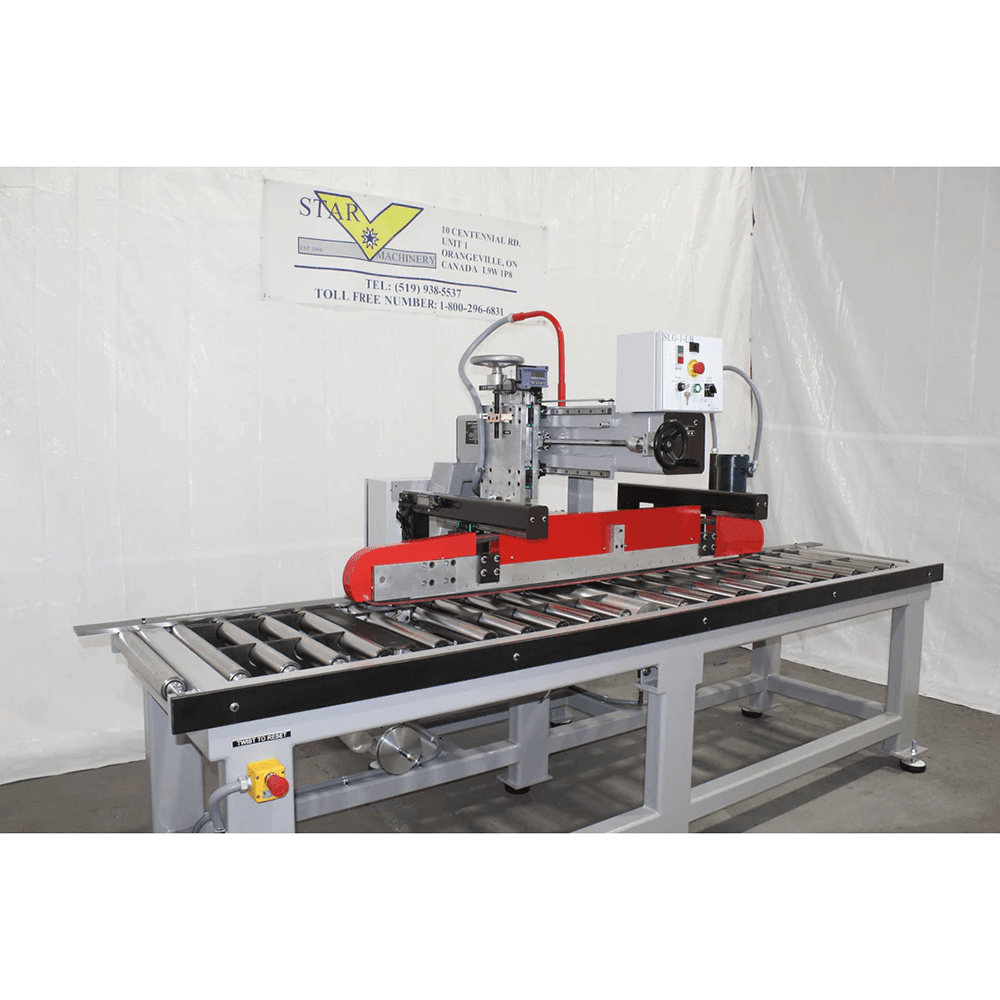

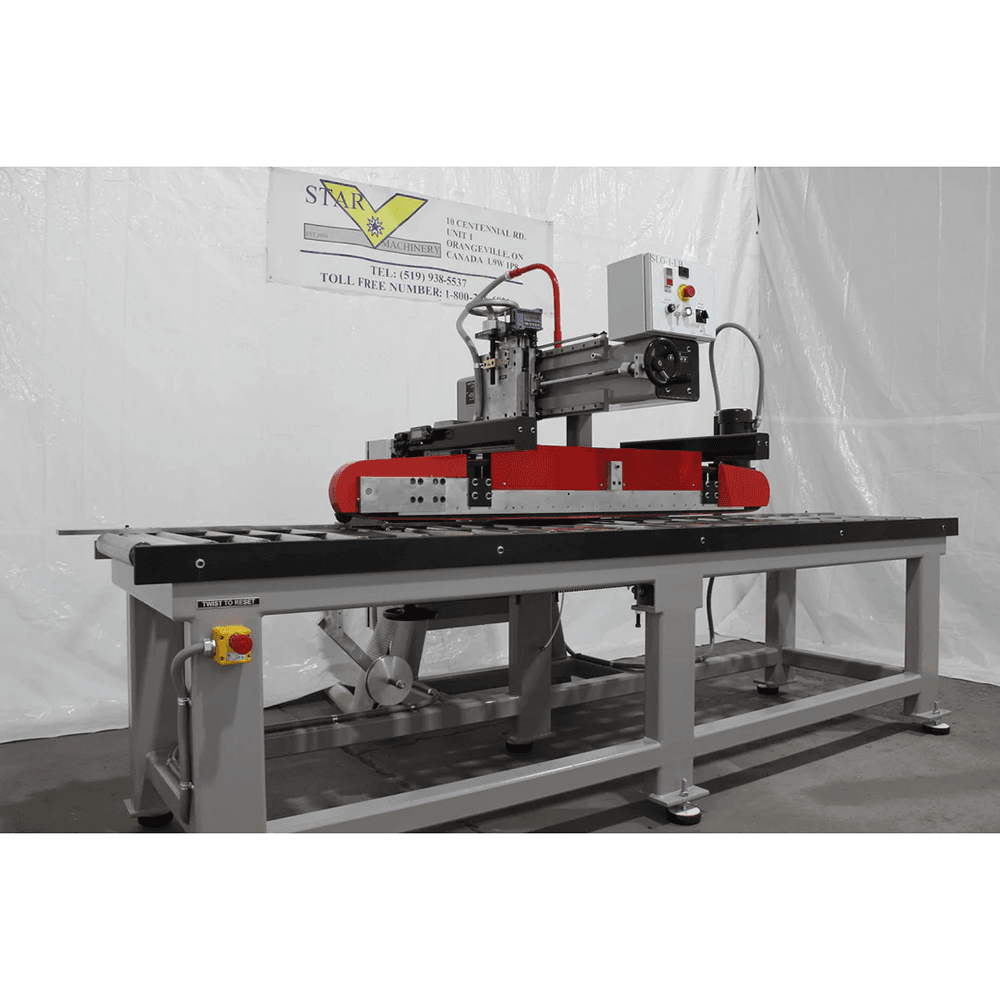

Star V SLG 1-LB Semi Automatic V-Grooving Machine, 10 HP, 3 PH

10Hp 3 Phase, 1 Head, Stainless Roll Bed, 1 Tape

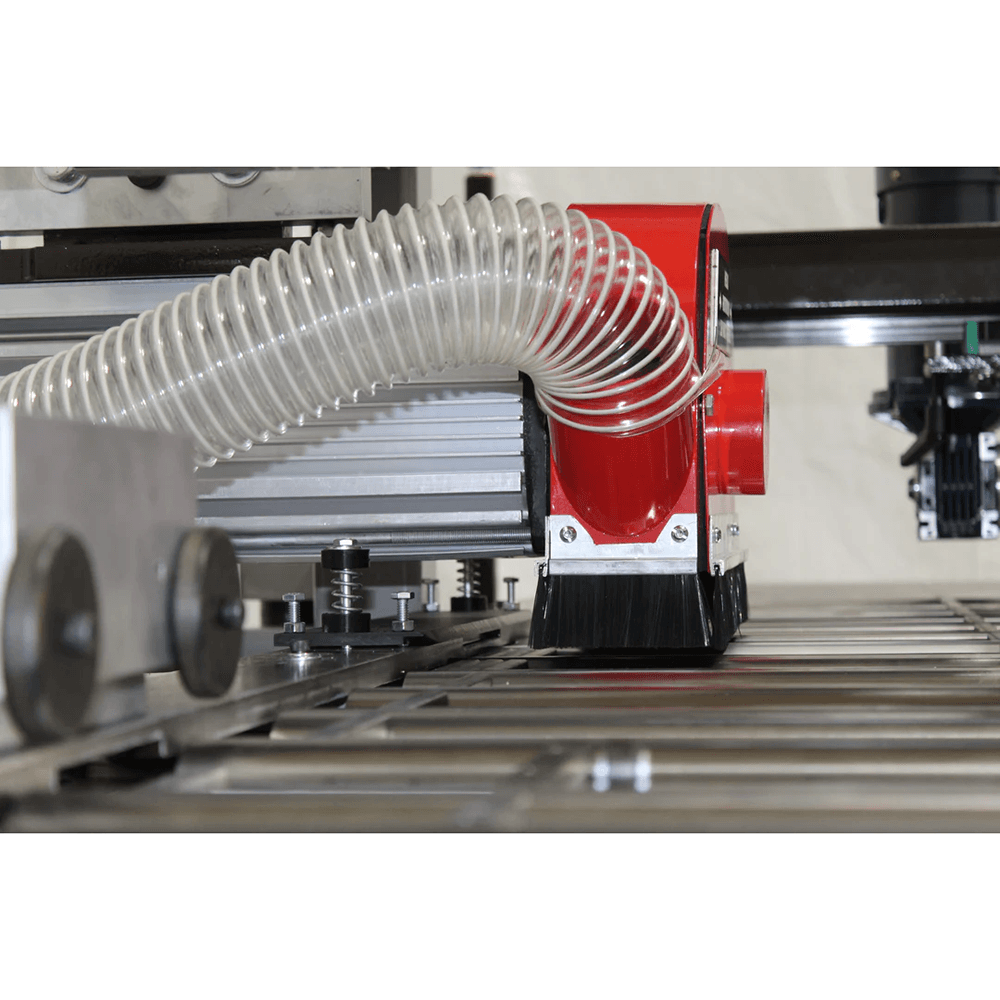

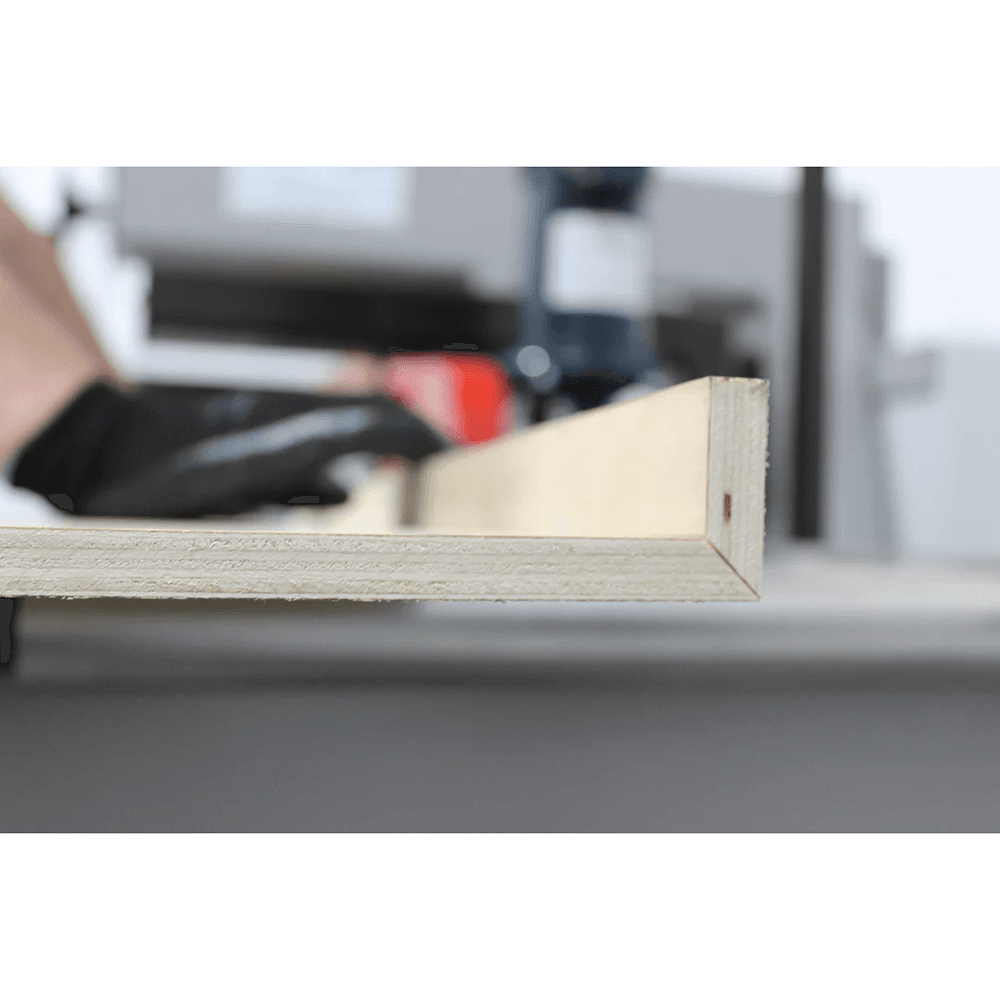

Creating a V-fold edge, instead of building up the front edge, or a cove back splash profile, the v-groove is being applied from above, simultaneously taping from below, with the workpiece moving thought the machine automatically. Both linear and crosscuts up to 15” away from the fixed fence are possible. (Set-up controls are manual)

Machine Dimensions:132”x63”x72”

Service Connection Requirements: Voltage as Required (3ph), 60Psi Air, 197CFM @ 3” Dust Port

Features:

• Widest / Longest Board: Unlimited
• Narrowest Board: V Groove Center from Fence + 3.5”
• Shortest Board: 20”
• Thinnest Board ¼"
• Thickest Board 1 3/16”

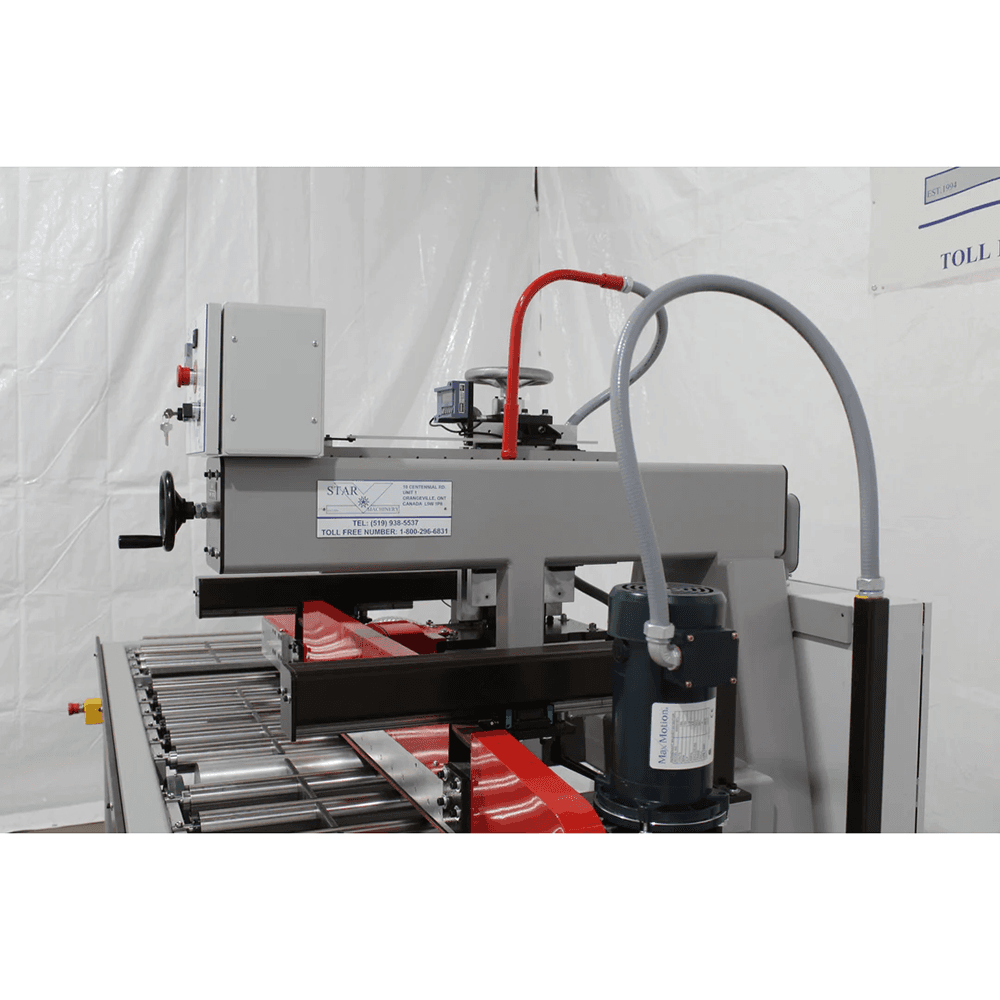

• (1) 10 HP – 3,600 RPM Cutter Motors

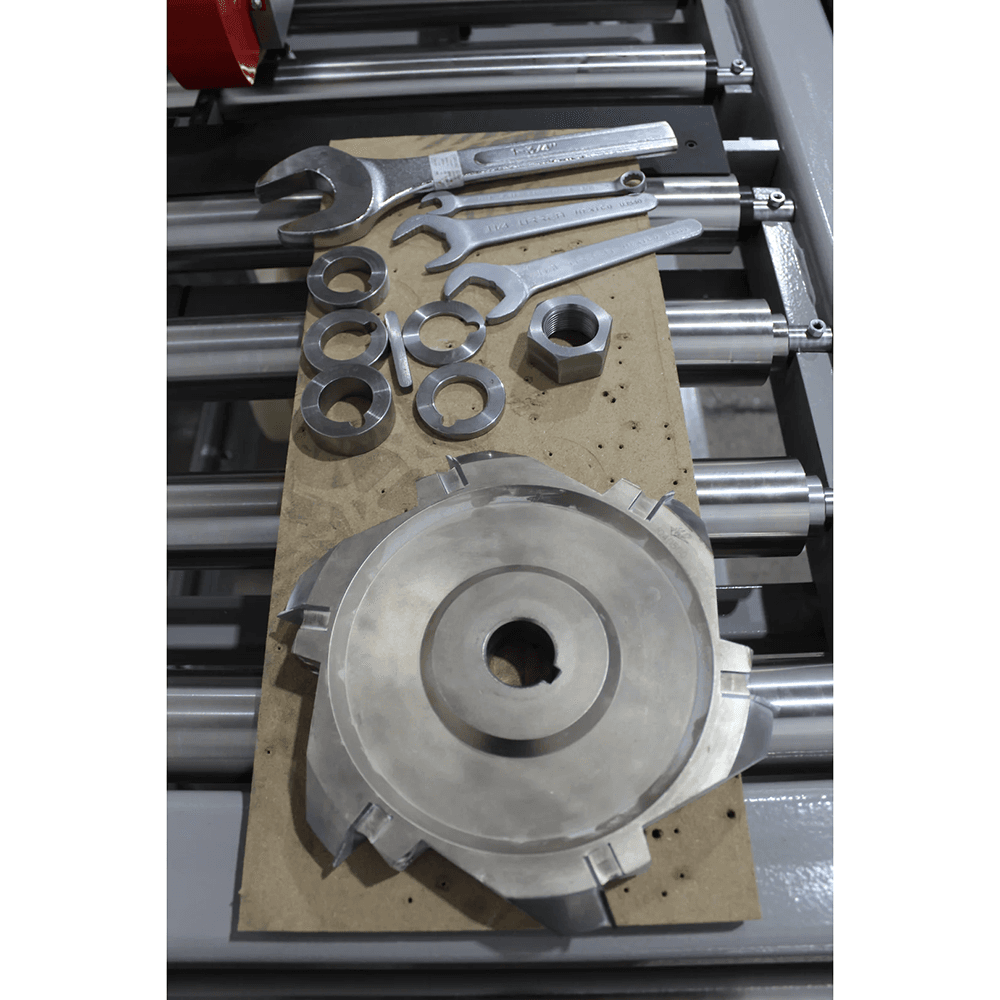

• Ø 30mm x 72mm Cutter Motor Shaft with clamping 8mm Keyway

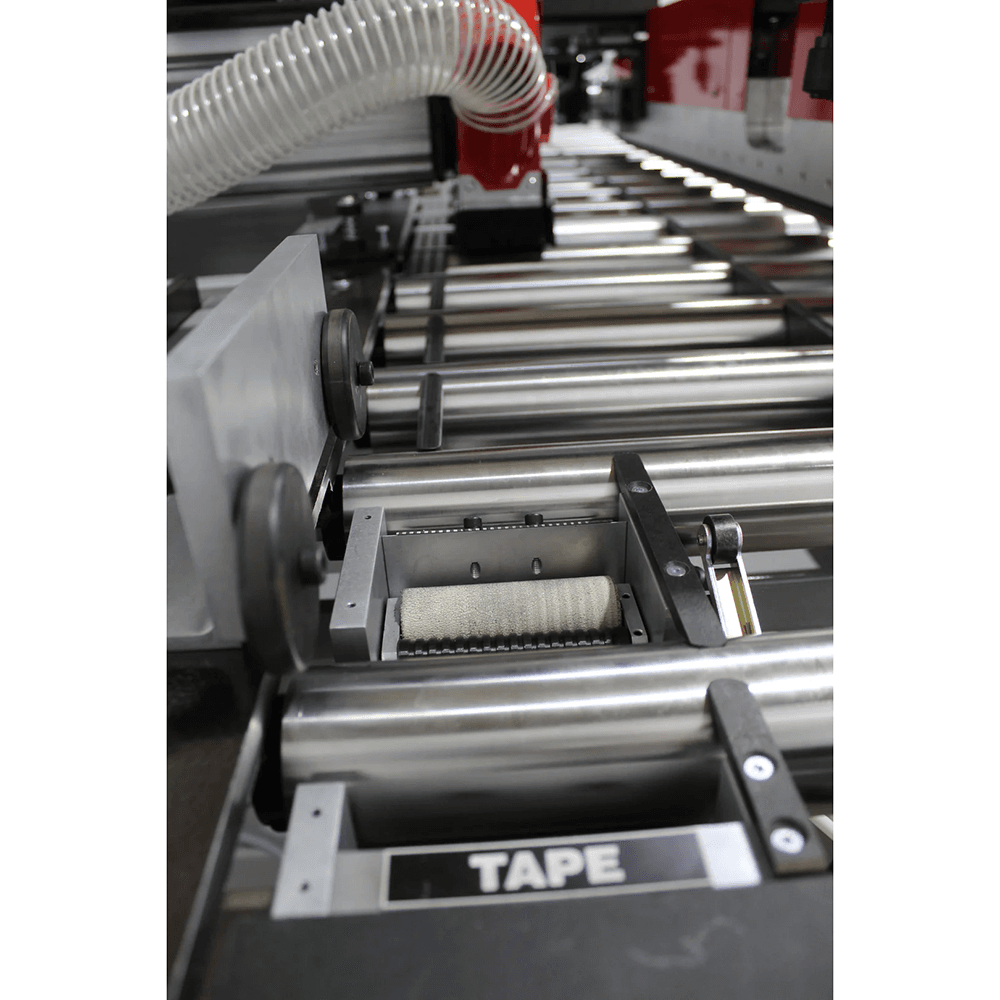

• (1) Built In Automatic Tape Applicator, Position control and Feed Back on 10” Touchscreen Panel

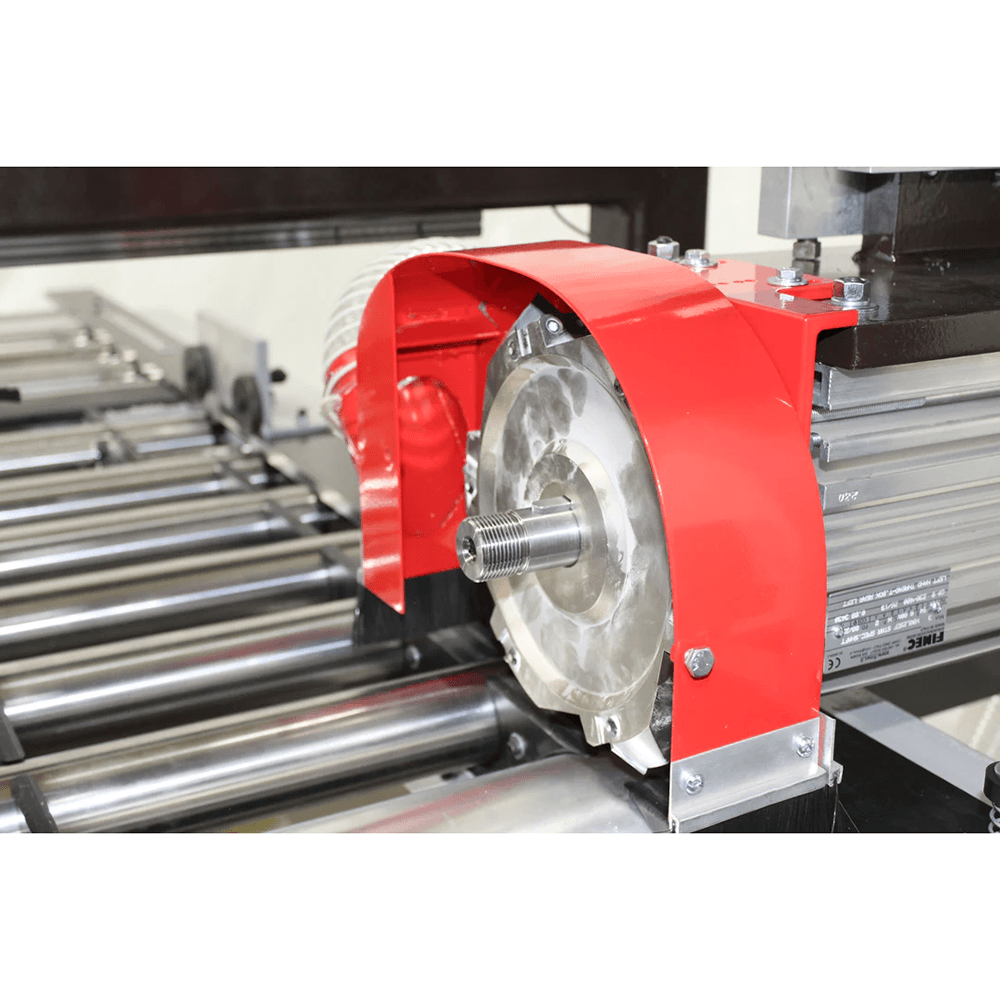

• 9-1/4 Cutter Head Diameter
• 15” Maximum Cut from Fixed Fence, 25, 30, 36, and 40” available upon request.

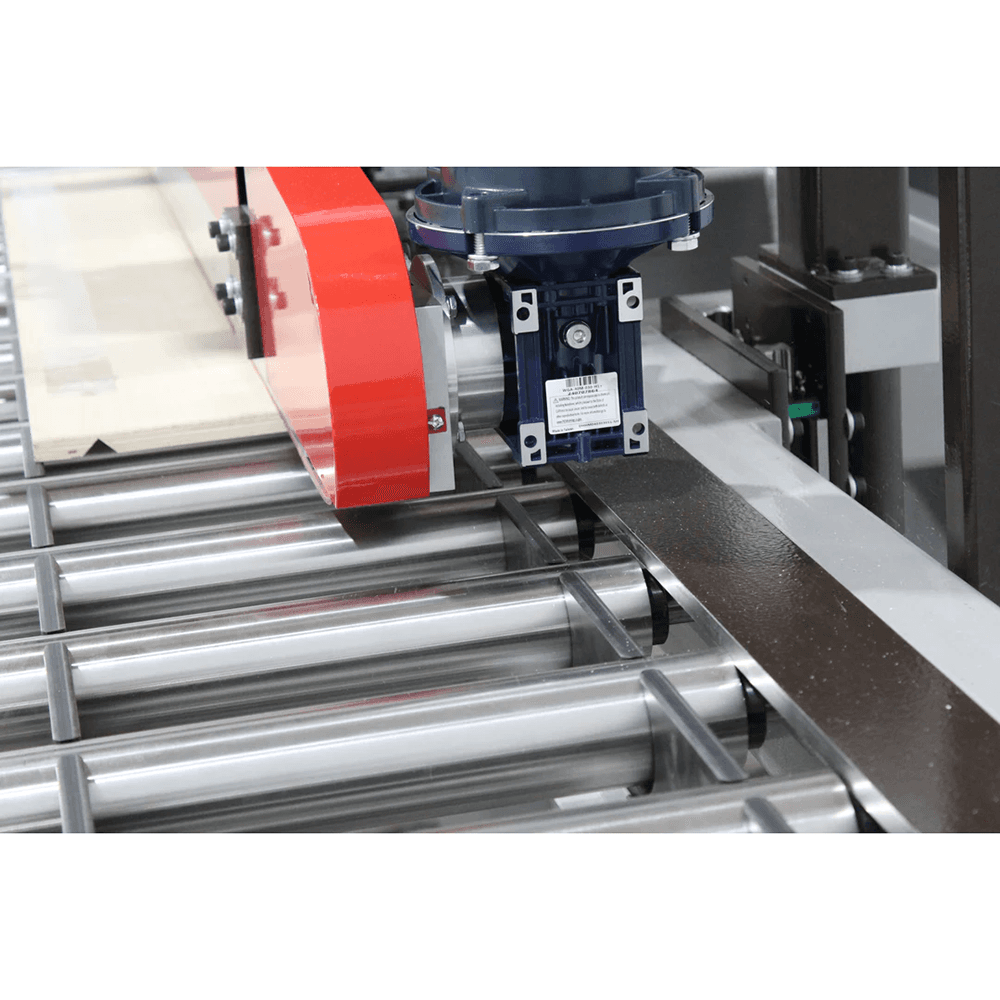

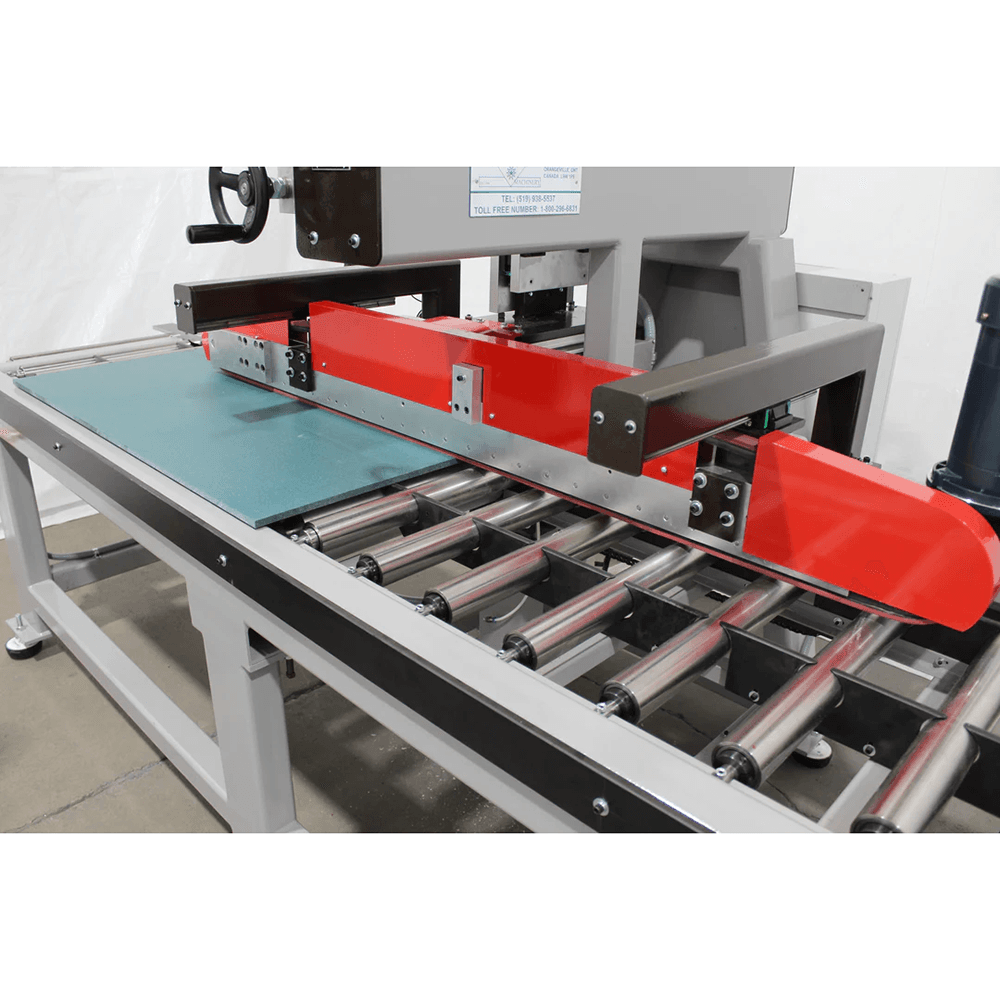

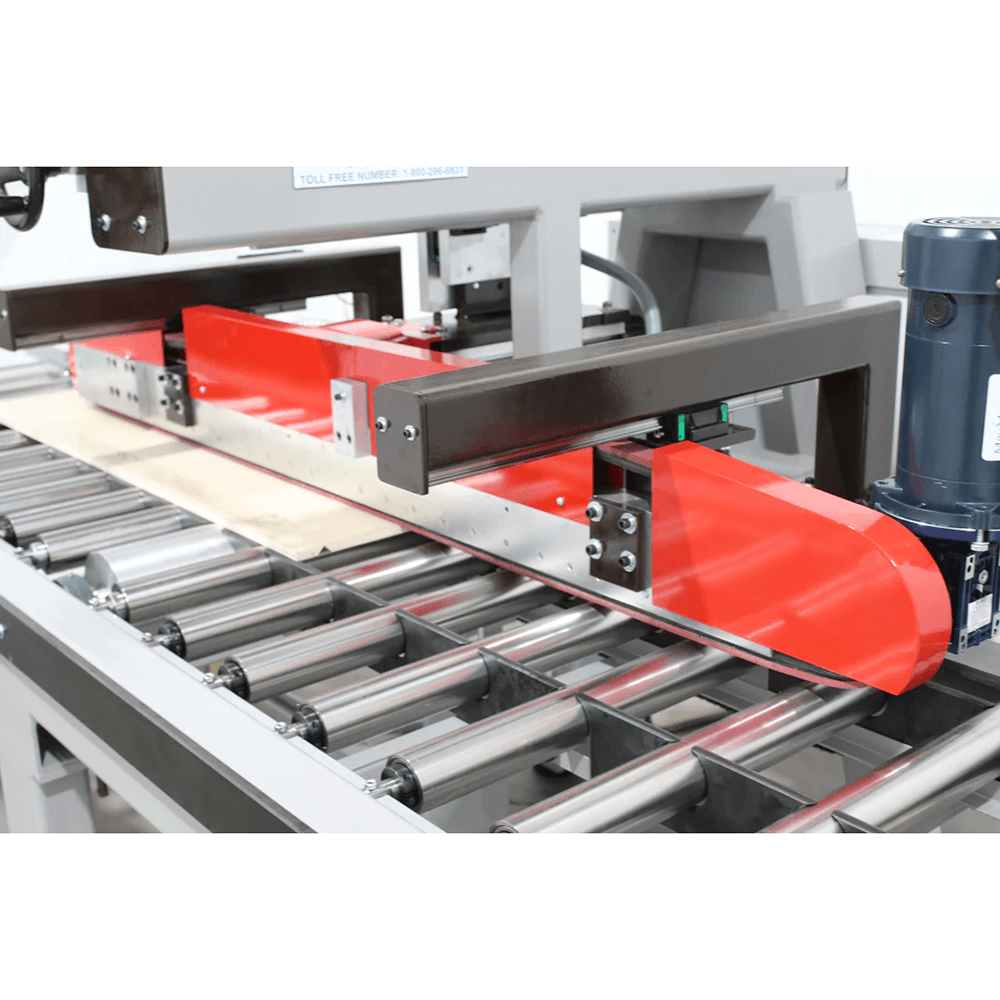

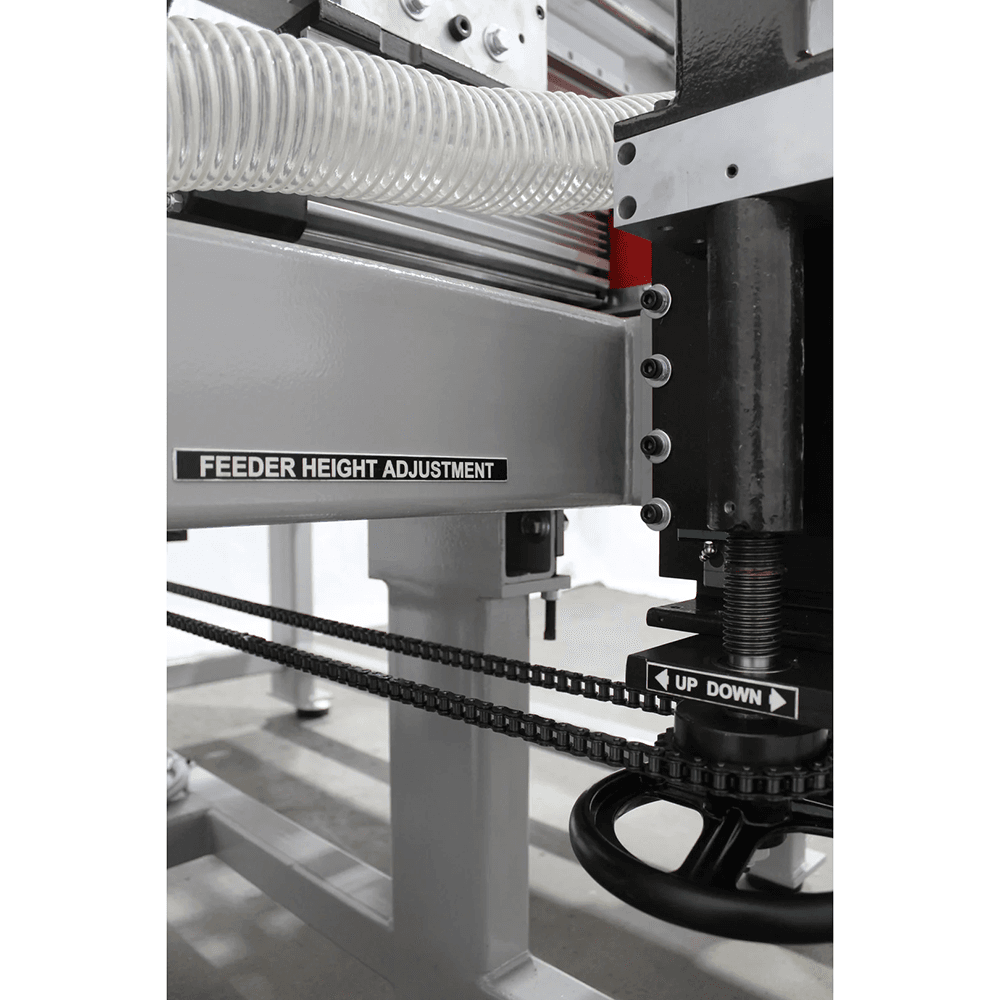

• Feeder Double Belt with Variable DC Motor Feed Drive 0-50 fpm.

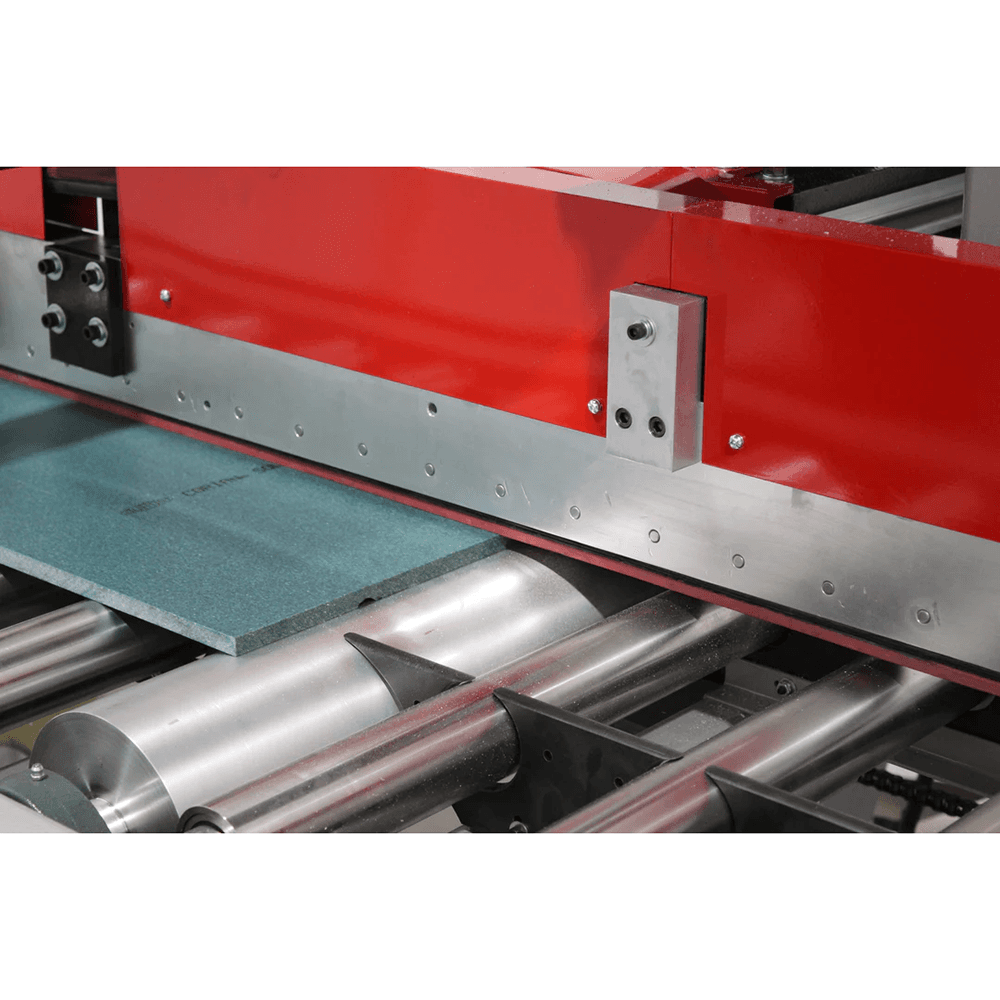

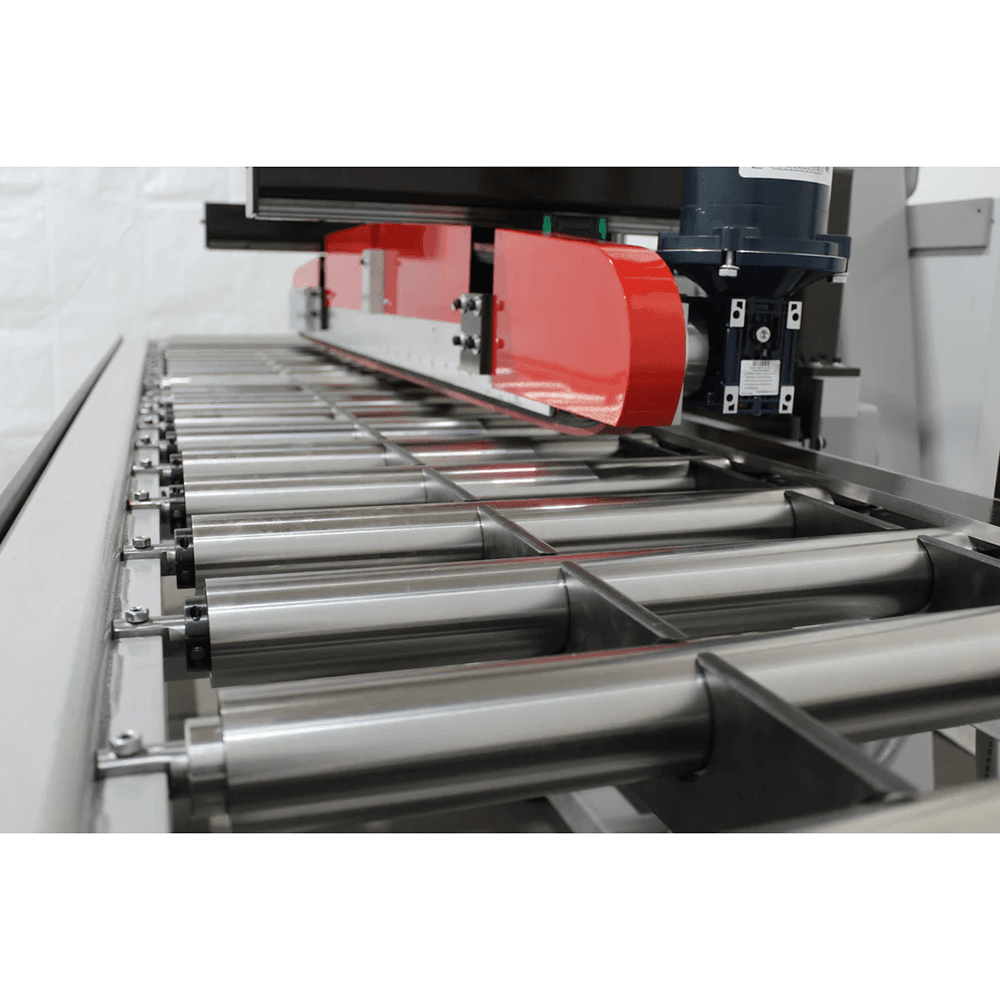

• Stainless Steel Roller Bed
• 6” Solid Aluminum Reference Roller on Cutting Area.

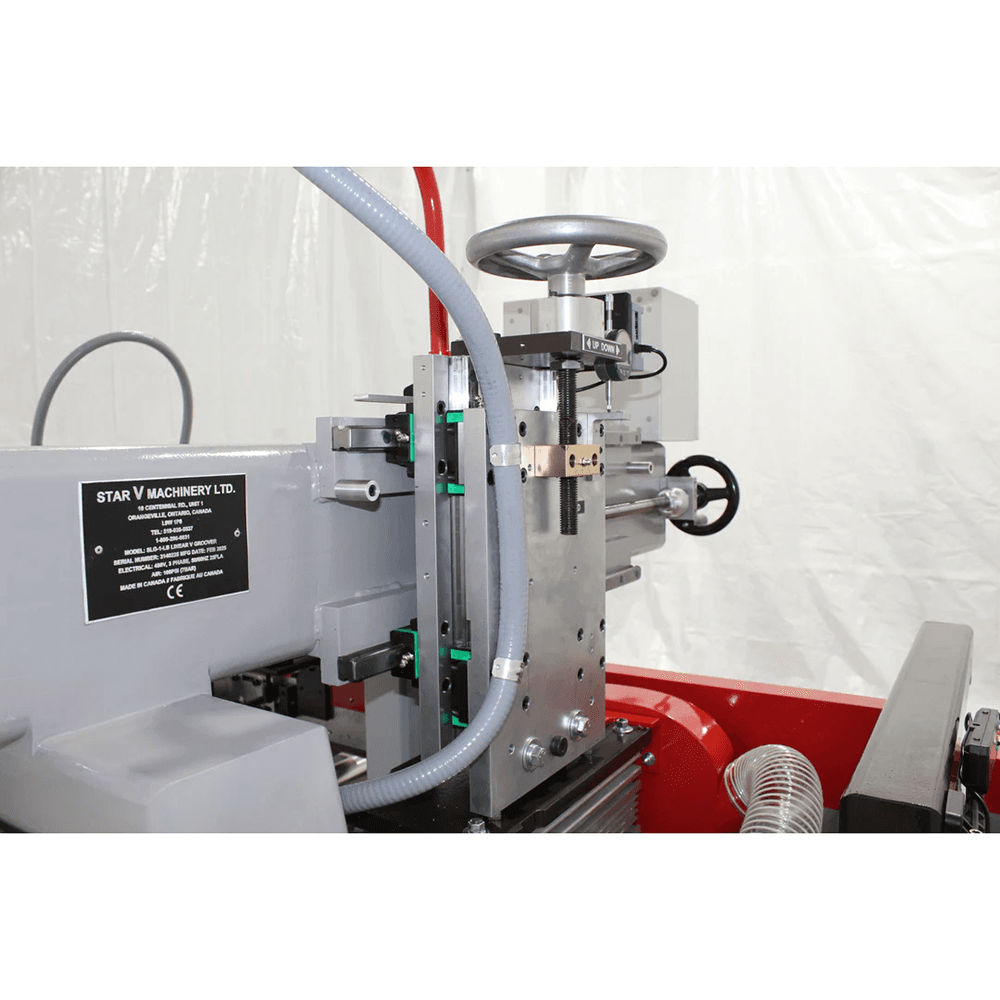

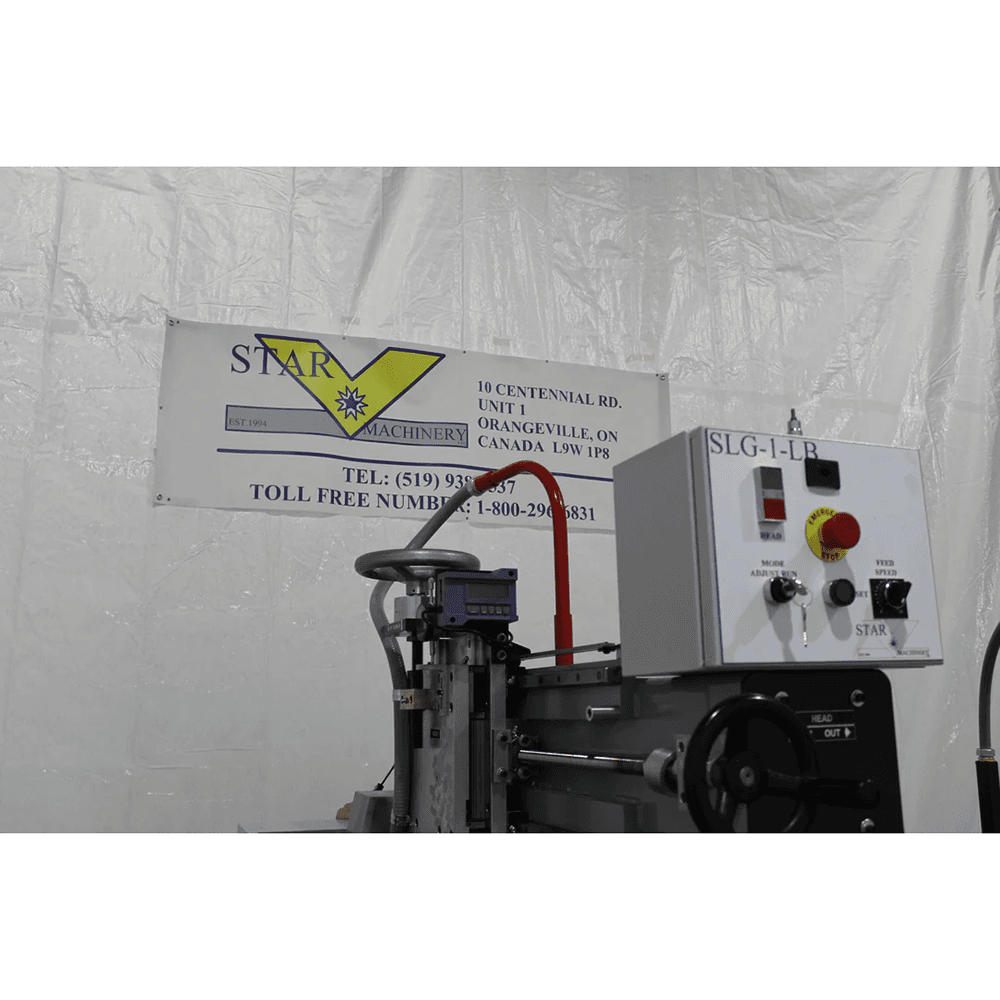

• Cutter Depth Movements via Hand Wheel, on Linear Bearings and Rails, ACME Nut and Rod, Position on Digital Indicator

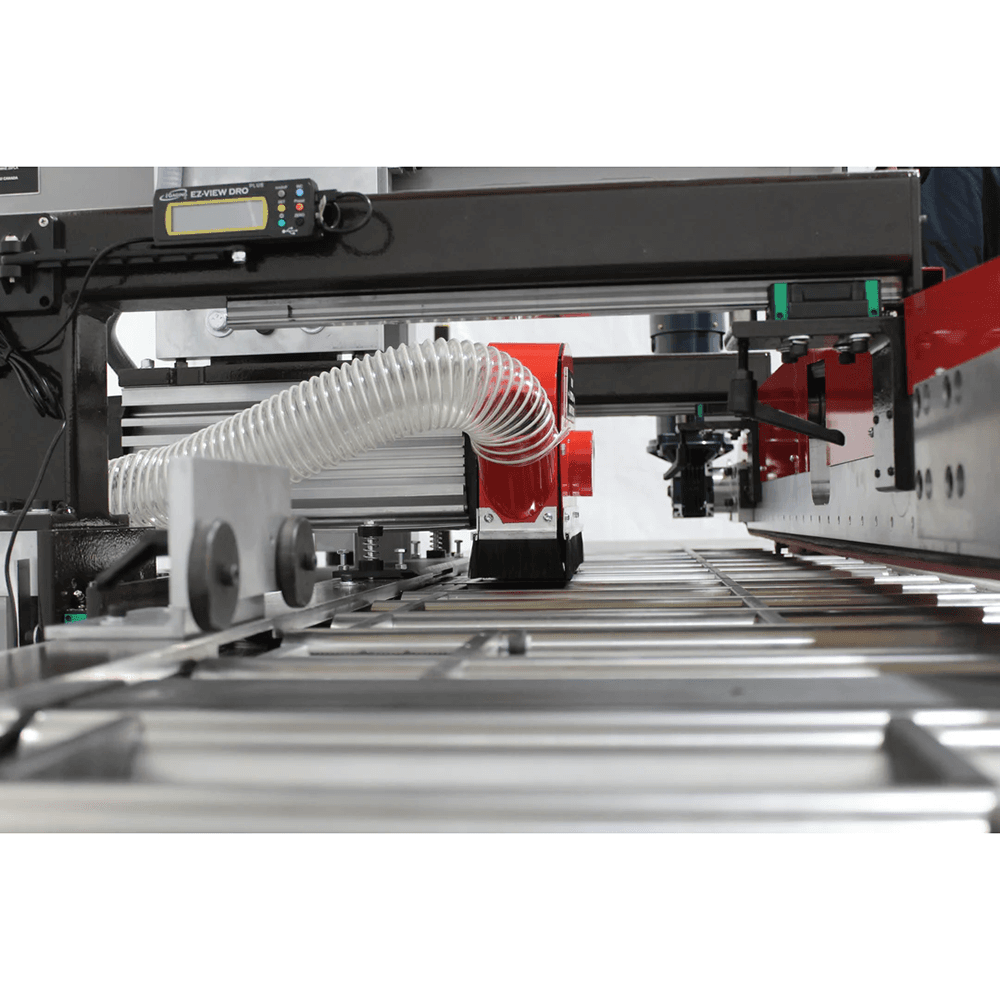

• Cutter side Movement via Hand Wheel, on Linear Bearings and Rails, Ball Screw and Nut, Cutter Position Feed Back on Proscale DRO.
• Tubular welded Frame Construction.
• 2 Year Warranty
