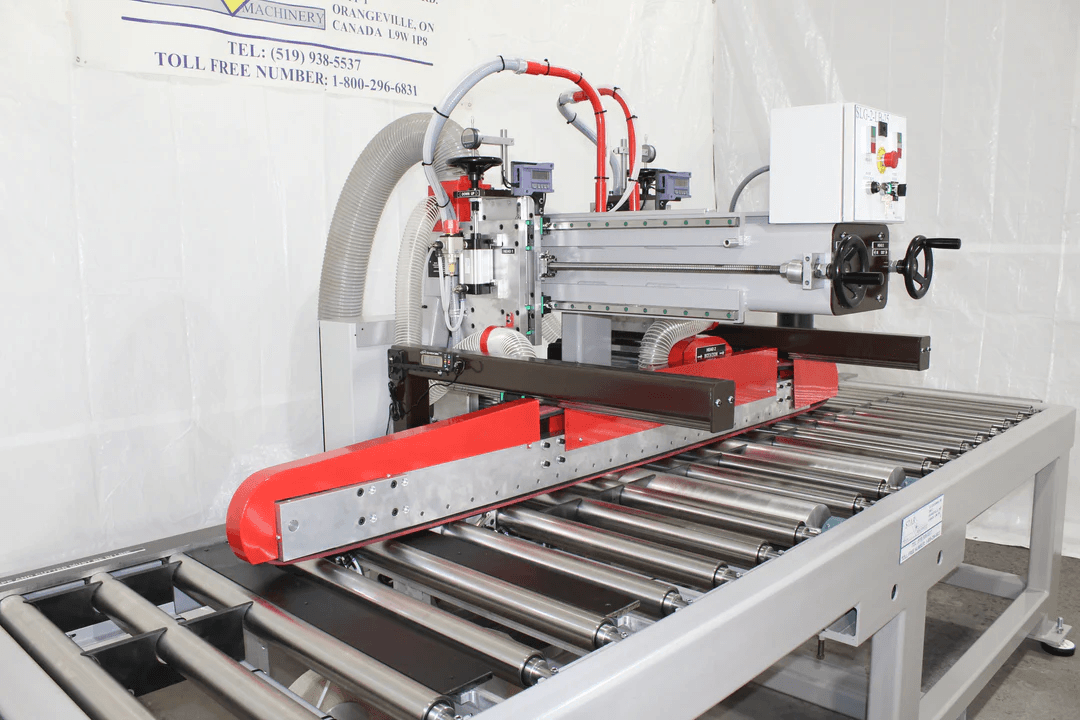

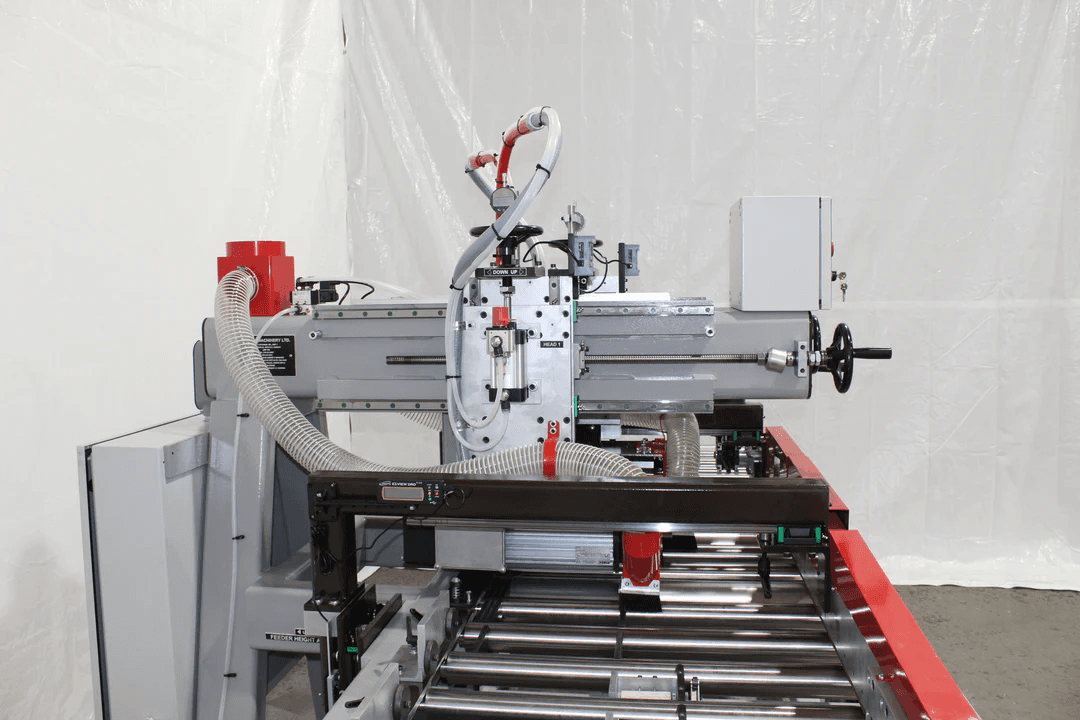

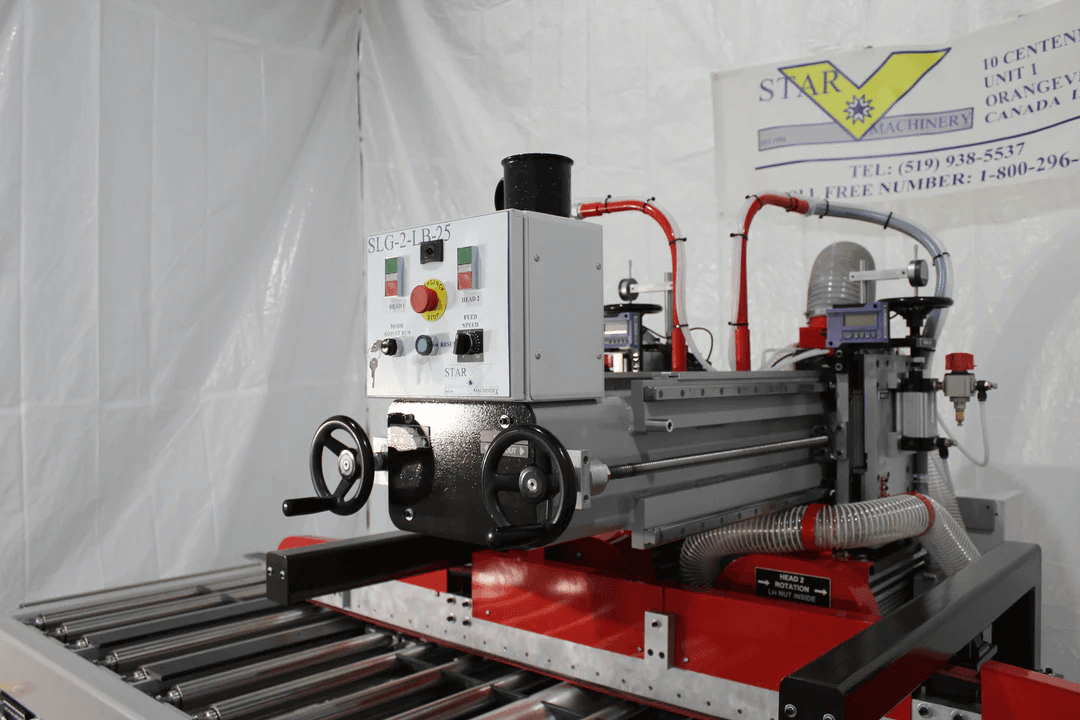

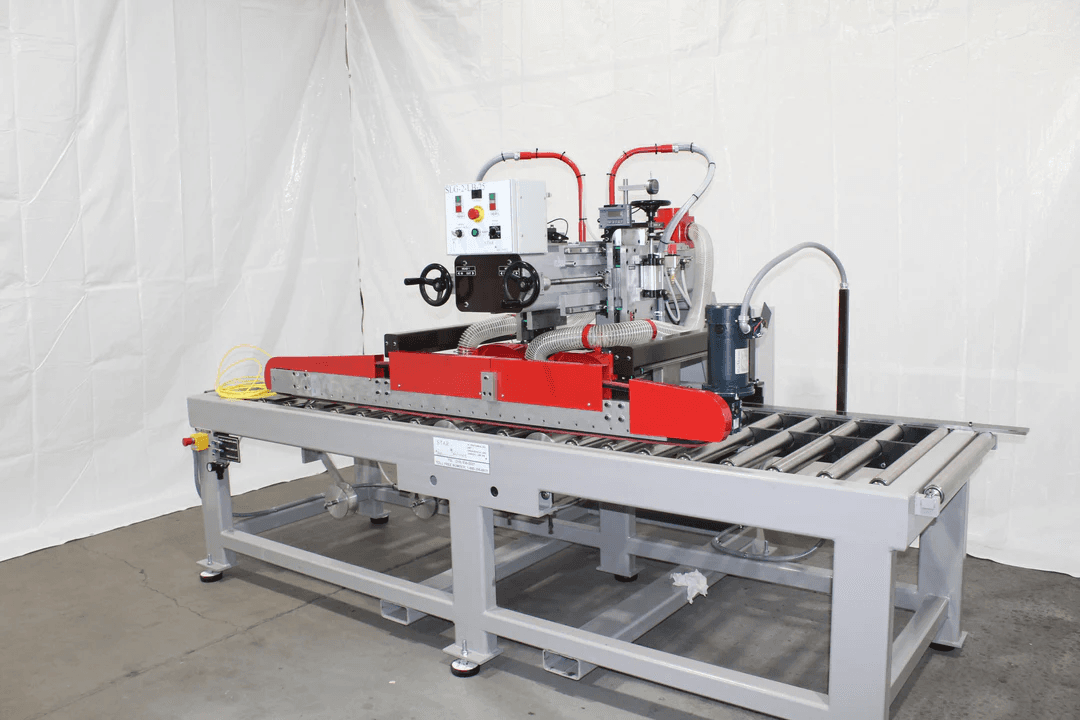

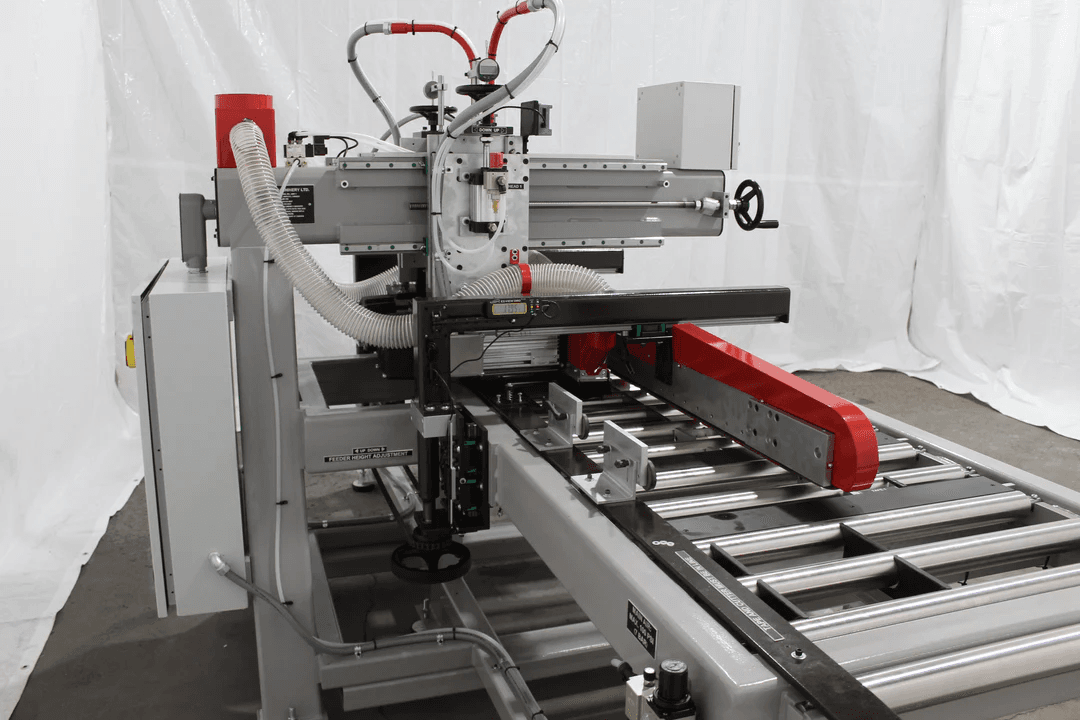

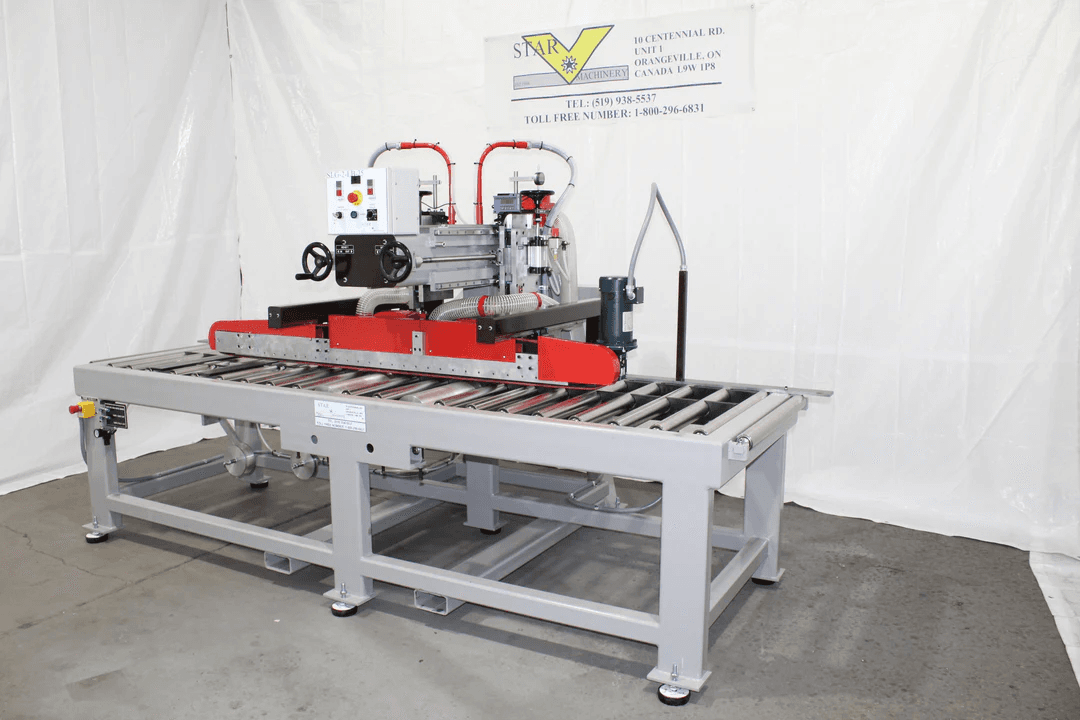

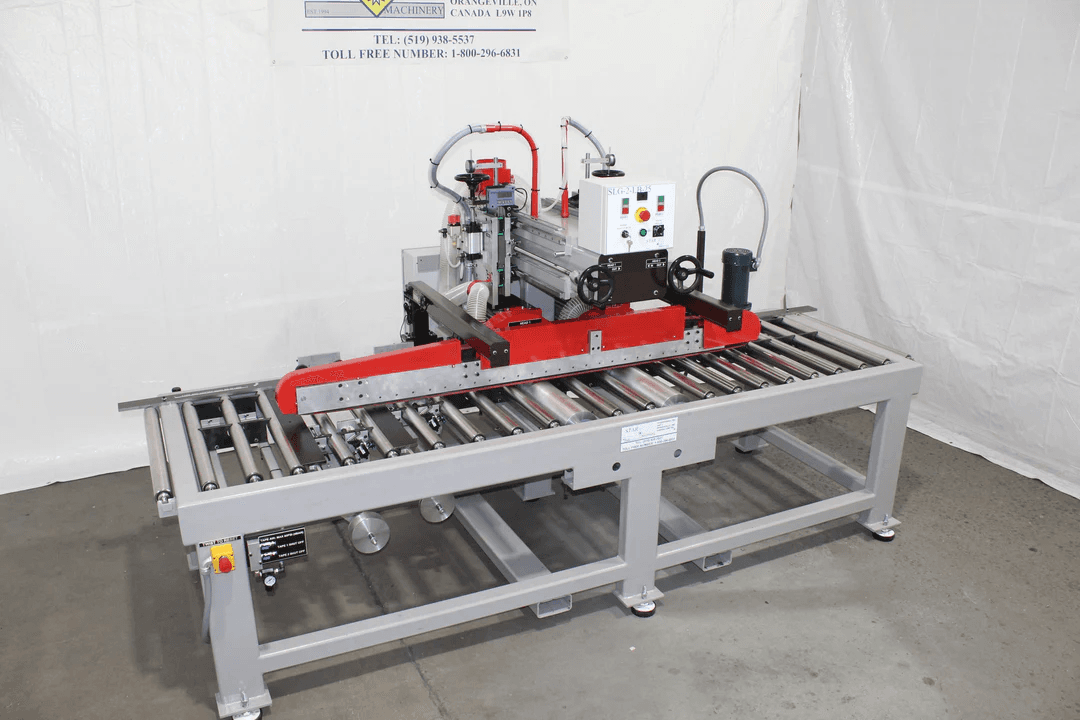

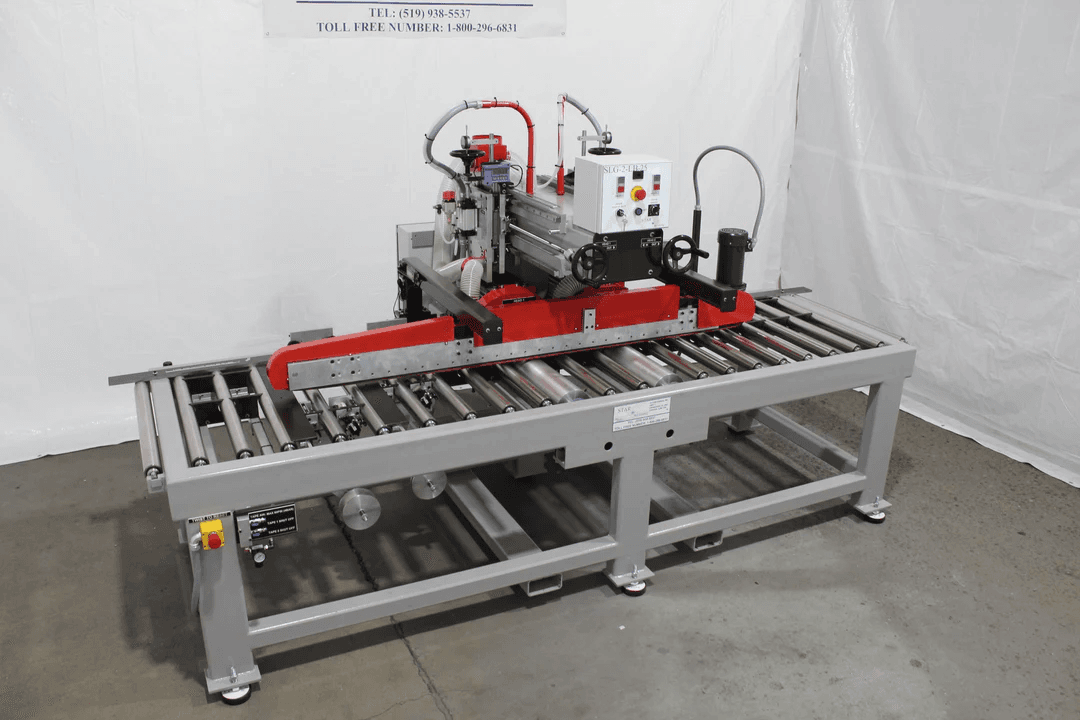

Star V SLG 2-LB Semi Automatic V-Grooving Machine, 10 HP, 3 PH

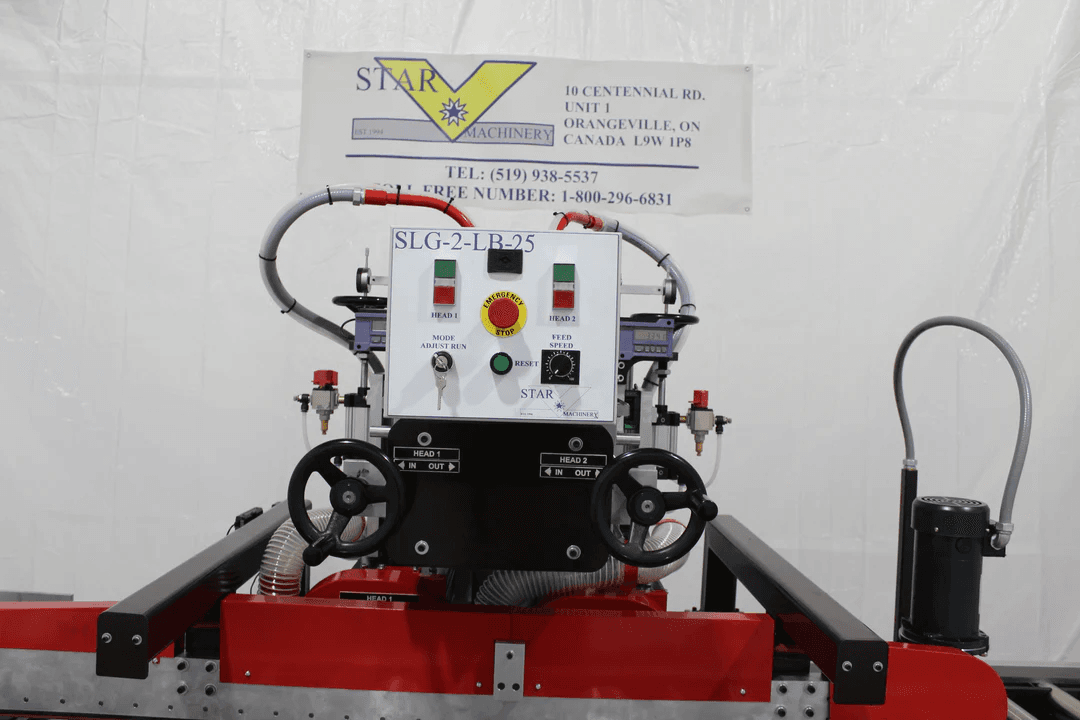

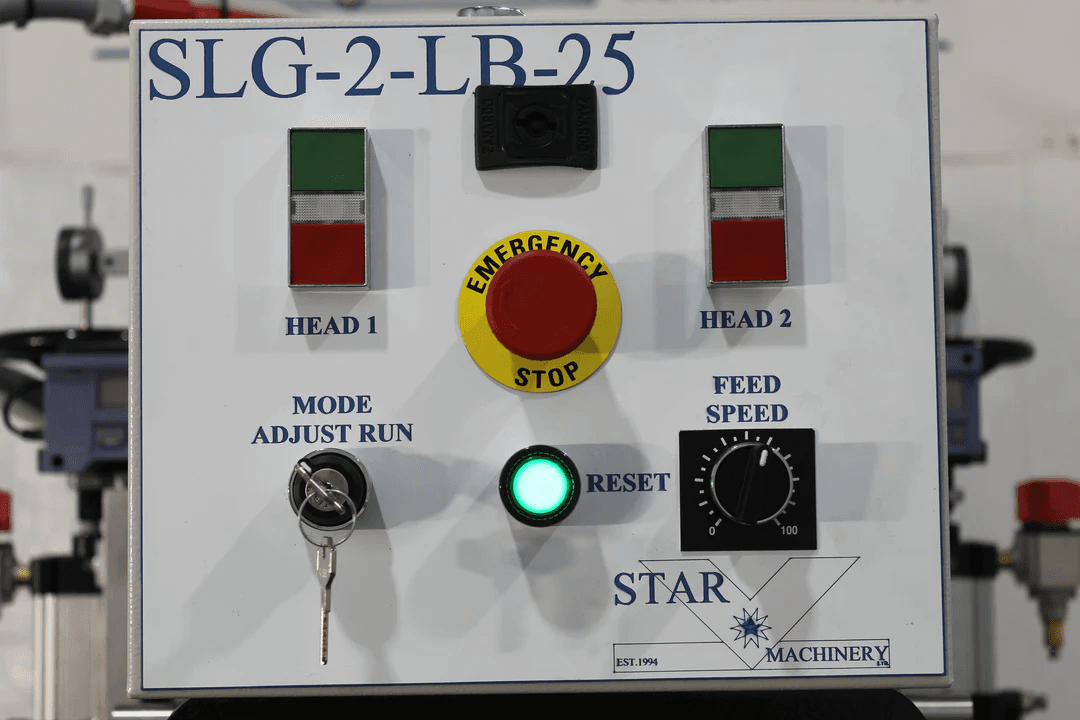

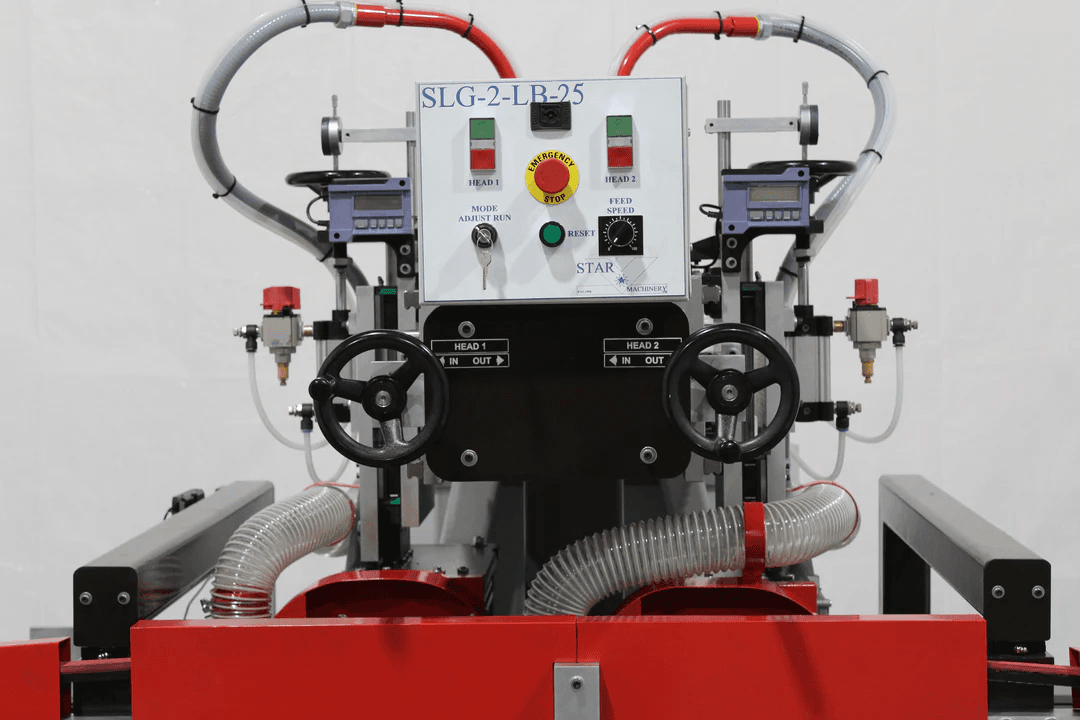

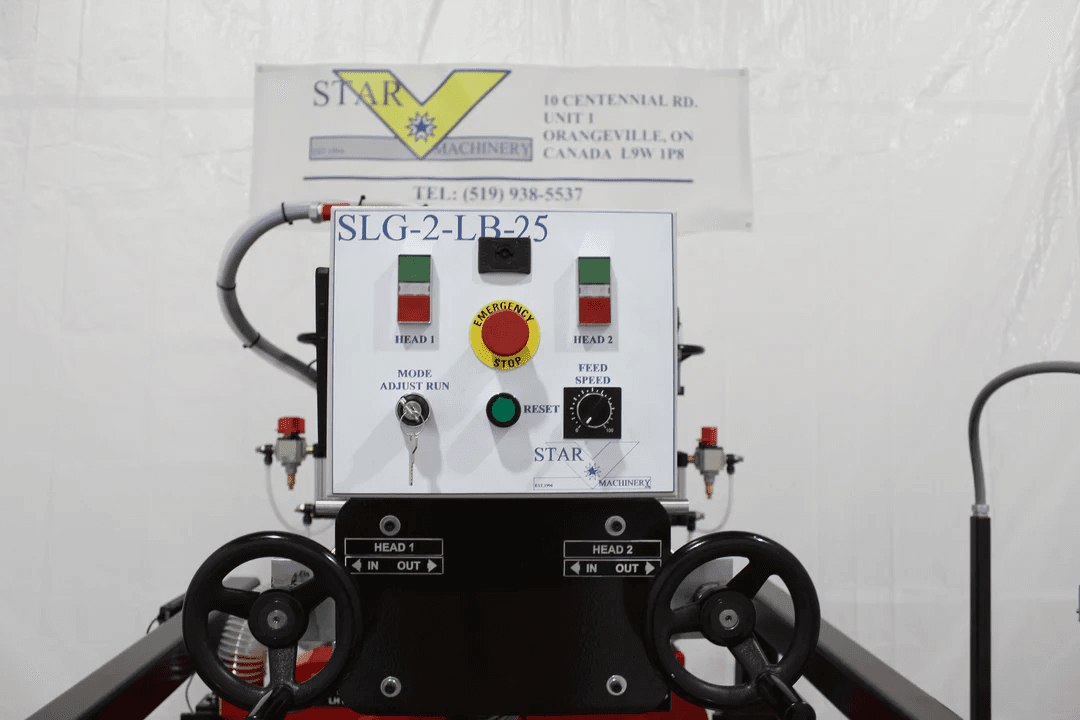

The Star V SLG 2-LB Semi Automatic V-Grooving Machine comes equipped with two cutting stations controlled via pneumatic controls and with a solenoid valve, and two tape stations, the SLG-2-LB can be customized with several different frame widths from 15" to 40" Throats. Can be ordered as a reverse feed machine to accommodate workflow in any shop. Creating a V-fold edge, instead of building up the front edge, or a cove back splash profile, the v-groove is being applied from above, simultaneously taping from below, with the workpiece moving thought the machine automatically. Both linear and crosscuts up to 15" away from the fixed fence are possible.(Set-up controls are manual) Machine Dimensions:138"x63"72" Service Connection Requirements: Voltage as Required (3ph), 100Psi Air, 785CFM @ 6" Dust Port

• Widest / Longest Board: Unlimited

• Narrowest board: V Groove Center from fence +3.5"

• Shortest Board: 20"

• Thinnest Board ¼"

• Thickest Board 1 3/16"

• (2) 10 HP - 3,600 RPM Cutter Motors

• Ø 30mm x 72mm Cutter Motor Shaft with clamping 8mm Keyway

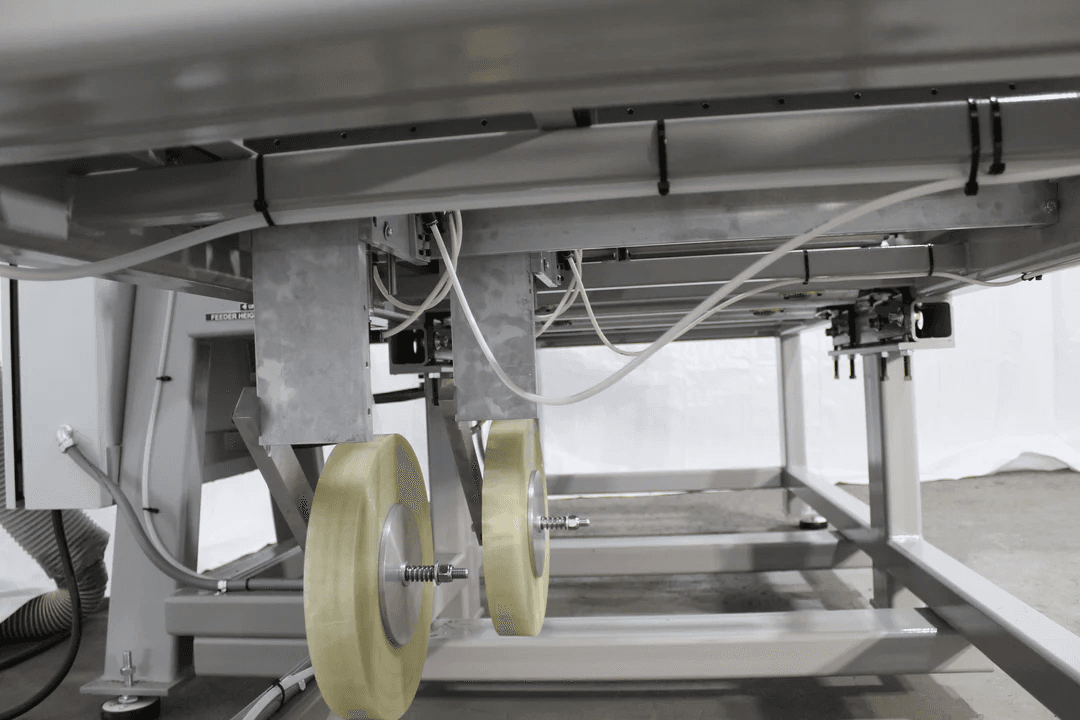

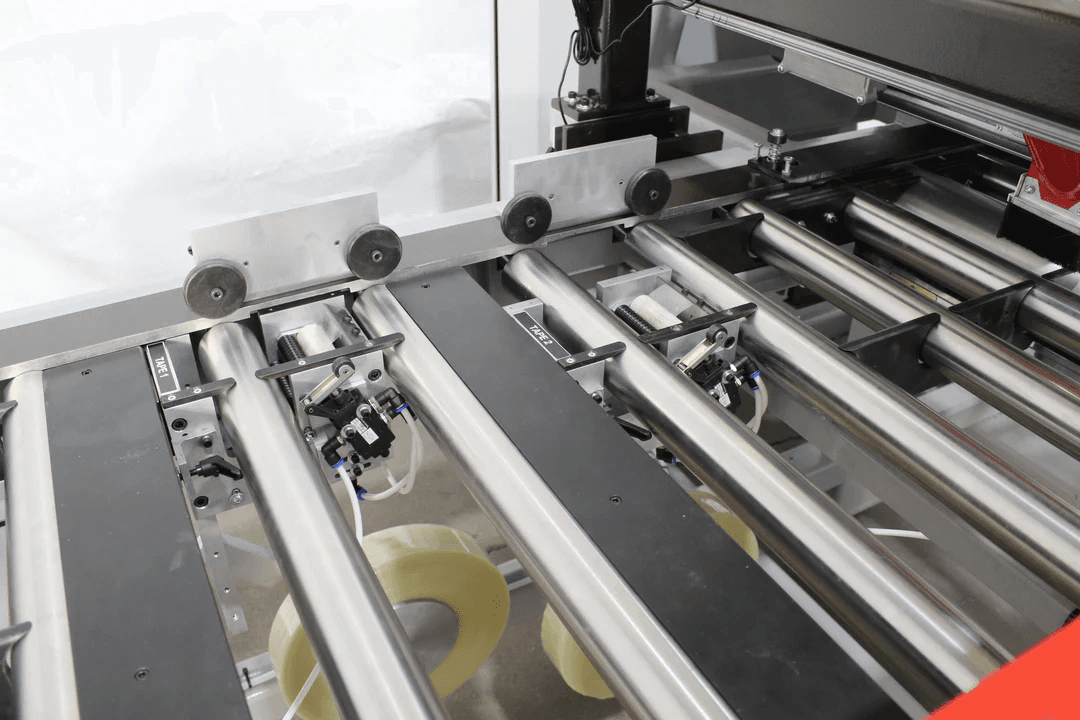

• (2) Built In Automatic Tape Applicators

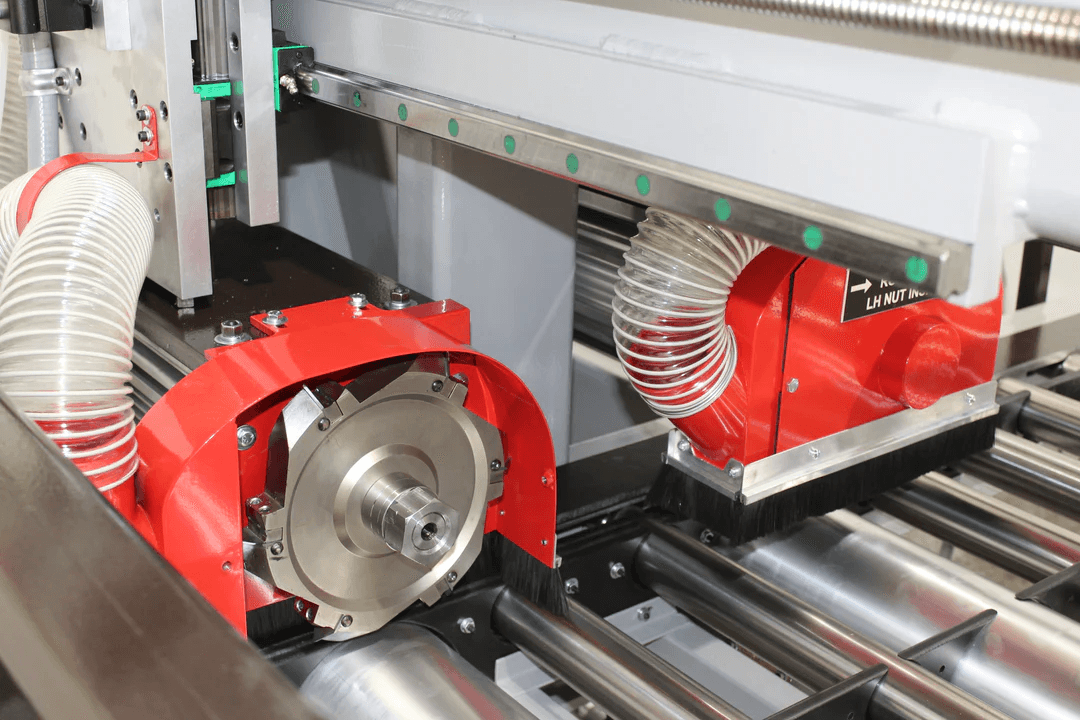

• 9-1/4 Cutter Head Diameter

• 15" Maximum Cut from Fixed Fence, 25, 30, 36, and 40" available upon request.

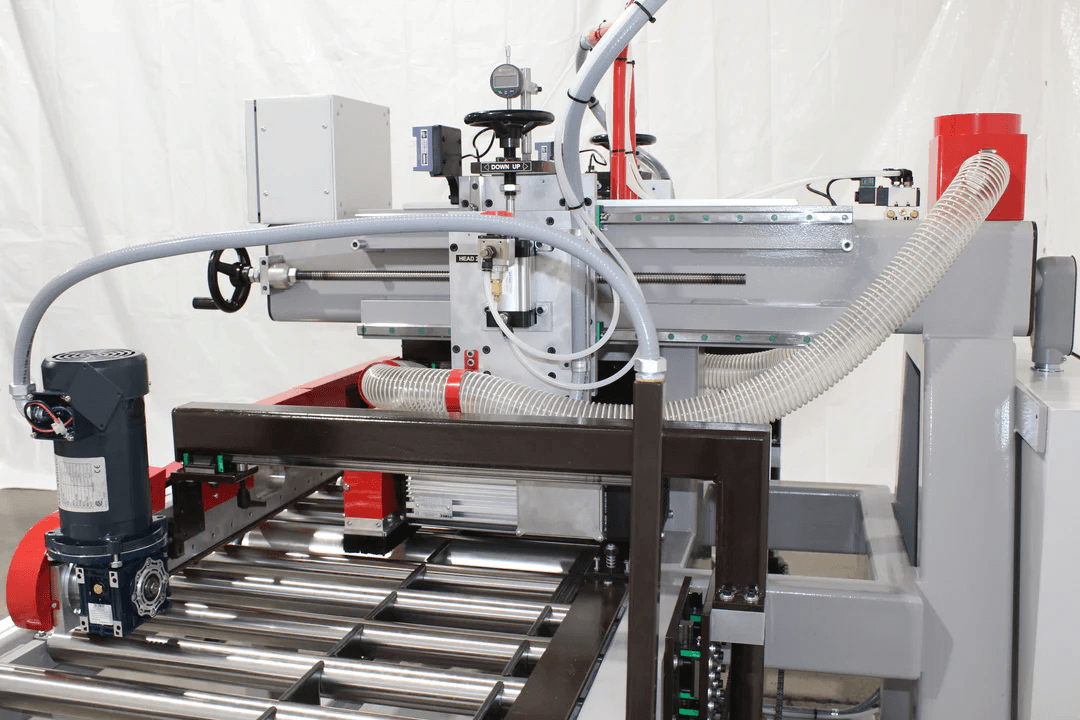

• Feeder Double Belt with Variable DC Motor Feed Drive 0-50 fpm.

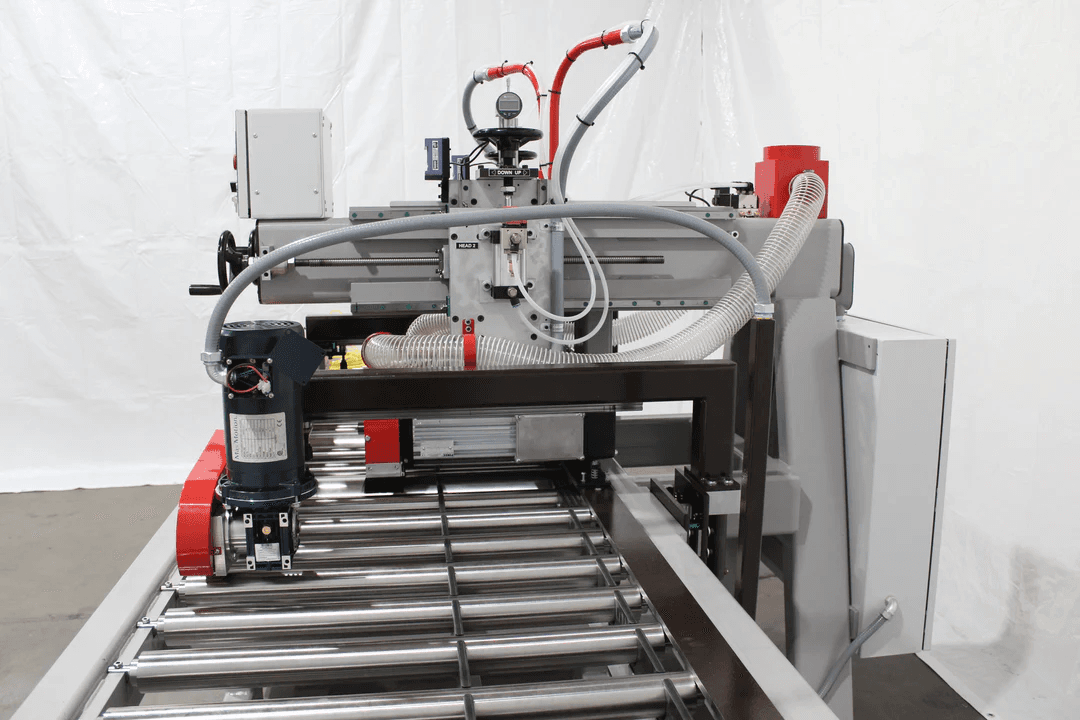

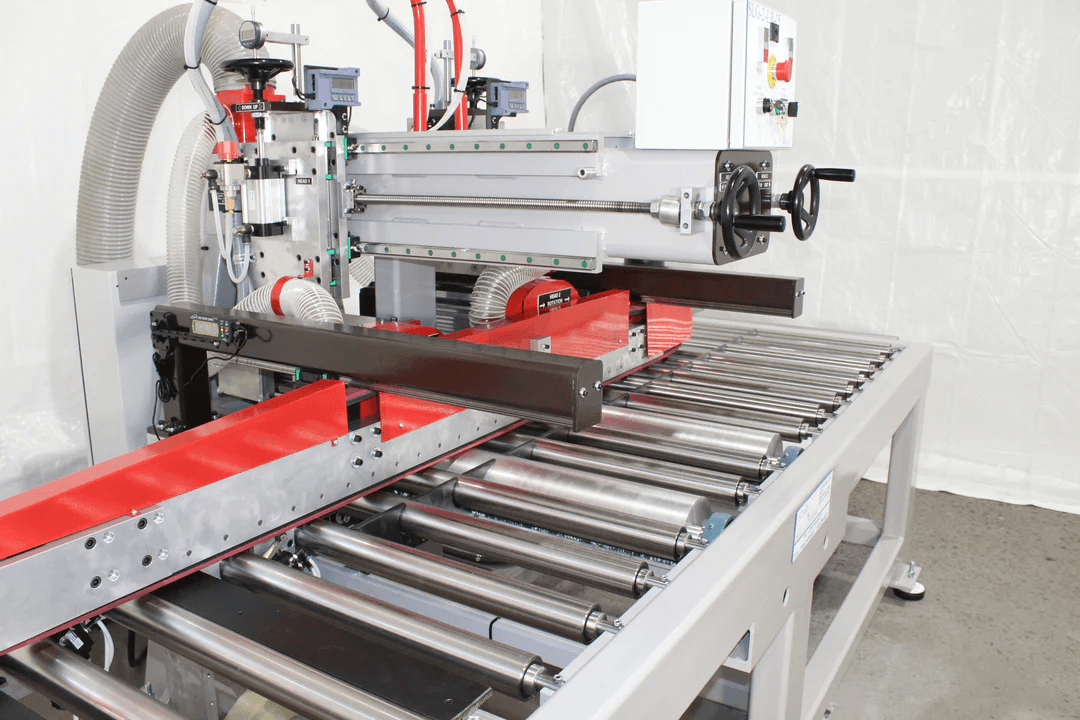

• Stainless Steel Roller Bed

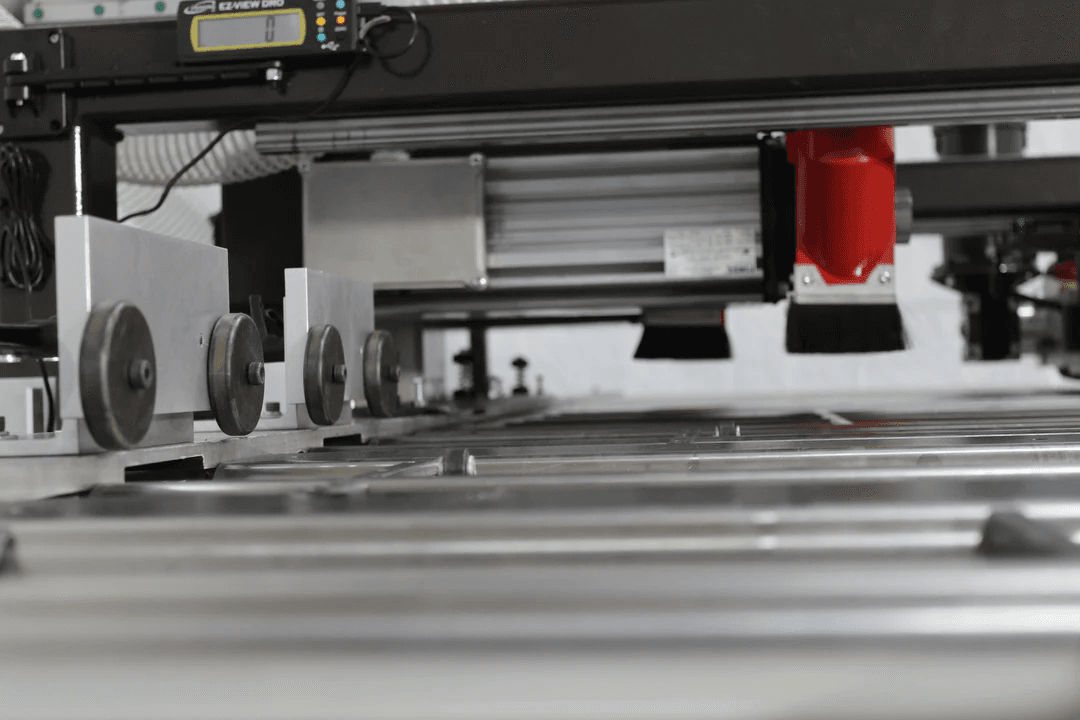

• 6" Solid Aluminum Reference Rollers on Cutting Area.

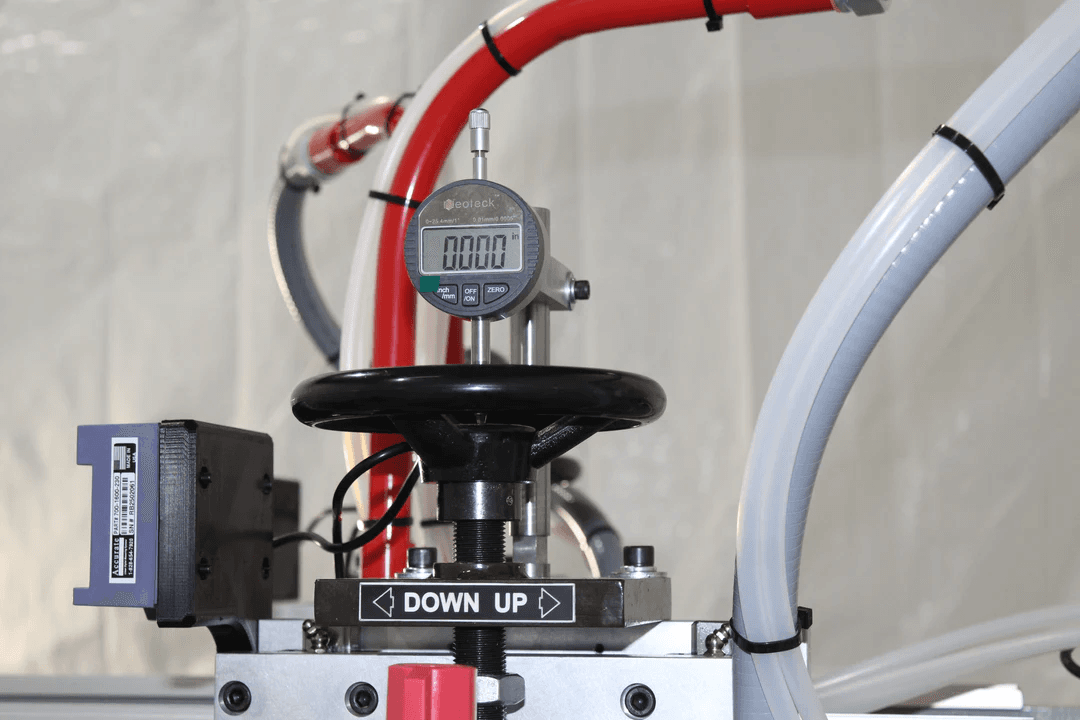

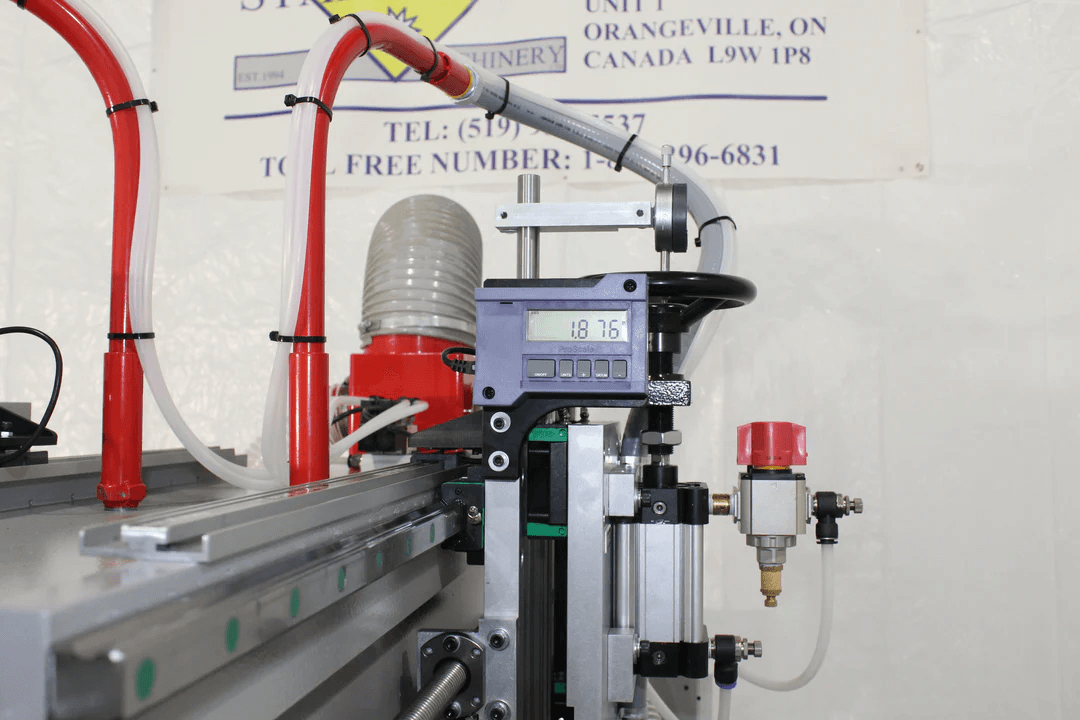

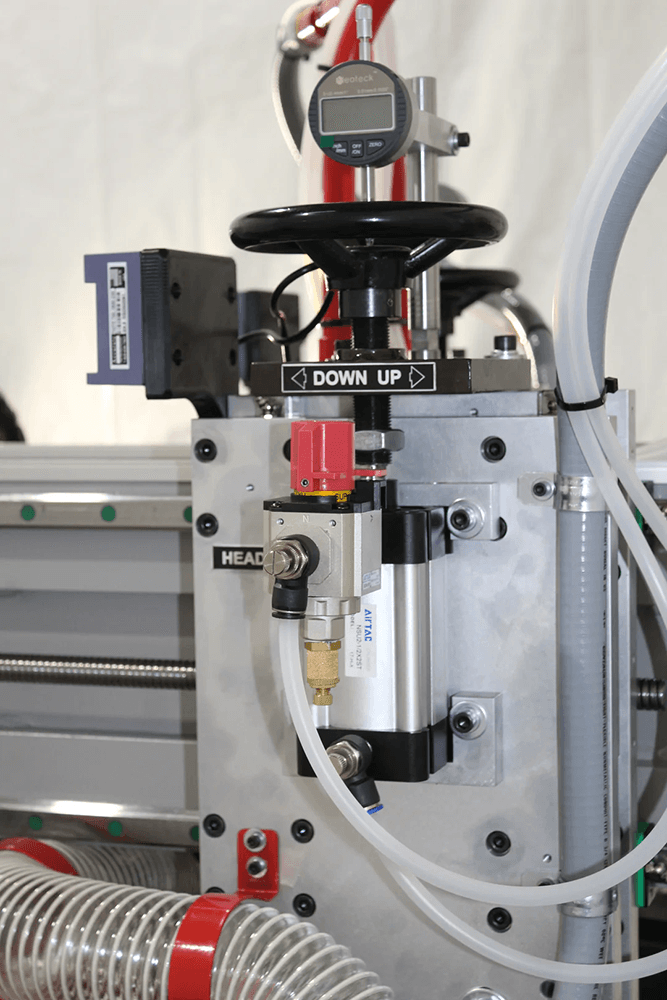

• Cutter Depth Movements via Hand Wheel, on Linear Bearings and Rails, ACME Nut and Rod, Position on Digital Indicator

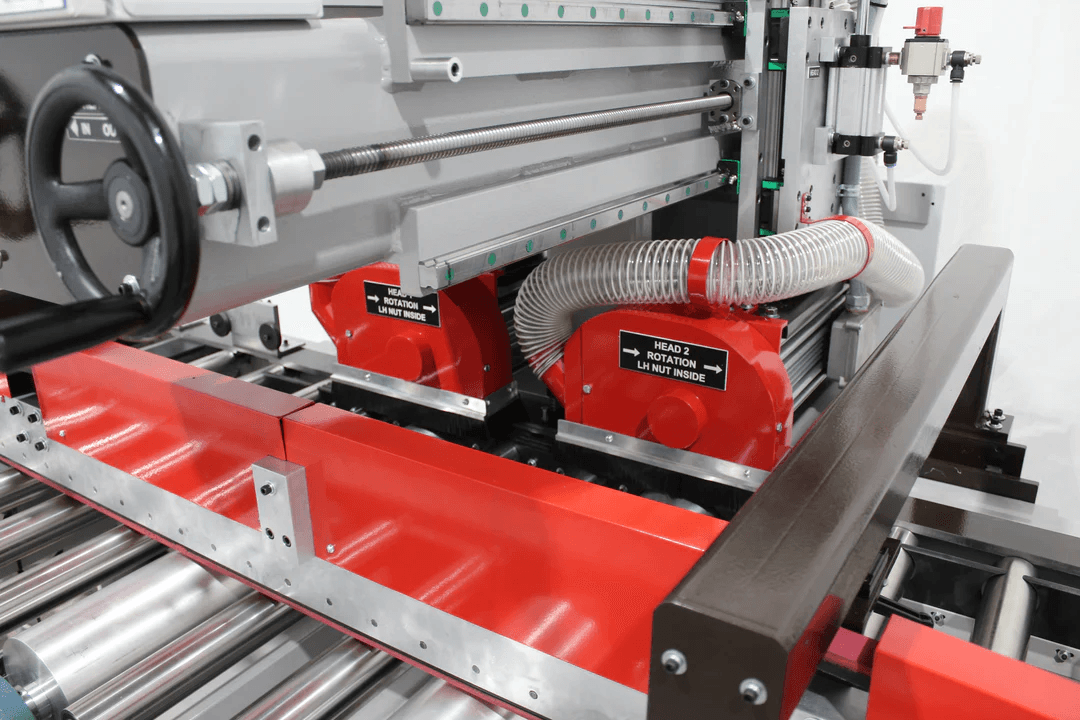

• Cutter side Movement via Hand Wheel, on Linear Bearings and Rails, Ball Screw and Nut, Cutter Position Feed Back on Proscale DRO.

• Tubular welded Frame Construction.

• 2 Year Warranty
