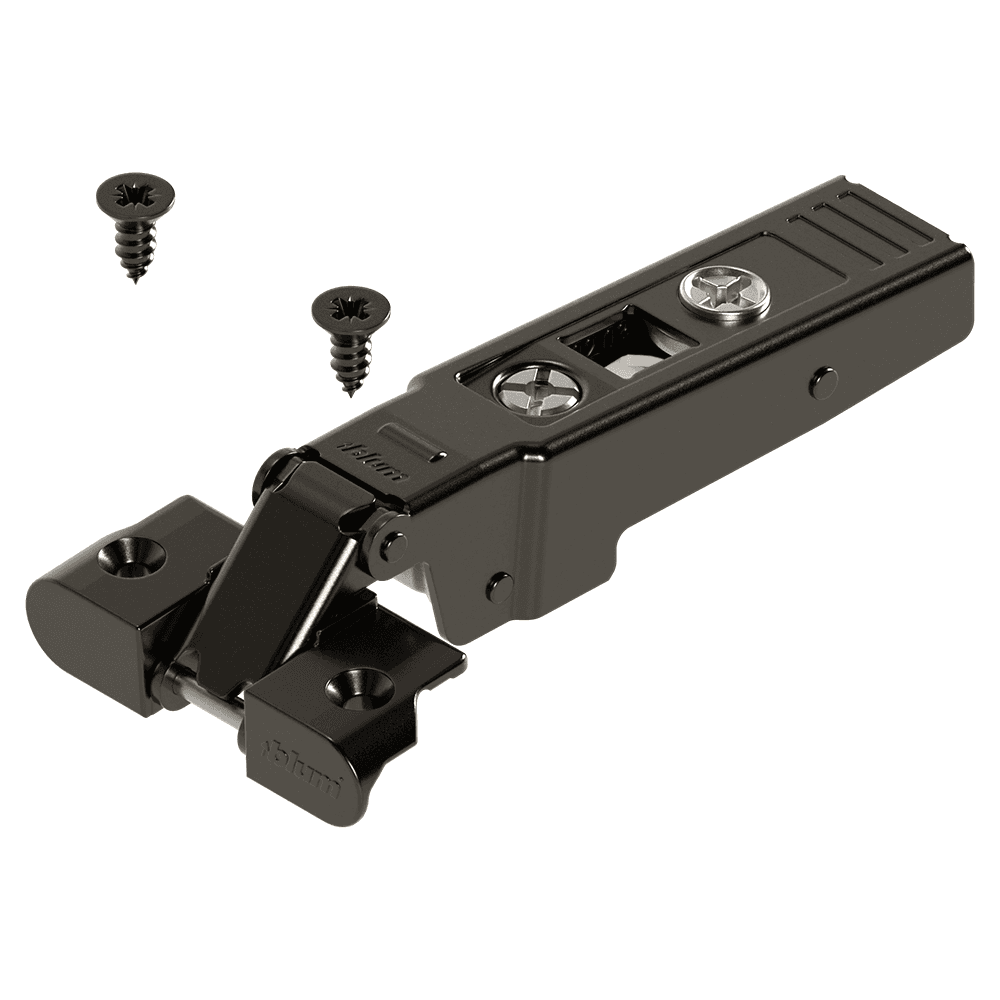

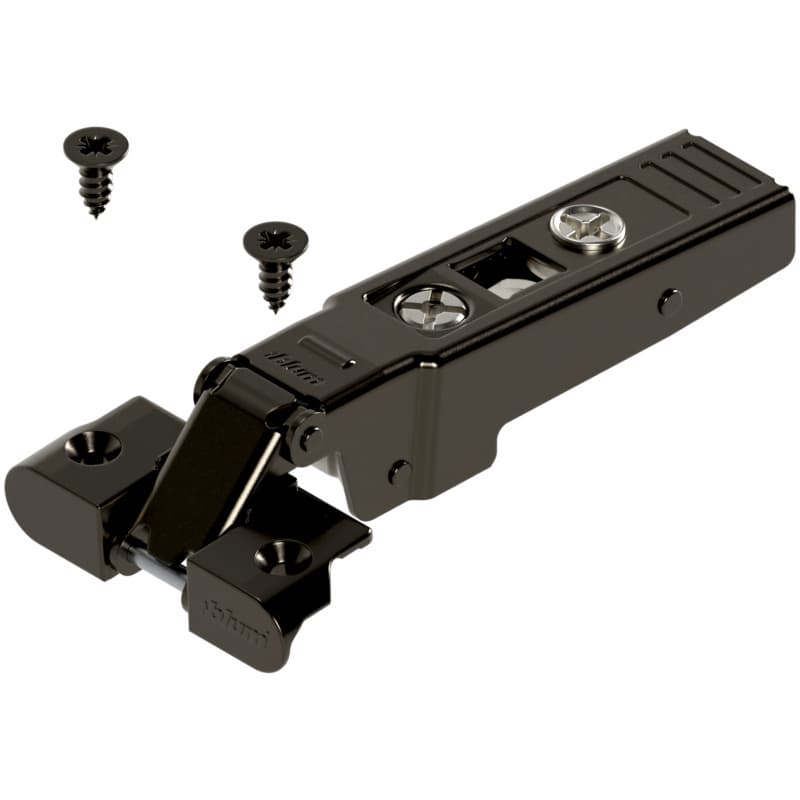

CLIP Top 95? Opening Hinge, Self-Closing, Full Overlay, Screw-on, Onyx black
25 items
125 items
Product Details
Features: • CLIP top alu frame door hinge 95°, full overlay application, hinge cup: screw-on, (self close) • CLIP top alu frame door hinge: 71T950A • Opening angle: 95° • Cranking: full overlay application • Hinge cup assembly: screw-on • Hinge cup material: Zinc hinge cup • Closing mechanism: with spring • Side adjustment: +/- 2 mm • Depth adjustment: plus 3/minus 2 mm, Convenient with spiral screw
Downloads
Specifications
| Box Quantity | 125 |
| Product Type | |
| Mounting Type | Screw-on |
| Overlay | Full Overlay |
| Closing Type | Self Close |
| Opening Angle | 95° |
| Model | |
| Hinge Type | CLIP Top |
| Finish | Onyx Black |
| Boring Pattern | |
| Cup Diameter | |
| Cup Depth | |
| Material | Zinc |
| Cabinet Type |
