OMEC 750CN-C Automatic CNC Dovetailer 4HP
Product Details

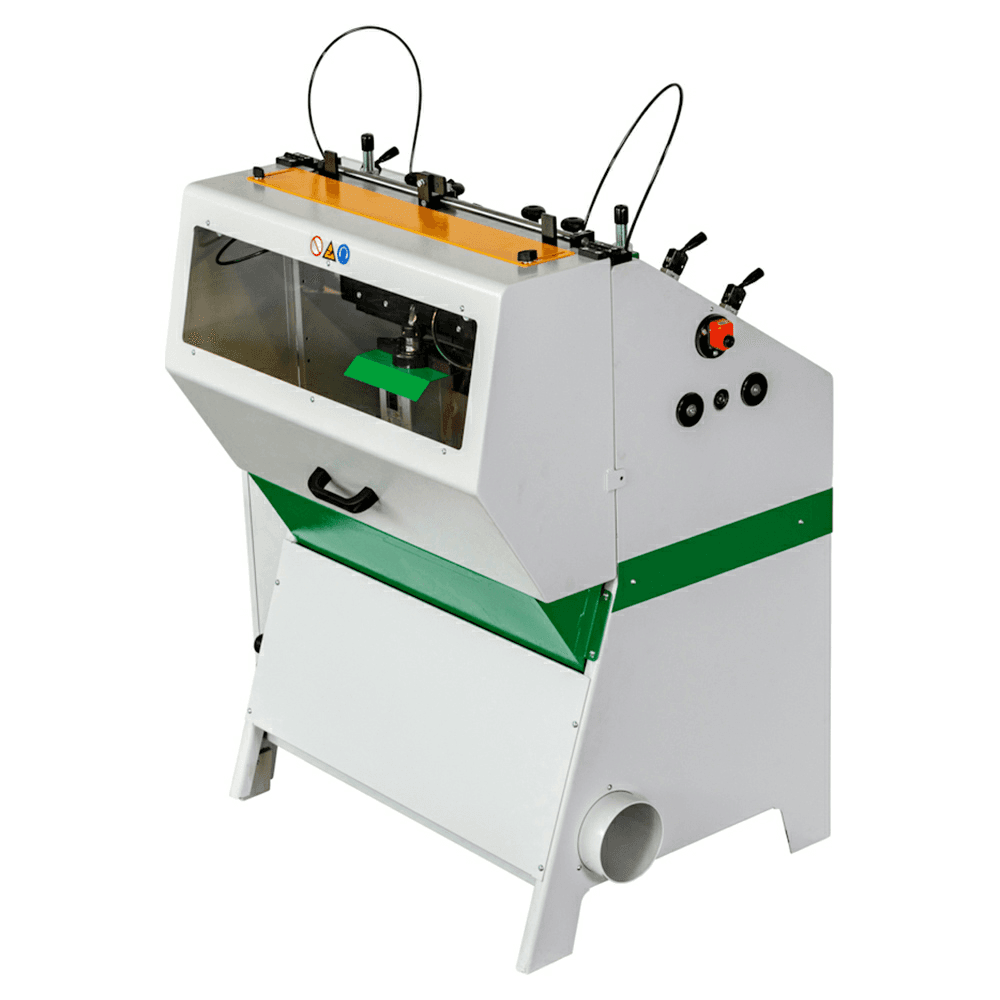

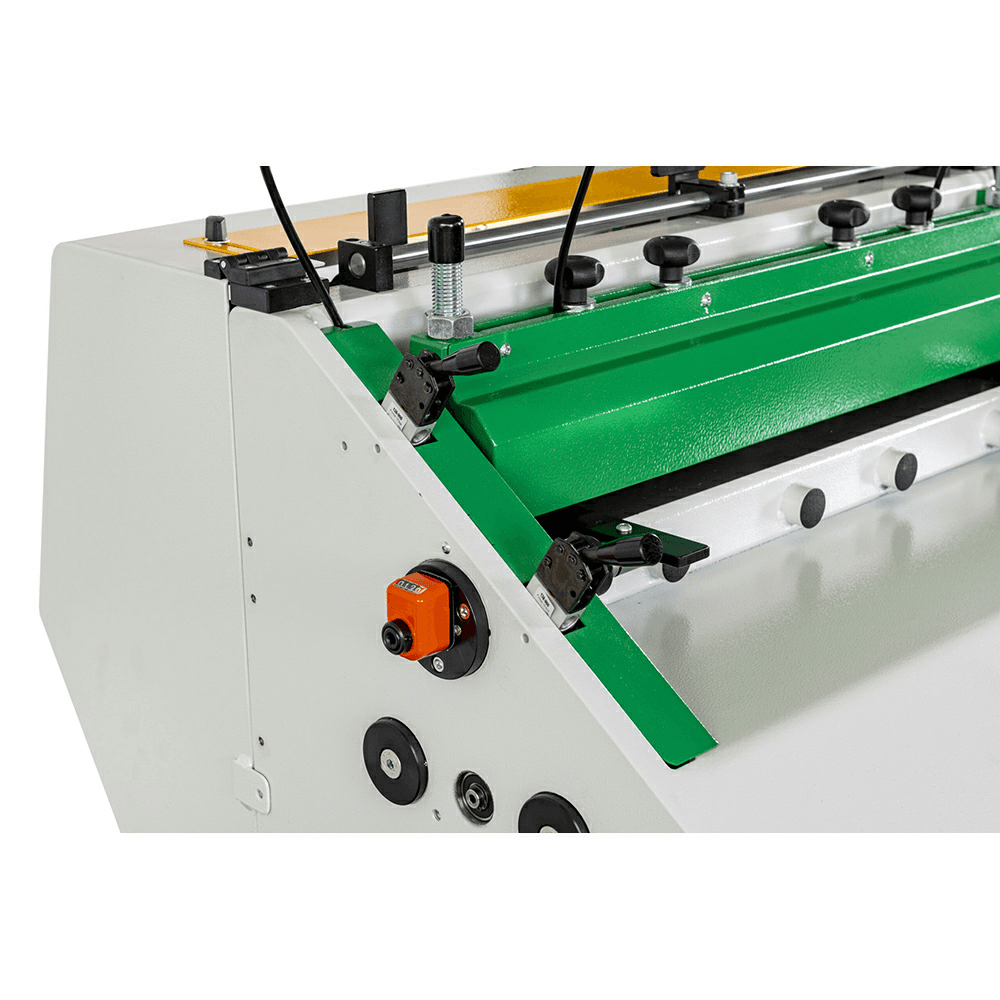

The OMEC 750CN-C, a two-axis automatic CNC dovetailer with TouchScreen control, is tailored for precision in indenting dovetails and parallel indents for drawers and various furniture elements. Featuring a newly designed cover for the spindle and mill cutter area, it effectively reduces sawdust and noise pollution, enhancing workplace cleanliness and safety. The machine is versatile, capable of cutting single male or female work-pieces, or both simultaneously. Manual clamping and release are facilitated by pneumatic valves, while controls are accessible via a numerically controlled push-button panel. The Model 750CN-C is powered by a numerical control system programmed for maximum machining flexibility, allowing adjustments to machining limits across various variables. Features: • Fixed and Variable Pitch • 60 drawers per hour • Drawer Height: Min 2.36"(60mm) Max 20.86" (530mm) • Bord Thickness: Max .31" (8mm ) Max 1.18" ( 30 mm ) • Integral Carbide cutter installed on the machine • Tool Kit for adjustments and maintenance • Working Pressure: 0.7 MPascal • Overall Dimensions (L x W x H): 44" x 32" x 48" - 112cm x 80cm x 120cm • Center to Center of Indents: variable or fixed • Drawers Production: 60 n/h • Machine Weight: 739 lb/335 kg • Machine Memory (# of programs savable): 40 • Dust Collection: ø 5.51" - 140mm
Specifications
| Box Quantity | 1 |
| Number of Spindles | Single |
| Wiring Remarks | |
| Maximum Work Piece Size (In.) | 59" x 20.86" |
| Minimum Dovetail Height (In.) | |
| Maximum Side Thickness (In.) | 1.78" |
| Minimum Front Thickness (In.) | 0.31" |
| Center to Center Dovetail Spacing (In.) | |
| Motor Power (HP) | 4HP |
| Dust Collection Minimum CFM Required (CFM) | |
| Prewired Voltage (V.) | |
| Maximum Front Thickness (In.) | 1.18" |
| Motor Voltage (V.) | 220V |
| Maximum Dovetail Height (In.) | |
| Number of Dovetail Center Lines | |
| Recommended Circuit Size (Amps.) | |
| Minimum Work Piece Size (L x W)(In.) | 7.78" x 2.36" |
| Spindle Speed (RPM) | 18000 RPM |
| Motor Phase | |
| Minimum Side Thickness (In.) | 0.31" |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Style (Type) | |
| Table Height From Floor (In.) | |
| Warranty | |
| Horsepower | 4HP |
| Phase | |
| Product Type | Automatic CNC Dovetailer |
