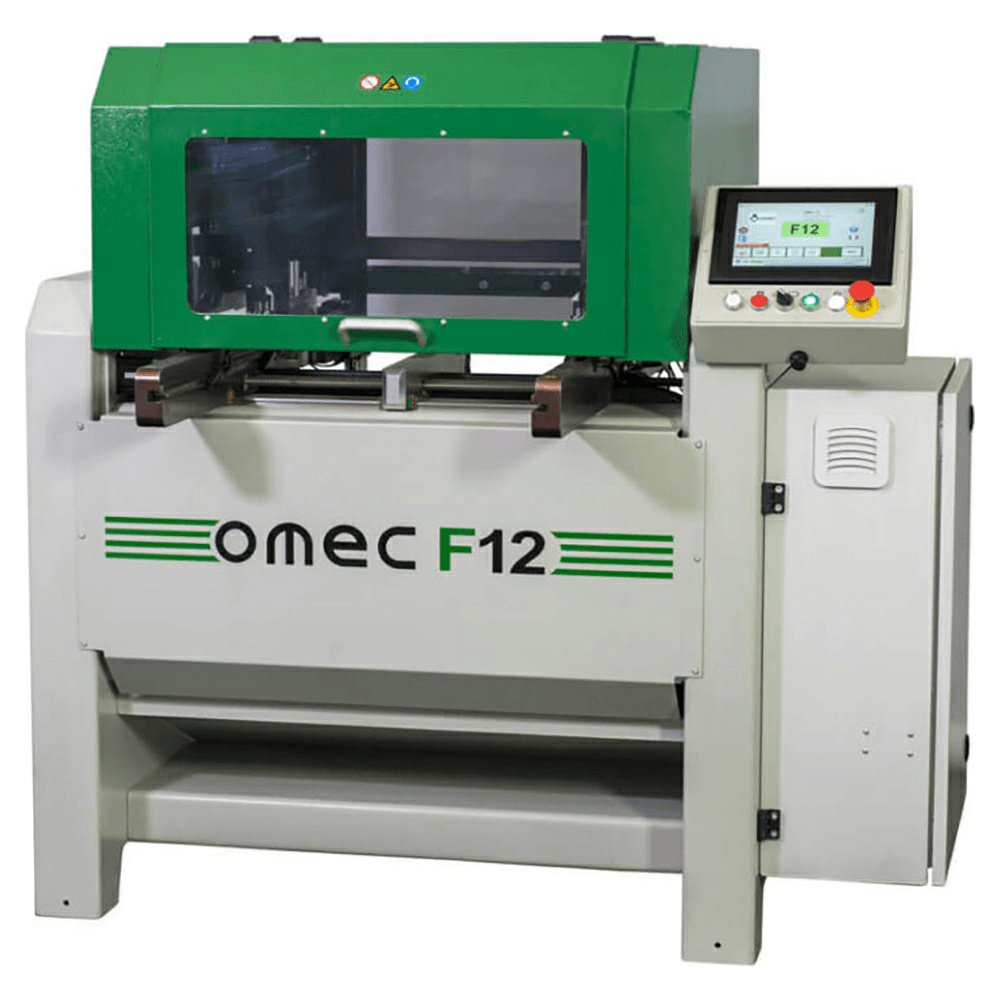

OMEC F12 Automatic CNC Controlled Milling Machine 3.33HP
Product Details

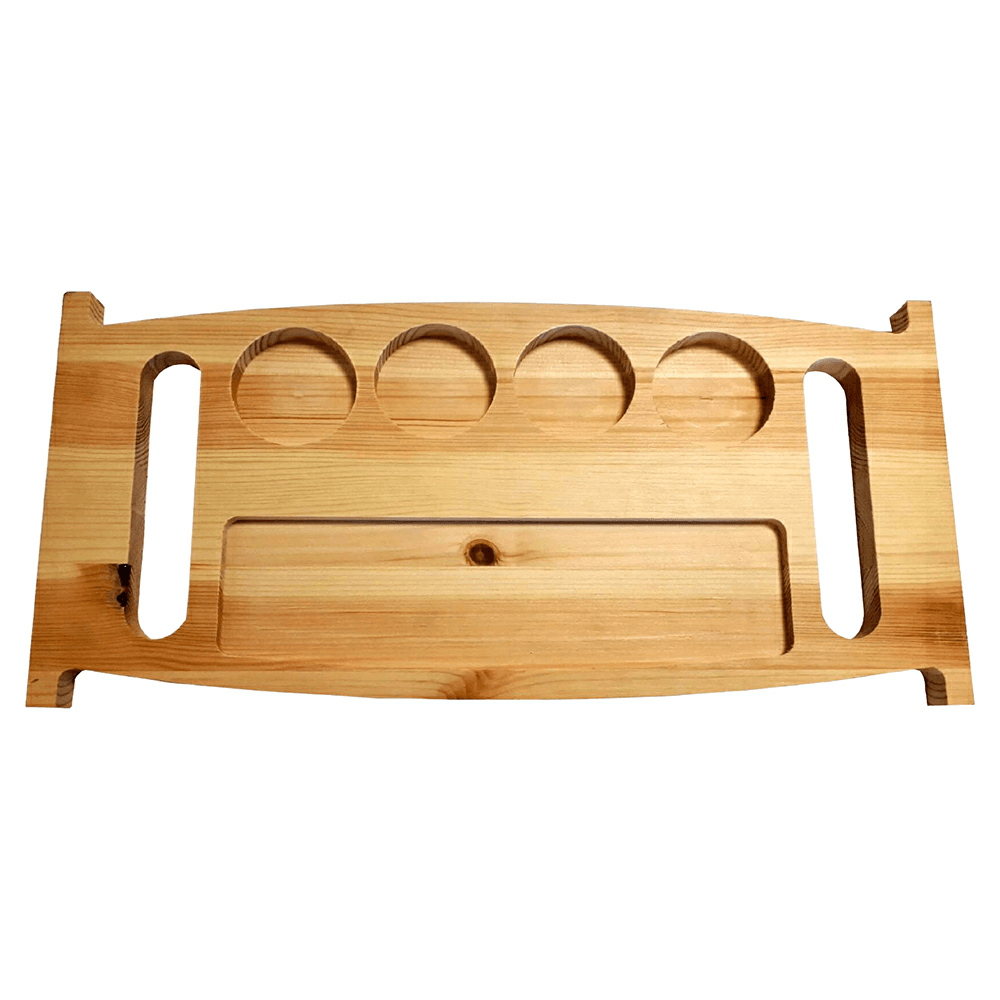

The OMEC F12 5-axes automatic milling machine with numeric control has been designed to create different type of machining for the wooden light packaging industry. The F12 model is equipped with an electrical- spindle complete with cutter to cut bottle racks, holes, slots, internal partitions , barrels ‘supports and chopping boards . The machine works pieces in packs. The pieces are fed out of the in feed magazine to the blocking zone, then to the milling cycle, unblocked, then fed to out feed magazine hopper, completely automatically. The machine is controlled with a push button panel and a touch screen control panel. The F12 is controlled by numeric control programmed for the greatest working flexibility, letting you modify the following variables within the operating limits: the position, number and dimensions of: racks, holes , slots, inner partitions. The chopping boards size, The barrels supports size, The cutting speed and tool feed speed, The compensation of the tool diameter variation. All the adjustments can be easily performed by following the instructions provided directly by the software on the monitor of the machine. Furthermore the Machine is equipped with an open program where you can directly enter a CAD drawing to achieve the desired processing within the mechanical dimensional limits of the machine. Features: • Integral HM Cutter installed on machine (Ø 14) • Tool kit for adjustments and maintenance • Working Pressure: 0.7 Mpascal • Distance Between Bottle Holders: Variable • Piece Production: 1000/h • Machine Weight: 1.254 lbs./570 kg • Overall Dimensions: 63" x 42.52" x 57.87" (160cm x 108cm x 147cm) • Thickness: 0.12”-0.87”
Specifications
| Box Quantity | 1 |
| Number of Spindles | Single |
| Wiring Remarks | |
| Maximum Work Piece Size (In.) | 23.62" x 5.91" |
| Minimum Dovetail Height (In.) | |
| Maximum Side Thickness (In.) | |
| Minimum Front Thickness (In.) | |
| Center to Center Dovetail Spacing (In.) | |
| Motor Power (HP) | 3.33HP |
| Dust Collection Minimum CFM Required (CFM) | |
| Prewired Voltage (V.) | |
| Maximum Front Thickness (In.) | |
| Motor Voltage (V.) | |
| Maximum Dovetail Height (In.) | |
| Number of Dovetail Center Lines | |
| Recommended Circuit Size (Amps.) | |
| Minimum Work Piece Size (L x W)(In.) | 3.54" x 1.97" |
| Spindle Speed (RPM) | 21000 RPM |
| Motor Phase | |
| Minimum Side Thickness (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Style (Type) | |
| Table Height From Floor (In.) | |
| Warranty | |
| Horsepower | 3.33HP |
| Phase | |
| Product Type | Automatic CNC Controlled Milling Machine |
