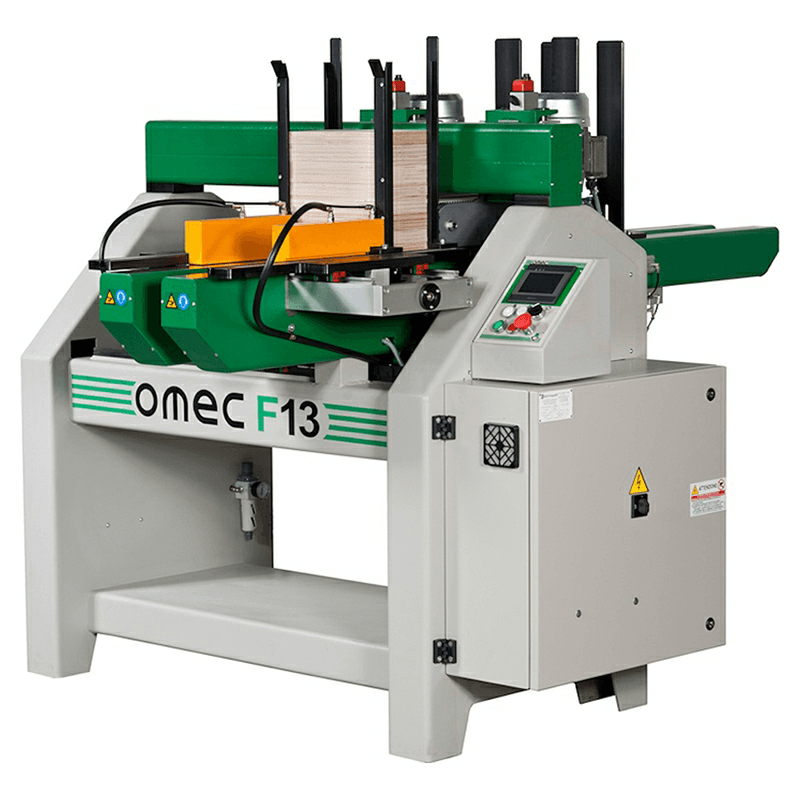

OMEC F13 Automatic Milling Machine 4.55HP with 2 Blade
Product Details
The OMEC F13 automatic dado or rabbet milling machine has been designed to produce bottom grooves for box covers or inset slots for bottle racks. The F13 model has two blades for cutting slots in various dimensions and positions. The machine cuts single pieces. Items are conveyed from the in-feed hopper magazine to through the milling path, and lifted into out-feed magazine stacker, completely automatically. The machine is controlled by a touchscreen control panel with easy data entry and 40-file stored memory. The F13 model is controlled by a PLC programmed for the maximum flexibility and highest machining speed. The machine is extremely easy and fast to adjust thanks to the adjuster shafts and position indicators. Features: • Working Pressure: 0.7 Mpascal • Number of Blades: 2 • Blade Revolutions: 5,600 RPM • Position of Grooves: Variable • Piece Production: 1200 n/h • Machine Weight: 1,210 lbs./550 kg • Thickness: 0.24”-0.67” • Groove: 0.12”-0.39” • Distance from Edge: 0.04”-5.9”
Specifications
| Box Quantity | 1 |
| Number of Spindles | |
| Wiring Remarks | |
| Maximum Work Piece Size (In.) | 23.62" x 23.62" |
| Minimum Dovetail Height (In.) | |
| Maximum Side Thickness (In.) | |
| Minimum Front Thickness (In.) | |
| Center to Center Dovetail Spacing (In.) | |
| Motor Power (HP) | 4.55HP |
| Dust Collection Minimum CFM Required (CFM) | |
| Prewired Voltage (V.) | |
| Maximum Front Thickness (In.) | |
| Motor Voltage (V.) | |
| Maximum Dovetail Height (In.) | |
| Number of Dovetail Center Lines | |
| Recommended Circuit Size (Amps.) | |
| Minimum Work Piece Size (L x W)(In.) | 3.54" x 1.97" |
| Spindle Speed (RPM) | 5600 RPM |
| Motor Phase | |
| Minimum Side Thickness (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Style (Type) | |
| Table Height From Floor (In.) | |
| Warranty | |
| Horsepower | 4.55HP |
| Phase | |
| Product Type | Automatic Milling Machine |
Product Details
