OMEC ICM1300 Semi-Automatic Gluing for Drawer
Product Details

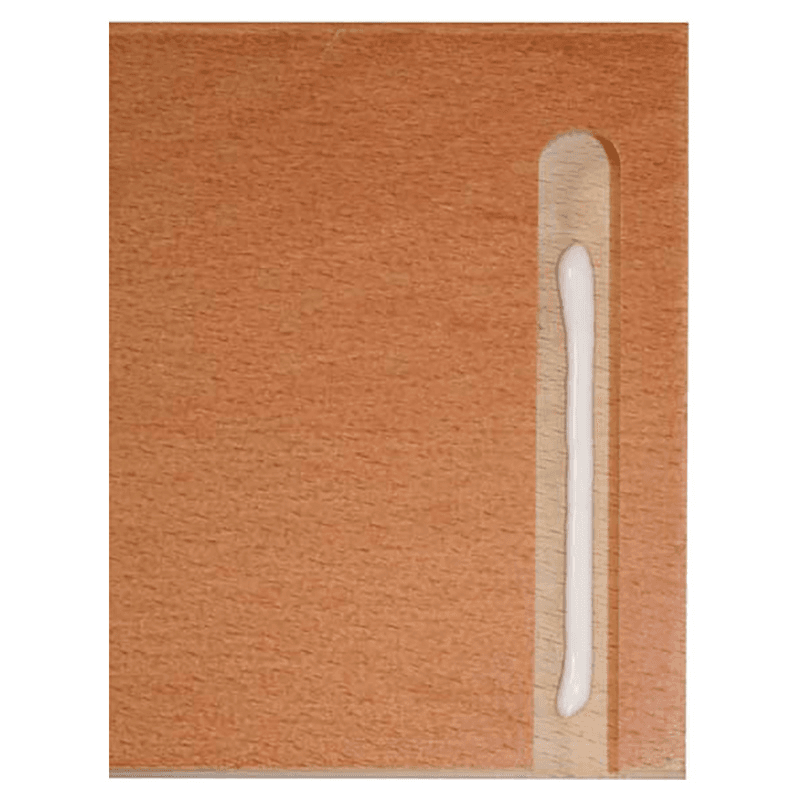

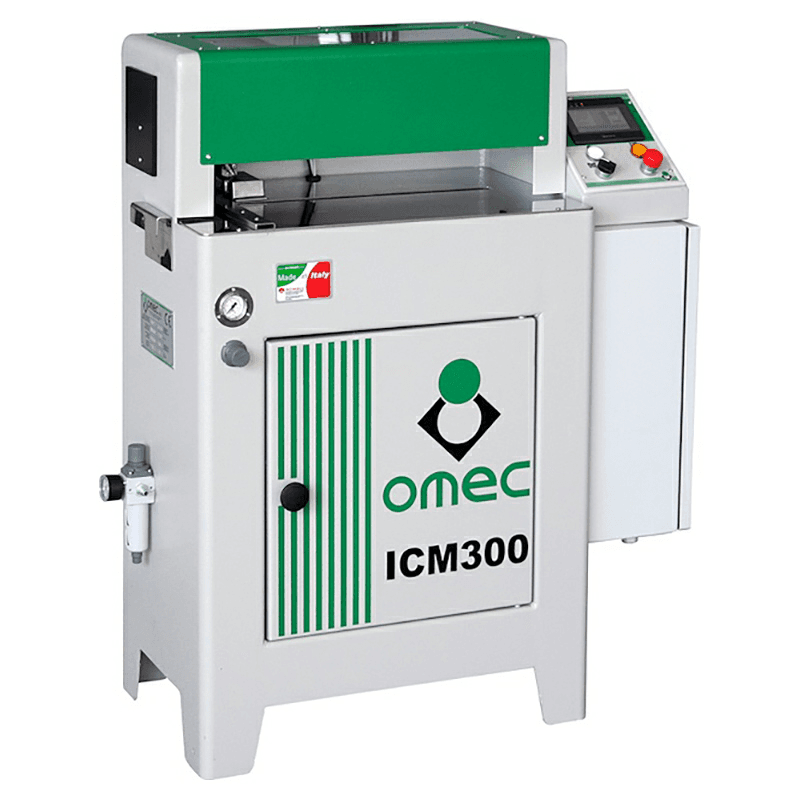

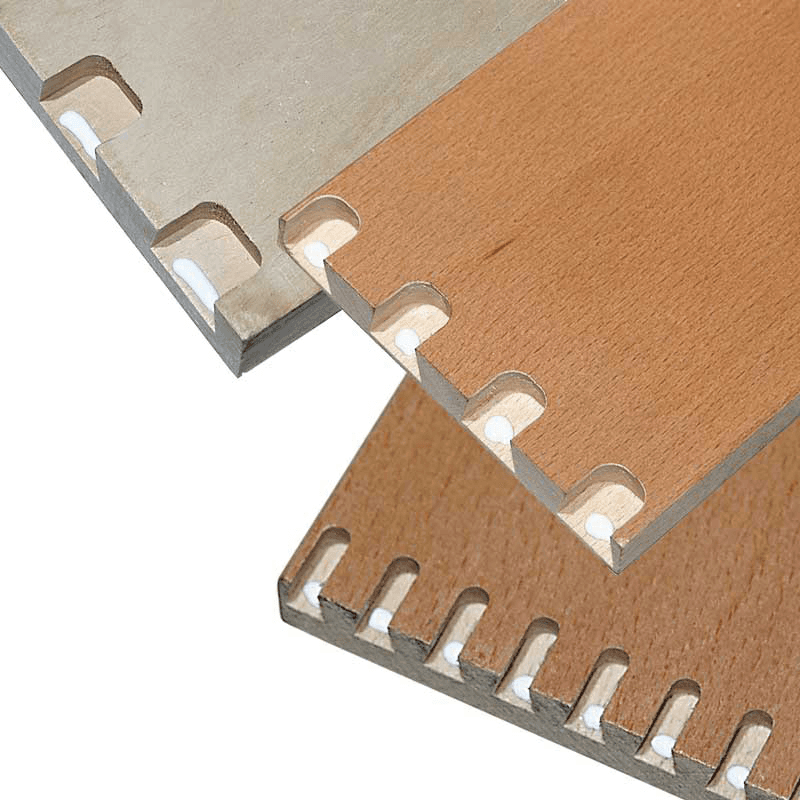

The OMEC ICM300 manual gluing machine was designed to glue different types of drawers featuring dovetails, parallel joints and lock pins. This machine can glue drawers having any type of joint pitch, with no need for customized parts or nozzles, and there is no need for adjustments when the width of drawers is modified. The machine also comes with a special system for adjusting glue quantity. Thanks to the special configuration of the spray nozzle, it is possible to clean it at the end of the operating cycle. Machine control is performed by an on-board control panel. Features: • Took kit for adjustments and maintenance • On Board Machine Installed Power: 30 watts/.25HP • Working Pressure: Mpascal 0.7 • Glue Type: Low Viscosity Assembly Glue • Glue Tank Capacity: 9 liters/2.3 gallons • Machine Weight: 176 lbs./80 kg • Drawer Length: 5.91”-59.06” • Drawer Width: 1.97”-17.72” • Drawer Thickness: 0.20”-1.18”
Specifications
| Box Quantity | 1 |
| Product Type | Semi-Automatic Gluing |
| Power | |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | 25.59" |
| Height | 41.34" |
| Drive Motor | |
| Belt Size | |
| Depth | 15-3/4" |
| Motor Phase | |
| Horsepower | 25HP |
| Phase | |
| Range of Speeds | |
| Length | |
| Voltage | |
| Backing Material | |
| Material | |
| Recovery Time |
