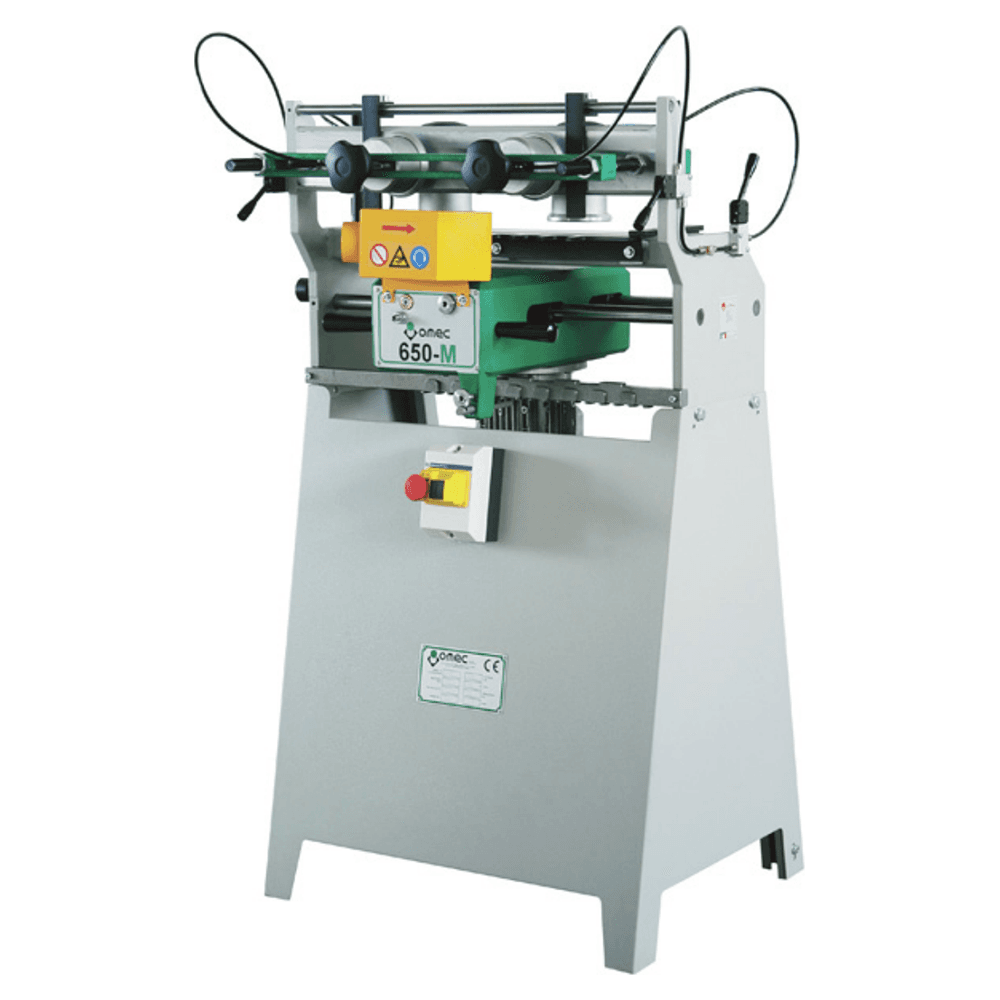

OMEC 650M Manual Dovetailer 1HP
Product Details
Omec 650M uses a 1 HP motor, linear bearings, adjustable eccentric bit, and comes with 4 templates standard. Clamping is done by four pneumatic cylinders for easier loading and unloading. The 16.5" capacity enables you to make deeper drawers and chip breakers can be installed on the fences to minimize blowout on more difficult materials. Features: • Eccentric HSS mill cutter assembled on the machine • Plates kit for indent break • Tool kit for adjustments and maintenance • Center to Center of Dovetail: 0.98", 1.57”, 1.97”, 3.15” (25mm-40mm-50mm-80mm) • Machine Net Weight: 286 lbs./130 kg • Overall Dimensions: 31.5" x 28.35" x 51.97" (80cm x 72cm x 132cm)
Specifications
| Box Quantity | 1 |
| Number of Spindles | Single |
| Wiring Remarks | |
| Maximum Work Piece Size (In.) | 59.06" x 16.54" |
| Minimum Dovetail Height (In.) | |
| Maximum Side Thickness (In.) | 1.18" |
| Minimum Front Thickness (In.) | 0.28" |
| Center to Center Dovetail Spacing (In.) | |
| Motor Power (HP) | 1HP |
| Dust Collection Minimum CFM Required (CFM) | |
| Prewired Voltage (V.) | |
| Maximum Front Thickness (In.) | 2.36" |
| Motor Voltage (V.) | |
| Maximum Dovetail Height (In.) | |
| Number of Dovetail Center Lines | |
| Recommended Circuit Size (Amps.) | |
| Minimum Work Piece Size (L x W)(In.) | 7.78" x 2.36" |
| Spindle Speed (RPM) | 16500 RPM |
| Motor Phase | |
| Minimum Side Thickness (In.) | 0.28" |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Style (Type) | |
| Table Height From Floor (In.) | |
| Warranty | |
| Horsepower | 1HP |
| Phase | |
| Product Type | Manual Dovetailer |
