OMEC 650A CNC Dovetailer 2HP
Product Details

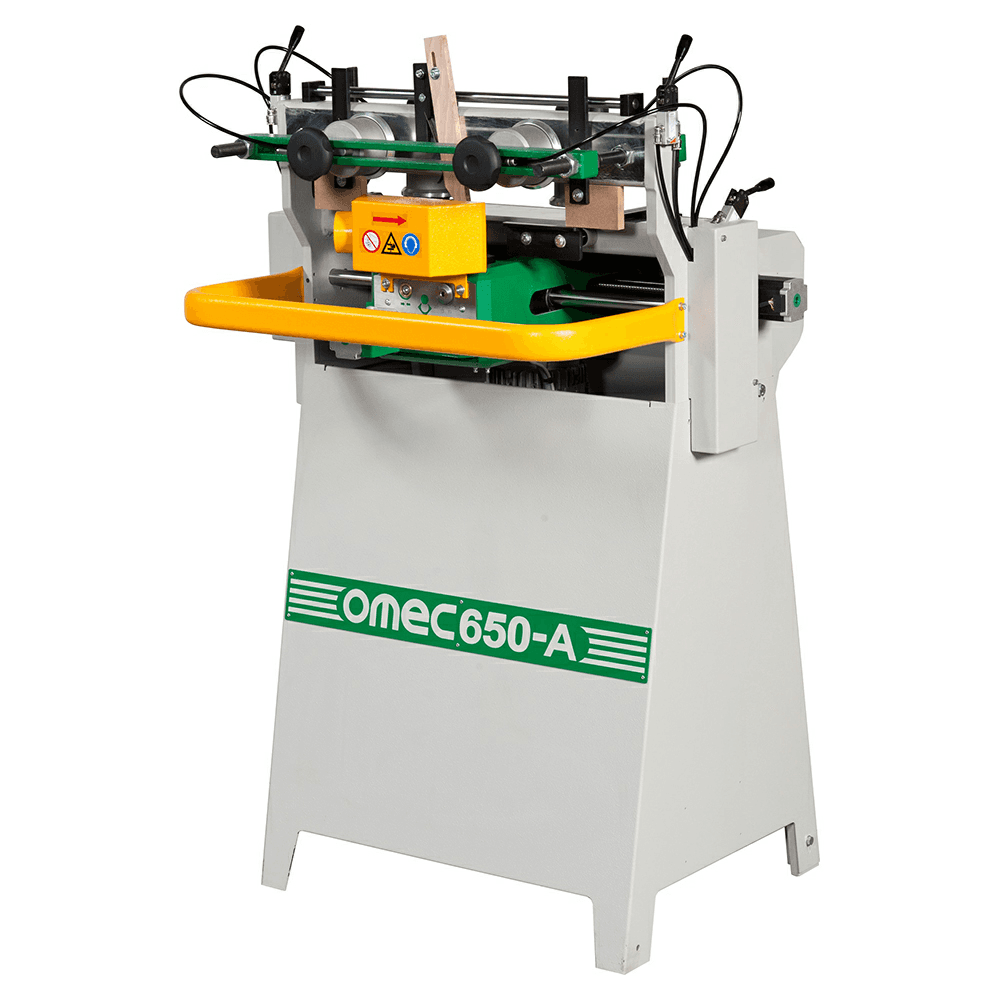

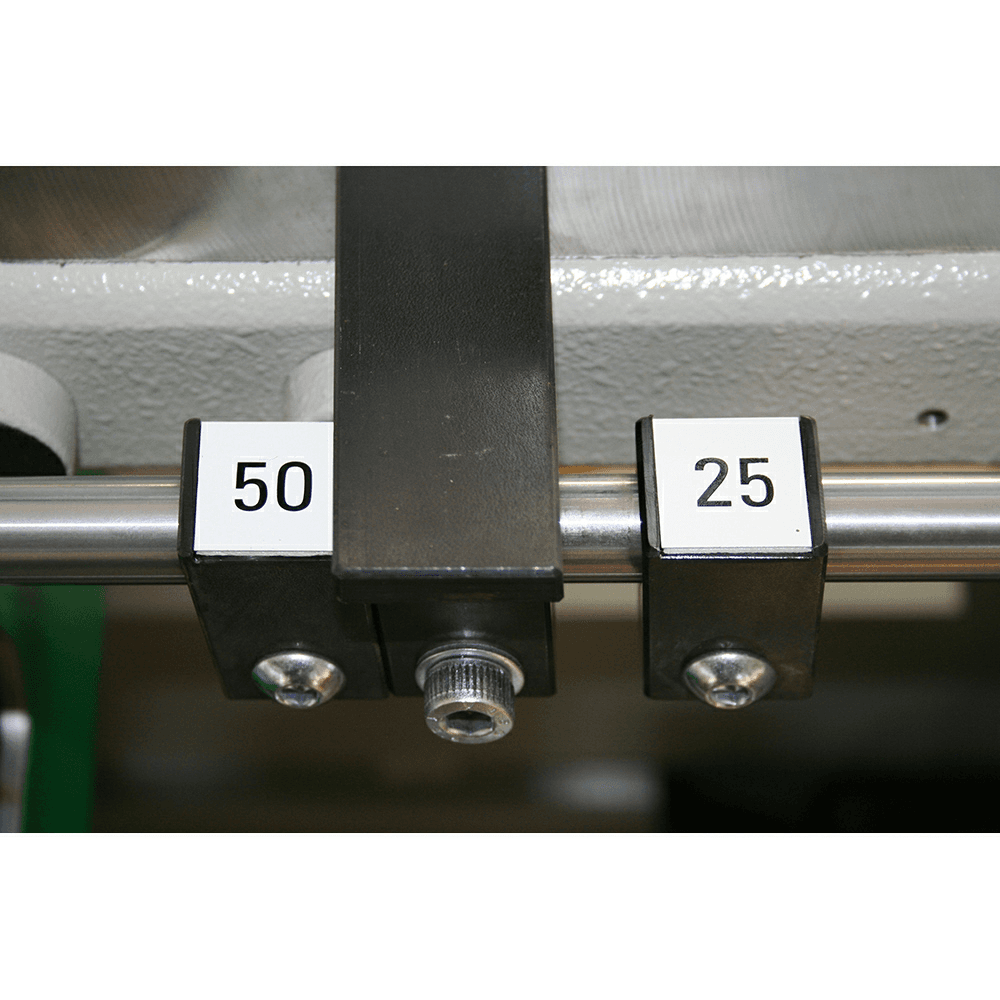

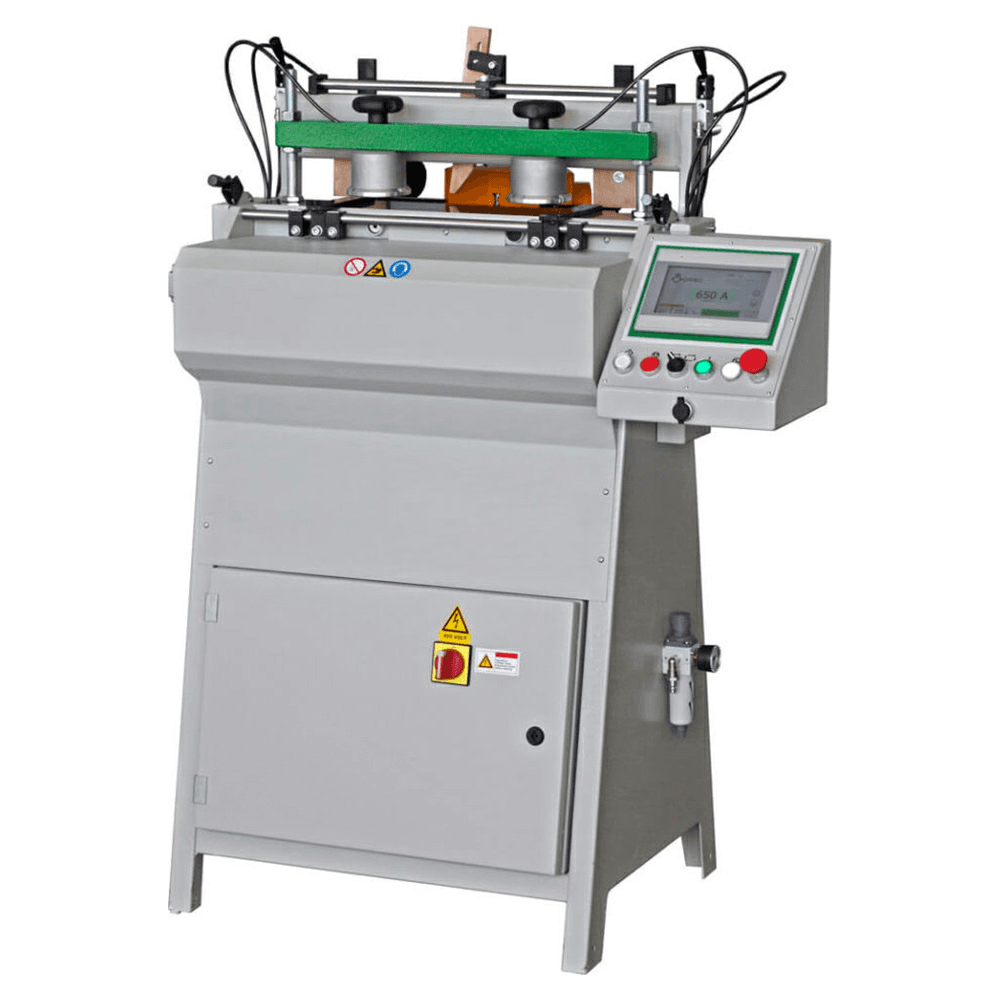

Omec 650-A CNC dovetailer is designed to cut single male or female work pieces, or both simultaneously. Boards can be clamped and released in manual mode by pneumatic valves. The 650-A model is controlled by a CNC system that is programmed to manufacture two types of fixed pitch joints (25mm and 50mm). All the adjustments can be easily carried out following the software instructions of the machine displayed on the Touch-Screen. Pin height, grove depth, groove location, machining speed, number of joints, and tool diameter (for tool compensation) are all controlled by the Touch-Screen. The lock-in and release of the pieces is a pneumatically controlled operation linked to the CNC to allow the machine to work in two separate work zones. Features: • Integral Widia cutter installed on the machine in HM (carbide) • Tool kit for adjustments and maintenance • Working Pressure: Mpascal 0.7 • Center to Center of Indents: 25mm - 50 mm • Speed/Variable 0-2000 mm/minute: 40 boxes per hour • Machine Weight: 308 lbs./140 kg • Overall Dimensions: 31.5" x 28.35" x 52" (80cm x 72cm x 132cm)
Specifications
| Box Quantity | 1 |
| Number of Spindles | Single |
| Wiring Remarks | |
| Maximum Work Piece Size (In.) | 59.06" x 15.75" |
| Minimum Dovetail Height (In.) | |
| Maximum Side Thickness (In.) | 0.78" |
| Minimum Front Thickness (In.) | 0.31" |
| Center to Center Dovetail Spacing (In.) | |
| Motor Power (HP) | 2HP |
| Dust Collection Minimum CFM Required (CFM) | |
| Prewired Voltage (V.) | |
| Maximum Front Thickness (In.) | 2.36" |
| Motor Voltage (V.) | |
| Maximum Dovetail Height (In.) | |
| Number of Dovetail Center Lines | |
| Recommended Circuit Size (Amps.) | |
| Minimum Work Piece Size (L x W)(In.) | 7.78" x 2.36" |
| Spindle Speed (RPM) | 16500 RPM |
| Motor Phase | |
| Minimum Side Thickness (In.) | 0.31" |
| Dust Port Outside Diameter (In.) | |
| Motor Current (Amps) | |
| Style (Type) | |
| Table Height From Floor (In.) | |
| Warranty | |
| Horsepower | 2HP |
| Phase | |
| Product Type | CNC Dovetailer |
