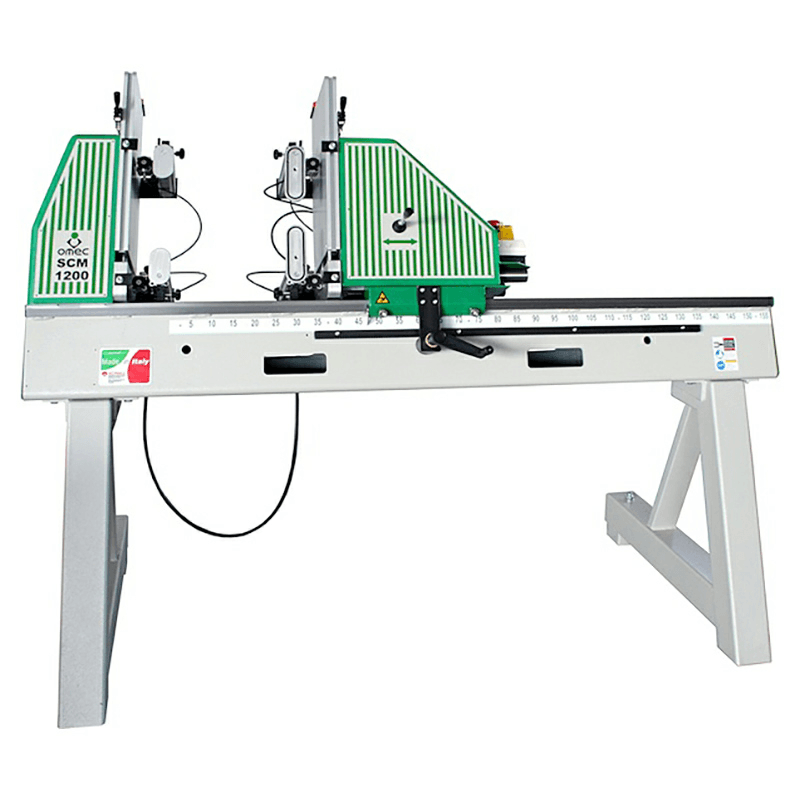

OMEC SCM1200 Hydraulic Drawer Clamp

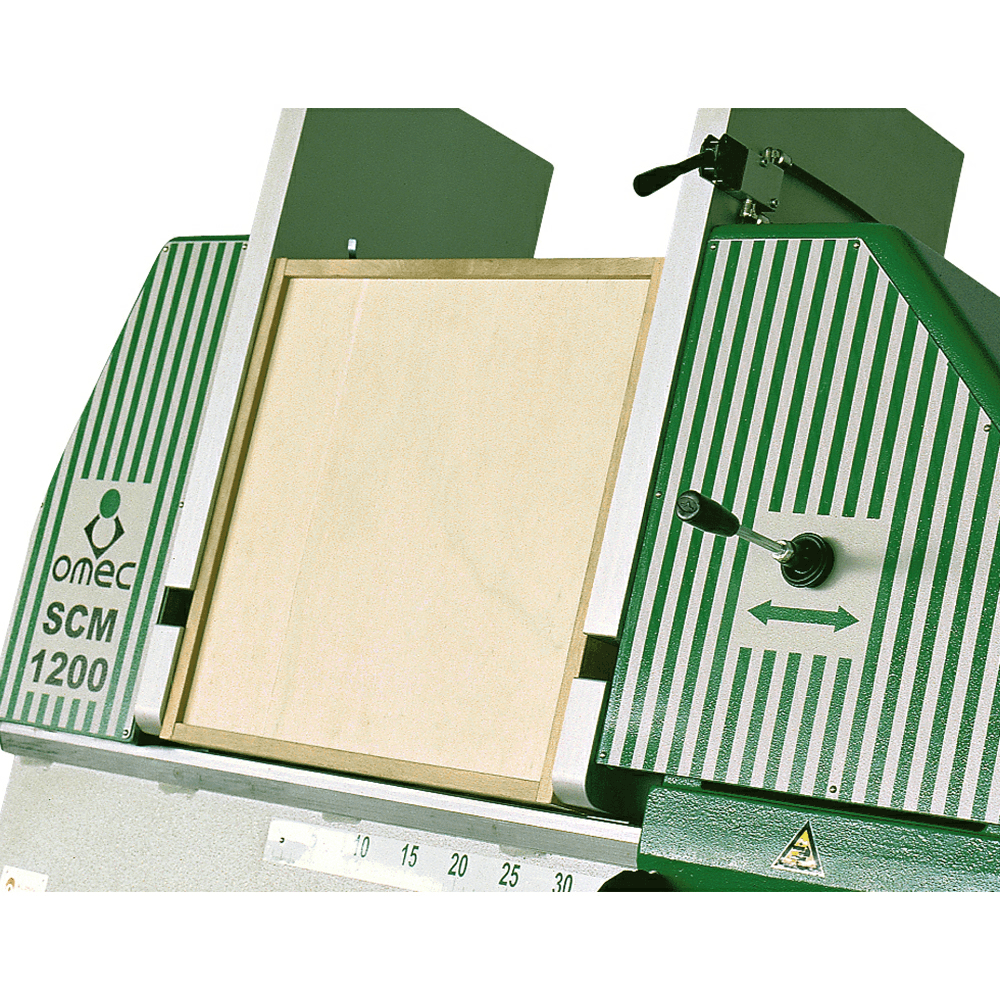

This drawer box clamp is unique in that the operator assembles the loose box parts in the clamp itself not prior to introducing to the clamp. Pneumatic cylinders lock in the drawer sides and spring guides the fronts and backs. A pneumatic vacuum holds the drawer bottom in place when the hydraulic cylinder compresses the box. Total time from loose parts to completed box is less than one minute.

Features:
• Took kit for adjustments and maintenance
• On Board Machine Installed Power: 0.5 HP
• Working Pressure: Mpascal 0.7
• Drawers’ Production Output: Up to 60 boxes/hour
• Machine Weight: 660 lbs./(300kg)
• Drawer Length: 9.45”-23.62”
• Drawer Width: 11.02”-47.24”
• Side Height: 2.36”-10.23”
• Front Height: 2.36”- 9.84”
• Front Projection: 0”-1.18”
