6" x 17-1/2" Americus Floating Bench Bracket, Steel
Product Details

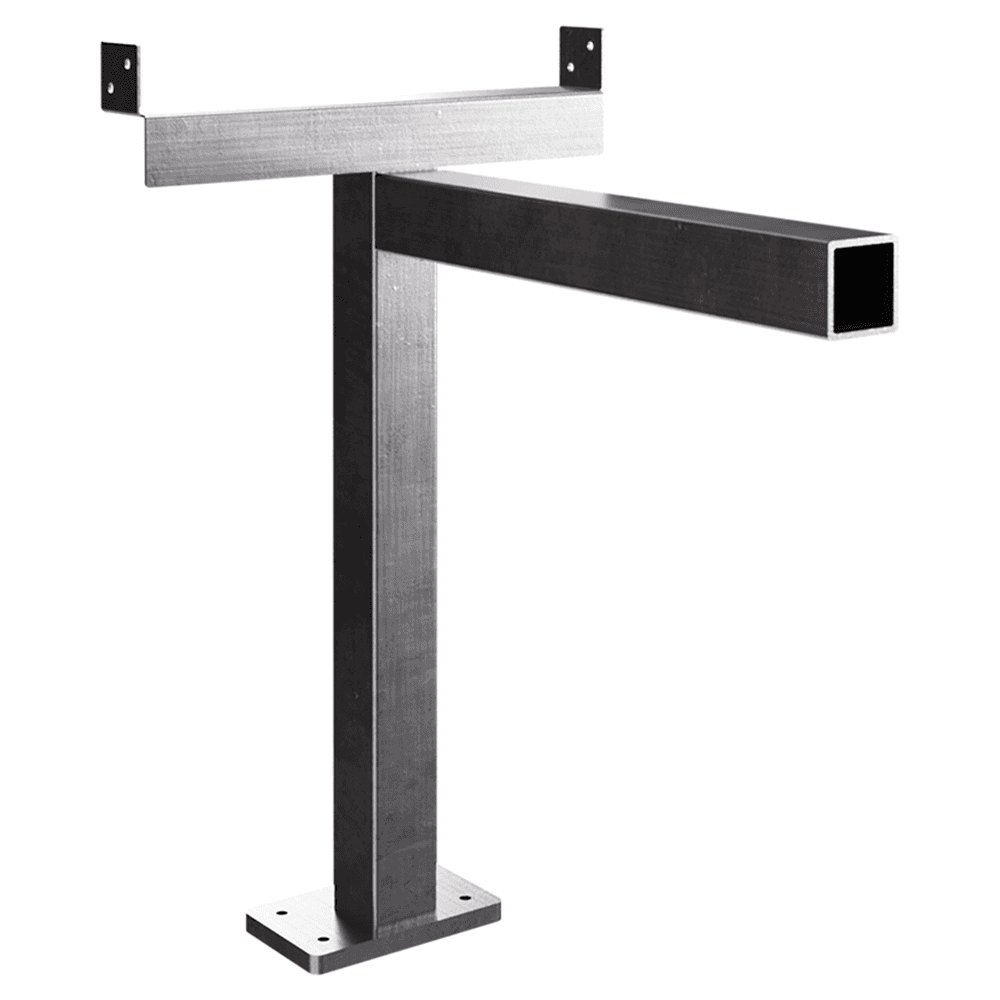

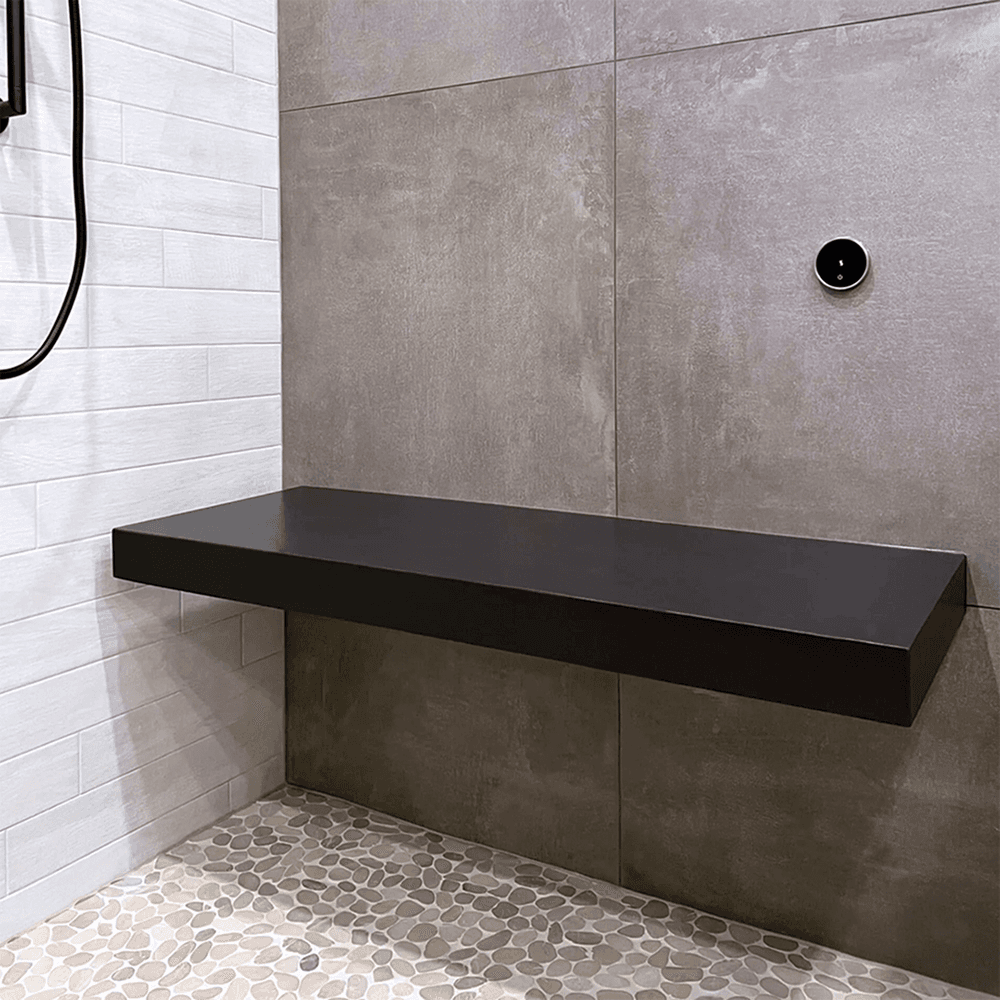

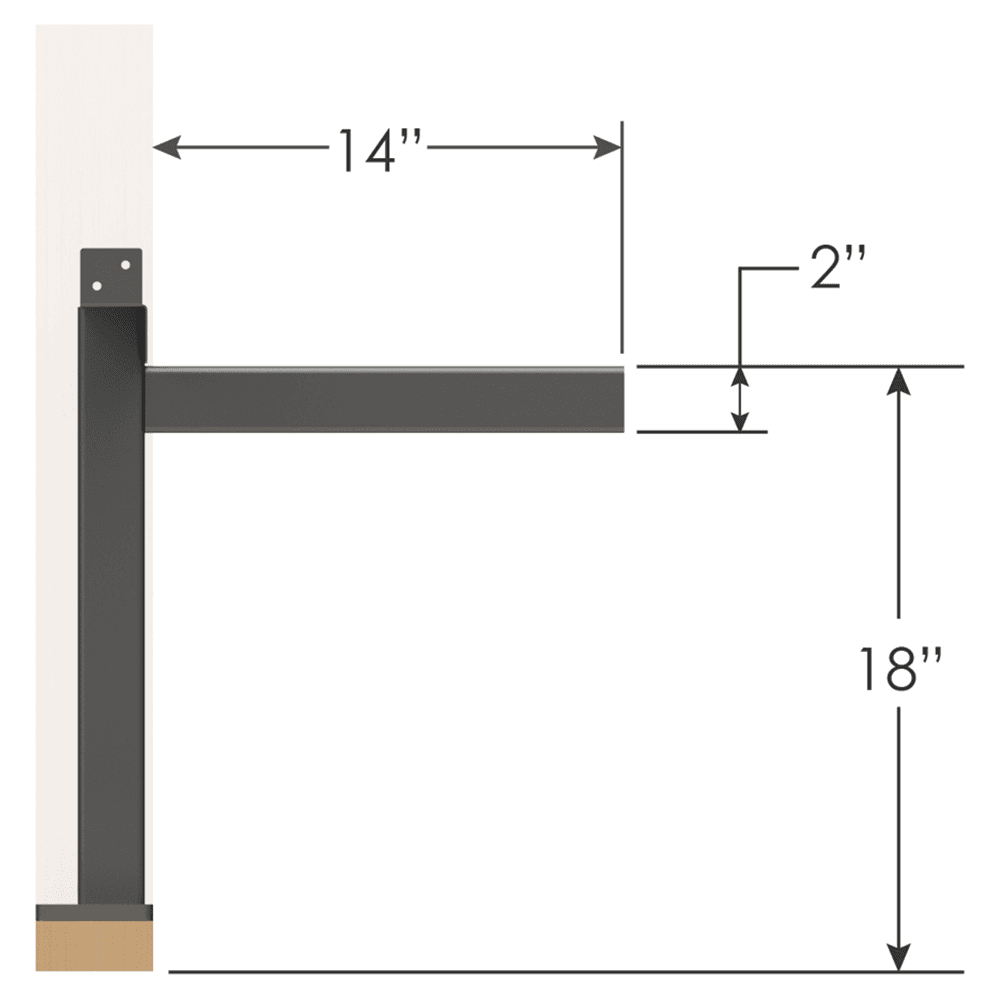

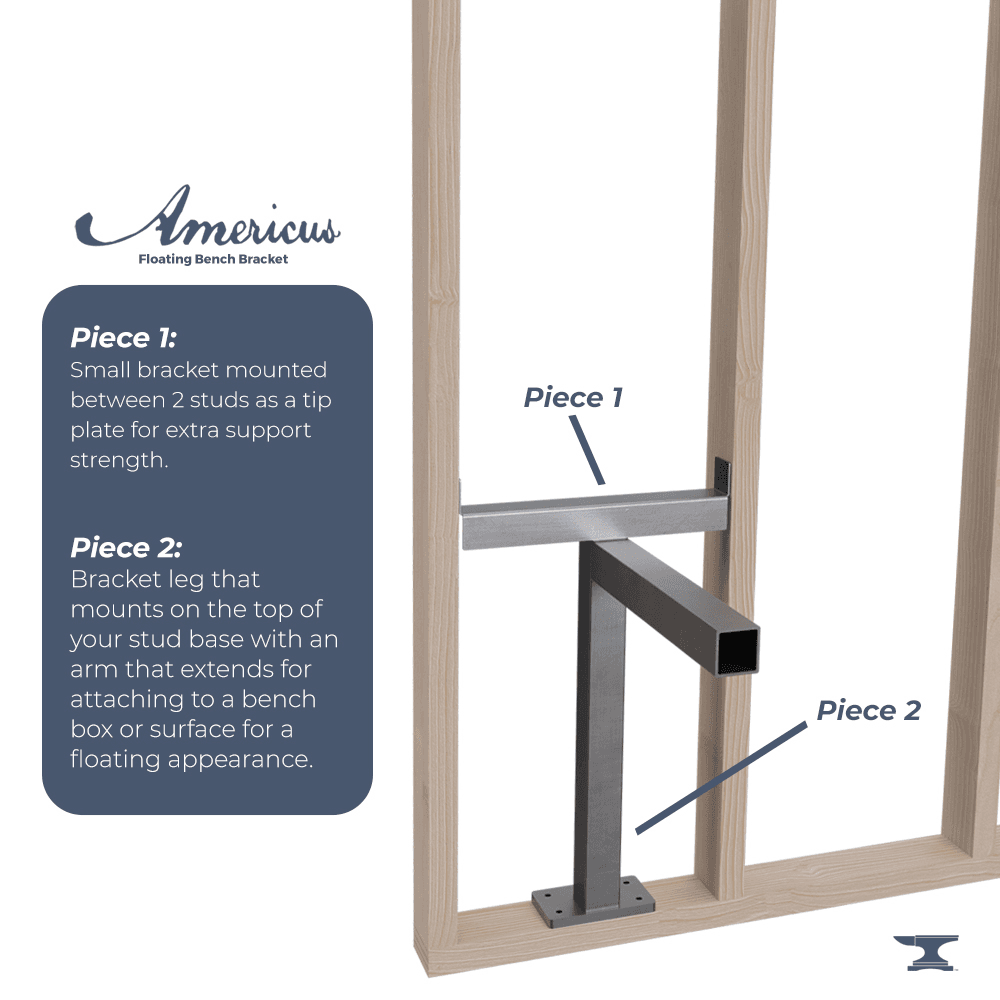

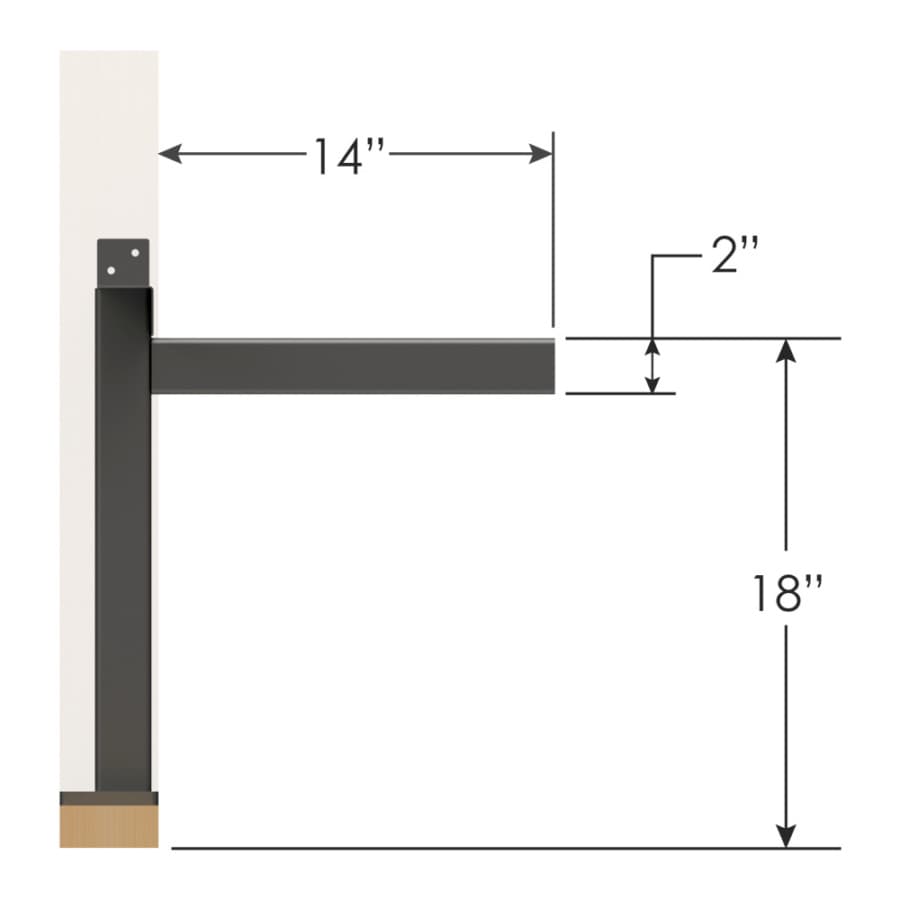

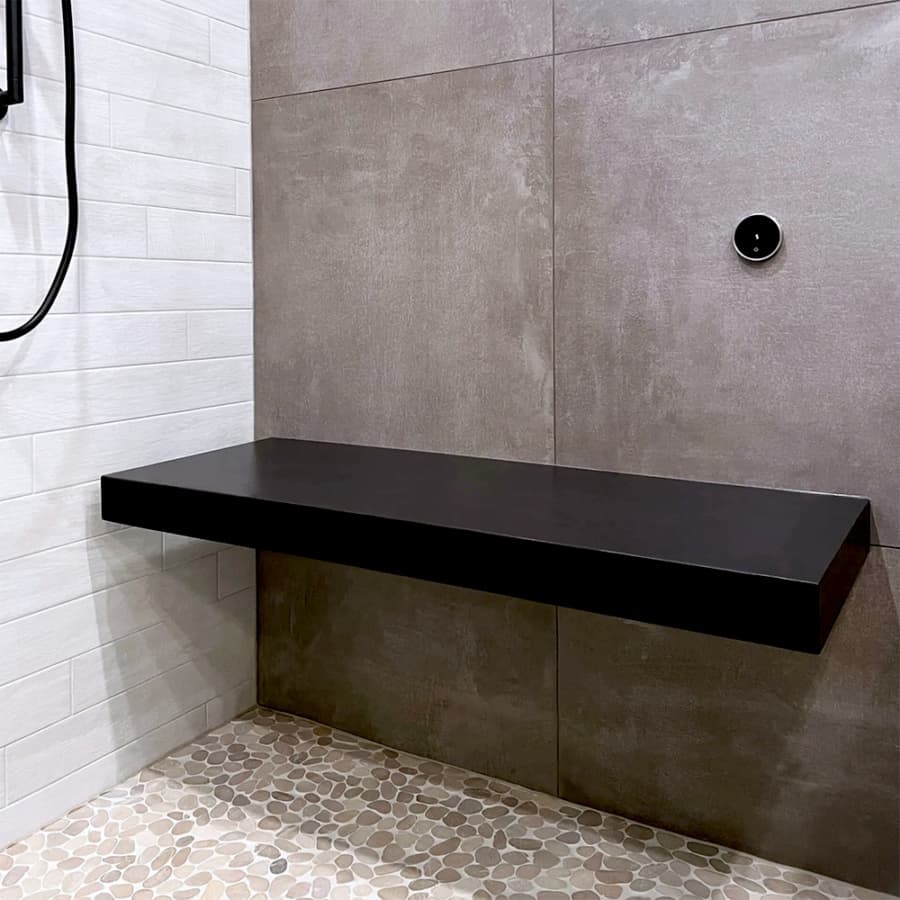

Each unit includes a two-piece installation system: A welded vertical leg with a 14" forward flange (14" beyond the drywall, 14.25" total arm depth, 17.50" total bracket depth) that anchors securely into the base of the wall stud, rather than the subfloor. And a horizontal brace that installs between two studs to add lateral support, prevent tipping, and boost overall weight capacity. Features: • 6" x 17-1/2" Americus floating bench bracket in steel finish • Designed to be the STRONGEST floating bench support available anywhere, boasting 750lbs of support strength on a single bracket • A perfect fit in both residential and commercial settings for installing a shower bench, a mudroom seat, or commercial seating • Built to handle the demands of high-traffic environments, wet conditions, and indoor or outdoor use-all while offering a hidden, but strong appeal • Material Thickness: 14 Gauge Tube • Hole Specifications: (4) 0.26" diameter holes and (4) 0.34" diameter holes • Fastener Specifications: (4) 1/4" hex lag screws and (4) 5/16" hex lag screws (included)
Specifications
| Box Quantity | 1 |
| Depth | 17-1/2" |
| Height | 18-1/4" |
| Product Type | Floating Bench Bracket |
| Finish | Steel |
| Material | |
| Folding | |
| Weight Capacity | 750lb |
| Width | 6" |
| Style | |
| Length | 17-1/2" |
| Application |
