Olimpic 500P-TE Single Sided Automatic Edgebander, 3 Phase/230V

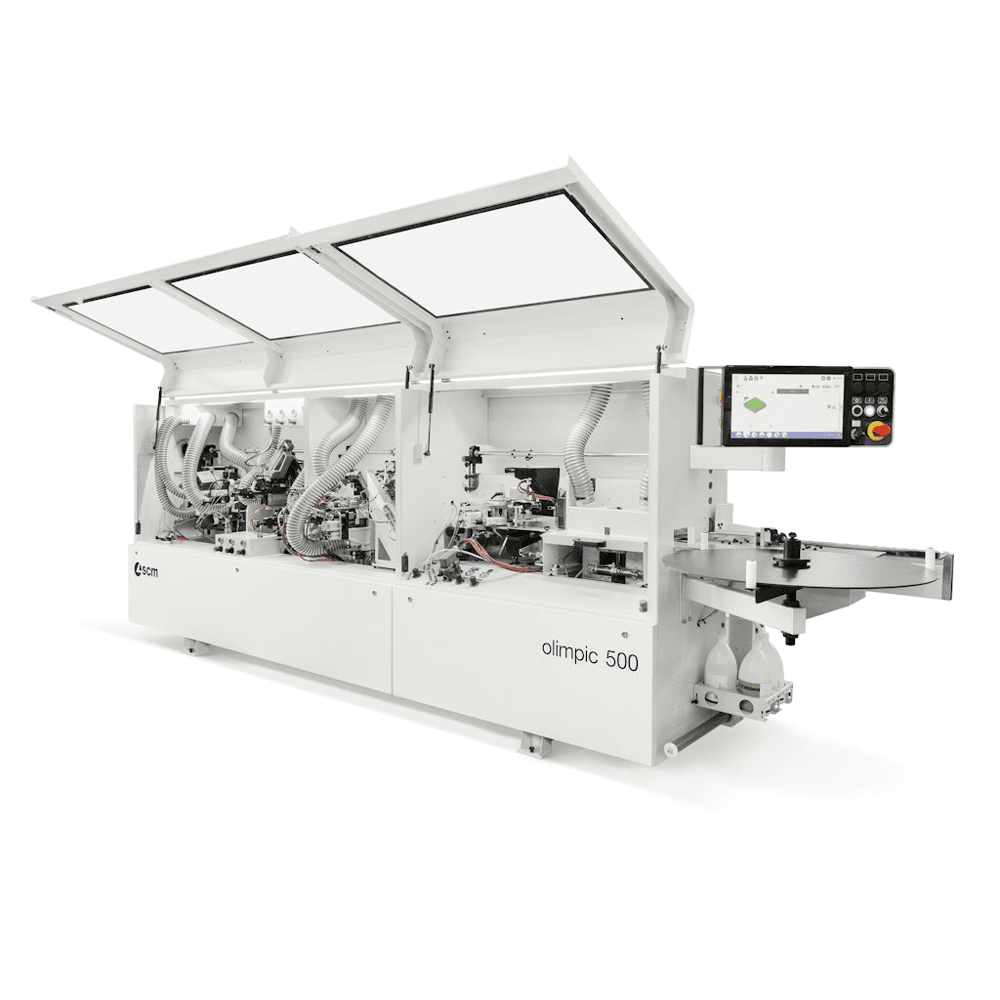

SCM Olimpic 500P-TE Automatic Edge bander

Edge bander for SME designed to offer great versatility in machining, in a small space, always with high quality standards. The Maestro active edge HMI, supplied as standard, enables operation with organized production, with connectivity and synchronization to company systems.

Versatility
The SGP-E glue pot allows the use of different types of colors and glue, EVA or PUR.
Machining of 2 radii, each with a dedicate tool, thanks to Multiedge device for all working units, including the rounding. Workable panels of small dimensions up to 60 mm width.

User-Friendly
Large touch control panels and software Maestro active edge offer the operator an efficient and intuitive work experience, as well as providing connectivity and synchronization to company systems.
Automatic edge introduction placed outside the cabin reduces the changeover times in total safety. Single operator for the complete process with the panel return device fastback.

TECHNICAL FEATURES

• Nesting kit: To process panels coming from nesting cycle.

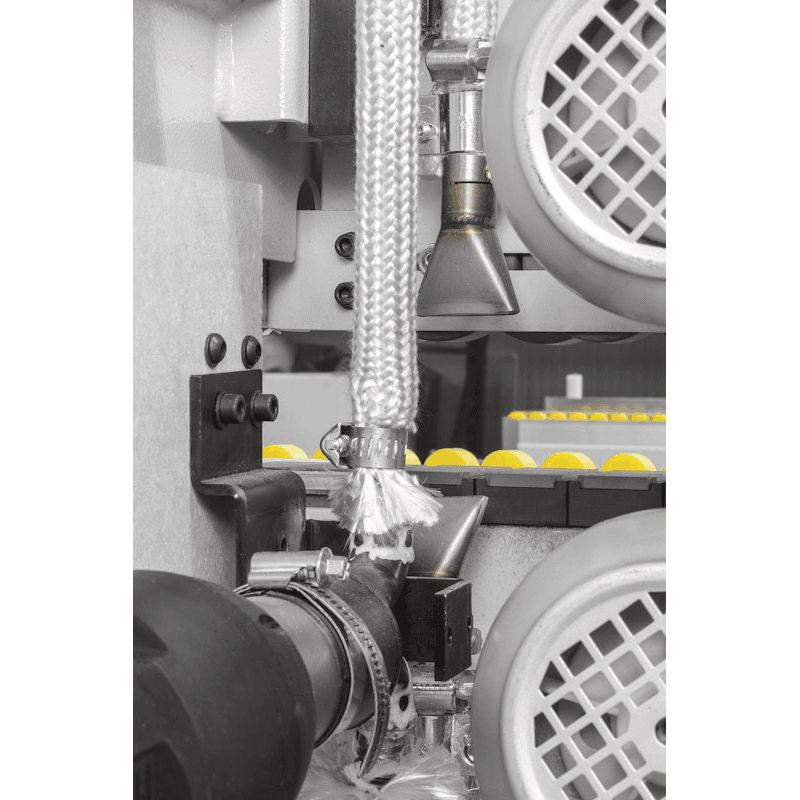

• ID 3000 edge brightening unit: It brightens the colour of plastic edges by heating them with hot air.

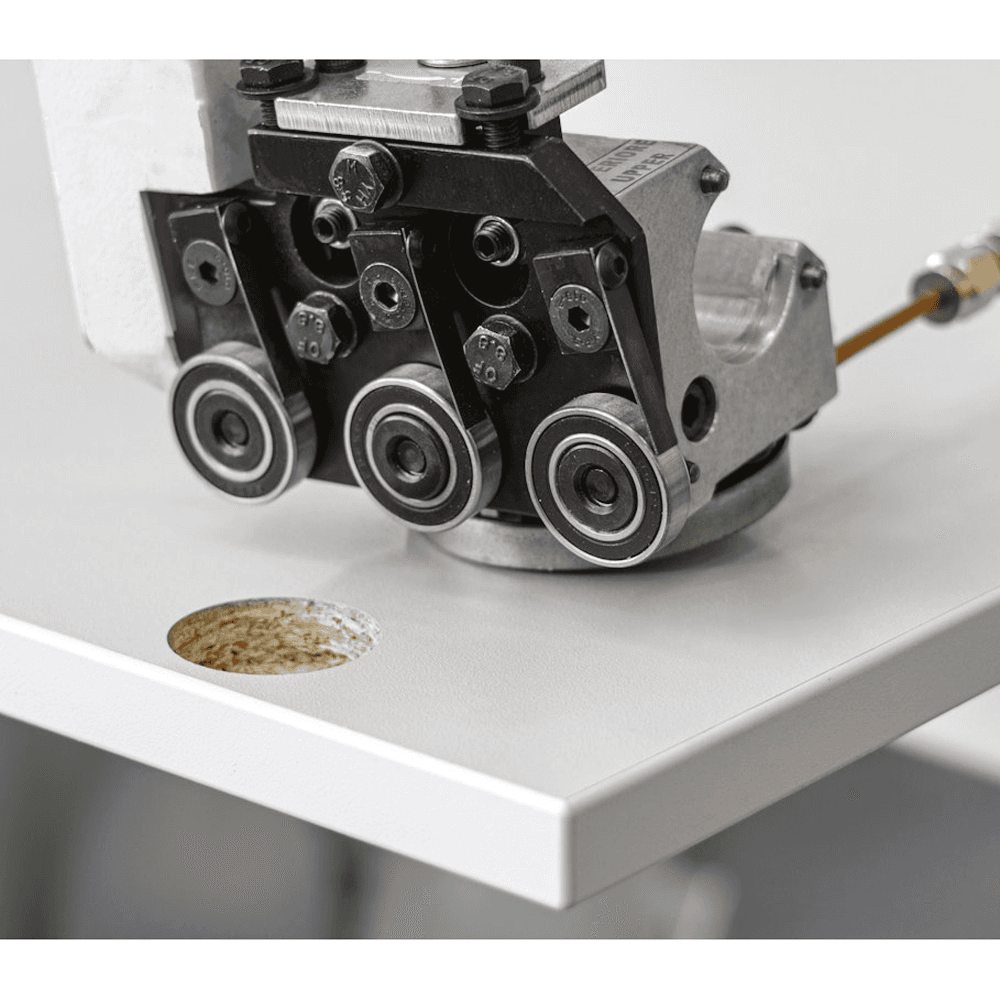

• RC-N glue scraping unit: It eliminates any glue excessing in the joint between edge and panel. Nesting processing.

• RAS-A edge scarping unit: Simple and quick change of the machining radius with the replacement of the tool kit.

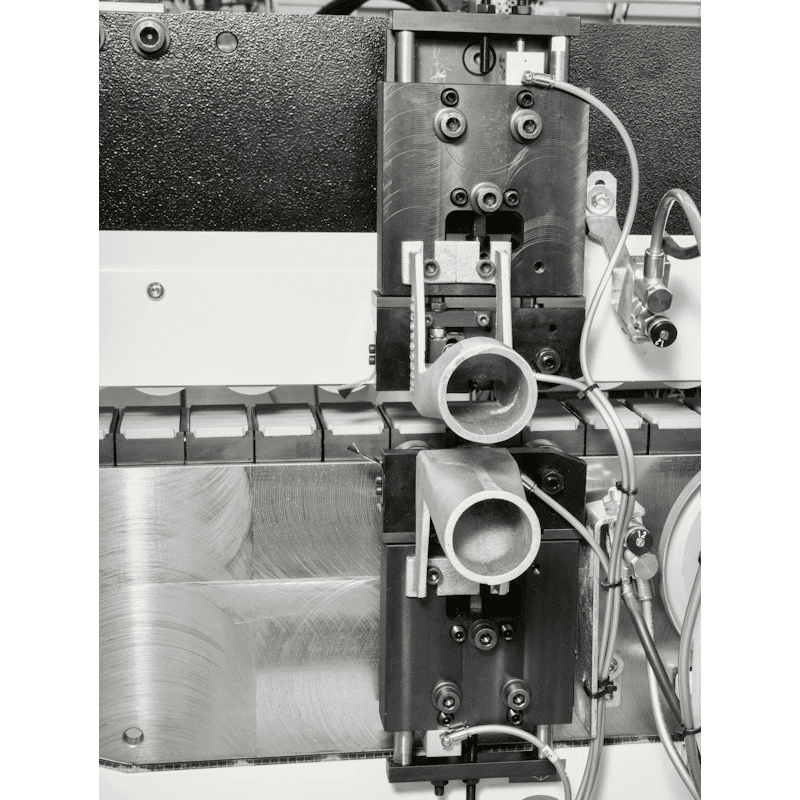

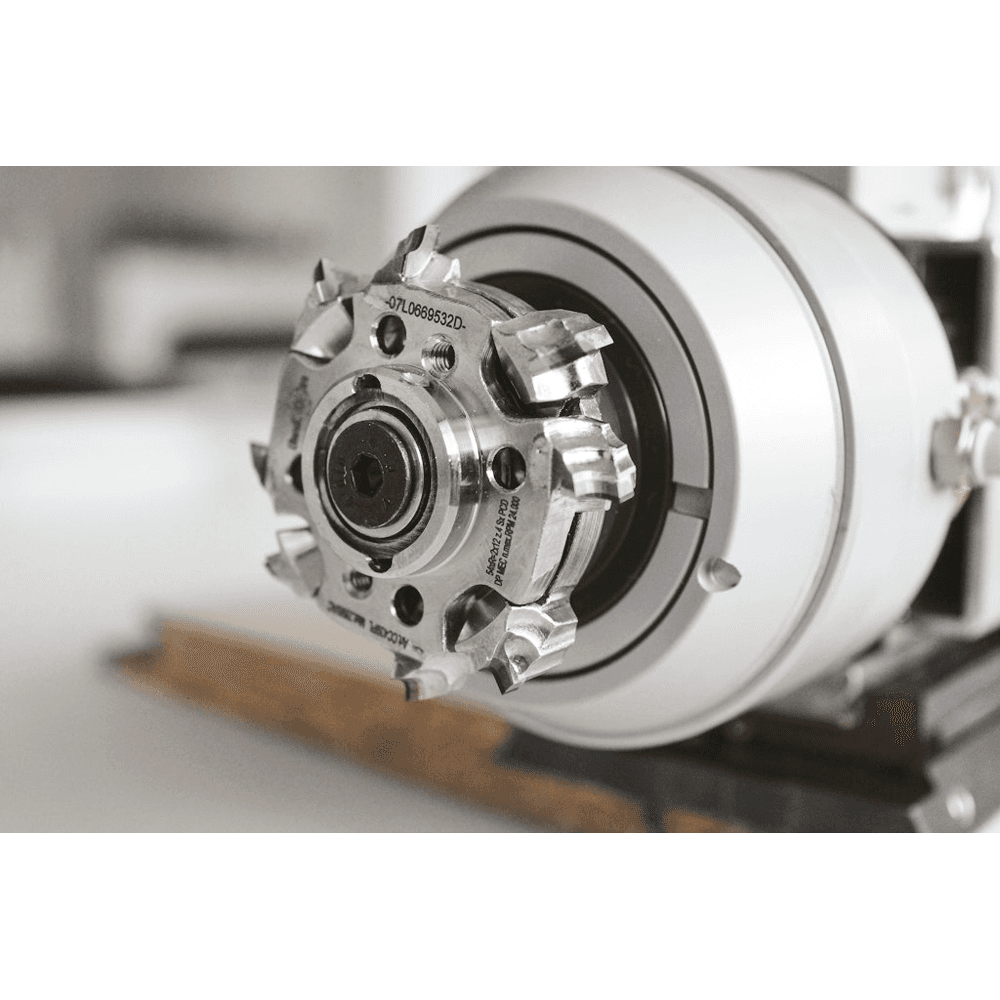

• Round 2-A unit: 2-motor unit and Multiedge device for machining 2 different radii, each with a dedicate tool.

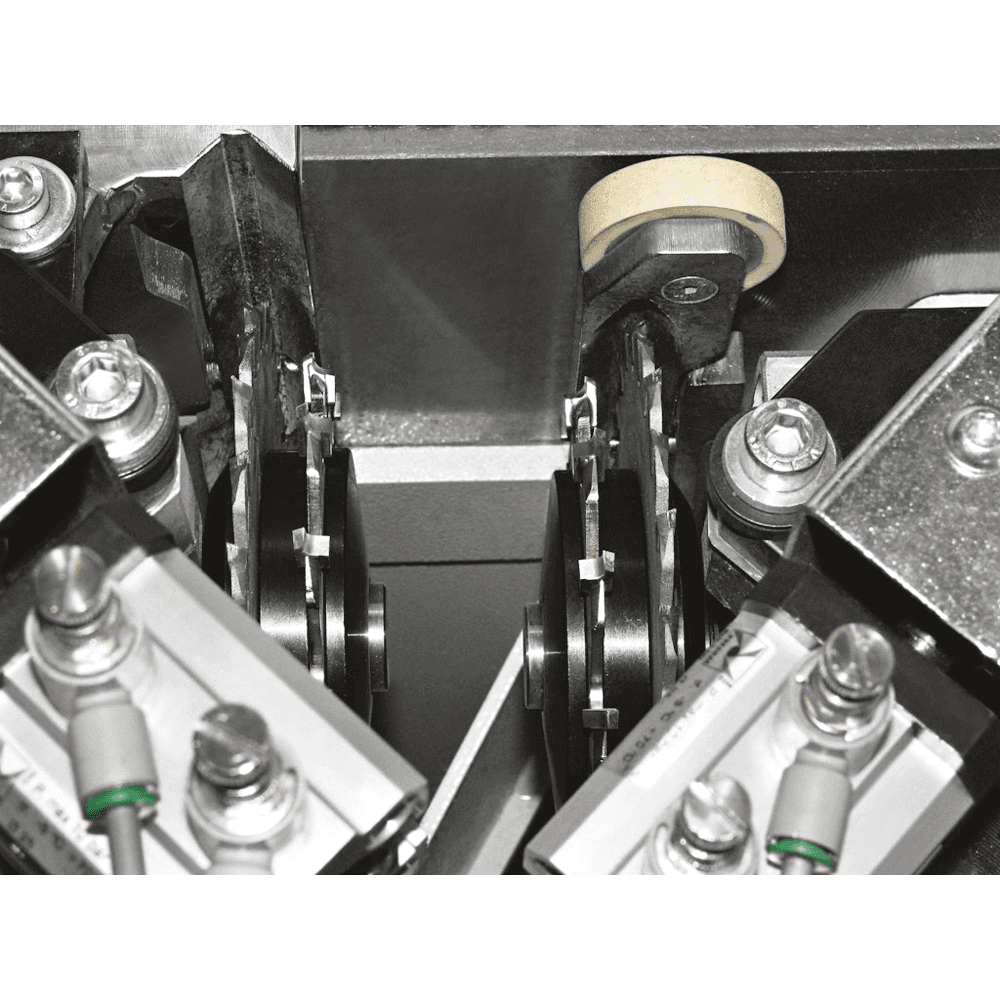

• RT-V1 premilling unit: A perfect panel surface for an excellent joint line.

• Maestro active edge: An expert operator that guides you to produce quickly and without errors.

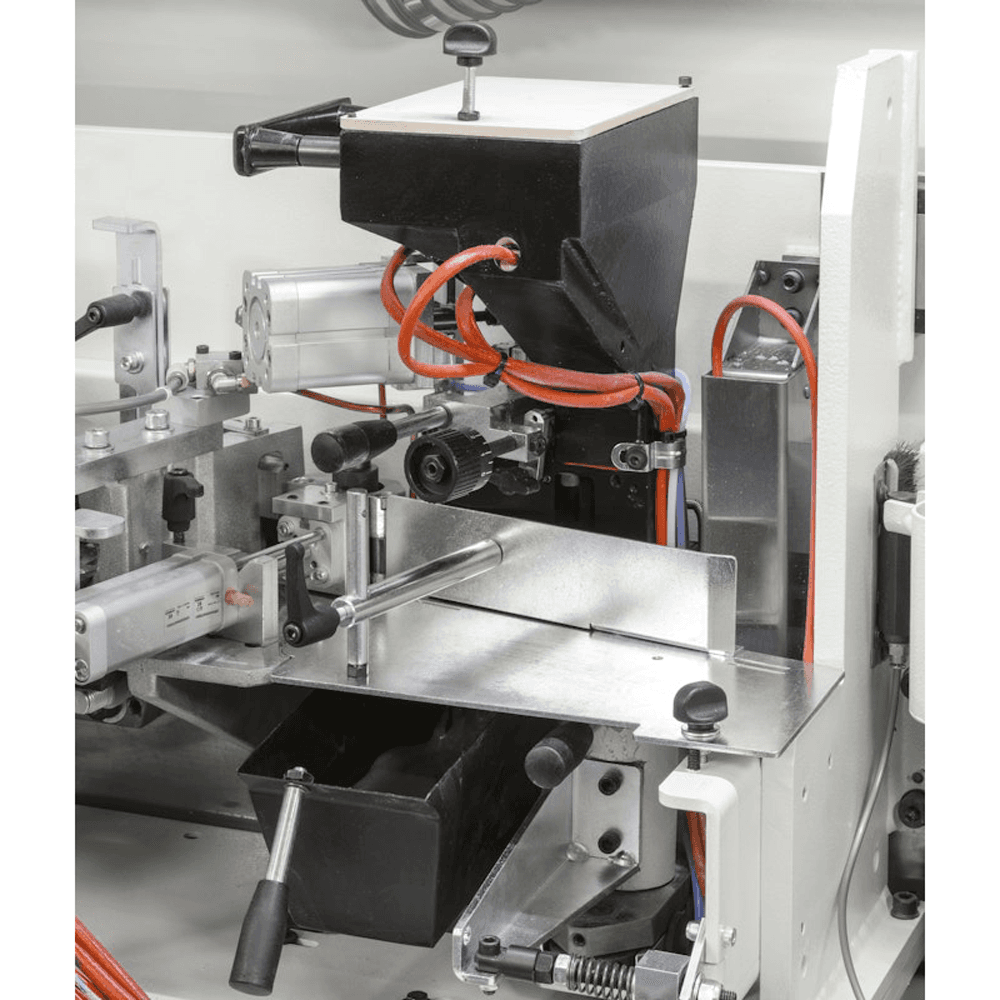

• SGP-E glue pot: Perfect joint line and use of EVA and PUR glue.

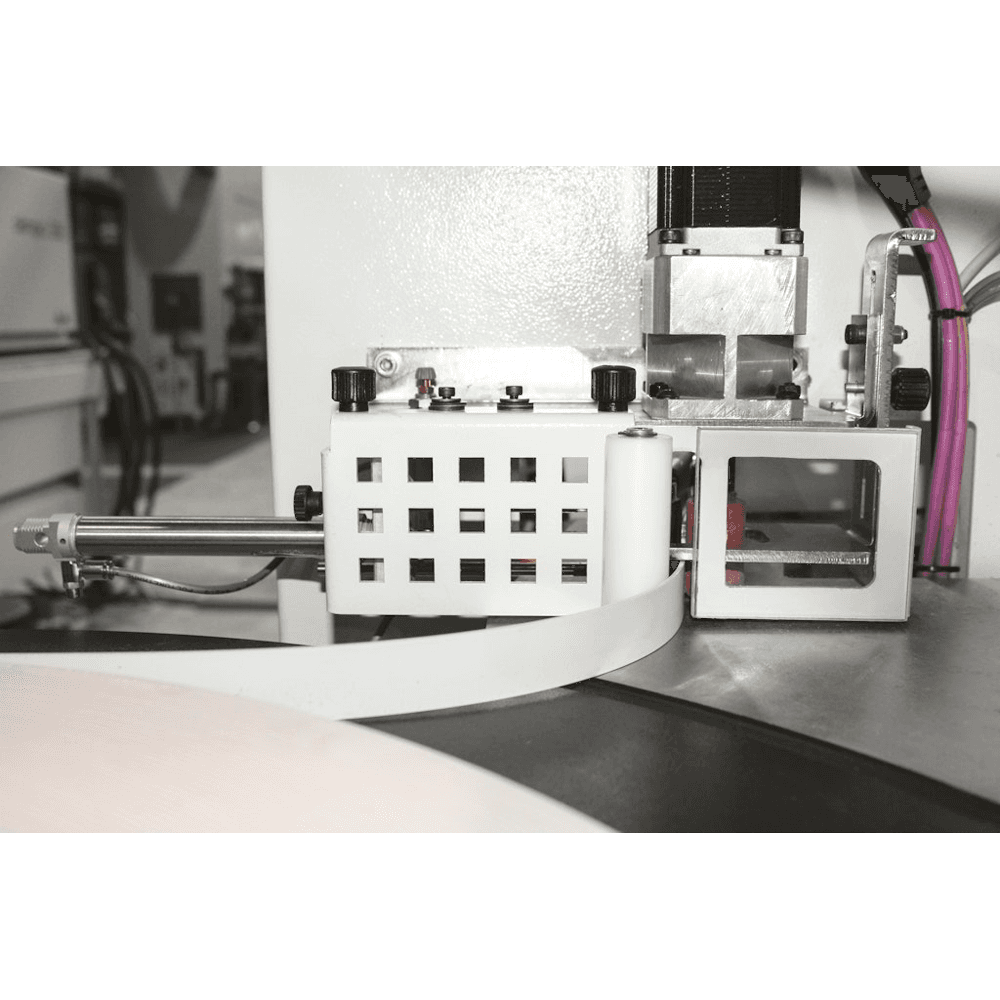

• Kit for the automatic edge loading: Fast, simple and safety edge changeover.

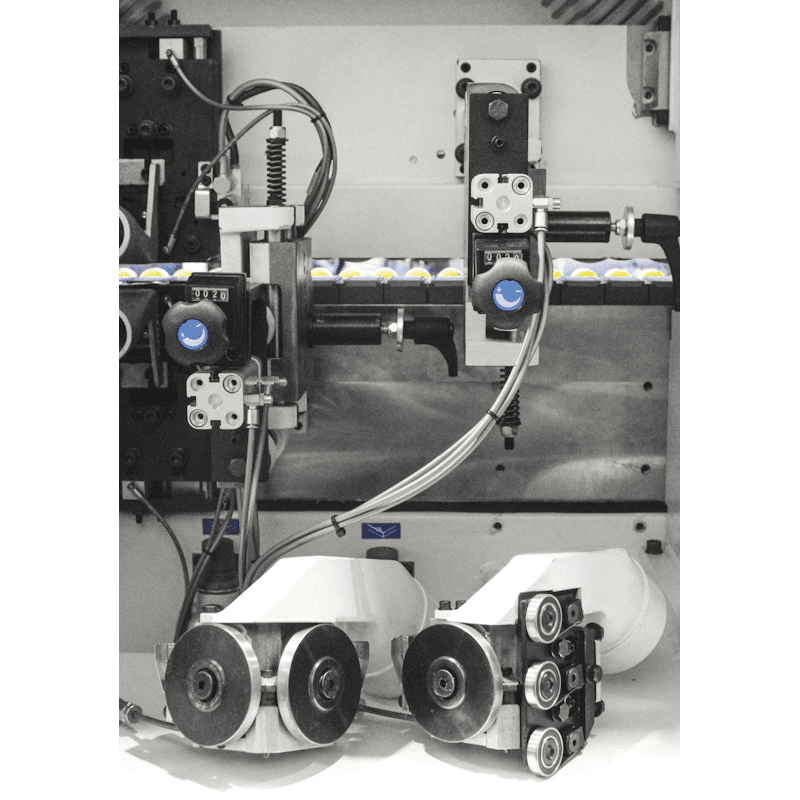

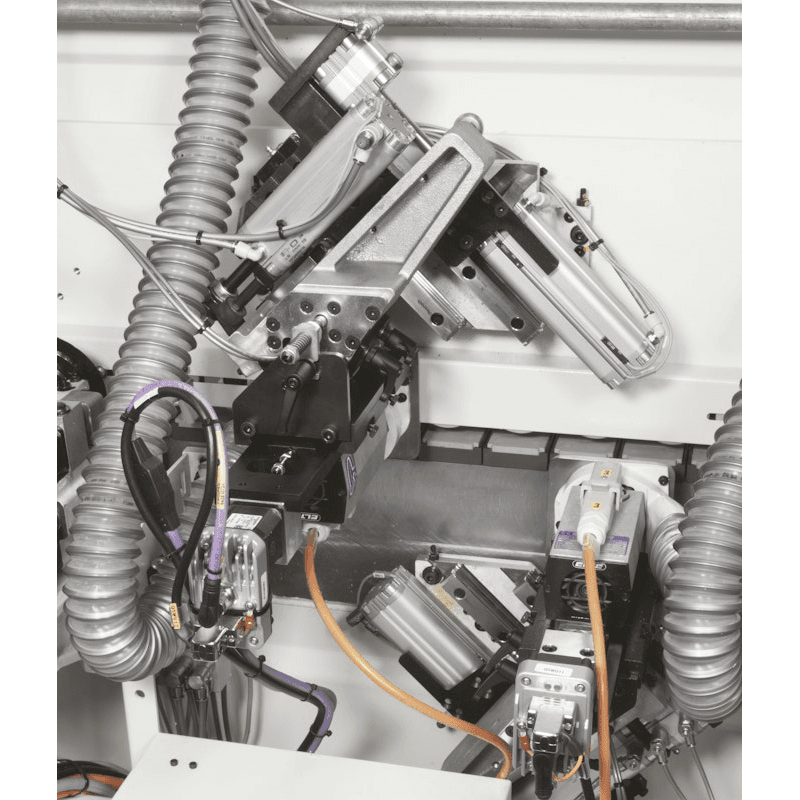

• R-HP Trimming-Chamfering unit: Quick changeover between 2 different radii, infinite thin edges and solid wood tipping thanks to Multiedge devices.

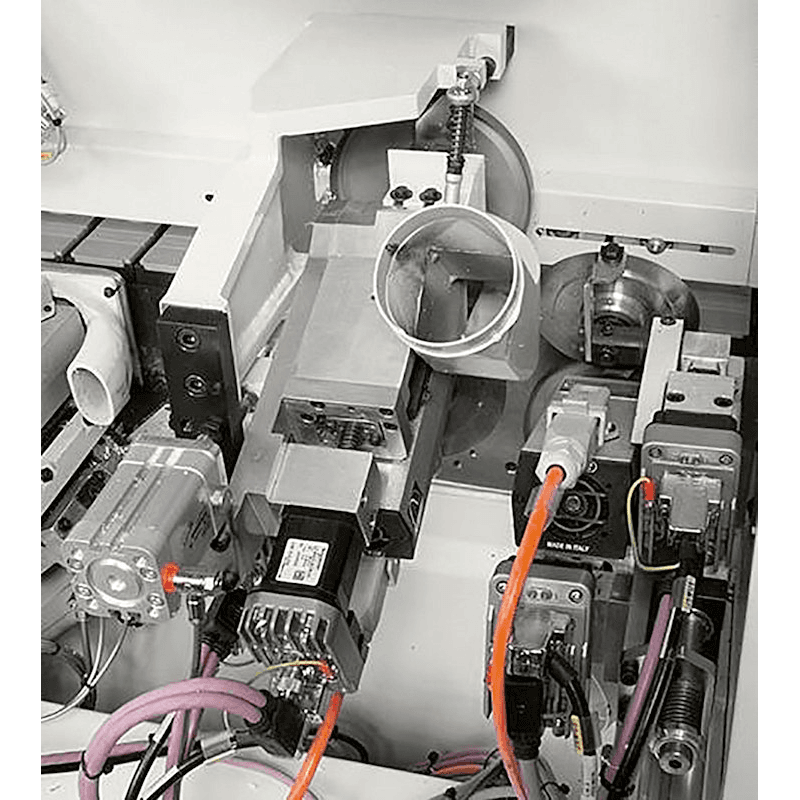

• K-2 Radius end cutting unit: Cut and radius in a single operation.

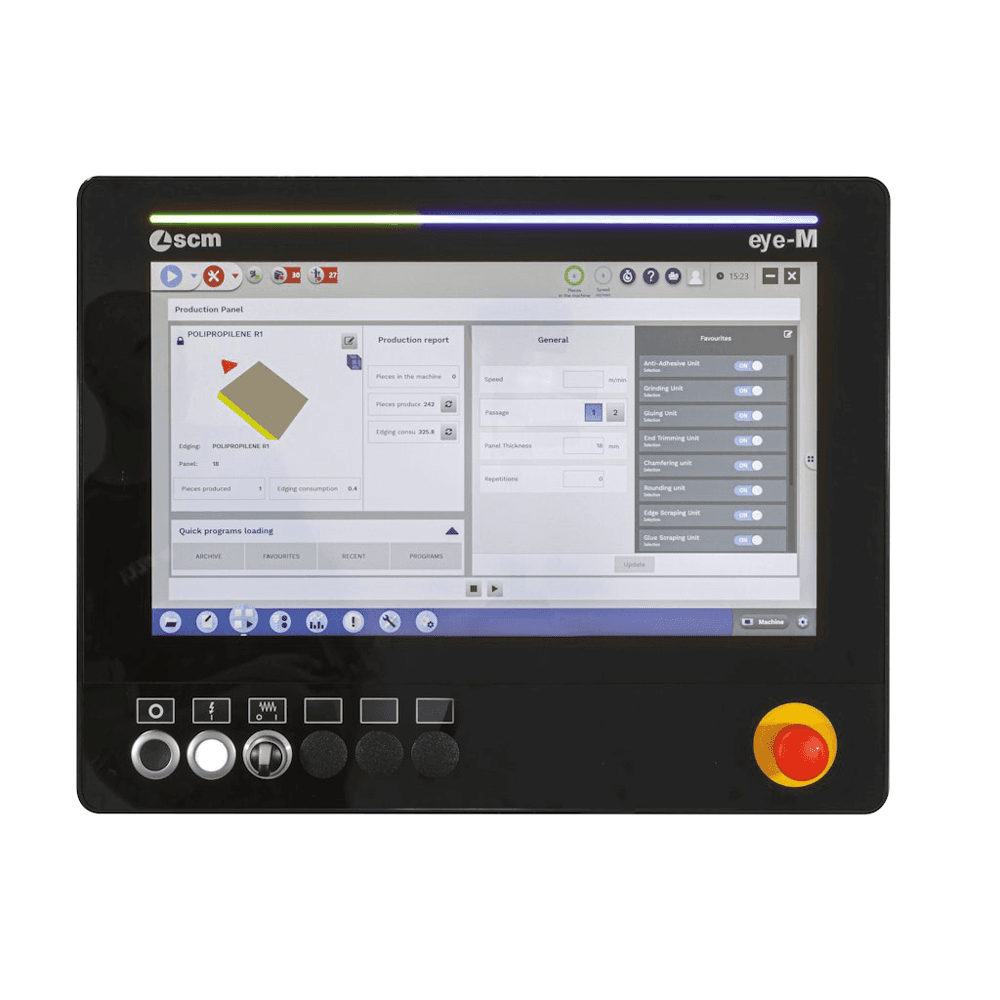

Maestro active edge
HMI unified for all SCM machines. A software that assists the operator starting from the editing to the execution of the edgebanding programs.
• EASY TO USE: immediate interface with use via touch screen. Graphics and icons designed for easy and comfortable navigation;
• ZERO ERRORS: thanks to embedded help and reset procedures that reduce the possibility of error of the operator;
• MAXIMUM CONTROL OF PERFORMANCE thanks to the integrability of the production reporting to any business management system;
ADVANCED PRODUCTION ORGANIZATION: possibility of configuring multiple users with different roles and different responsibilities.
The machine can be equipped with Maestro connect IoT technology enabling an access to a wide range of services as well as a faster assistance from SCM Service.
Maestro software comes standard with both 21" eye-M and the new 15" eye-S console.
