A Deep Black HPL Sheet Built for Surfaces That Take Real Wear
The SM'art High Pressure Laminate in Noir (SMIN90) is a 60 inch by 120 inch, 0.9 mm thick sheet finished in the Intagli texture, designed to carry the SM'art color program onto countertops, shelving faces, high-wear verticals, and any post-formed surface your decorative panel layout cannot cover. Fabricated under high pressure as a separate bonding sheet, it arrives ready for the shop to apply and trim.
Key Features
- 60 inch by 120 inch sheet — the standard SM'art HPL size, suited to most countertop and vertical runs without a seam.
- 0.9 mm thickness — the correct callout for bonded HPL work where substrate buildup is a concern.
- Noir (SMIN90) decor — a deep, near-uniform black that reads as a continuous surface on flat and post-formed work.

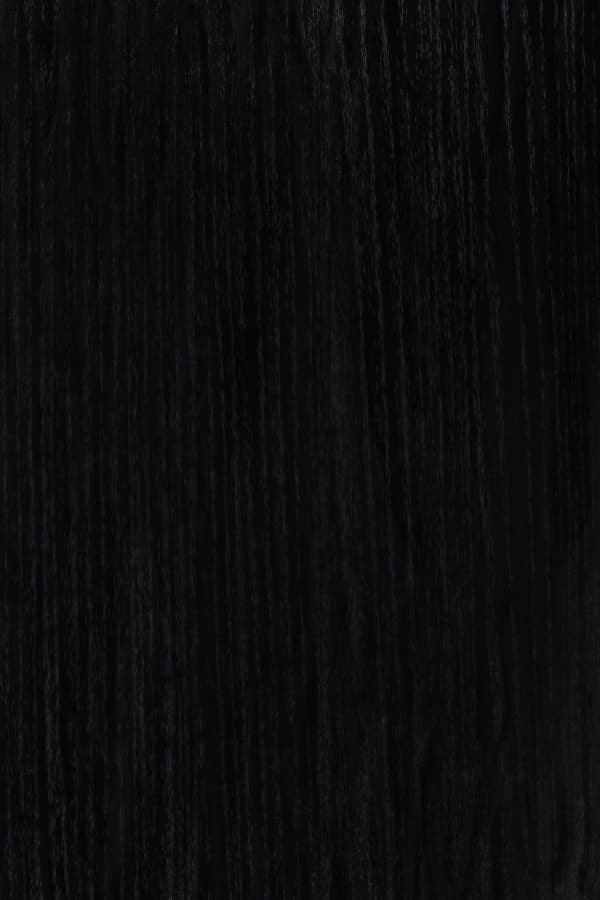

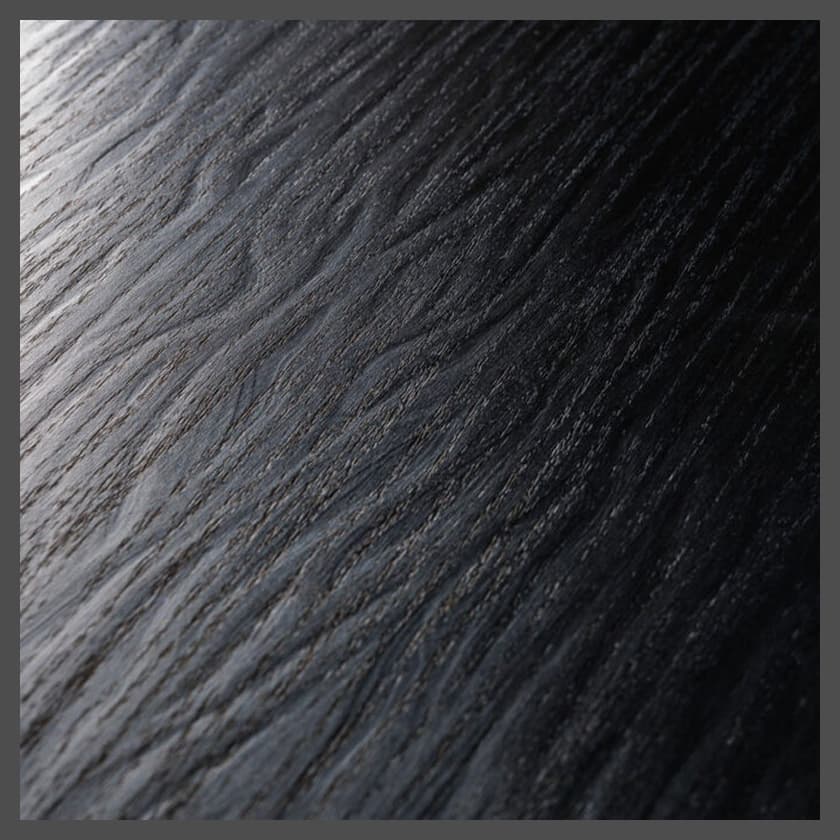

- Intagli finish — a structured texture that controls gloss and adds tactile depth to a dark face.
- High-pressure laminate construction — manufactured separately from kraft and decorative paper layers under high pressure, giving a harder, denser surface than thermally fused alternatives.
- Matches SM'art decorative panel program — coordinates with SM'art TFL panels in the same color for consistent color across cases and surfaces.
Where This Sheet Does Its Job
High pressure laminate handles the surfaces a decorative panel cannot reach: countertops that take direct impact and abrasion, shelving noses and edges on heavy-use commercial casework, and post-formed profiles where the bonded sheet wraps a radius. In Noir, this sheet is a practical call for kitchen counters, commercial reception tops, display fixtures, and retail casework where the design specifies a flat black surface with no visible substrate. Because HPL is applied by the fabricator rather than arriving pre-bonded, you control the substrate choice and can pair it with MDF for a smooth profiled edge or with particleboard on a flat run where cost matters.
Construction and Finish Detail
High pressure laminate is built from multiple layers of kraft paper and a decorative surface layer consolidated under high pressure into a dense, non-porous sheet. That manufacturing route gives it a wear surface harder than thermally fused laminate and makes it the right choice wherever the spec calls for HPL specifically or wherever surface durability outweighs the convenience of a pre-finished panel. The Intagli texture provides a structured, low-sheen face that reduces glare on dark surfaces and makes fingerprints and light surface marks less visible than a smooth gloss finish would. At 0.9 mm, the sheet bonds flat without adding significant build to the substrate.
Who Reaches for This Sheet
Cabinet shops running SM'art panel interiors and door fronts use this HPL to extend the Noir color onto counters and horizontal surfaces without breaking to a different material. Commercial millwork operations specify it on reception desks, retail fixtures, and high-traffic shelving where the surface will be wiped, scraped, and loaded daily. Designers working a dark, matte-leaning palette in kitchens or contract interiors reach for it when the specification calls for HPL rather than a pre-bonded TFL panel, or when the countertop profile requires post-forming. This is an indoor bonded-surface product; substrate prep and adhesive selection follow normal HPL shop practice.
Does SM'art HPL come in any size other than 60 by 120 inches?
SM'art HPL is stocked at 60 inch by 120 inch only. If your shop needs the 73 inch wide sheet, that size is available in the Saviola HPL program, not SM'art.
Can I use this sheet on a post-formed countertop profile?
Yes. At 0.9 mm, this sheet is within the thickness range for post-forming. Check your press setup and adhesive spec against the profile radius before committing a run.
Is matching edgebanding available in Noir for the SM'art TFL panels?
Matching ABS edgebanding is available for SM'art colors. That banding closes the cut edge on the TFL panel; the HPL sheet is for bonded flat and post-formed surfaces, not for edge application.
What substrate works best under this HPL?
MDF gives a cleaner edge profile and a flatter bond face for mirror-finish results. Particleboard is the practical call on a flat run where weight and cost matter more than edge quality. Both are standard under HPL; your contact adhesive or press adhesive spec does not change.
Will the Intagli texture match the surface of SM'art TFL panels in Noir?
The Intagli finish is the SM'art HPL texture for this color. Confirm a sample against your panel order before finalizing a specification where the two surfaces meet at a visible joint.
A Single Color Across Every Surface in the Run
Noir in SM'art HPL means the same deep black the panel program delivers, now available on every surface the panel cannot reach — the counter, the post-formed nose, the high-wear horizontal. One color, bonded where it needs to be.
