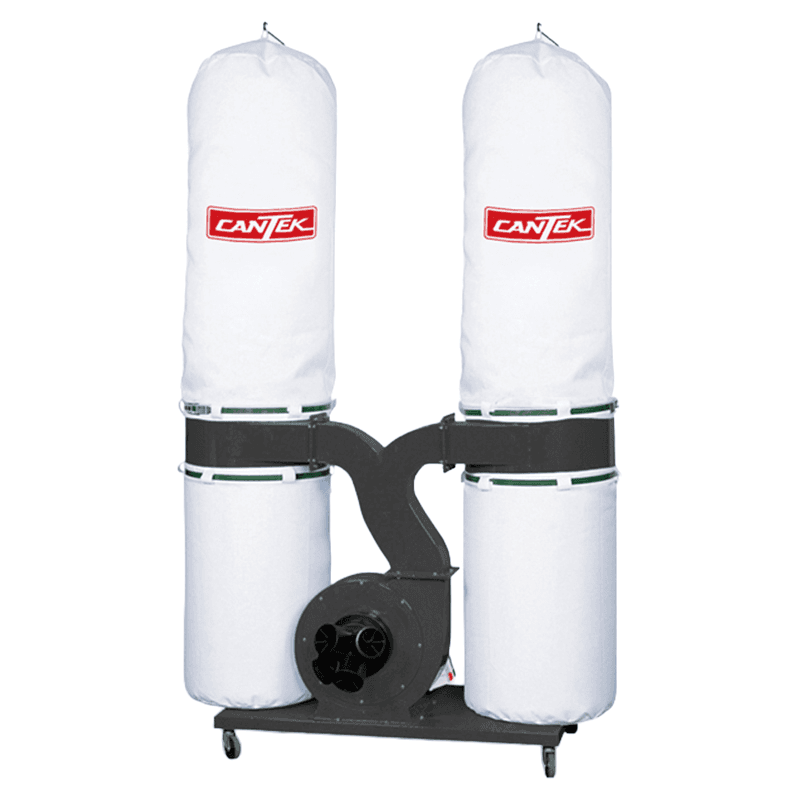

Cantek PDC203 3HP Dust Collector
This item may incur additional shipping costs and lead times.
Product Details
The PDC203 3HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters to be taken to where it is needed in the shop. Features: • 3HP generating 2800 CFM • The base is mounted on casters to be moved around the shop to where it is needed • Durable cotton filter bags. (Bottom plastic disposal bags are optional) • Magnetic starter included • Fan Diameter: 14" • Electrics: 230/1/60 = 17 Full Load Amps Key Advantages: • 3HP Motor • 2800 CFM • 8" main inlet with removable outlet with (3) 4" ports • 5 Micron upper filter bags and 30 micron collection bags
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | Dust Collector |
| Length | |
| Material | |
| Width | |
| Height | |
| Finish | |
| Motor Voltage (V.) | |
| Motor Current (Amps) | |
| Motor Phase | |
| Motor Power (HP) | 3HP |
| Warranty | |
| Main Inlet Diameter | 8" |
| Connector Inlet Diameter | (3) 4" |
| Bag Volume | |
| Static Pressure of Water | 14.4" |
| Top Bags | 5 Micron (20" Dia. x 48" Long) |
| Bottom Bags | 30 Micron (20”" Dia. x 33.5" Long) |
| Noise Level | 85dB |
