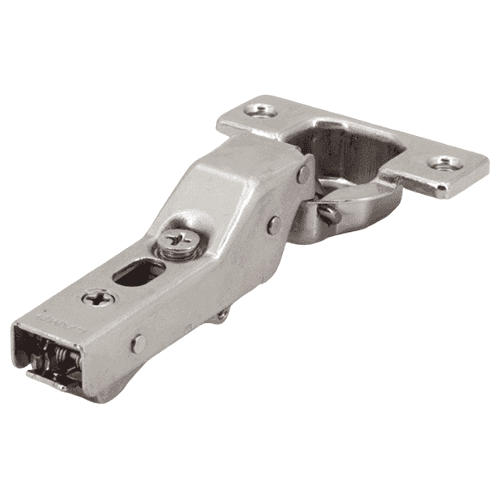

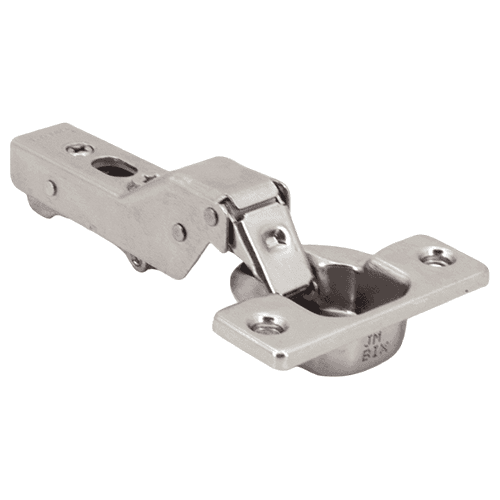

105° Opening Concealed Hinge, Self-Closing, Free-Swinging, 9mm Overlay, Nickel, Screw-On
Product Details
Features: • 105° opening concealed hinge in nickel finish • Featuring 5-speed adjustable damper • Load capacity: 6 kg (13.2 Ibs)/2 pcs, 10 kg (22 lbs)/3 pcs • Maximum door width: 600 mm (23-5/8")/2 pcs • Maximum door thickness: 20mm (13/16") • Clip on type for easy installation • 3-way adjustment with door installed • Mounting plate sold separately • Successfully passed 200,000 cycles test • Face frame cabinet bracket (FFCB-HG-1) required to install 360 Olympia overlay hinge on face frame cabinets. 1 bracket per hinge needed • FFCB-HG-1 is sold separately per piece
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | 9mm |
| Closing Type | Free-Swinging/Self Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Concealed Hinge |
| Finish | Nickel |
| Boring Pattern | |
| Cup Diameter | 35mm |
| Cup Depth | |
| Material | Steel |
| Cabinet Type |
