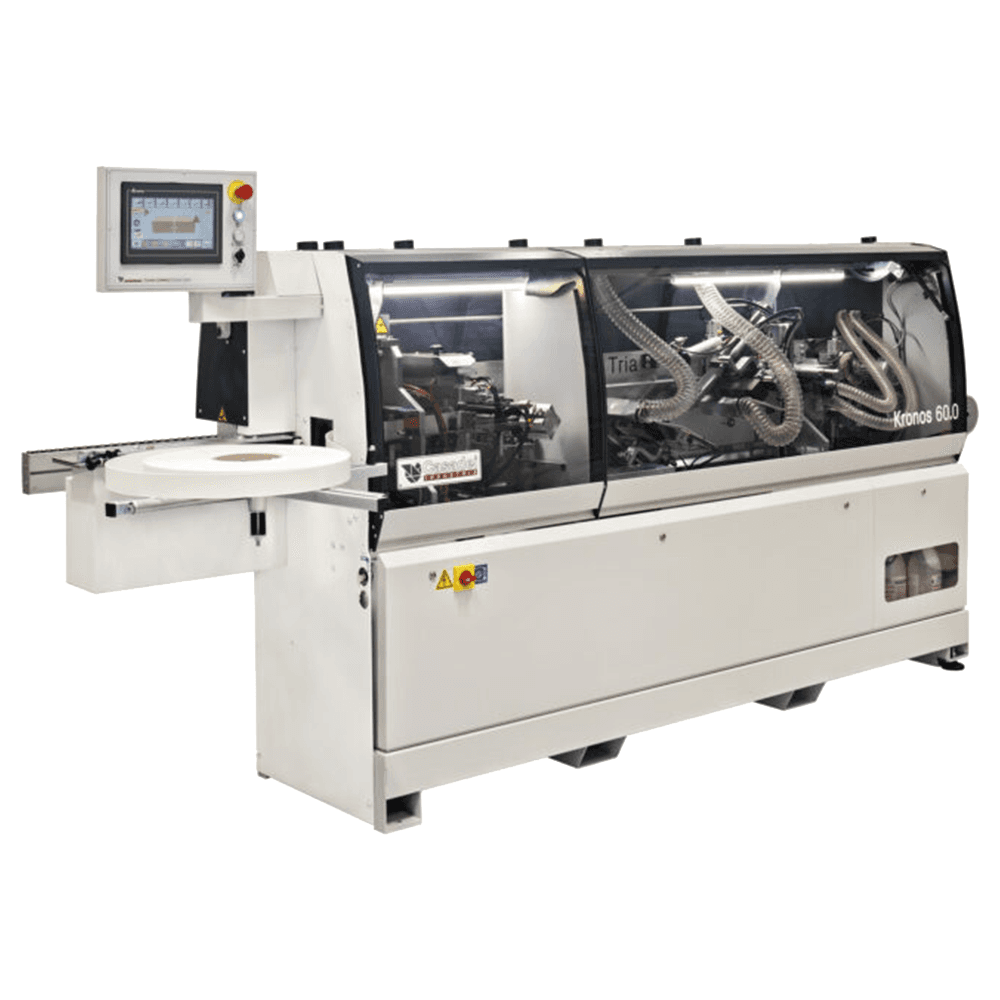

An advanced automatic edge banding machine featuring a hybrid hot melt EVA/PUR glue pot, chain panel feeding system, an electronically positioned presser, an automatic cadence for inter-spacing, infeed pre-milling, and a versatile ′TRIA′ unit (including end trimmer, flush trimmer, and rounding unit).
Maximum Finishing Quality:
• Double chain feeding system
• Pre-milling
• Upper glueing pot EVA/PUR polyurethane (std.)
• Standard interchangeability glue pot (std.)
• Multifunctional ′TRIA′ unit
• 3 free spaces for finishing units
High Performance:
• 12 m/min feed speed
• 60 mm panel height
• 3 mm edge coils
Minimum Space Occupied:
• 3,6 m
Easy to Use:
• Simple and immediate setting
• Easy and intuitive use of machine

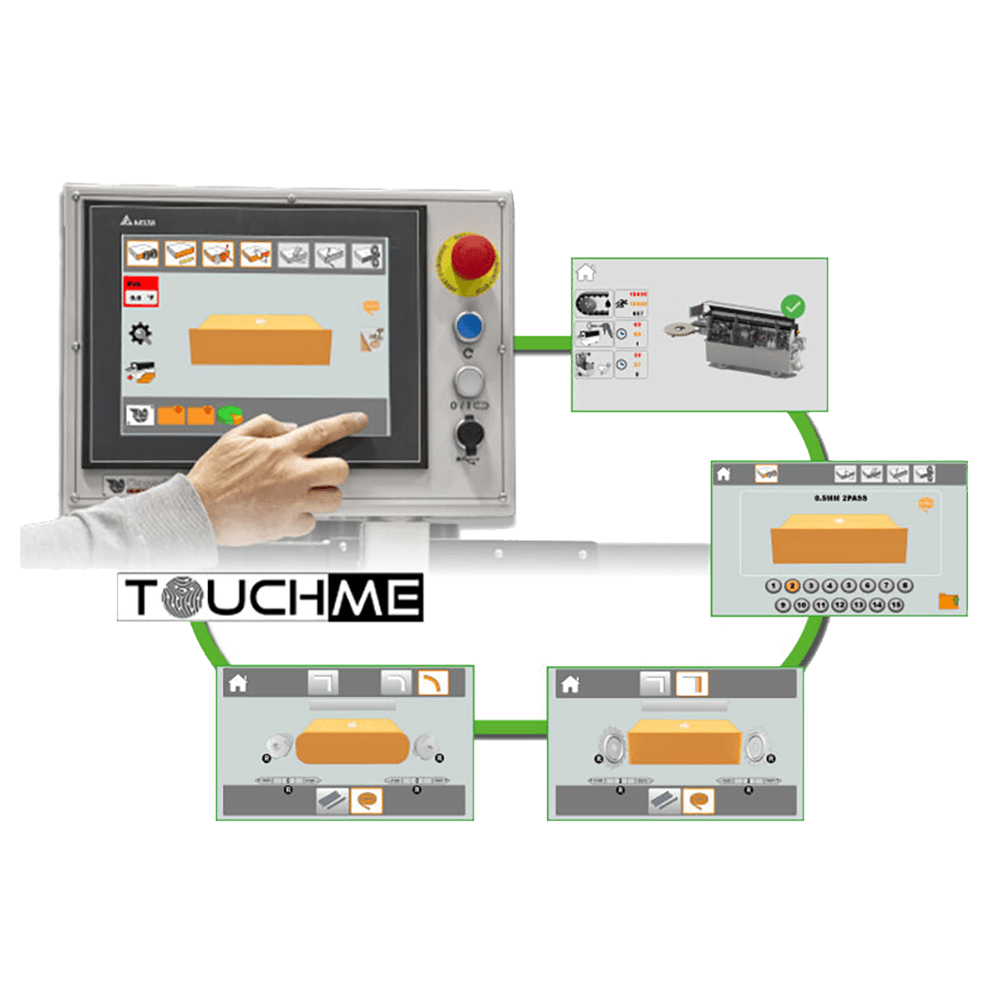

Touchscreen Control:
• Easy to use, Intuitive and Immediate
• 10" Colour display
• Possibility of processing with storable programs
• Impossibile to go wrong; the graphic visualizes directly the result of the process on the edged panel Just one
• Just one click to choose the desired workmanship

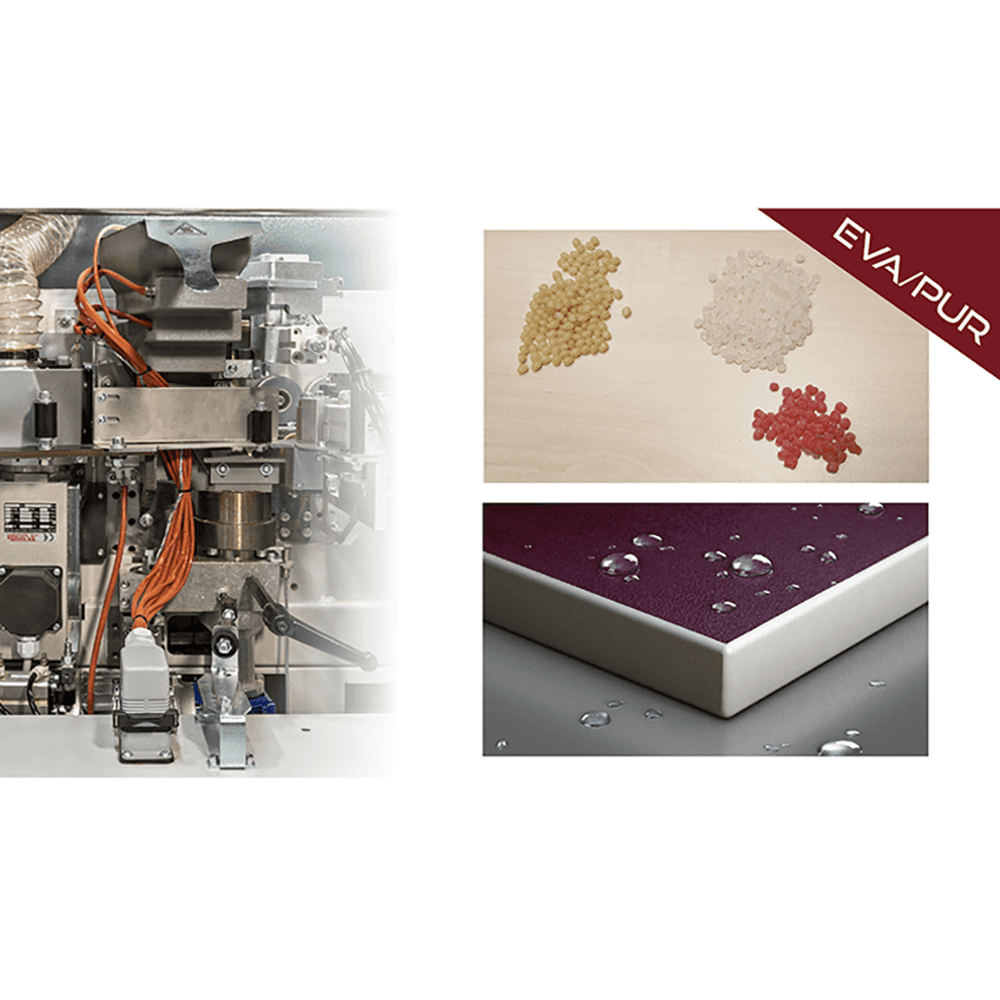

Glueing Unit PURE/EVA:
• Perfect glueing, quick and practical set-ups
• It is possible to process material either with polyurethane (PUR) or EVA glue
• With PUR glue it is possible to stop machine (up to 4 days) without having to effect any cleaning
• Automatic cleaning of glue spreader roller
• Glue roller with integrated heating uniform and constant glue temperature
• Granule manual loading (glue pot 1,4 Kg)
• Automatic glue drainage cycle. allows the change of type of glue in around 15 min
• Standard interchangeability which allows you to add a second additional glue pot both EVA/PUR and EVA
• Possibility of reversing the rotation of the glue roller for special processes (OPT.)

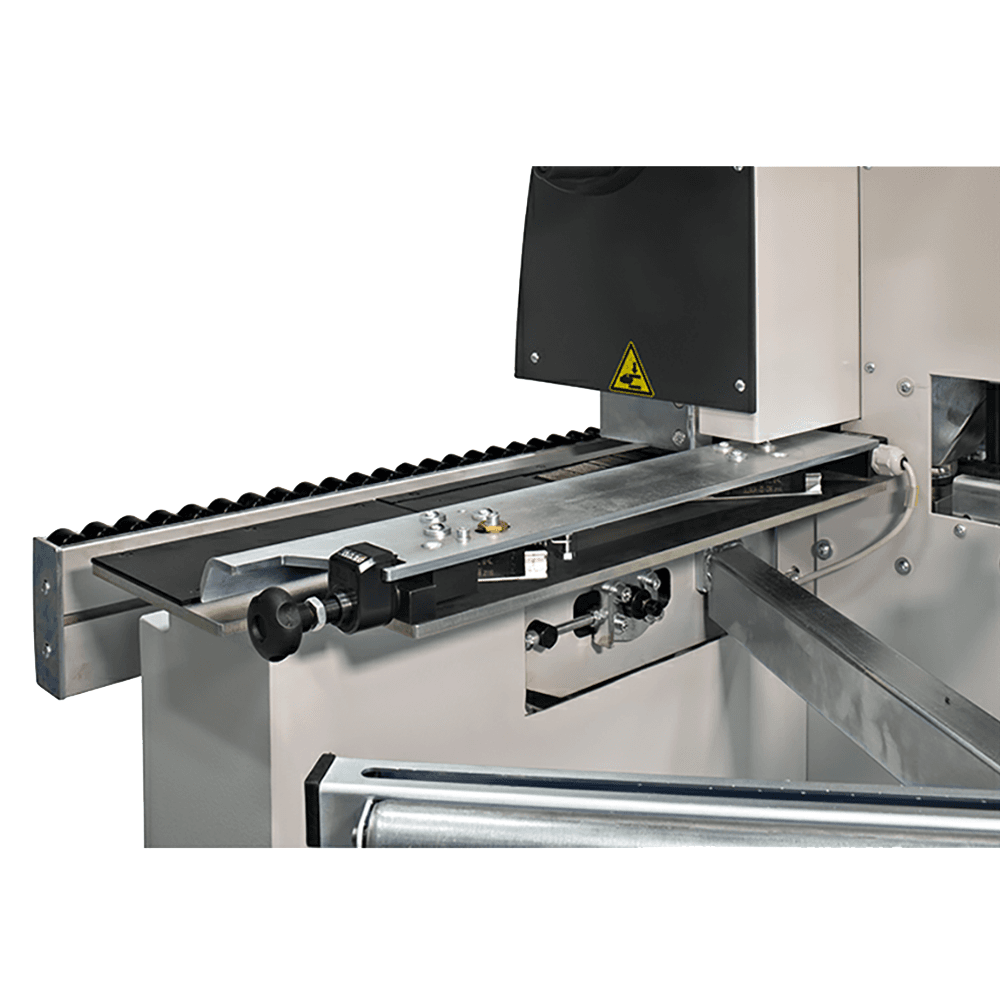

Adjustable Feeding Fence:
• Practicality and precision
• Feeding fence with micrometric adjustment and numerical dial for the measurement of the removal

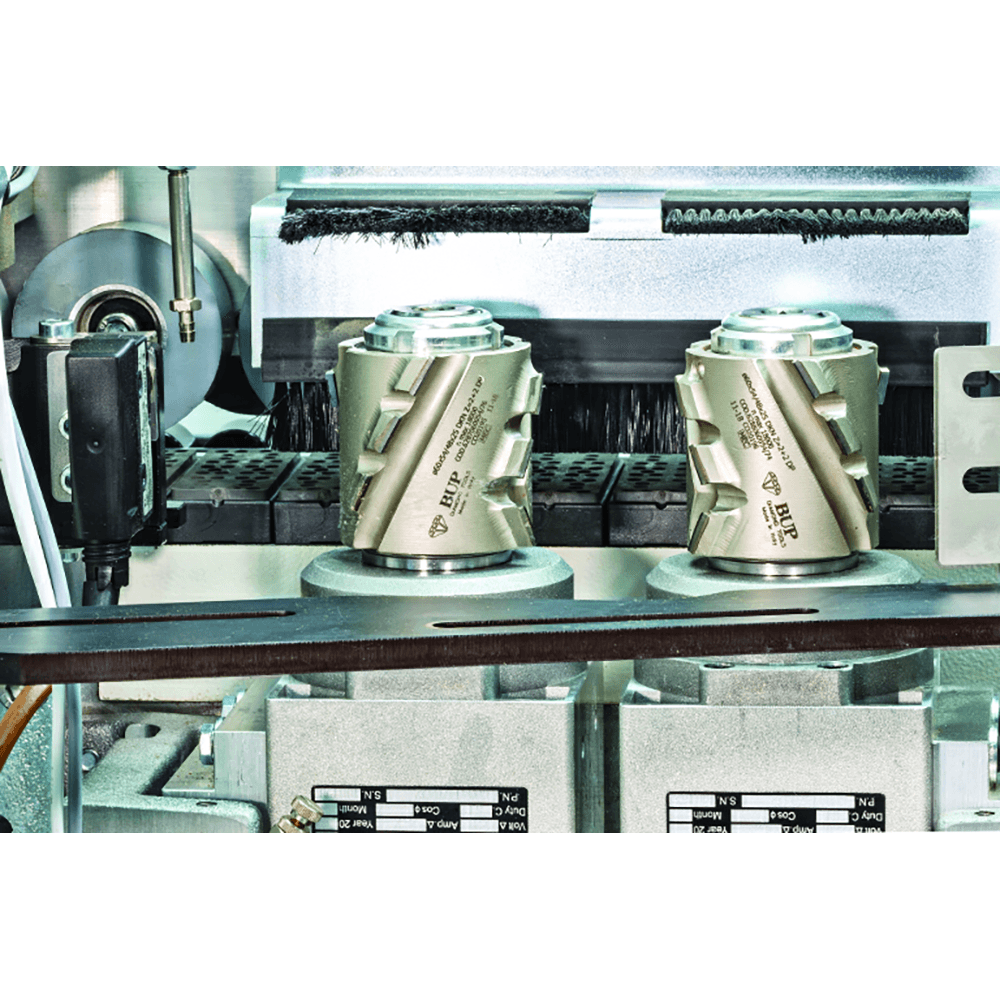

Pre-Milling:

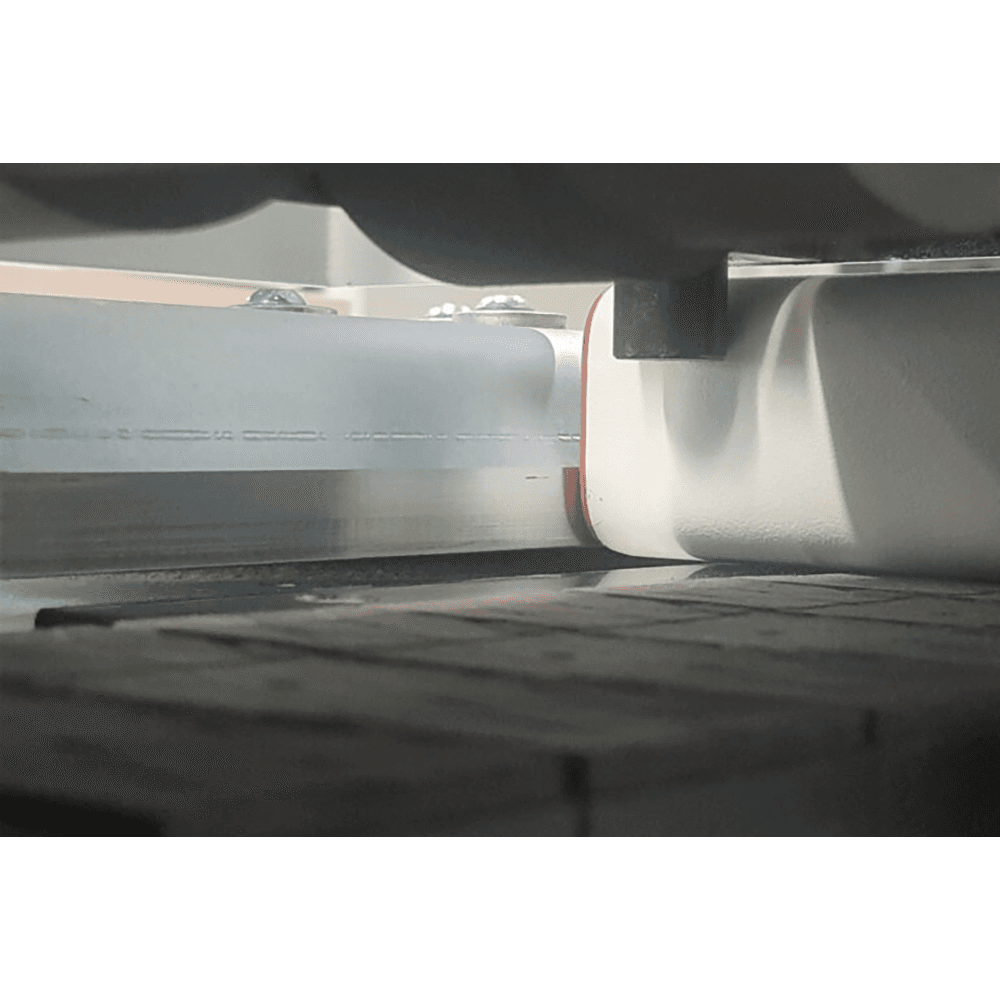

• Invisible glueing line
• DIAMOND tools Ø= 80mm H= 64mm
• HF motors 200 Hz-12.000 rpm-0.75 kW (each)
• Dedicated suction system and blower for panel cleaning before glueing
Automatic Cadencer Panels:
• For proper spacing between panels
• The automatic cadencer prevents human error and ensures stable and accurate production

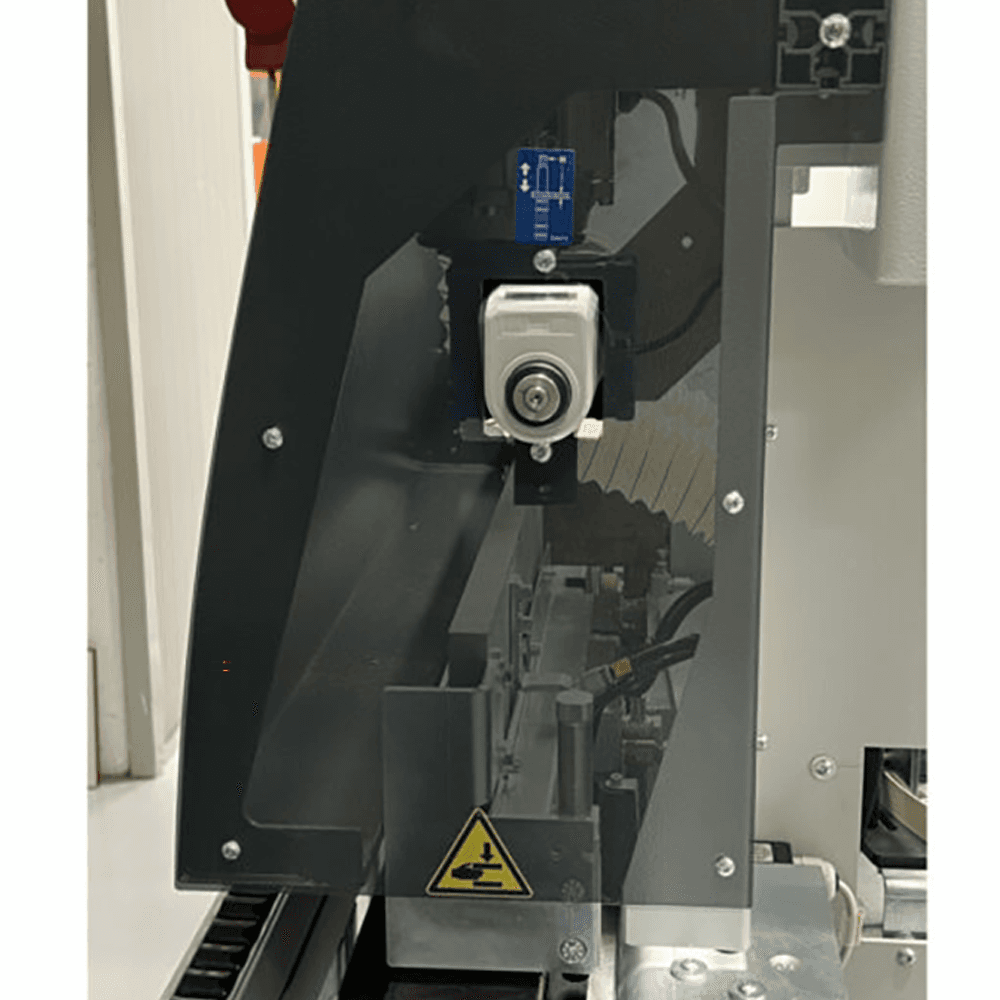

Automatic Presser:
• Automatic electronic positioning of the presser for variation of the panel thickness

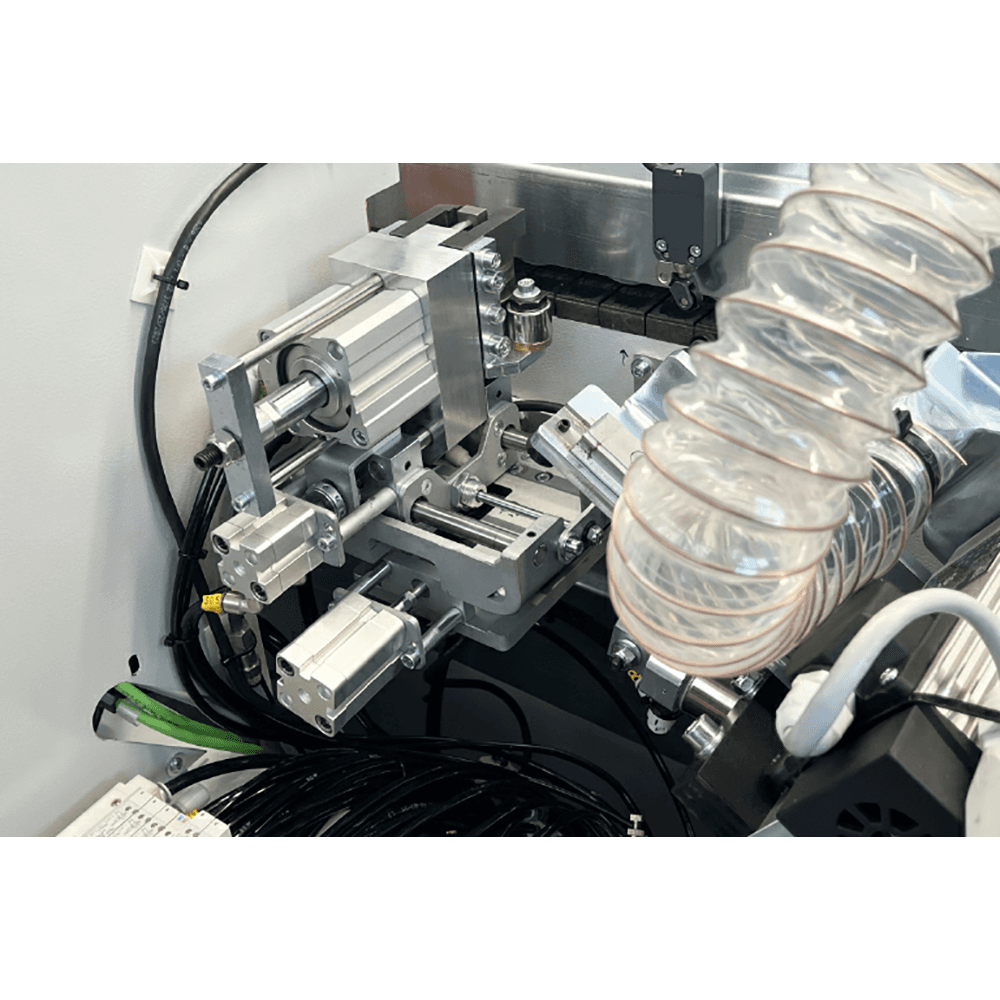

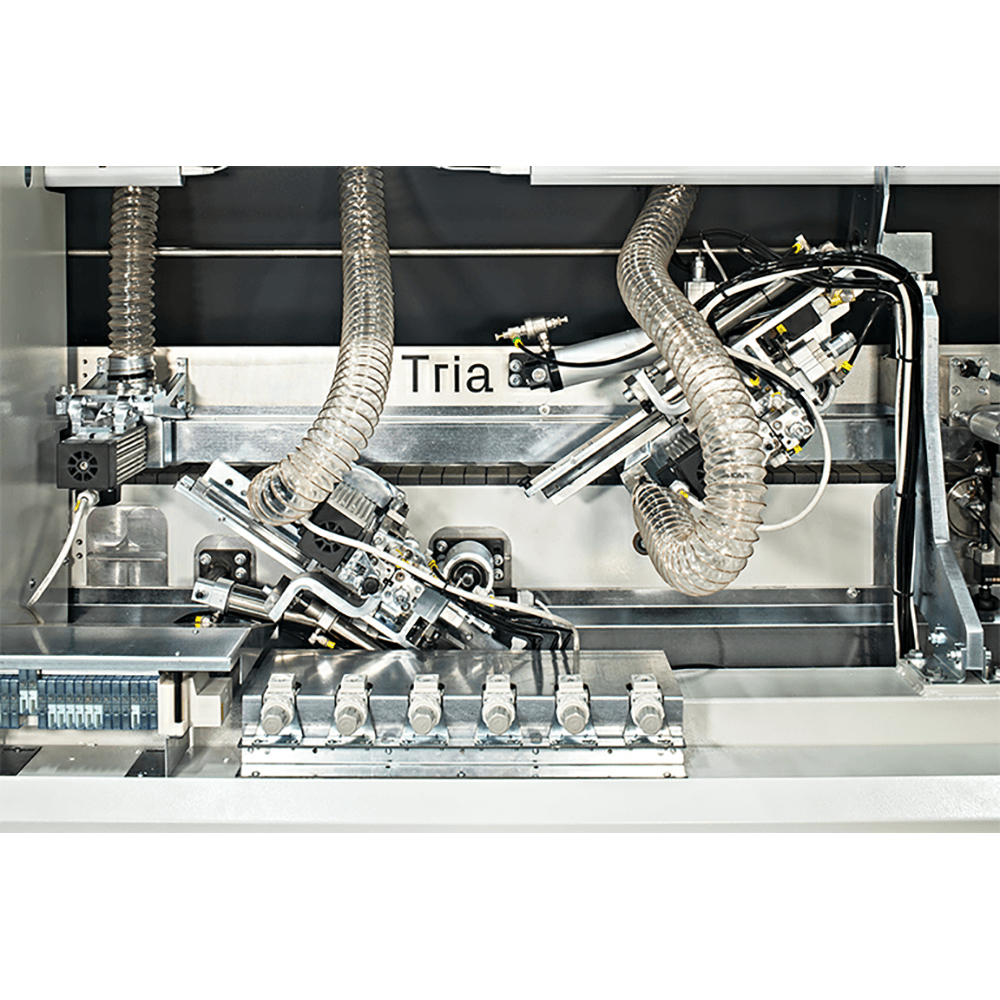

The Multifunctional ′TRIA′:
• Excellent edge finishing and easy setting
• Diamond cutter as standard
• Multifunctional group ′TRIA′ - three units - end trimmer, flush trimmer, rounding unit
• Automatically processes 2 different edge thicknesses

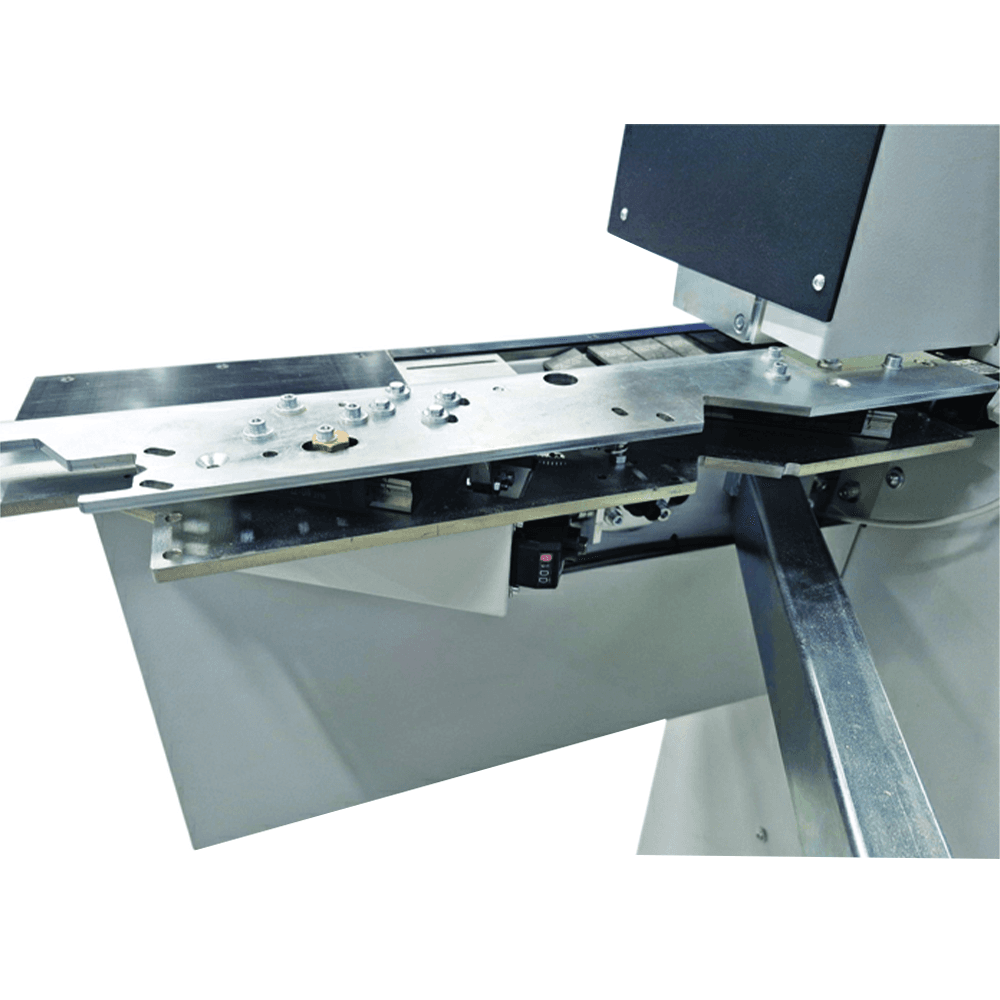

Infeed Guide Axis:
• Automatism with absolute precision
• Automatic device for positioning the entry guide (panel material removal) by electronic motorized axis
Pneumatic Shear:
• Automatic front and rear edges end trimmer (shears) with follow-up system
• On and OFF/ON from the control panel
• Absolute precision as no mechanical regulation is required
• Panel thickness max 45 mm
