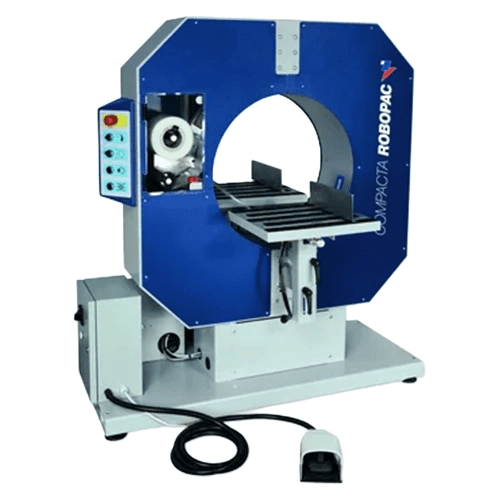

Robopac Compacta 6 Horizontal Wrapping Machines

The Compacta series machines are built following high quality criteria and construction specifications that have been improved and refined through time. The high degree of satisfaction generated worldwide by the Compacta makes these machines the top preference of final users, which entrust their products to horizontal wrapping technology using stretch film. Thanks to a wide range of ring diameters this line of machines manufactured by Robopac covers completely a broad range of wrapping needs. The versatility of use and the user friendliness of Compacta, combines with high quality level that distinguishes them and places also these Robopac products at the top of their categories.

Features:
• Sturdy and compact monobloc structure: ideal for installations in small spaces
• Activation of the cycle by foot pedal
• Automatic clamping and cutting system in total safety

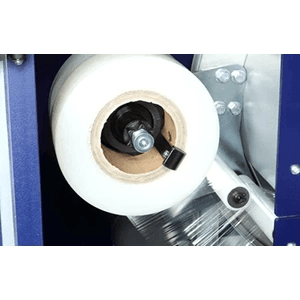

• The film carriage unit has a direct breaking transmission roller and it is adjustable at any time it also eases spool loading and film insertion to a maximum. The film carriage device is equipped with locking and quick release of the reel

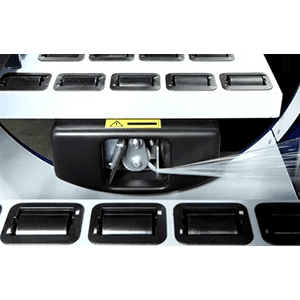

• The automatic highly reliable dual rod clamping and cutting system fully automates the wrapping process

Product Benefits:
• Time Saving: Simplification of packaging processes and reduction of operating time
• Increased Efficiency: The robustness of the Compacta increases operational efficiency and reliability over time
• Packaging Low-Cost: Wrapping with stretch film reduces packaging costs
• Small FootPrint: The compact design adapts to different packaging needs
• Flexibility: New rings dimension (product oriented) and the double reel on all range


Technical Features:
• Ring Diameter mm: 610
• Reel Width W mm: 125
• Ring Rotation Rpeed rpm: 40÷120
• Adjustable Conveyors mm: 800÷890
• Clamping and Cutting Unit: STD
• Power Supply Voltage V: 230 V 1Ph + N
• Power Supply Frequency Hz: 50/60
• Installed Power kW: 0,75
• Compressed Air Consumption Nl/cycle: 1,8
• Working Pressure Bar: 6±1
