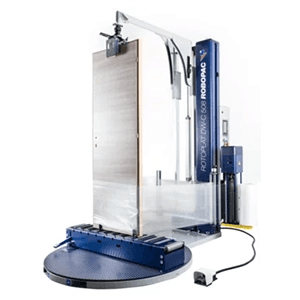

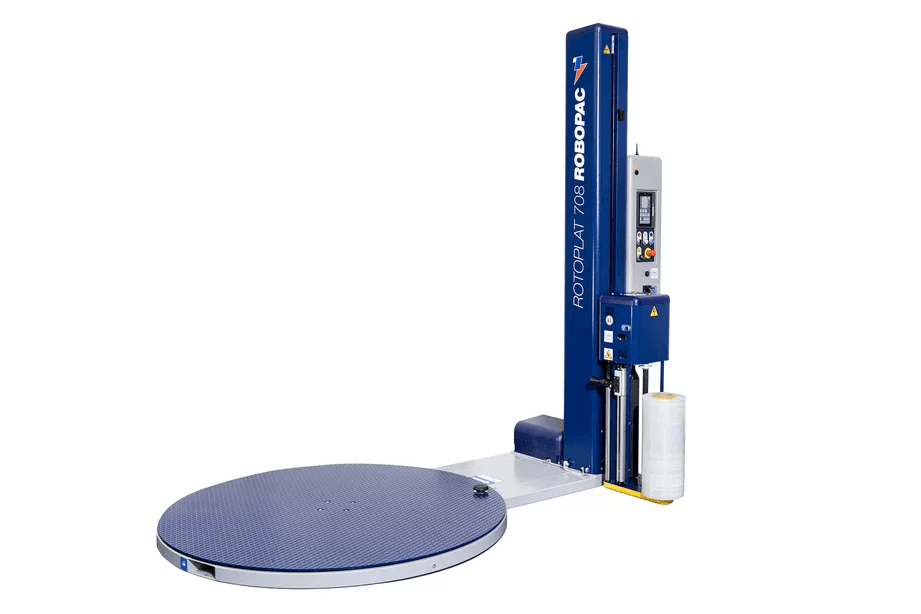

Rotoplat is a flexible turntable wrapping series for wrapping products with stretch film in vertical available in different configuration to meet your needs. Stretch wrapping turntable dedicated to doors, windows and other finished and semi-finished products in this manufacturing industry available with idle rollers conveyor and manual product lock system. Also available with idler roller conveyor and device for manual product fixing.
Features:
• Flexible Film Treatment with Roping Device
• Pre-Stretch Up To 400%
• Easy To Use Touch Screen Control Panel with Cube Technology

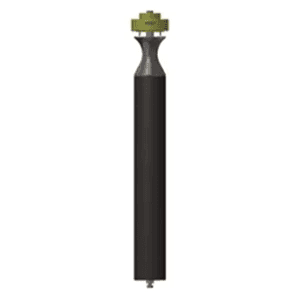

• FR Carriage: Film carriage with electromagnetic powder brake on return roller, stretch tension adjustable from control panel

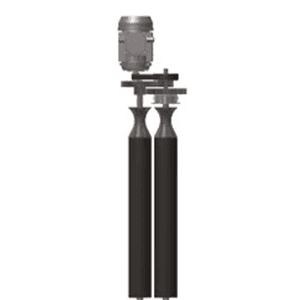

• PDS Carriage with dual pre-stretch rollers controlled via the control panel. Pre-stretch system is fixed at 250%. “Stretch Control” control activates the electromagnetic clutch positioned on the first roller

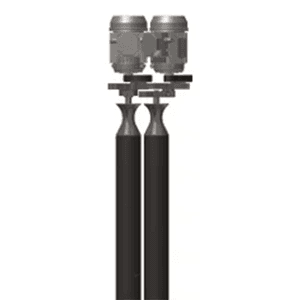

• The PVS Carriage with powered stretch system controlled by two independent motors. Stretch ratio adjustable from panel board from 150% up to 400%. Force to the load controlled by patented electronic device and adjustable from panel board

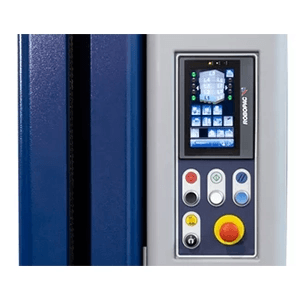

• 7" Touch Screen Control Panel: The control panel is the brain of Rotoplat, here lies the heart of the machine and technology Robopac is Cube Technology
Option and Data Sheet:
• R-Connect: Innovation and connection for customer service: the tranquillity of maximum productivity as a result of constant monitoring of proper machine operation. Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all management costs. In fact, the system minimises machine downtime and manages maintenance operations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.
• Roping Device with 1 Cylinder: Mechanism that, through pneumatic cylinder, creates a bead of film useful to increase the containment and stabilization of the pallet
• Mechanical Roping Device: Film roping system useful to increase stabilization and containment of the product. The reel descends from top to bottom thanks to a special electric motor present on the reel carriage. The height of the film band and the enabling of roping are adjustable through the touch screen control panel.
• Ramps: Ramps for easy loading with hand pallet truck.
• Top presser for the stabilization of light products. Available in two versions: mechanical and pneumatic.
• Film Automatic Cutting: The machine can be equipped with a film cutting device that increase the work efficiency in terms of time and makes the operator’s work easier.

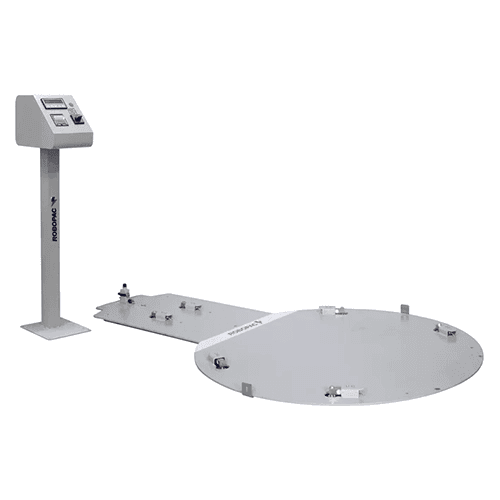

• Weighing Kit: Weighing frame kit for turntable machines.
• Max Load Weight kg: 1200 std. 2000 opt. (Ø1500) / 2000 std. 2500 opt. (Ø1650-Ø1800)
• Sensibility: ±0,2
• Integrated Printer: opt.
• Compatibility: Ecoplat Plus (Ø1500) / Ecoplat Plus, Masterplat Plus, Rotoplat, Technoplat CS/CW (Ø1650) / Masterplat Plus, Rotoplat, Technoplat CS/CW (Ø1800)
• Power Supply Voltage V: 110-240 V (1Ph)
• Power Supply Frequency Hz: 50/60
Technical Features:
• Turntable Diameter mm: 1650 std. 1800 opt.
• Max Load Weight kg: 100 (DW), 150 (DW-C)
• Turntable Speed rpm: 5÷12
• Carriage Up-Down Speed m/min: 1,5÷5,5
• Useful Mast Height mm: 2400 std. 2800/3100 opt.
• Pneumatic Presser Height mm: 1050÷2100 (H=2400), 1050÷2500 (H=2800), 1050÷2800 (H=3100)
• Mechanical Presser Height mm: 400÷2100 (H=2400), 400÷2500 (H=2800), 400÷2800 (H=3100)
• Film Carriage Type: FR, PDS
• Film Stretch: Adjustable From Panel
• Film Pre-Stretch: n.a. (FR), Fixed 250% std (PDS)
• Forklifting: Front and Rear
• Power Supply Voltage V: 230 V 1Ph
• Power Supply Frequency Hz: 50/60
• Installed Power kW: 1,5 (FR) / 1,9 (PDS)
• Max Reel Dimensions mm: 500x300
• Max Reel Weight kg: 20
• Film Thickness μm: 17÷35
