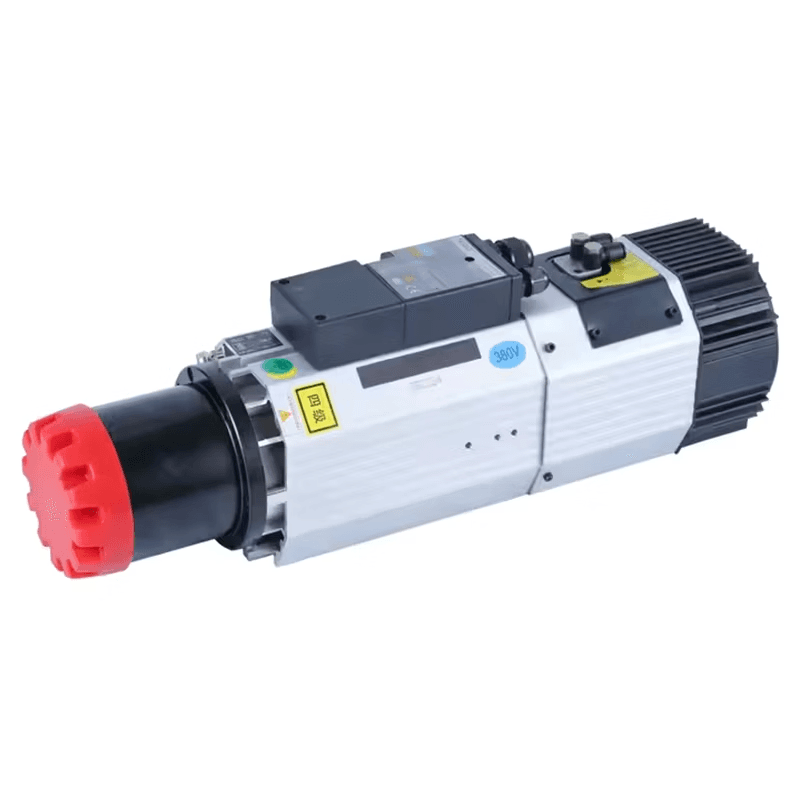

The 10HP ISO30 spindle is built for shops that need versatility, clean cutting, and dependable performance across a wide range of materials. The ISO30 interface provides secure tool holding and reduced vibration, improving surface finish and accuracy. Beyond dependable power, the ISO30 system offers economical tooling options and straightforward maintenance, making it a strong fit for shops focused on flexibility and long-term reliability.

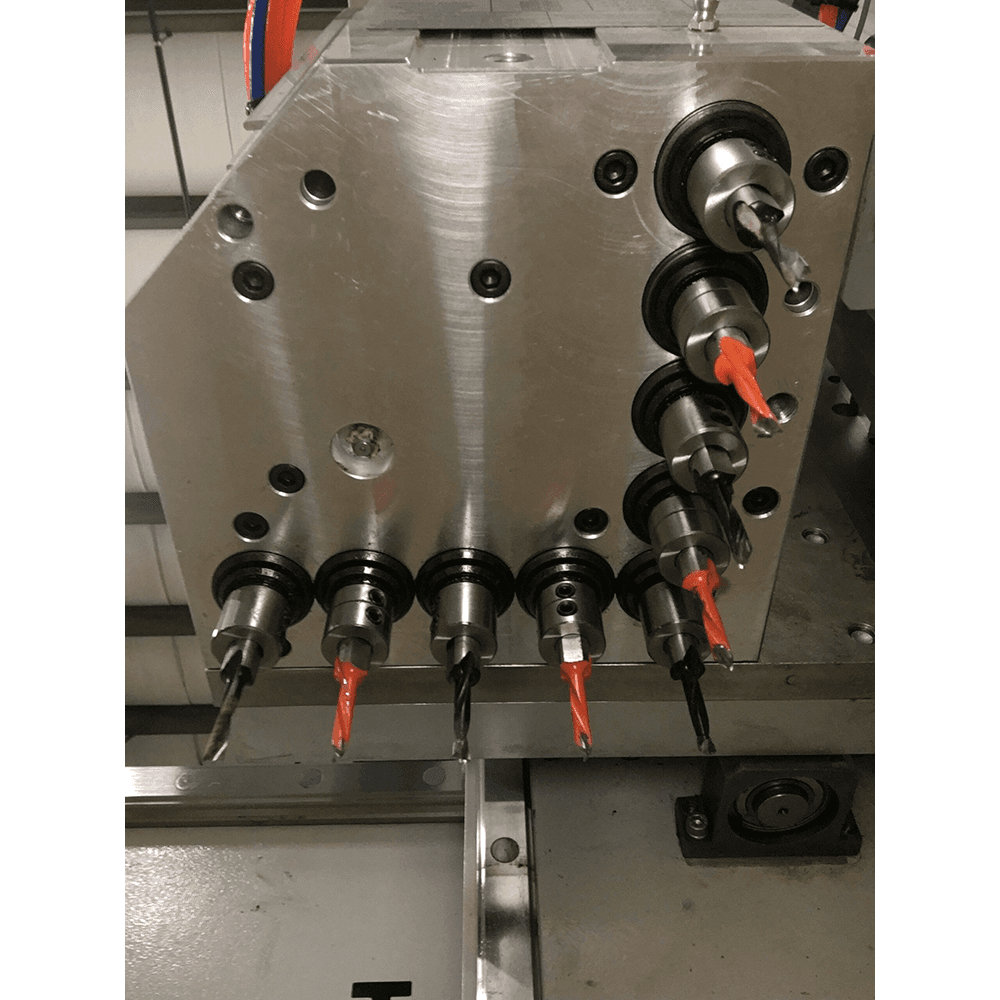

A 5+4 drill bank is designed to speed up your workflow without adding complexity. With five vertical spindles and four horizontal spindles arranged around the most common cabinet and casework patterns, the Foundation can drill shelf pins, construction holes, and horizontal dowels in a single setup. The benefits are straightforward: cleaner holes, faster processing, and less load on your main spindle. For cabinet shops, signmakers, and mixed-material environments that rely on consistent hole placement.

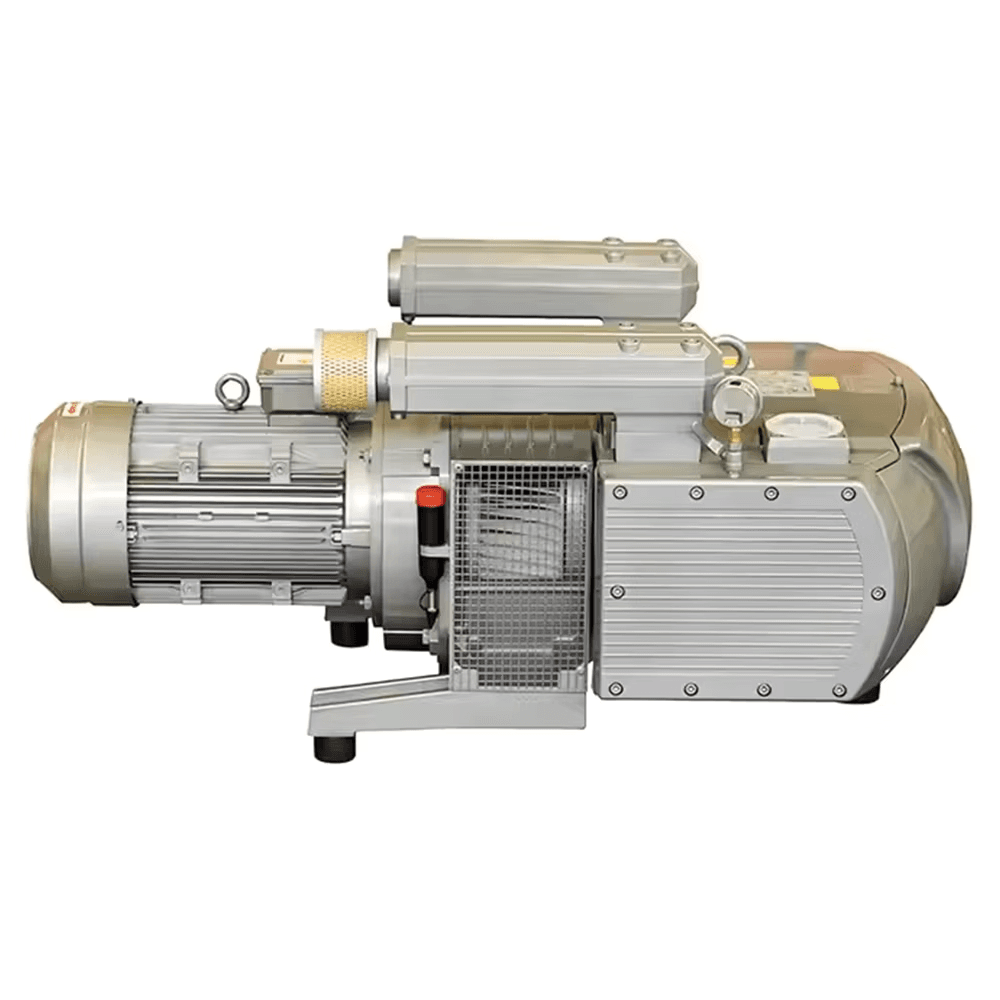

Every Foundation Series machine comes equipped with a 10HP industrial rotary vane vacuum pump, delivering strong, consistent hold-down for cabinet parts, plastics, foam, and composite panels. Rotary vane technology provides reliable suction across the entire sheet, helping reduce part movement and ensuring clean edges even at faster feed rates. For shops that need additional vacuum capacity, the Foundation can be upgraded with a second pump.
Features:

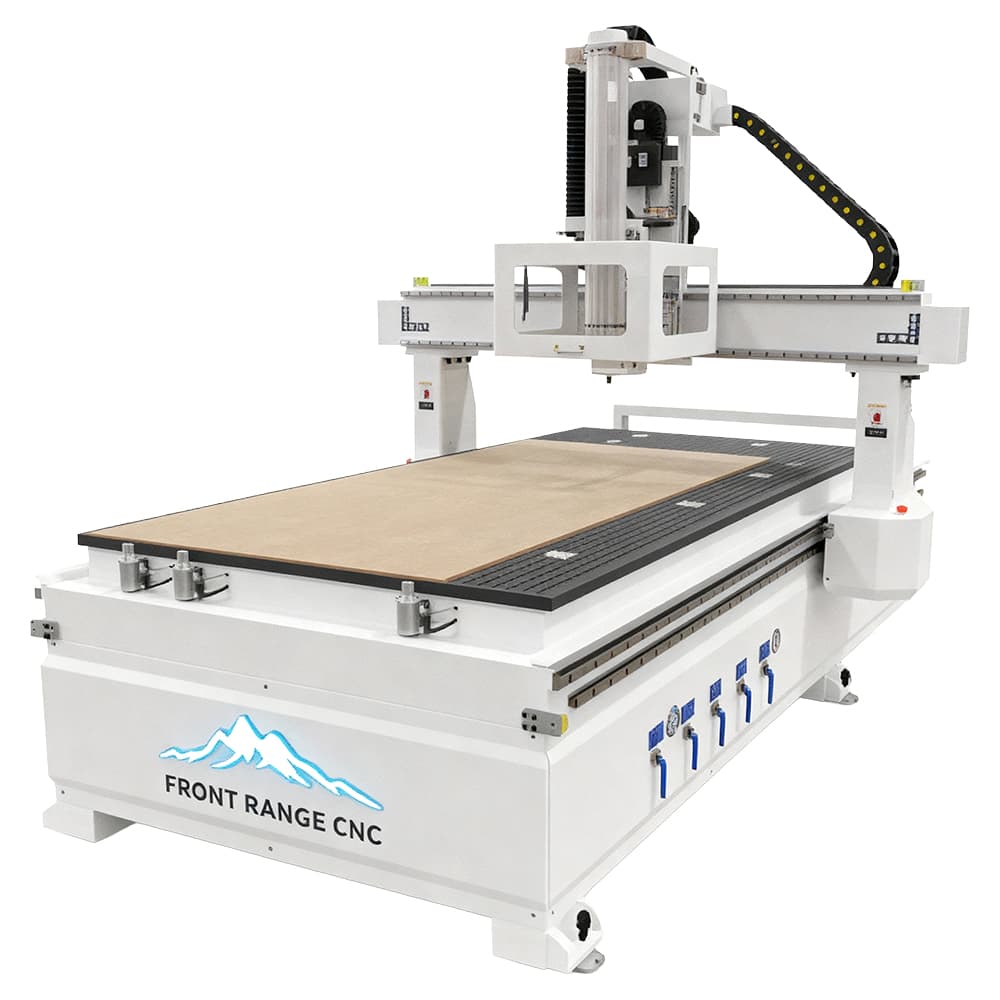

• Foundation Series 4′ x 8′ 3-Axis CNC Router, 3PH
• 10HP ISO30 Spindle: Versatile, clean cutting, dependable performance across materials
• 5+4 Drill Bank: 5 vertical + 4 horizontal spindles. Drill shelf pins, dowels, system holes
• 10HP Rotary Vane Vacuum: Industrial vacuum hold-down. Strong, consistent suction across the sheet
• 7.5HP Dust Collector: Same industrial dust collector as Elite. Shop ready from day one
• 12-Position Tool Changer: Automatic tool changes in 15 seconds. Run complex jobs unattended
• VCarve Pro & Mozaik Software: Full licenses included. Complete design-to-production workflow
• ISO30 Toolholders + Carbide Bits: Complete tooling package. Ready to cut day one
• 3-Year Parts Warranty: Real support from real machinists in Colorado
• Automatic Lubrication: Set it and forget it. Machine maintains itself
• 2-Day Onsite Installation: We deliver, level, calibrate, and train your team
• 16" Z Height Clearance: Extended Z-axis for thicker materials and tall fixtures
• CNC Companion AI: 24/7 AI support for troubleshooting, feeds & speeds, and optimization
Specifications:
• Machine Type: 3-Axis CNC Router
• Spindle: 10HP ISO30, 24,000 RPM
• Drill Bank: 5+4 (5 Vertical, 4 Horizontal)
• Tool Magazine: 12 Positions
• Tool Change Speed: 15 Seconds
• Vacuum Pump: 10HP Rotary Vane
• Dust Collector: 7.5HP, Included
• Table: Phenolic/Hard PVC
• Bridge: Precision Milled Steel
• Linear Guides: 25mm – 30mm HiWin Rails
• Drives: High Speed Syntec
• Encoders: Absolute
• Rapid Speed: 2,500 IPM
• Cutting Speed: 1,600 IPM
• Tolerance: +/- .005"
• Repeatability: +/- .001"
• Z Clearance: 16"
• Lubrication :Automatic
• Software: VCarve Pro & Mozaik Included
