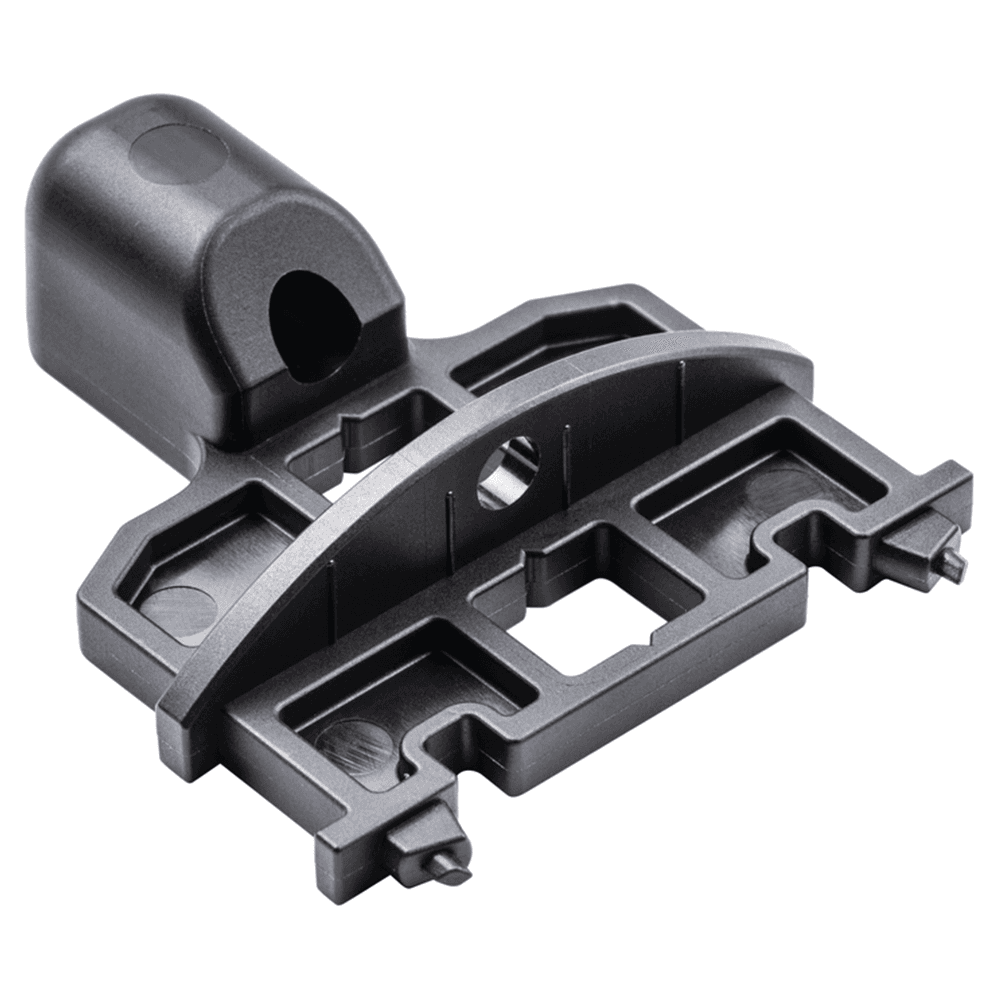

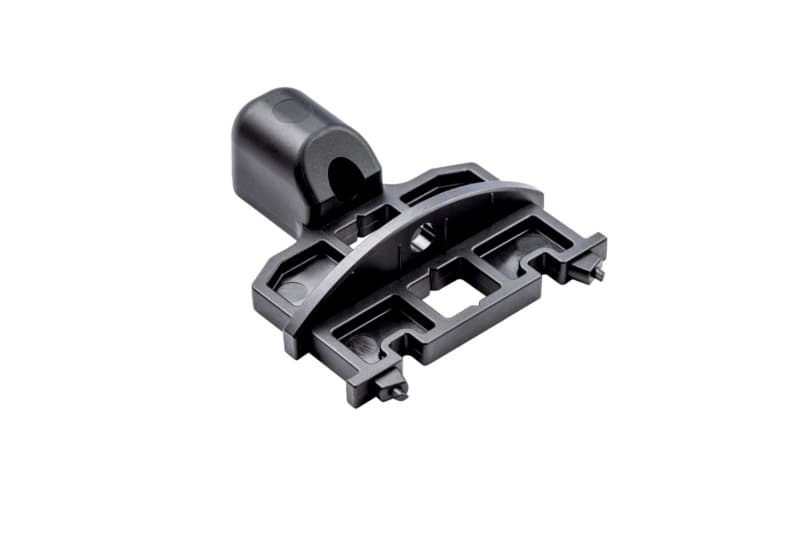

Clamex S-20 59mm x 24mm x 3.9mm Drill Alignment Jig
Product Details
The Clamex S-20 is a detachable connector for the Lamello system for material thicknesses from 16 mm and is fixed in a groove by means of screws. Similar to a cam connector, the Clamex S-20 is connected and released via a lever through the minimalist 6 mm opening. The Clamex S-20 stands for perfect aesthetics due to the small opening of only 6 mm in diameter and enables joints to be almost completely concealed. It does not require glue, enables aesthetic joints at all angles and is ideal for fixed or detachable joints. The size of the Clamex S-20 is identical to the original size 20 wooden biscuit and the connector thickness is also 4 mm. This means that the 4 mm grooves, just like the wooden biscuit, can be milled with any biscuit joiner and at almost any angle. Each package contains a drill jig for access holes that can be drilled at any angle from 22.5°–180°. The narrow connectors are then inserted into the workpieces and fastened with two specially manufactured Clamex S-20 screws. Finally, the two workpieces are connected with a hex key. Time waiting for the glue to dry is therefore completely eliminated and an assembled workpiece can be further processed straight away or made available for shipping. Even if a Zeta P2 is available for milling P-System connectors, it may be useful to take a standard groove cutter to the construction site instead of the Zeta P2. A workpiece that needs to be adapted on site can be machined with a Classic X and mounted with a Clamex S-20, even if the rest of the furniture has been finished in the workshop with the Clamex P-14. Visually, this is not noticeable as the size of the hole is identical. Features: • Clamex S-20 59mm x 24mm x 3.9mm Drill Alignment Jig • Detachable: Open the connection time and time again with the rotating lever • 4 mm installation principle: Can be used with any biscuit joiner • Thin materials: Small connector thickness allows end-face installation in material thicknesses from 8 mm • Aesthetic: The small, hardly visible opening (Ø = 6 mm) serves to close and open the connector • Versatile: The minimal element depth allows for mitres of 22.5 – 180° as well as surface and corner joints and divisions • Detachable furniture connector with 4 mm thickness, fastened with screws • Size 20, ideal for thin materials, from 14mm material thickness • Aesthetic look with the barely visible 6 mm access hole • All angle and miter joints from 22.5° to 180° • Ideal for furniture with slopes, thin materials, kitchen worktops in HPL Applications: • Detachable connecting fitting for panels • Gluing aid for mitres or difficult-to-clamp angles • Thin materials where very few detachable connectors are available • In kitchen manufacturing in open shelves or HPL kitchen worktops • For interior fitting in built-in cupboards, wardrobes under stairs or sloping roofs • In furniture construction for high-quality furniture with mitre connections or unusual angles, wine racks or bookshelves • Butt joints from a material thickness of 16 mm • Mitre connections from a material thickness of 14 mm
Specifications
| Box Quantity | 1000 |
| Length | |
| Product Type | Drill Alignment Jig |
| Width | |
| Material | |
| Color | |
| Height | |
| Model | |
| Finish |
