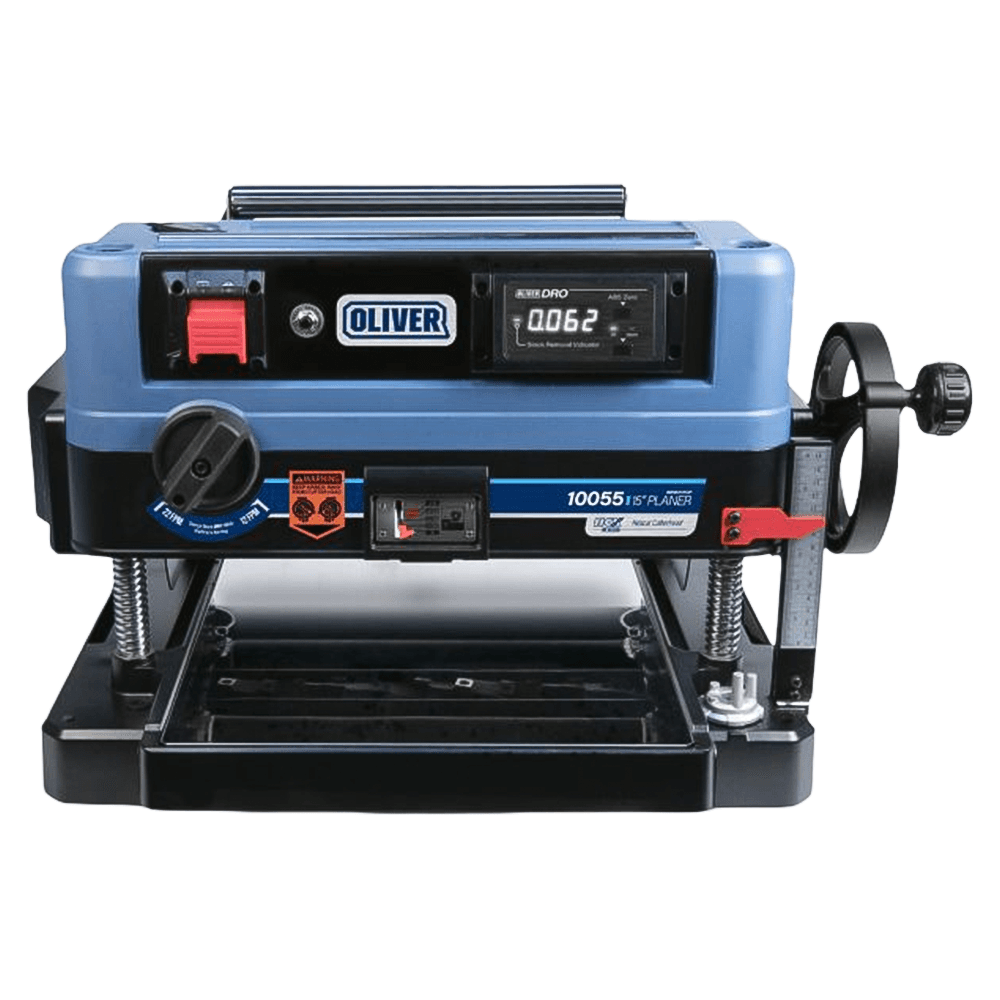

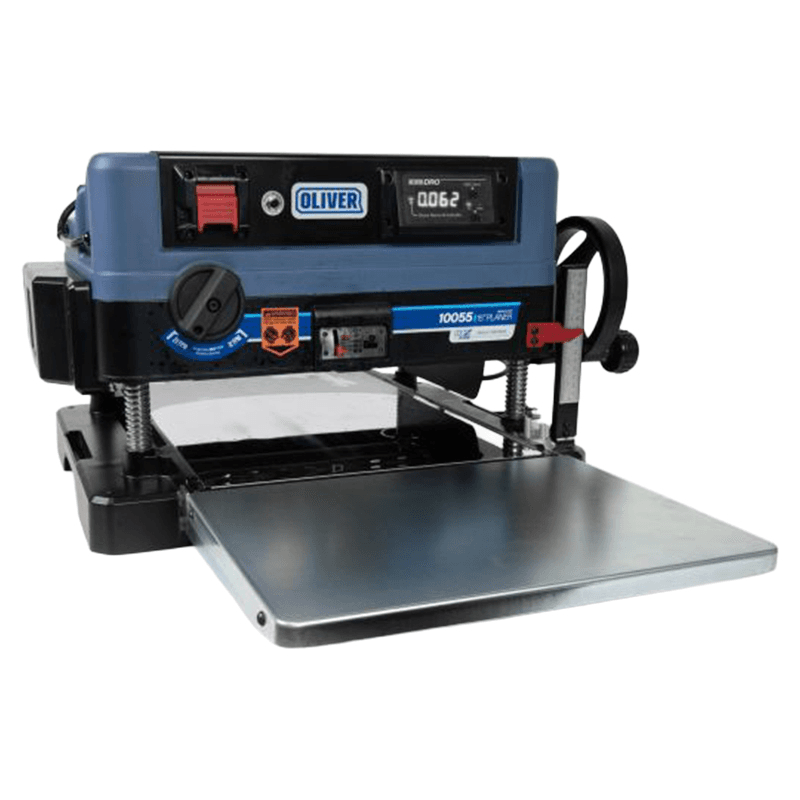

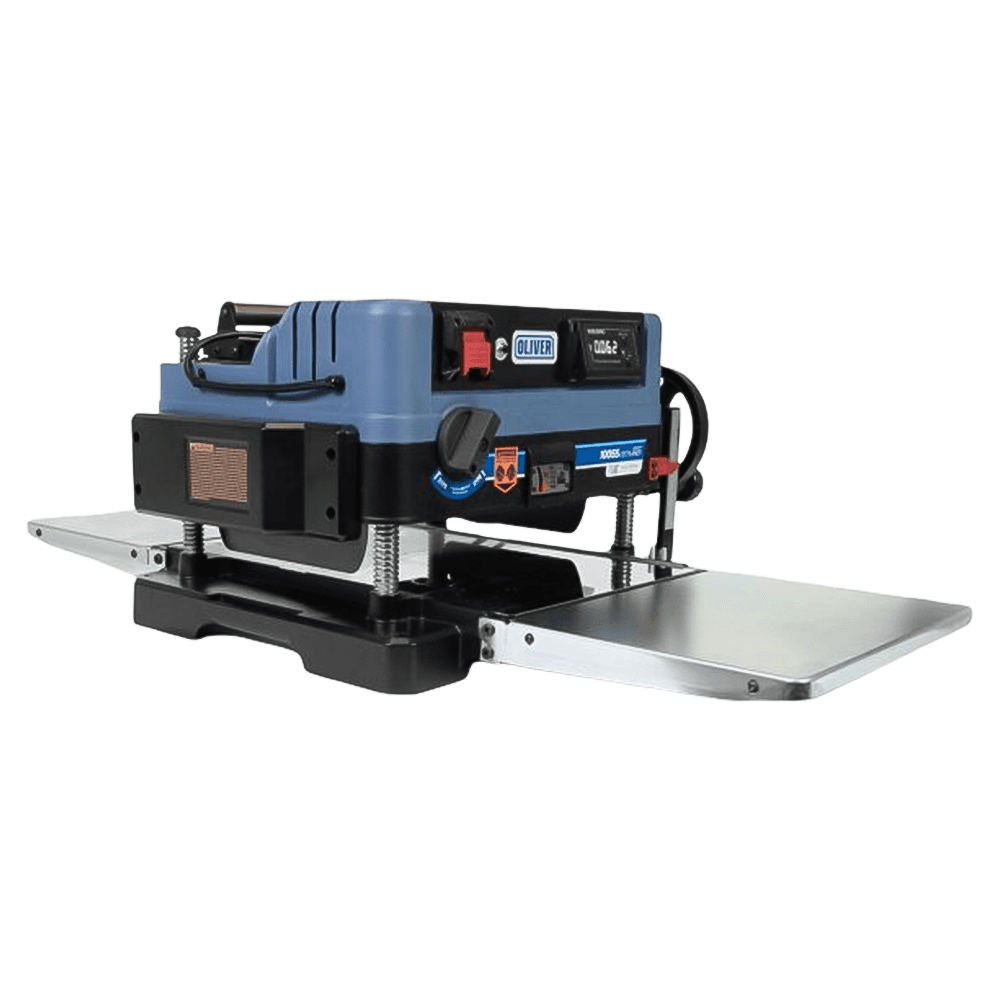

Oliver 15" Planer with Helical Cutterhead, 2.5HP/1 Phase
Product Details

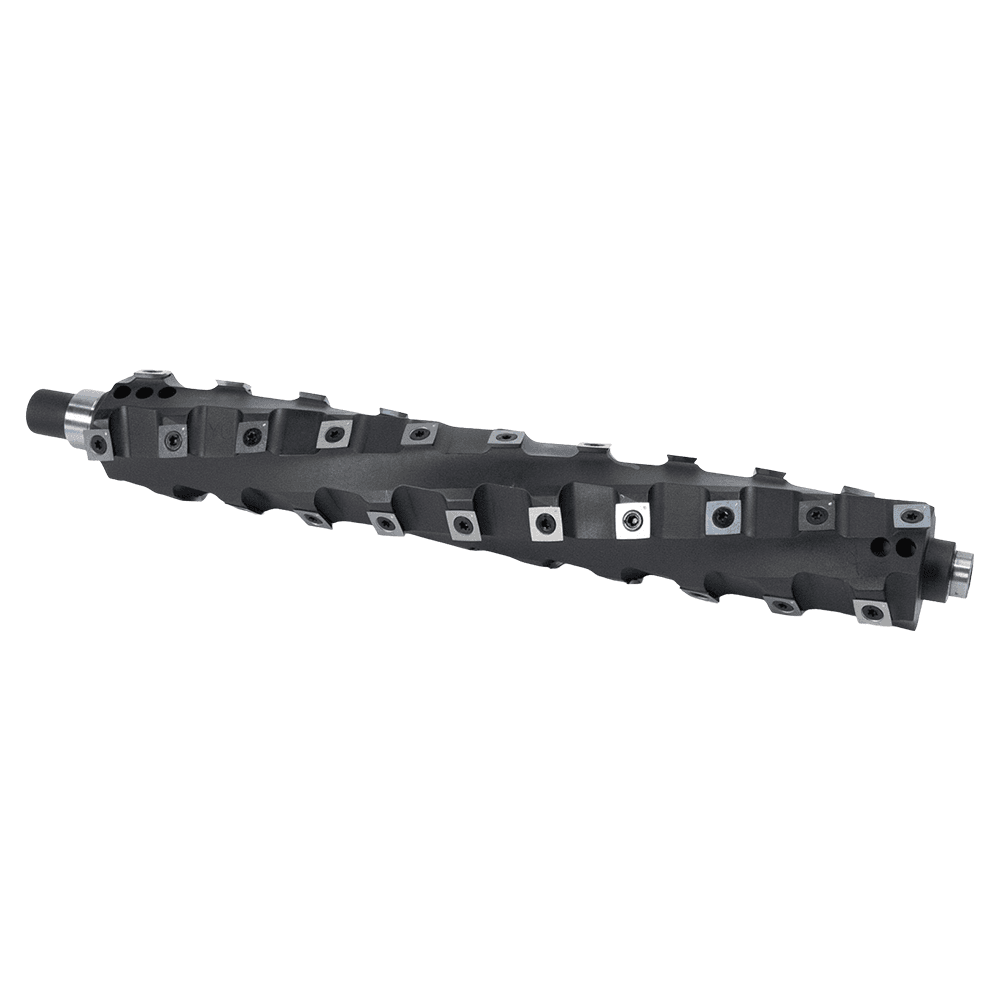

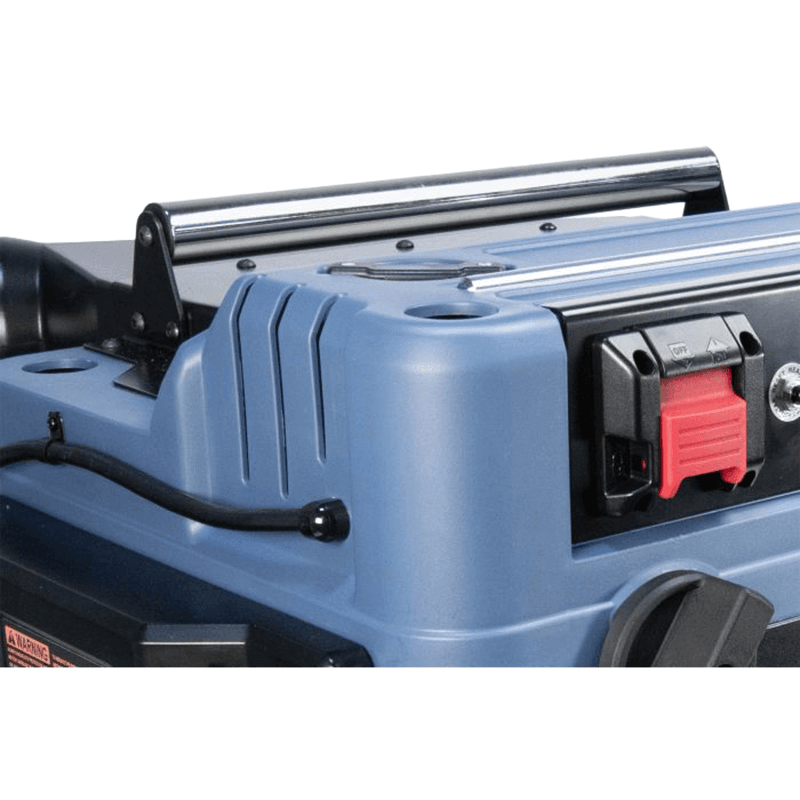

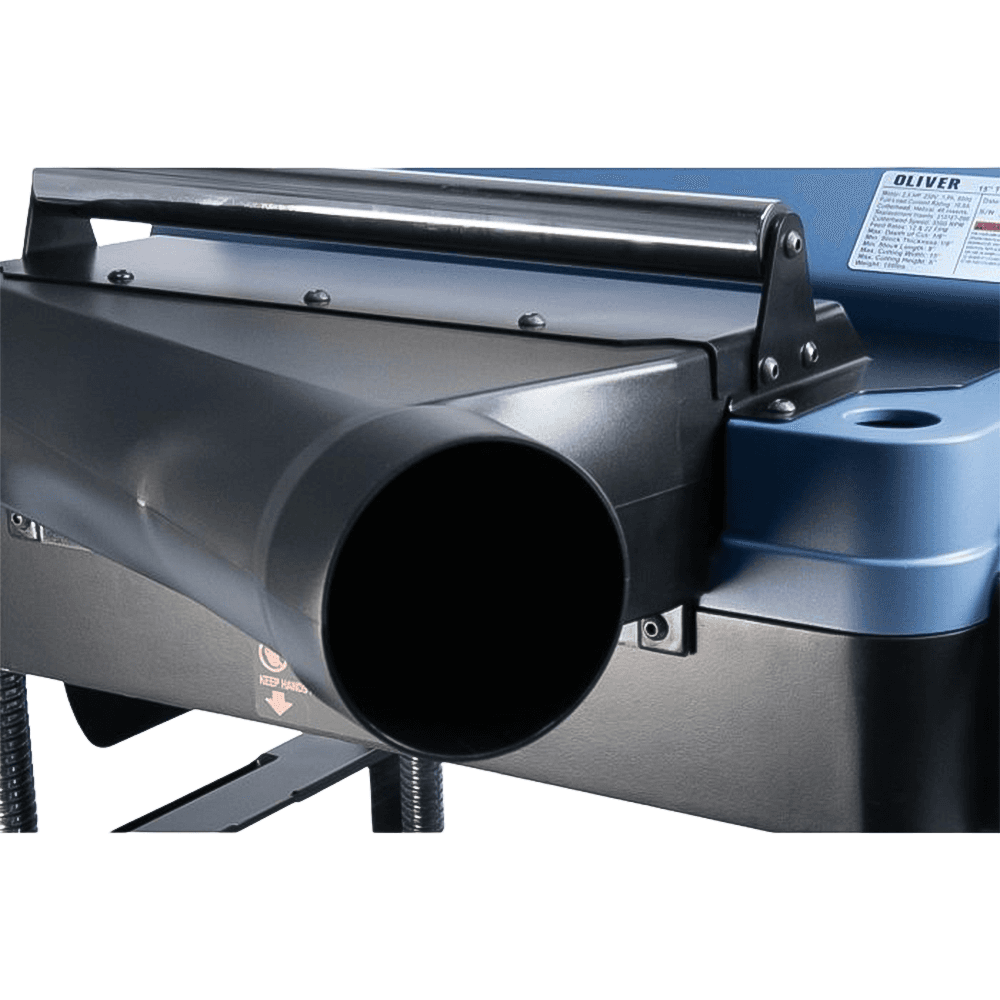

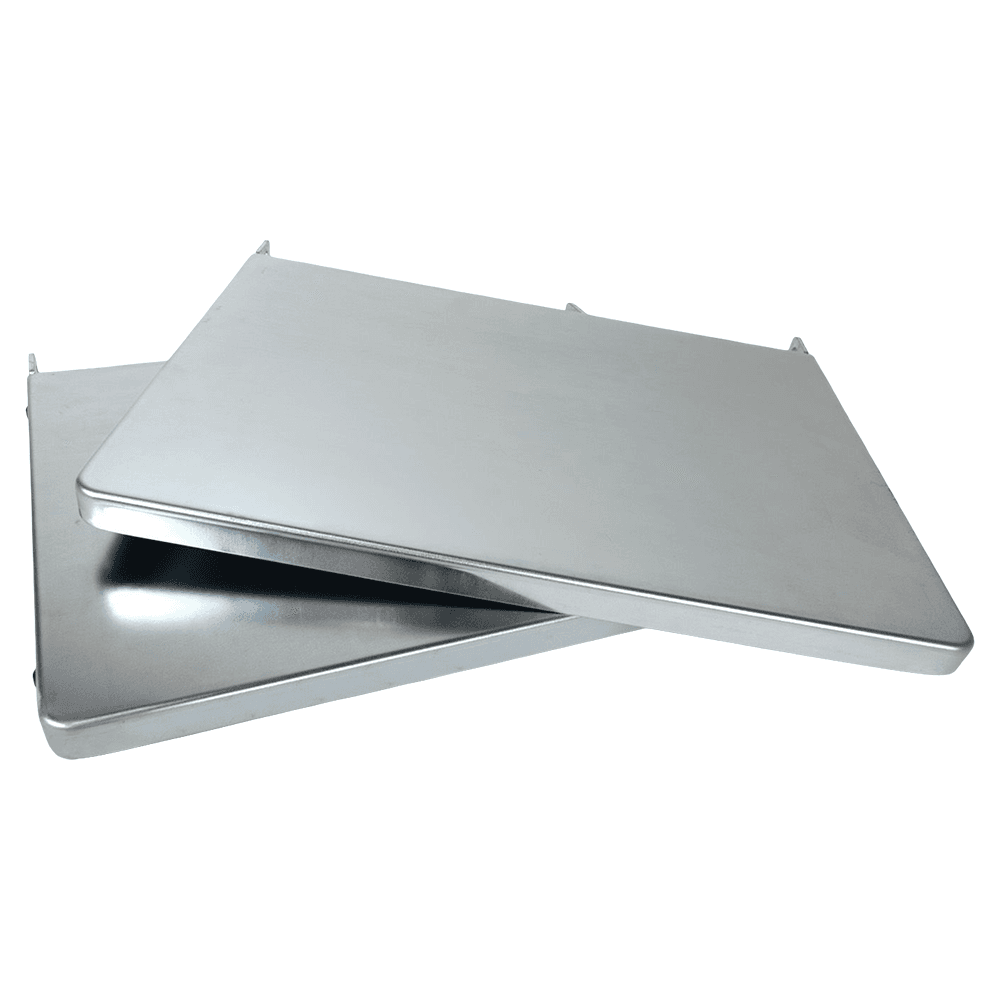

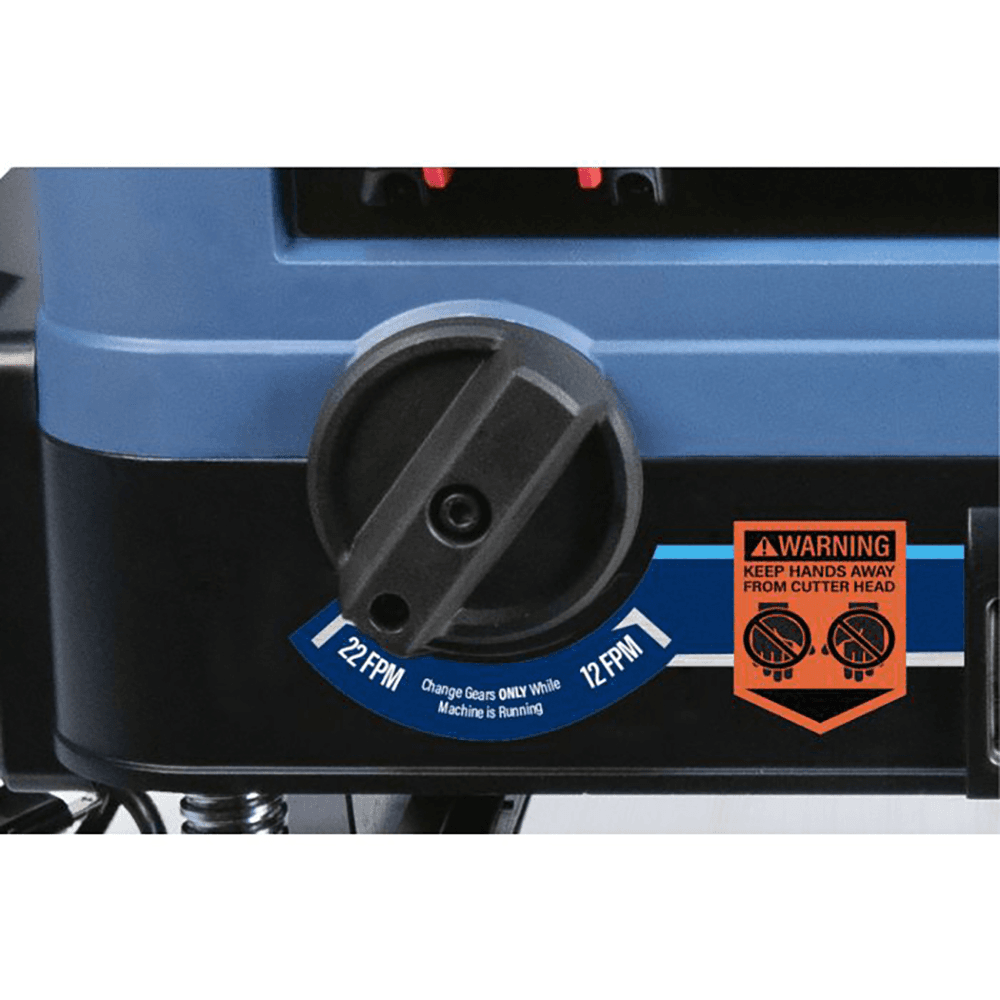

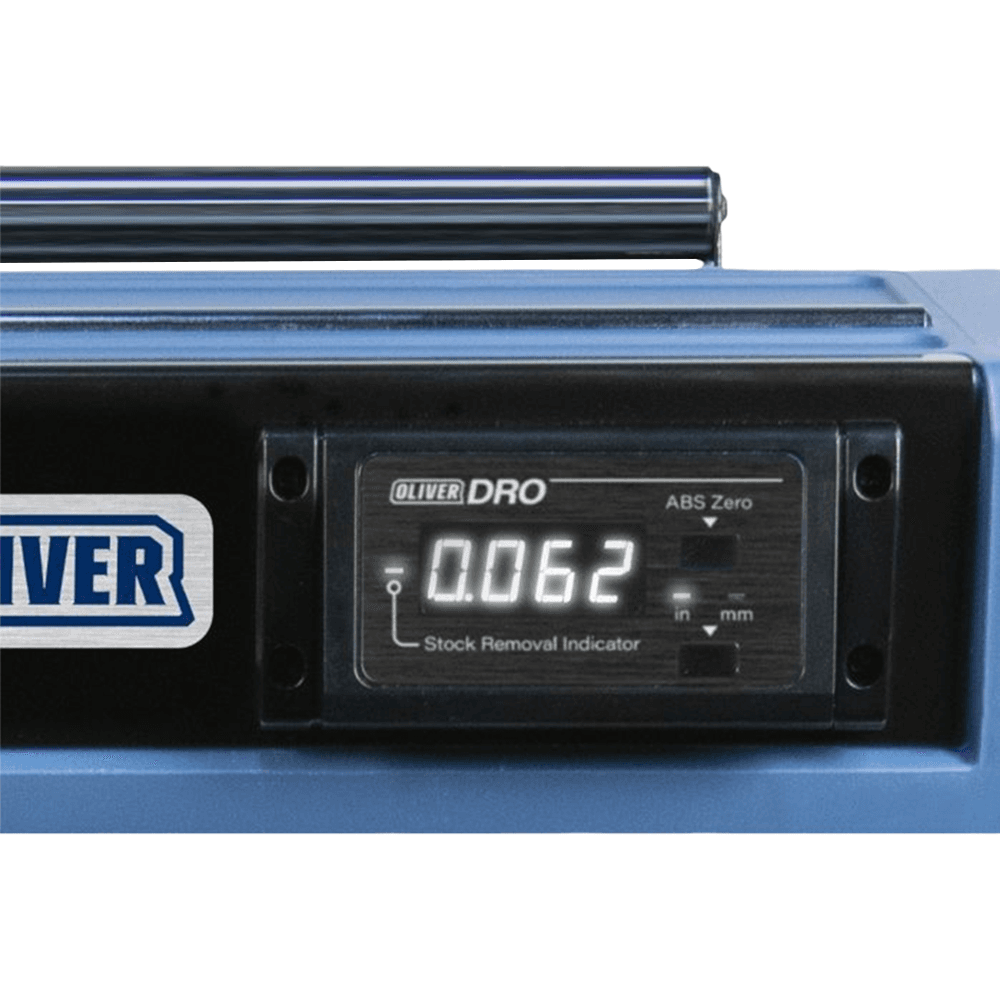

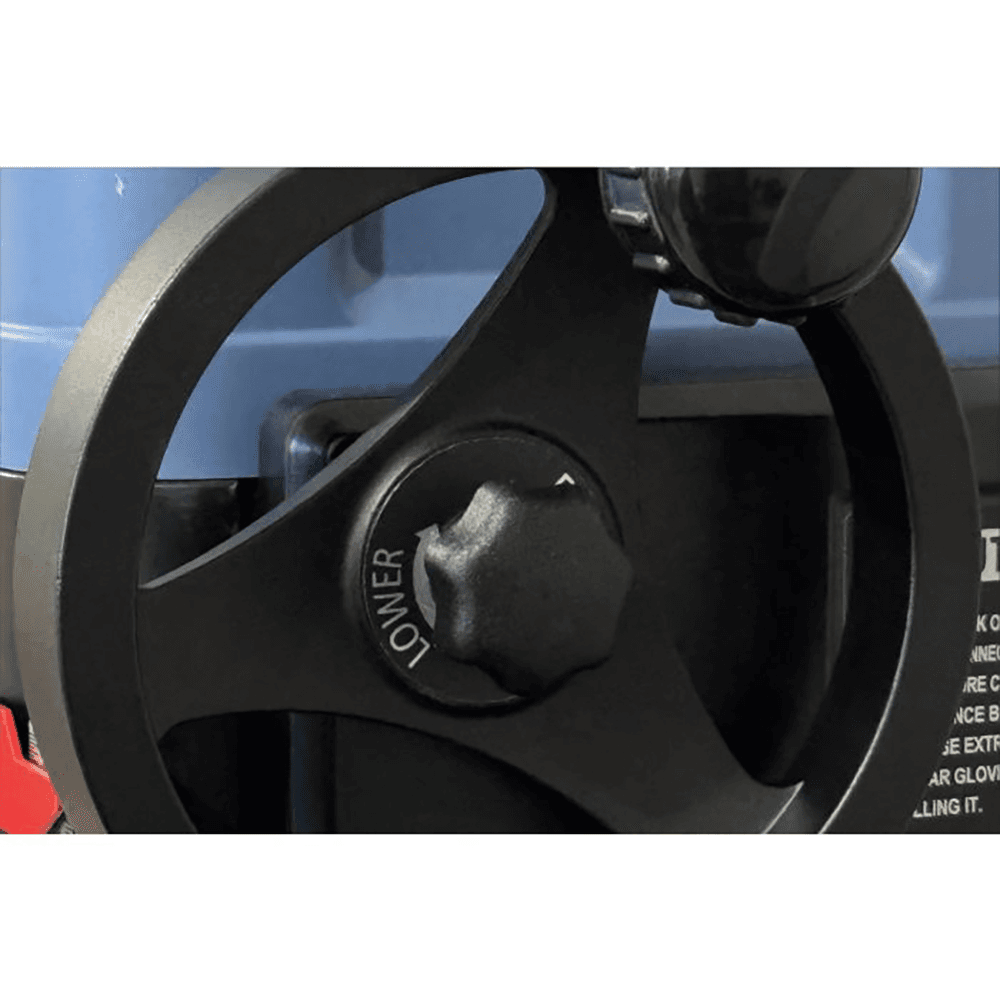

Our 10055 1" Benchtop Planer combines everything we know about building planers, from current and previous generations, and adds to our already industry leading benchtop line-up. We anticipate the new 10055 will be a category leader with the HCX Helical Cutterhead, increased cutting capacity, and powerful 2.5HP 1Ph 230V motor. Features: • Powerful 2.5HP 1Ph 12Amp 230V motor • Plenty of power for smooth cuts and no blowing 110V breakers • 2-Speed gearbox provides 12 or 22 FPM feed rates • 4-post design ensures cutter head alignment to table • HCX Helical Cutterhead (not segmented or spiral) • Read more about our HCX Helical Cutterheads here • DRO for precise material removal • Large 15" x 23" table size (15"x48" with included extension tables) • 4-depth stops allow easy set-up from 1/4" to 1" • Elevation crank with lock includes an easy-to-read scale • Lock in your thickness without worry of the carriage moving • 4" Dust port to evacuate shavings • Reversible for left or right exit • Safety switch features overload protection and lock-out • CSA listed
Specifications
| Box Quantity | 1 |
| Cutter Head Diameter | |
| Motor Voltage | 230V |

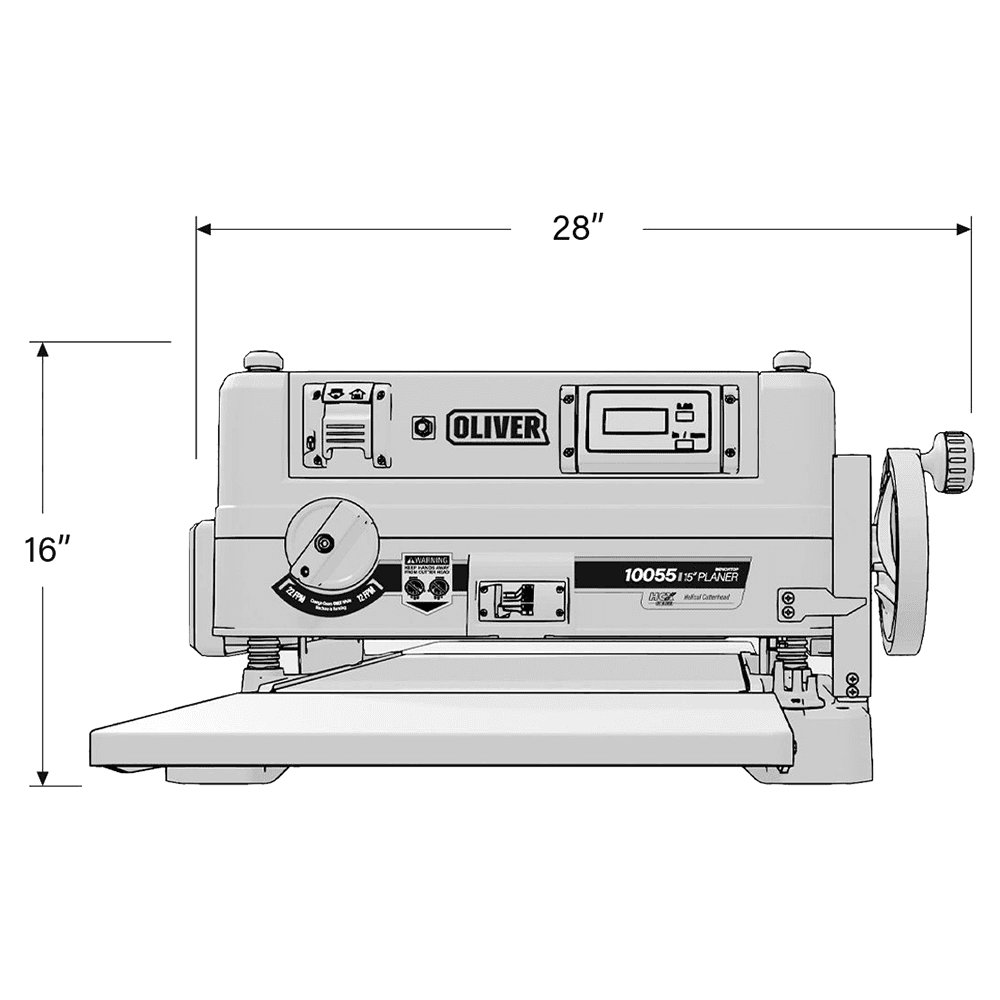

| Height | 16" |
| Power | 230V |
| Horsepower | 2.5HP |
| Phase | 1PH |
| Length | 8" |
| Drive Motor | |
| Voltage | 230V |
| Width | 15" |
| Cutter Head Type | Helical Head |
| Motor Phase | 1PH |
| Product Type | Planer |
| Cutting Width | |
| Infeed Roller Diameter (In.) | |
| Cutter Block Diameter | |
| Speed | 2 |
| Recommended Circuit Size (Amps.) | |
| Maximum Depth of Cut (In.) | |
| Number of Rollers | |
| Maximum Planing Width (In.) | |
| Motor Voltage (V.) | 230 |
| Column Diameter (In.) | |
| Cuts Per Minute | |
| Reversible | Yes |
| Maximum Full Width Depth of Cut (In.) | |
| Motor Current (Amps) | 12A |
| Movement - Horizontal (In.) | |
| Wiring Remarks | |
| Prewired Voltage (V.) | |
| Feed Rate | 12/22 FPM |
| Table Height from Floor (In.) | |
| Outfeed Table Length (In.) | |
| Table Size (L x W) (In.) | 15" x 23" |
| Dust Collection Minimum CFM Required (CFM) | 600 CFM |
| Distance Between Rollers - Center to Center (In.) | |
| Number of Speeds | |
| Knife Size (L x W x T) | |

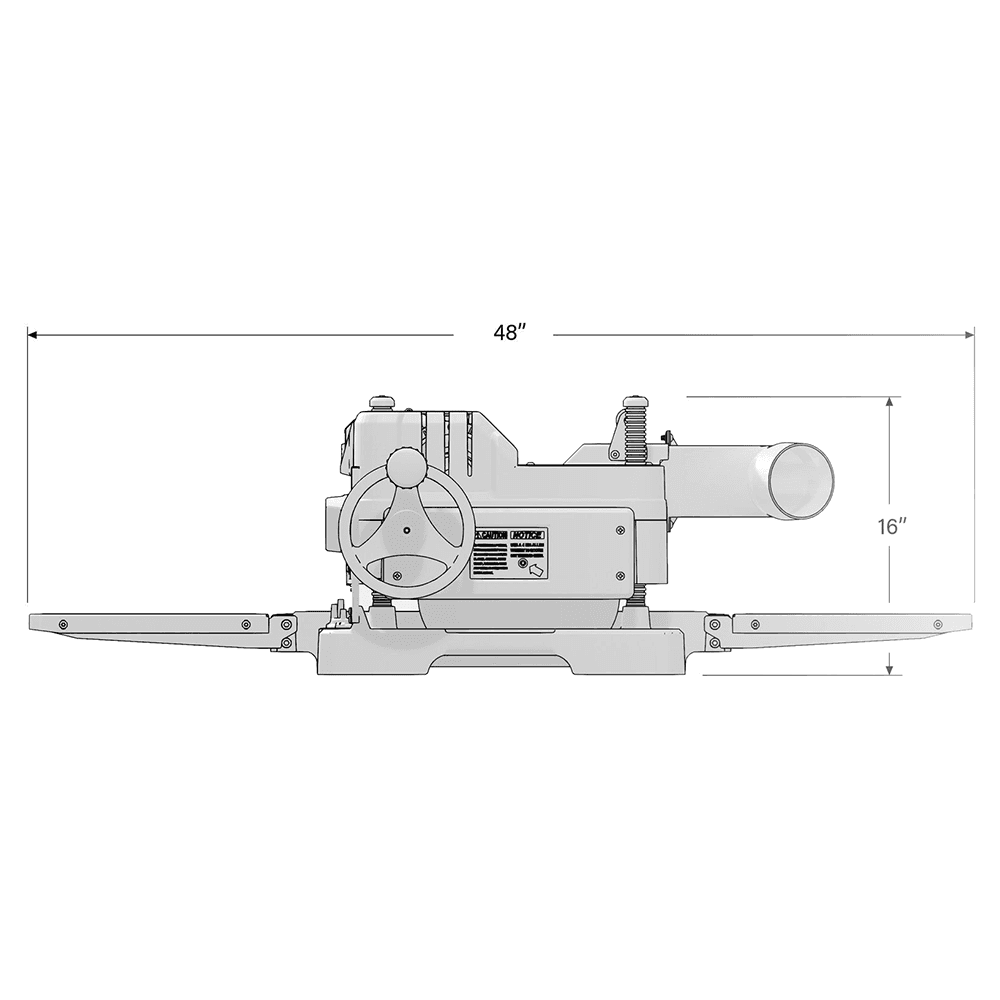

| Table Size with Extensions (L x W) (In.) | 15" x 48" |
| Number of Knives | |
| Segmented Infeed Roller Diameter (In.) | |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Bed Rollers Adjustable from Front | |
| Digital Readout | |
| Type of Cutterhead | |
| Style (Type) | |
| Range of Speeds | |
| Outfeed Roller Diameter (In.) | |
| Maximum Planing Thickness (In.) | |
| Table Support | |
| Motor Power | |
| Movement - Vertical (In.) | |
| Minimum Planing Length (In.) | |
| Cutter Block Speed | |
| Dust Port Outside Diameter (In.) | |
| Warranty | |
| Planing Height | |
| Planing Width | |
| Chip Removal | |
| Extraction Connection |
