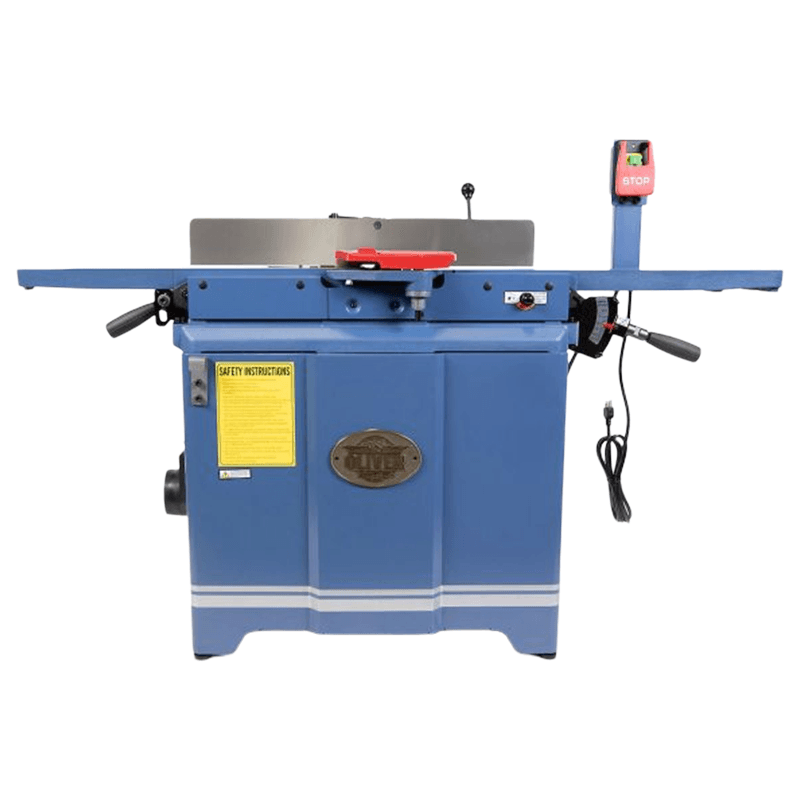

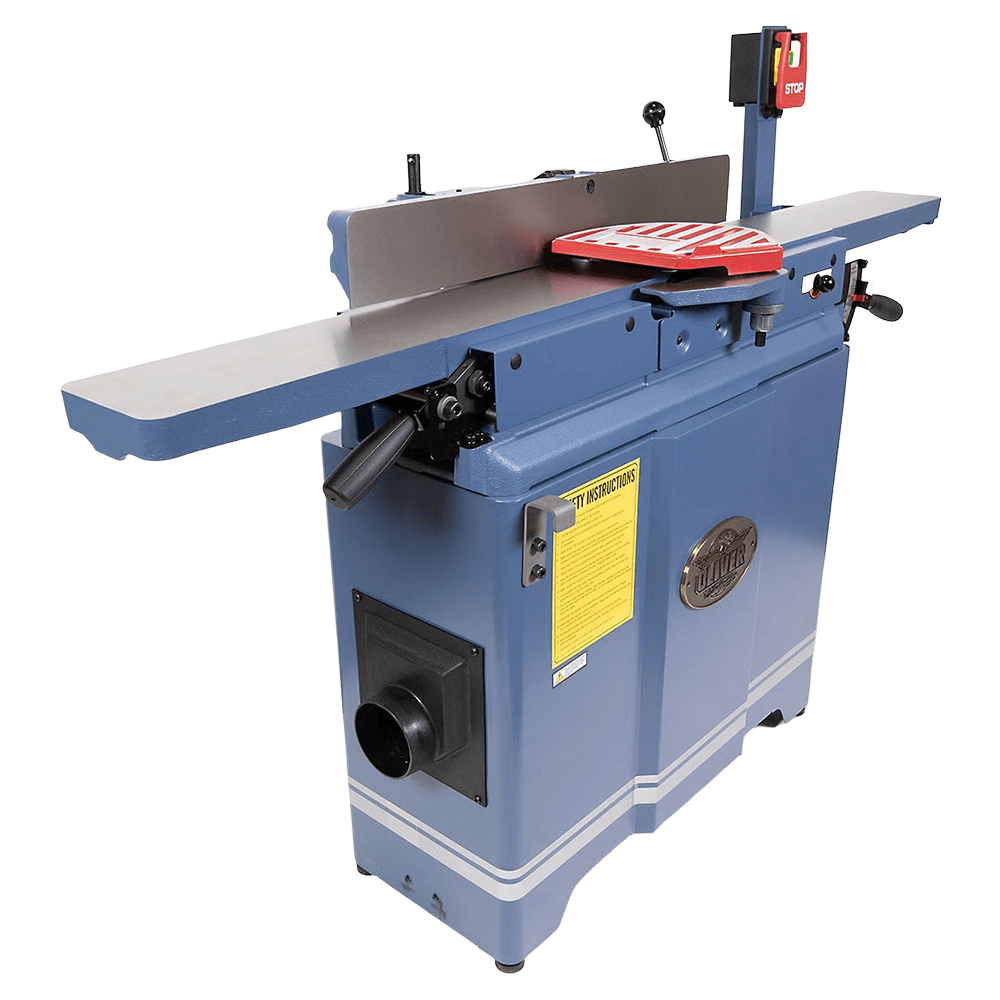

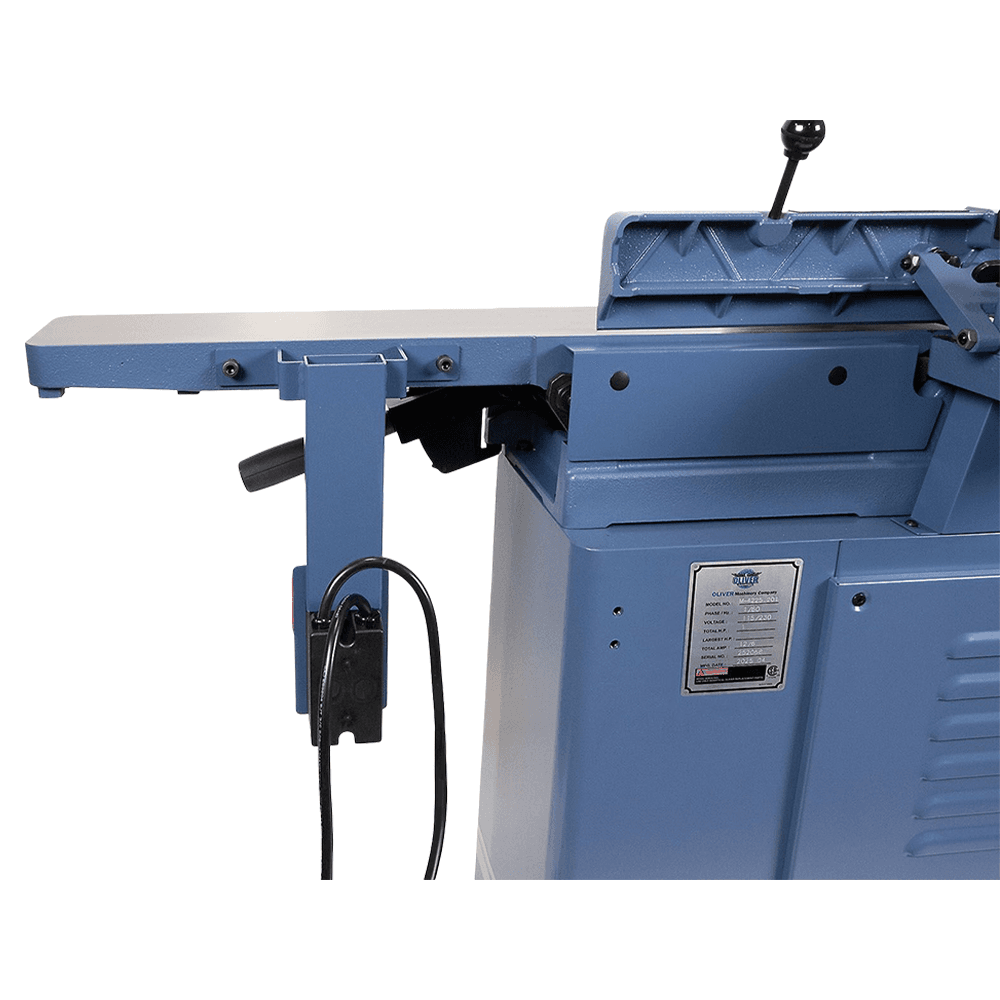

Oliver 4235.23 8" Parallelogram Jointer with Helical Cutter Head 3HP, 1PH
Product Details

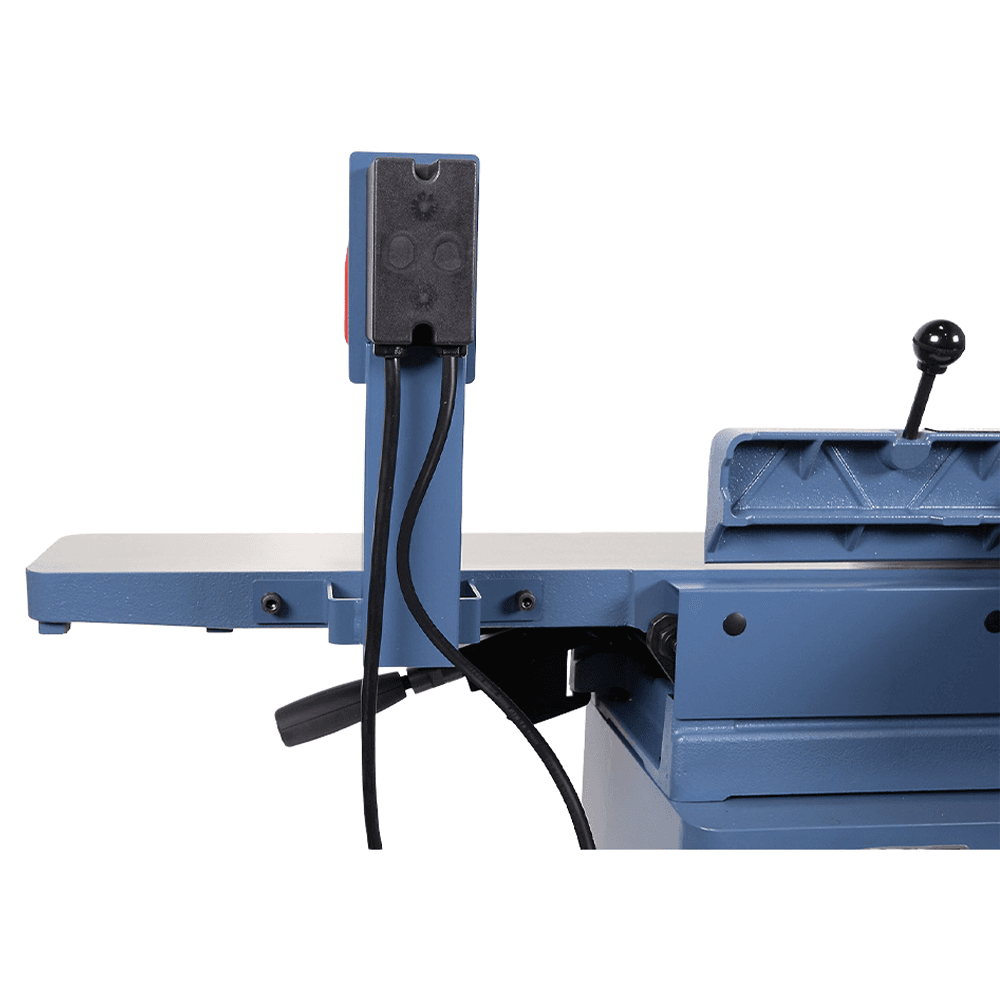

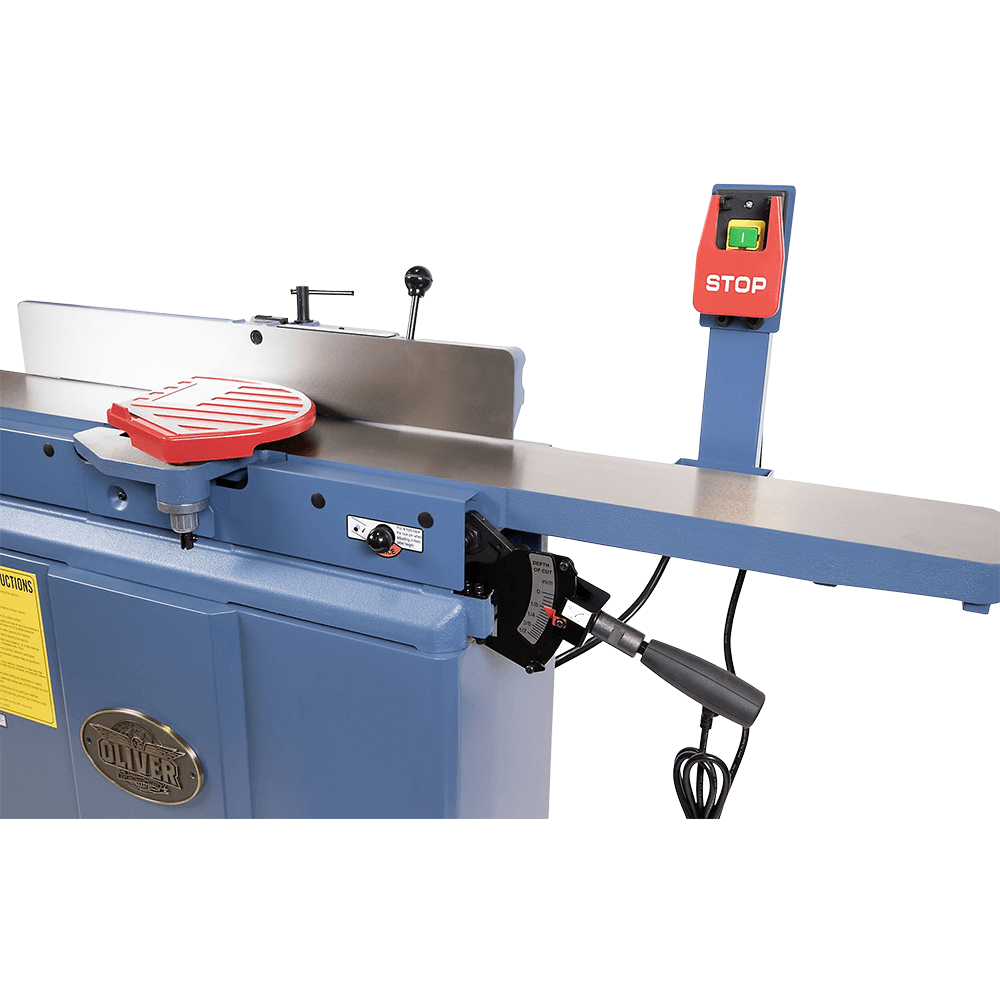

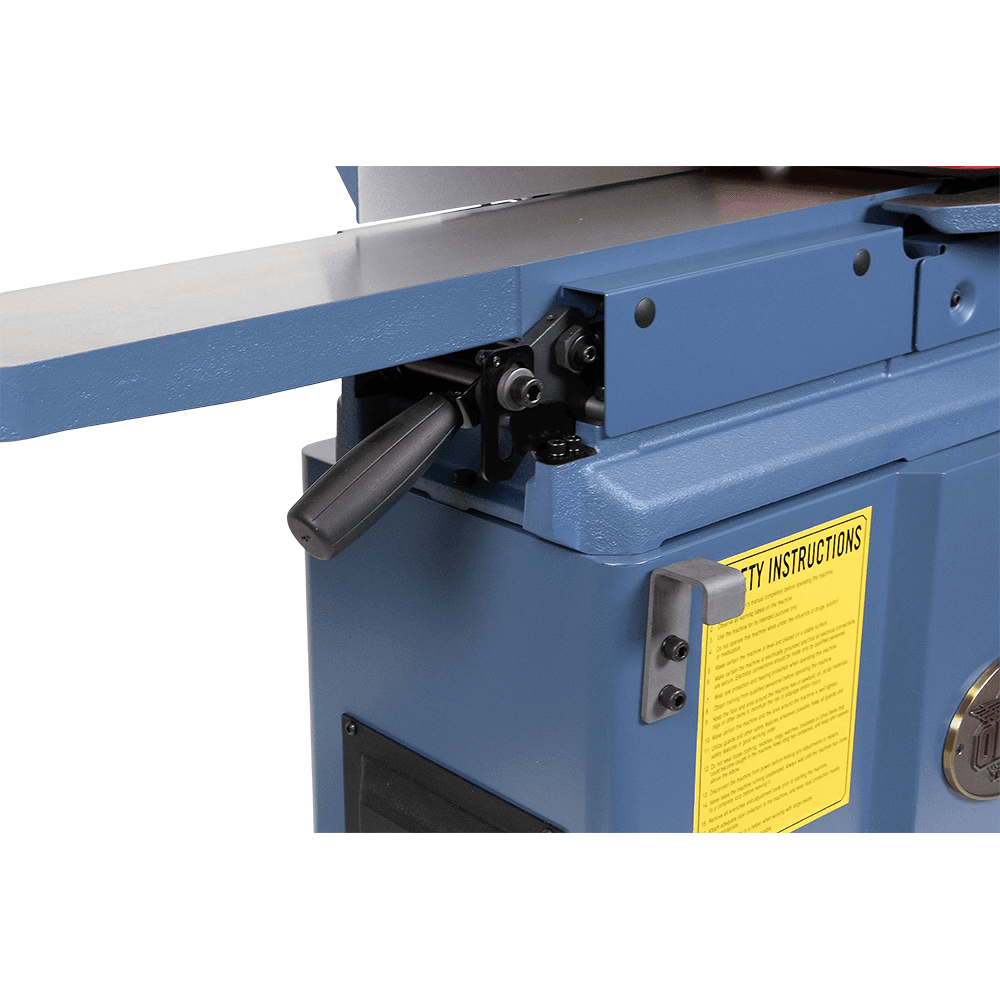

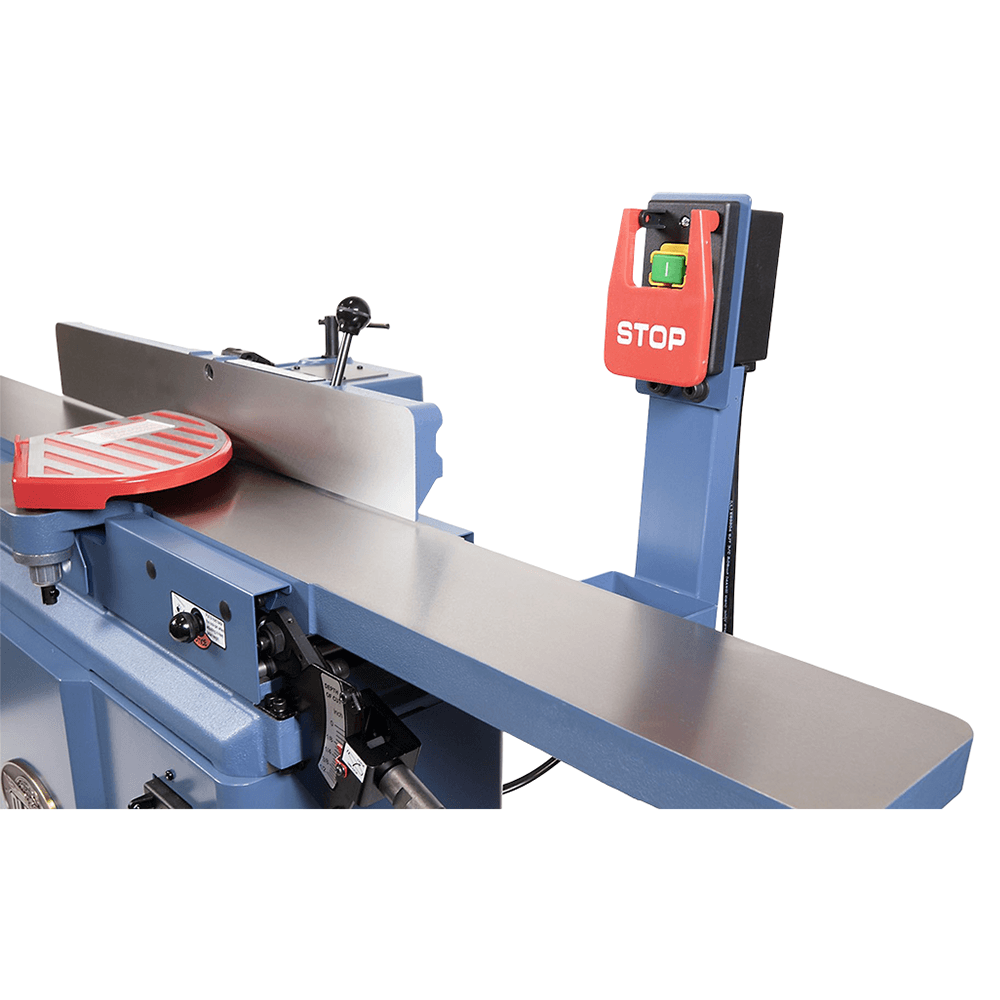

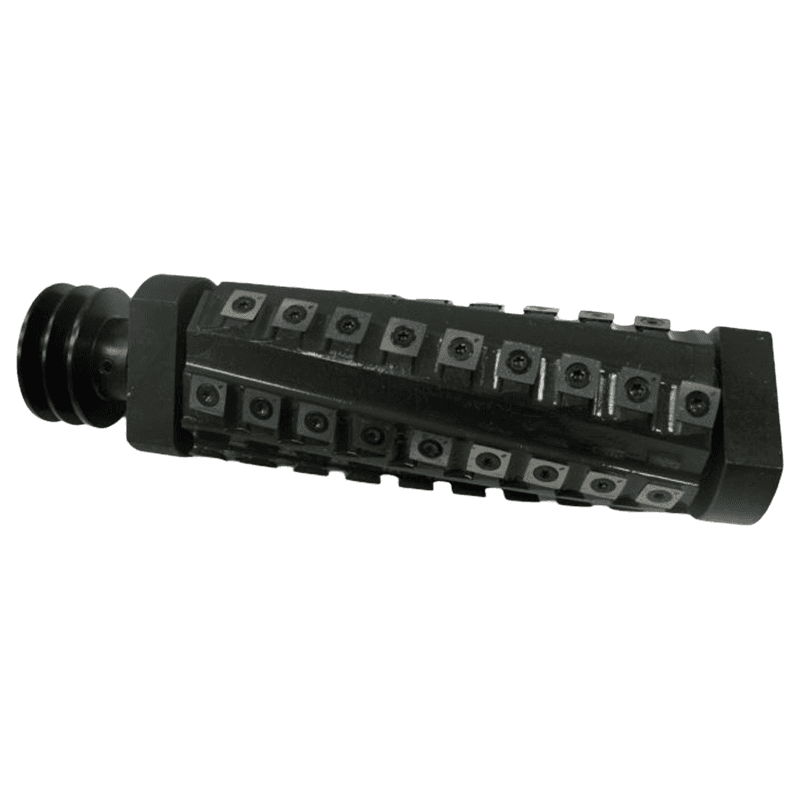

Features: • Extra-long precision ground tables provide a stable work surface • Parallelogram design provides smooth accurate cuts • Cast iron frame offers stable table support • Fully enclosed cabinet with 4" port for superior dust management • Built-in mobile base with lockable wheels • Cabinet includes push pad storage • HCX Helical cutterheads with premium carbide inserts • 4-sided cutting inserts are indexed and easy to replace • Lever controlled infeed and outfeed table adjustment allows quick set-up • Long precision ground fence tilts up to 135° with positive stops at 45° and 90° • Easy to read depth of cut gauge • Large lockable paddle switch for added safety • Powerful TEFC 3HP single-phase motor • Poly V-belt drive efficiently delivers power to the cutter head • CSA Listed
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 5,500 RPM |
| Phase | 1PH |
| Length | |
| Horsepower | 3HP |
| Drive Motor | |
| Product Type | Jointer |
| Voltage | 230V |
| Width | |
| Rabbeting Capacity (In.) | 1/2" |
| Table Size (L x W) (In.) | 72" x 8" |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | 90°/45° |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | 230V |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | 1PH |
| Number of Knives | 36 |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | 90°/45°/135° |
| Motor Current (amps) | 8A |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
