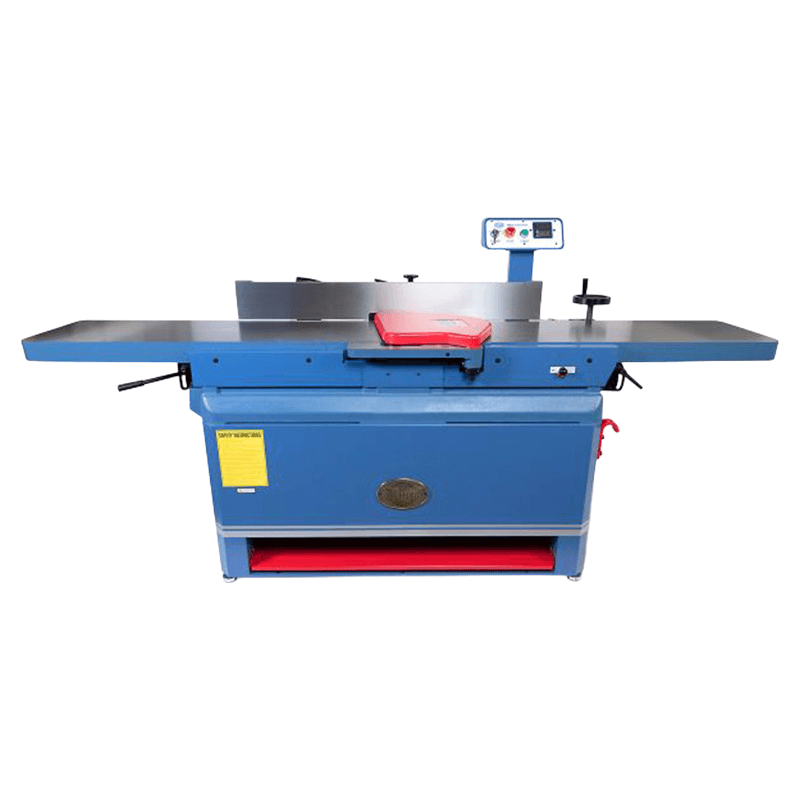

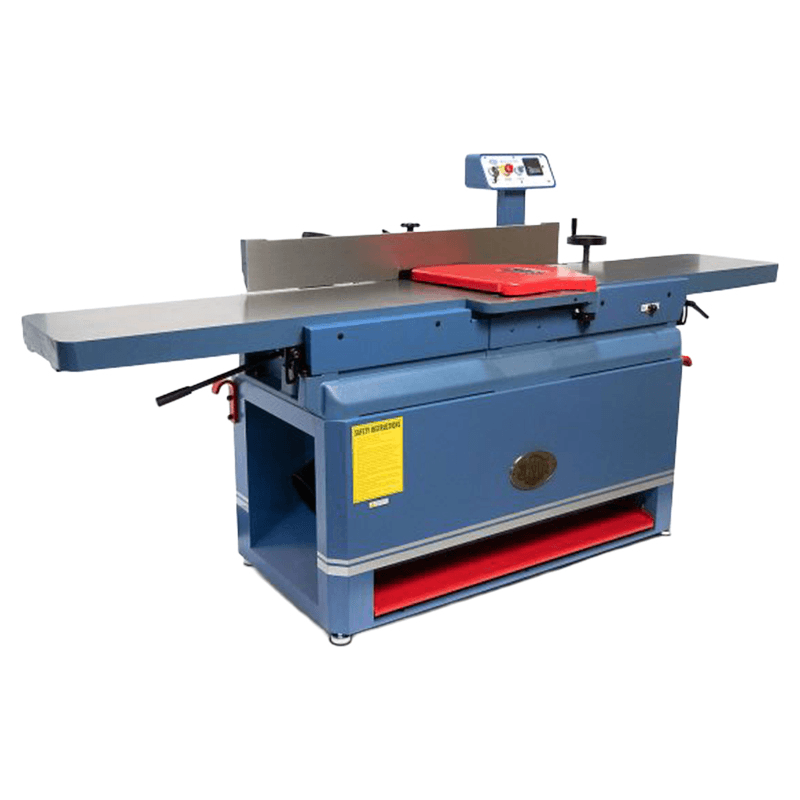

Oliver 4275C.051T 16" Parallelogram Jointer with Helical Cutter Head 5HP, 1PH
Product Details

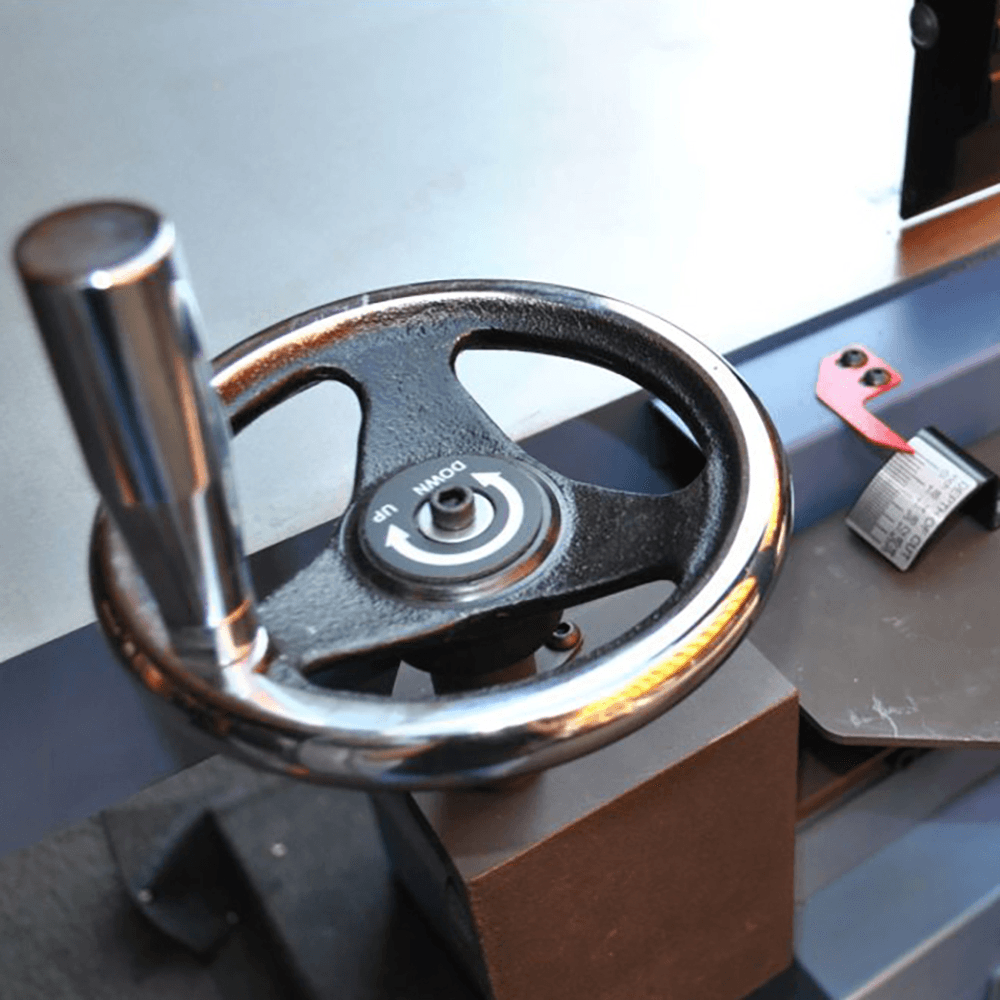

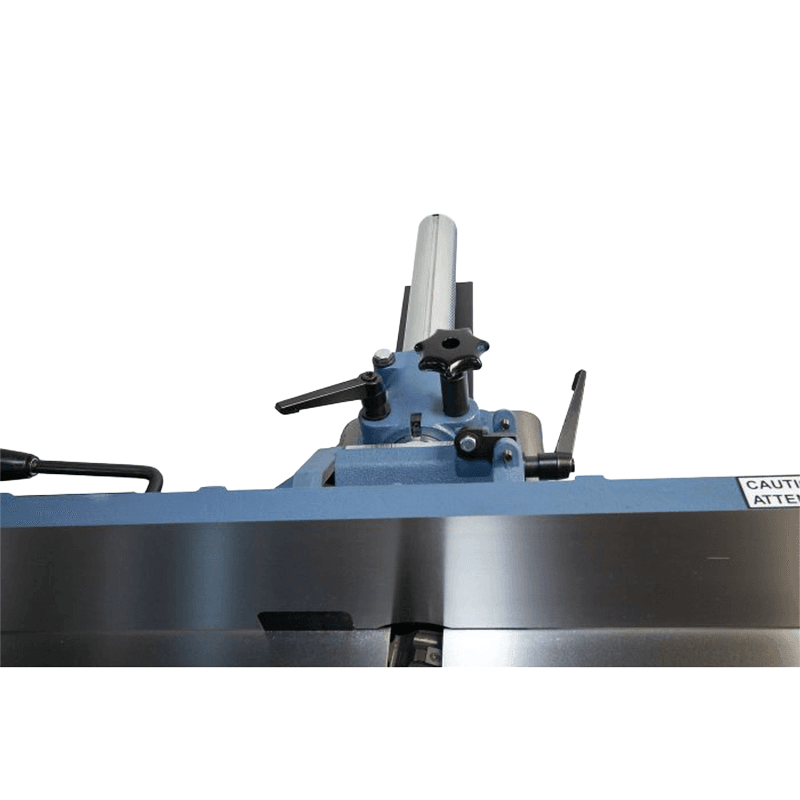

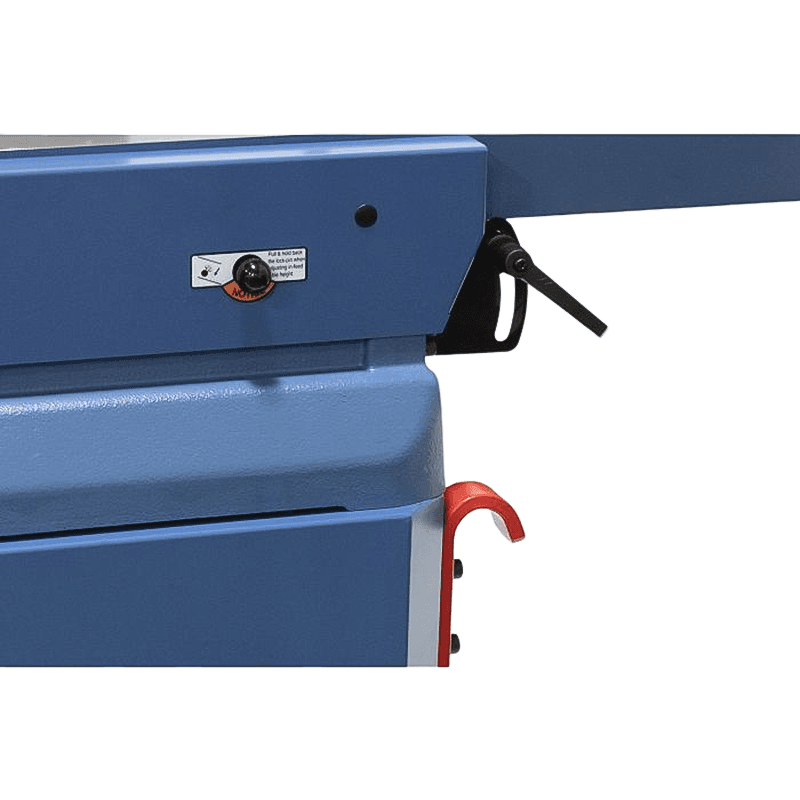

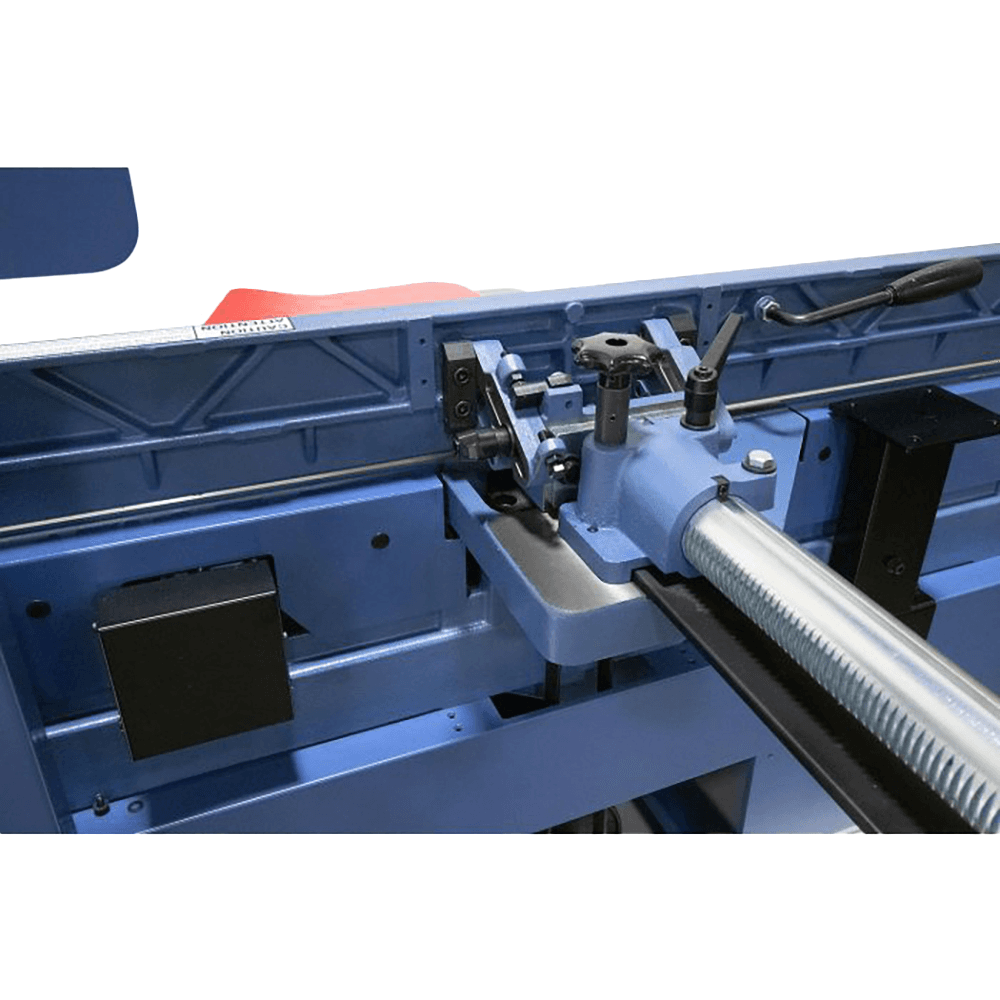

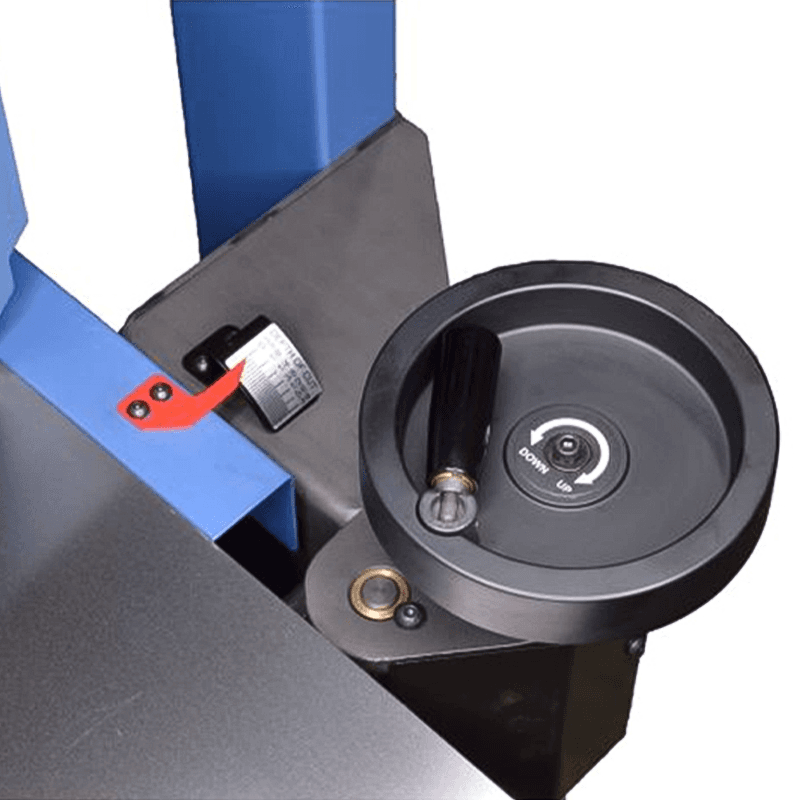

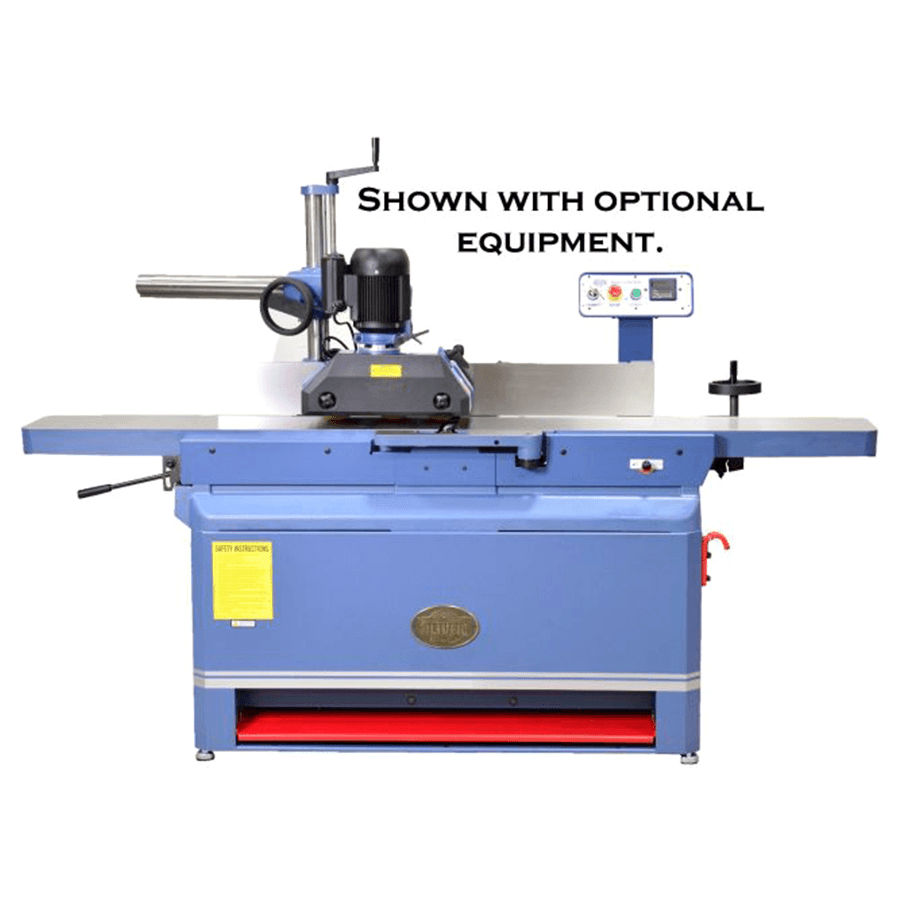

Features: • Extra-long precision ground tables provide a stable work surface • Parallelogram design provides smooth accurate cuts • Massive cast iron frame offers stable table support • Fully enclosed cabinet with 6" port for superior dust management • HCX Helical cutterhead with premium carbide inserts • 4-sided cutting inserts are indexed and easy to replace • Elevated control panel with key lock and emergency off switch • Wixey DRO shows table infeed table movement for precision cuts • Pre-drilled bracket for easy (optional) powerfeed mounting • Foot activated emergency power shutoff. • Handwheel controlled infeed table allows for quick adjustment and auto-lock during operation • Lever controlled outfeed table allows easy adjustment • Long solid cast iron fence features positive stops at 45° and 90° • Quick slide and lock fence adjustment • Easy to read depth of cut gauge • Powerful 5hp 1Ph motor • Ploy V-belt drive efficiently delivers power to the cutter head • CSA Listed
Specifications
| Box Quantity | 1 |
| Cutter Head Speed | 5,500 RPM |
| Phase | 1HP |
| Length | 99-3/4" |
| Horsepower | 5HP |
| Drive Motor | |
| Product Type | Jointer |
| Voltage | 230V |
| Width | 45" |
| Rabbeting Capacity (In.) | 3/4" |
| Table Size (L x W) (In.) | 16" x 100" |
| Helical Knife Size (L x W x T) (In.) | |
| Rabbeting Ledge (In.) | |
| Dust Port Outside Diameter (In.) | |
| Motor Power | |
| Cutter Block Speed | |
| Fence Positive Stops (Deg.) | 90°/45° |
| Cutter Block Diameter | |
| Outfeed Table Length (In.) | |
| Motor Voltage (V.) | 230V |
| Dust Collection Minimum CFM Required (CFM) | |
| Cutting Capacity (W x D) (In.) | |
| Prewired Voltage (V.) | |
| Motor Phase | 1PH |
| Number of Knives | 90 |
| Cuts Per Minute | |
| Wiring Remarks | |
| Recommended Circuit Size (Amps.) | |
| Fence Tilt (Deg.) | 45° |
| Motor Current (amps) | 19.5A |
| Size (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Cutter Block | |
| Fence Size (L x H) (In.) | |
| Table Height from Floor (In.) | |
| Infeed Table Length (In.) | |
| Standard Knife Size (L x W x T)(mm) | |
| Warranty | |
| Planing Width | |
| Chip Removal | |
| Control | |
| Extraction Connection | |
| Cutter Head Diameter |
