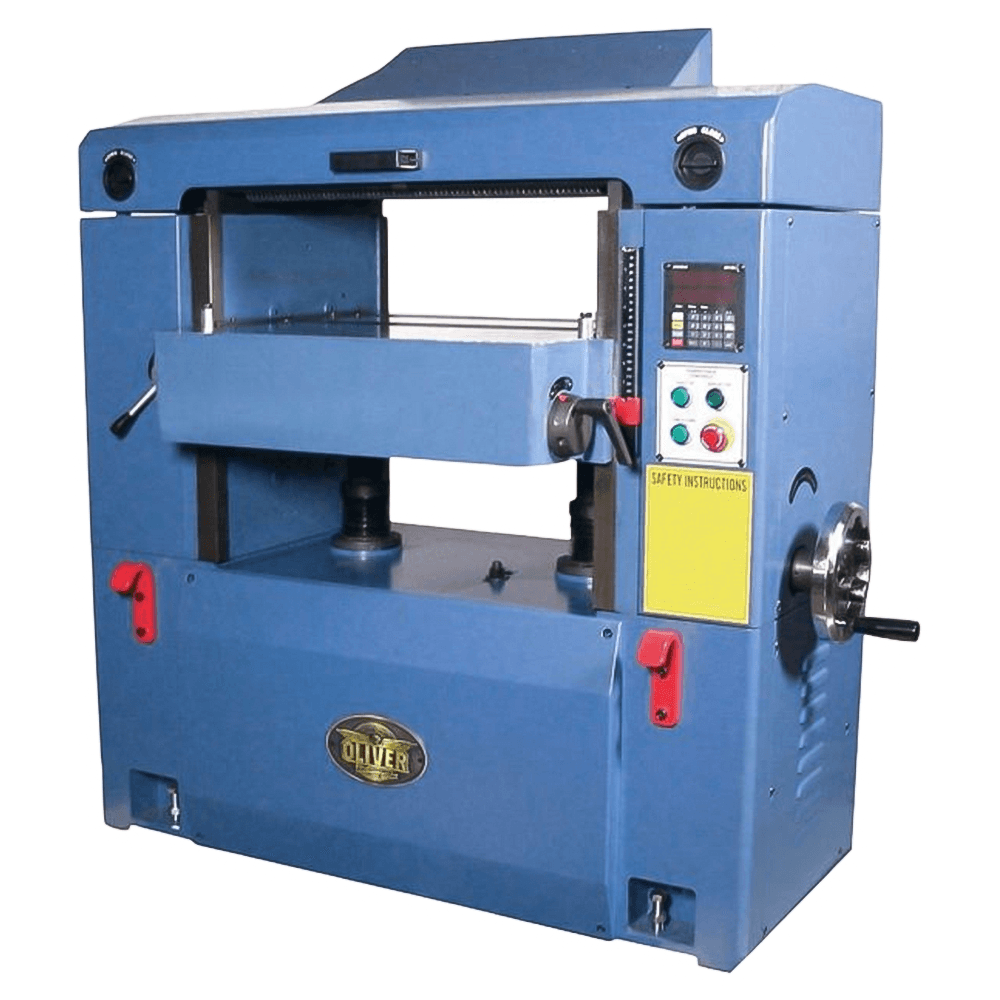

Oliver 22" Planer with Helical Cutterhead, 10HP/1 Phase
Product Details

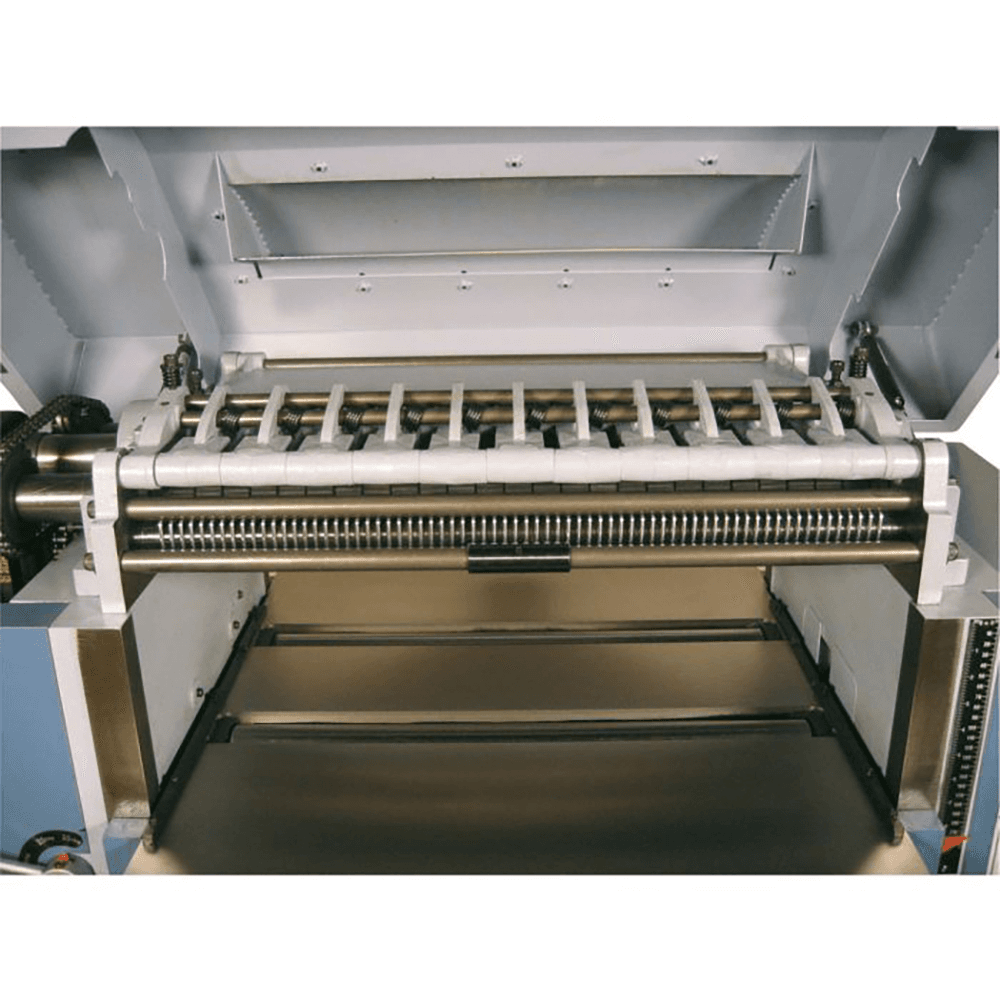

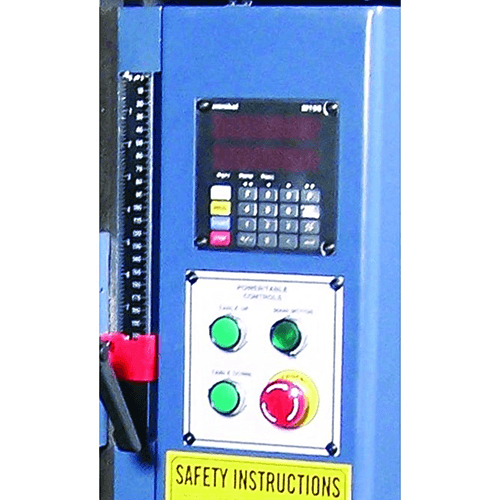

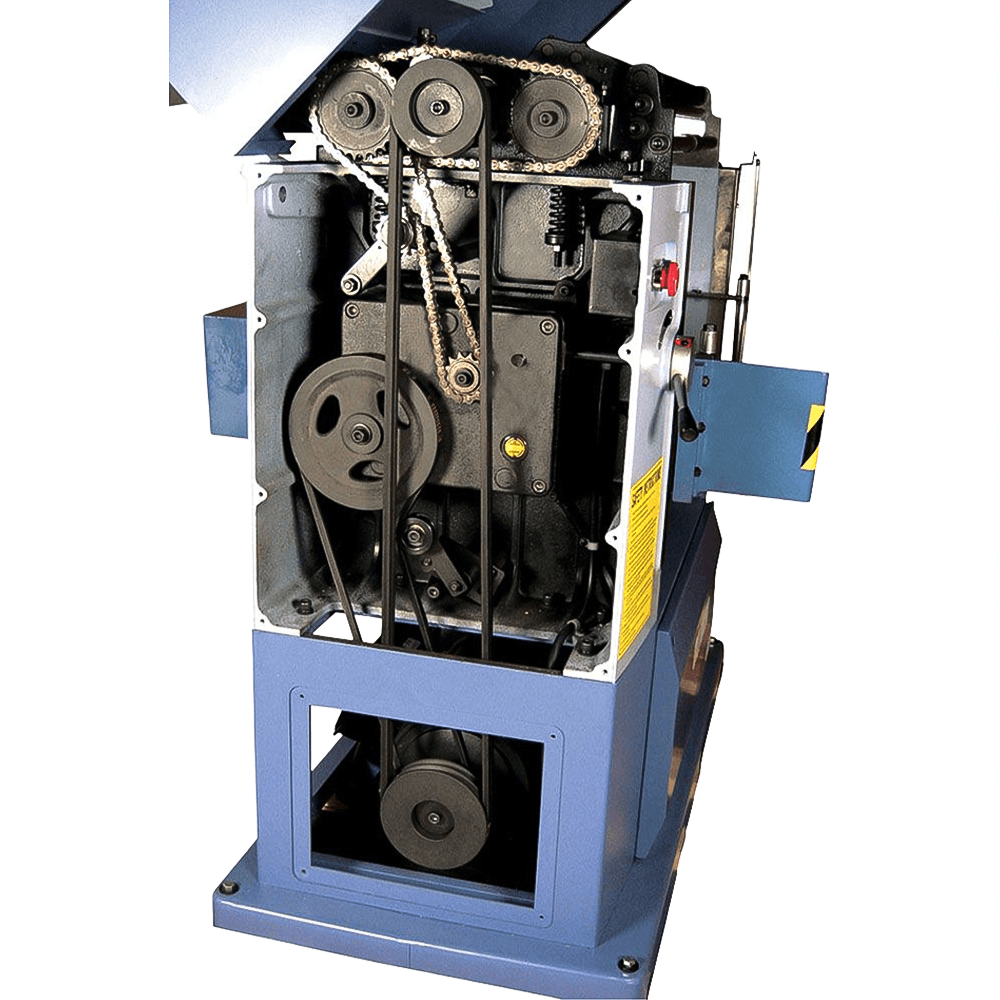

Features: • HCX Helical Cutterhead • Carbide inserts are indexed for quick changing • Massive cast iron construction throughout allows up to a 1/4" cut • Polished built-in table roller assists movement of rough stock • Segmented infeed roller and sectional chip breaker easily handle rough stock • Dual outfeed rollers assist with heavy stock • 3-speed gear box provides the perfect feed rate • Magnetic controls with emergency off switch for safer operation • Control panel with digital readout allows precise thickness settings • Power assisted table makes for quick, accurate, adjustments • Hinged access to cutter head and feed rollers for quick set-up • 5" dust chute easily handles chip removal • Easy access to motor, drive train, and gearbox assist in maintenance and adjustment • Powerful TEFC motor available in single phase
Specifications
| Box Quantity | 1 |
| Cutter Head Diameter | |
| Motor Voltage | 240V |
| Height | 56" |
| Power | 240V |
| Horsepower | 10HP |
| Phase | 1PH |
| Length | 10" |
| Drive Motor | |
| Voltage | 240V |
| Width | 25" |
| Cutter Head Type | Helical Head |
| Motor Phase | 1PH |
| Product Type | Planer |
| Cutting Width | |
| Infeed Roller Diameter (In.) | 5" |
| Cutter Block Diameter | |
| Speed | 3 |
| Recommended Circuit Size (Amps.) | |
| Maximum Depth of Cut (In.) | |
| Number of Rollers | 2 |
| Maximum Planing Width (In.) | |
| Motor Voltage (V.) | 240 |
| Column Diameter (In.) | |
| Cuts Per Minute | |
| Reversible | |
| Maximum Full Width Depth of Cut (In.) | |
| Motor Current (Amps) | 49A |
| Movement - Horizontal (In.) | |
| Wiring Remarks | |
| Prewired Voltage (V.) | |
| Feed Rate | 20/25/30 FPM |
| Table Height from Floor (In.) | |
| Outfeed Table Length (In.) | |
| Table Size (L x W) (In.) | 26" x 32" |
| Dust Collection Minimum CFM Required (CFM) | 900 CFM |
| Distance Between Rollers - Center to Center (In.) | |
| Number of Speeds | |
| Knife Size (L x W x T) | |
| Table Size with Extensions (L x W) (In.) | |
| Number of Knives | |
| Segmented Infeed Roller Diameter (In.) | |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Bed Rollers Adjustable from Front | |
| Digital Readout | |
| Type of Cutterhead | |
| Style (Type) | |
| Range of Speeds | |
| Outfeed Roller Diameter (In.) | |
| Maximum Planing Thickness (In.) | |
| Table Support | |
| Motor Power | |
| Movement - Vertical (In.) | |
| Minimum Planing Length (In.) | |
| Cutter Block Speed | |
| Dust Port Outside Diameter (In.) | |
| Warranty | |
| Planing Height | |
| Planing Width | |
| Chip Removal | |
| Extraction Connection |
