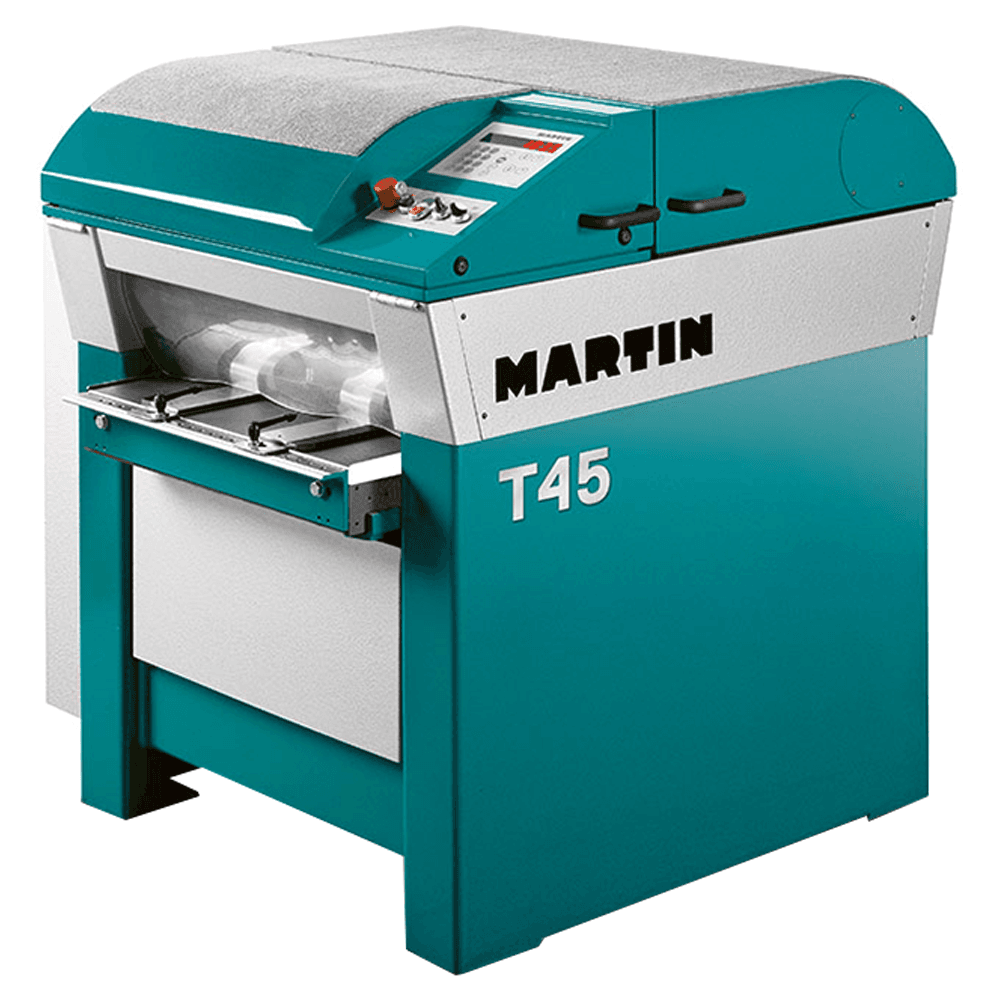

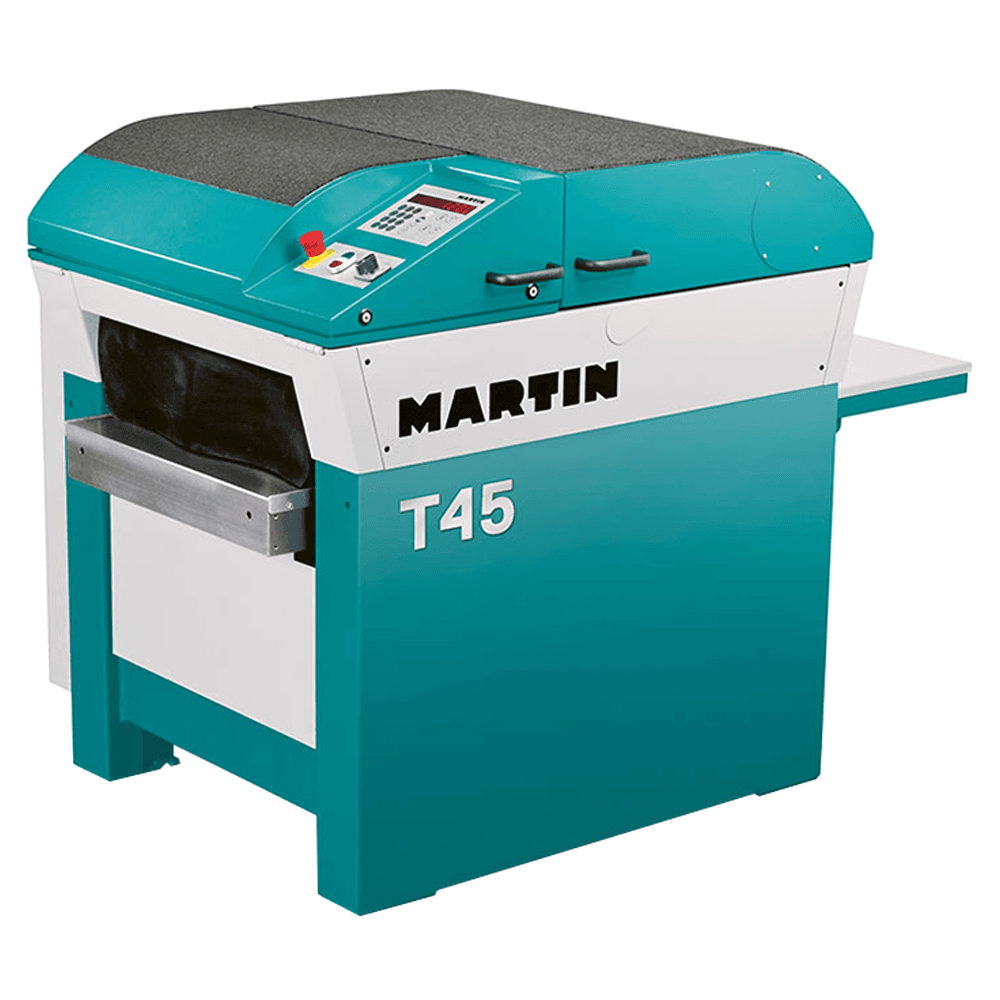

Martin Machines T45 X Planer with Xplane Cutting Head
This item may incur additional shipping costs and lead times.
Product Details
Strength lies in peace.
The T45 is a planer which quickly and very quietly delivers you perfect planing results. The easy to use control precisely moves the table with four solid legs which are built into the 12 cm strong composite frames. Chip removal of up to 12 mm is therefore no problem, just like the finest planing work to under 2.8 mm residual thickness. The T45 offers the ideal conditions for modern production. Since it delivers cleanly planed surfaces, is quick and easy to operate and has a perfect price/performance ratio.
A control system that saves time.
- The standard, clear and easy to follow control system of the T45 accelerates the operation of the machine. The electronics offer memory space for 99 planing dimensions, any desired step dimension can be stored under programme “0”.
Xplane – the future has begun.
The new 3 row Xplane cutterblock from MARTIN impresses with a remarkably smooth operation even when idling. This impression is again underlined with the cutterhead in action – it works at a very low noise level. Even the largest chip removal needs a surprisingly low motor rating – another advantage. However, what’s really fascinating is the surface qualities which can be reached with the Xplane even on the most difficult woods
Robust, solid and durable construction
- The machine frame of the T45 is a stable, thick walled composite structure, that is only found in MARTIN products to this standard and perfection. Already back in the 1920s Otto Martin invented and registered this design. Today, after 95 years of continuous improvement, this simple yet good principle is still being used for the frames at MARTIN. The smart combination of steel and concrete creates a high quality frame unequalled in terms of stability, damping capacity and torsional stiffness. The vibrations that occur in any planer are absorbed much more effectively than in cast iron frames or welded structures. These stands are the perfect base for your perfect work!
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Cutter Head Diameter | |
| Motor Voltage | |
| Height | |
| Power | |
| Horsepower | |
| Phase | 3 |
| Length | |
| Drive Motor | |
| Voltage | |
| Width | 630mm |
| Cutter Head Type | Xplane |
| Motor Phase | |
| Product Type | Planer |
| Cutting Width | |
| Infeed Roller Diameter (In.) | |
| Cutter Block Diameter | 125mm |
| Speed | |
| Recommended Circuit Size (Amps.) | |
| Maximum Depth of Cut (In.) | |
| Number of Rollers | |
| Maximum Planing Width (In.) | |
| Motor Voltage (V.) | |
| Column Diameter (In.) | |
| Cuts Per Minute | |
| Reversible | |
| Maximum Full Width Depth of Cut (In.) | |
| Motor Current (Amps) | |
| Movement - Horizontal (In.) | |
| Wiring Remarks | |
| Prewired Voltage (V.) | |
| Feed Rate | 6 | 12 m/min |
| Table Height from Floor (In.) | |
| Outfeed Table Length (In.) | |
| Table Size (L x W) (In.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Distance Between Rollers - Center to Center (In.) | |
| Number of Speeds | |
| Knife Size (L x W x T) | |
| Table Size with Extensions (L x W) (In.) | |
| Number of Knives | |
| Segmented Infeed Roller Diameter (In.) | |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Bed Rollers Adjustable from Front | |
| Digital Readout | |
| Type of Cutterhead | Xplane |
| Style (Type) | |
| Range of Speeds | |
| Outfeed Roller Diameter (In.) | |
| Maximum Planing Thickness (In.) | |
| Table Support | |
| Motor Power | 7.5 kW |
| Movement - Vertical (In.) | |
| Minimum Planing Length (In.) | |
| Cutter Block Speed | 6000 RPM |
| Dust Port Outside Diameter (In.) | |
| Warranty | |
| Planing Height | 2.8 – 300 mm |
| Planing Width | 630mm |
| Chip Removal | max 12mm |
| Extraction Connection | 160mm |
