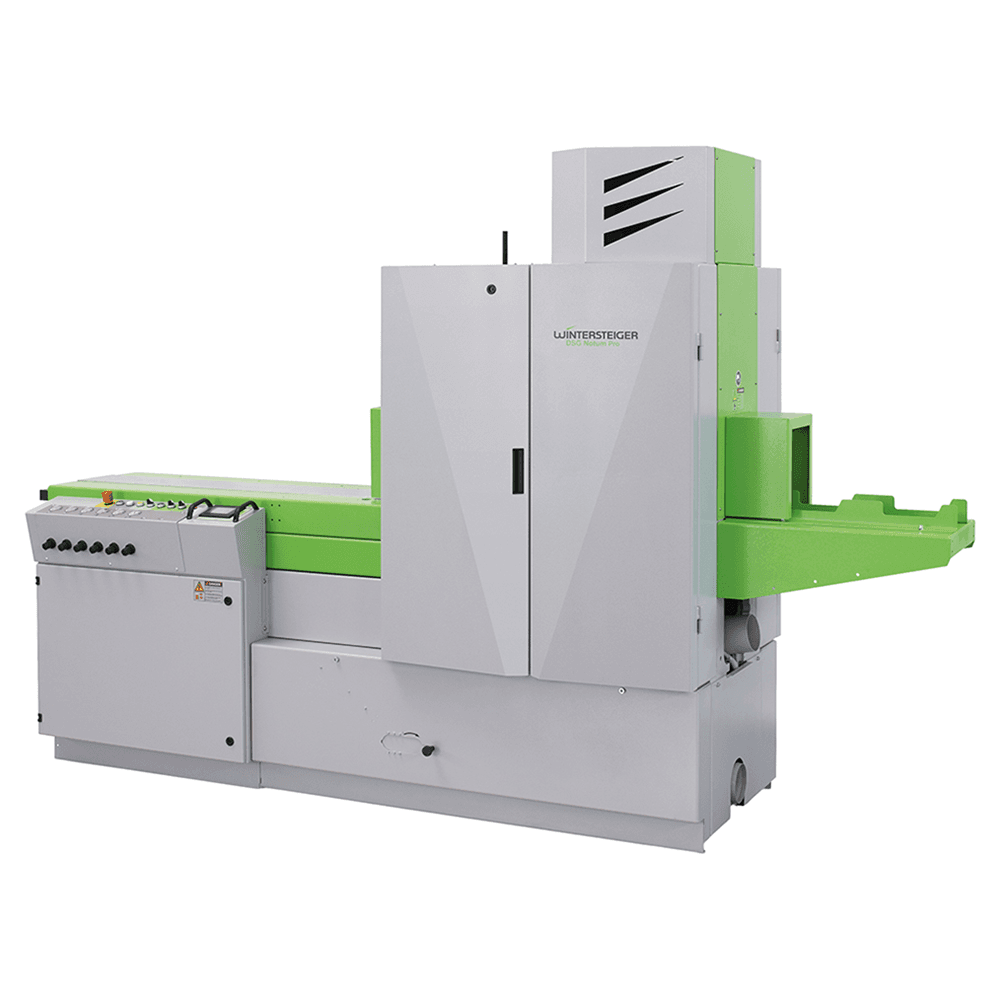

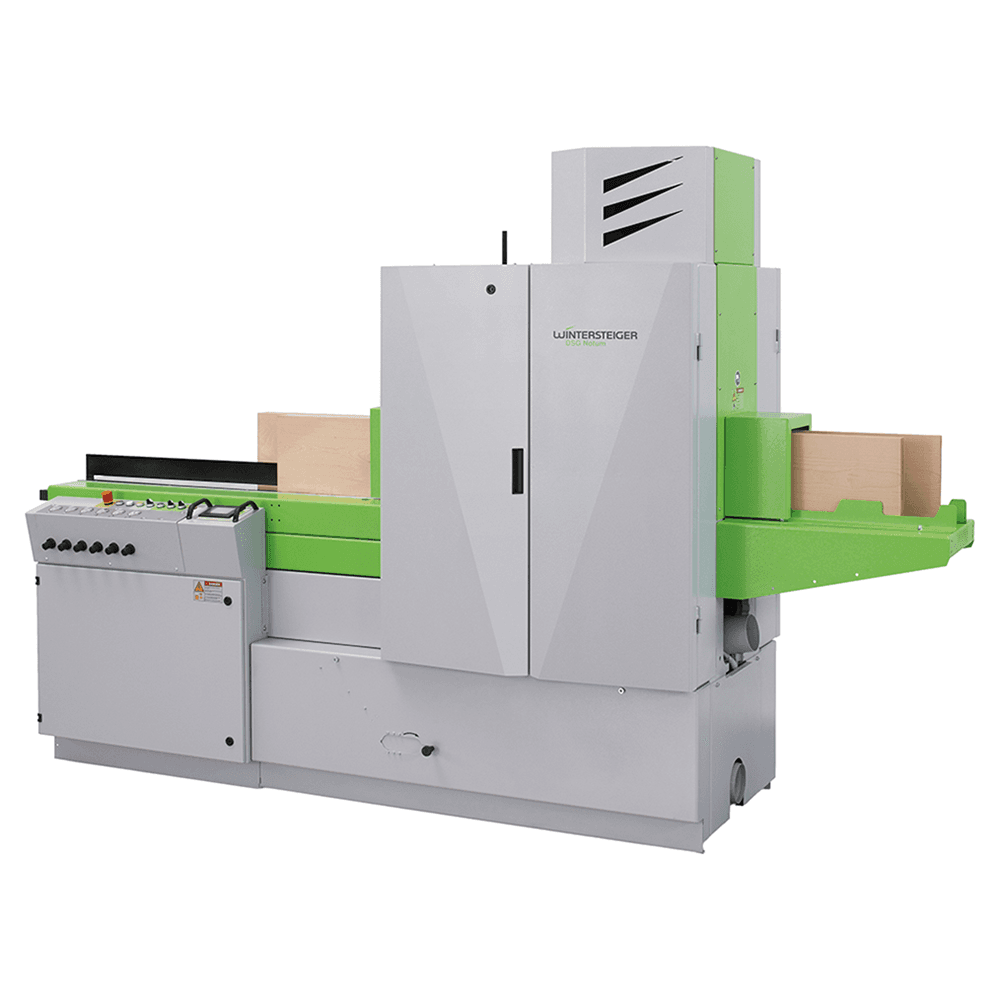

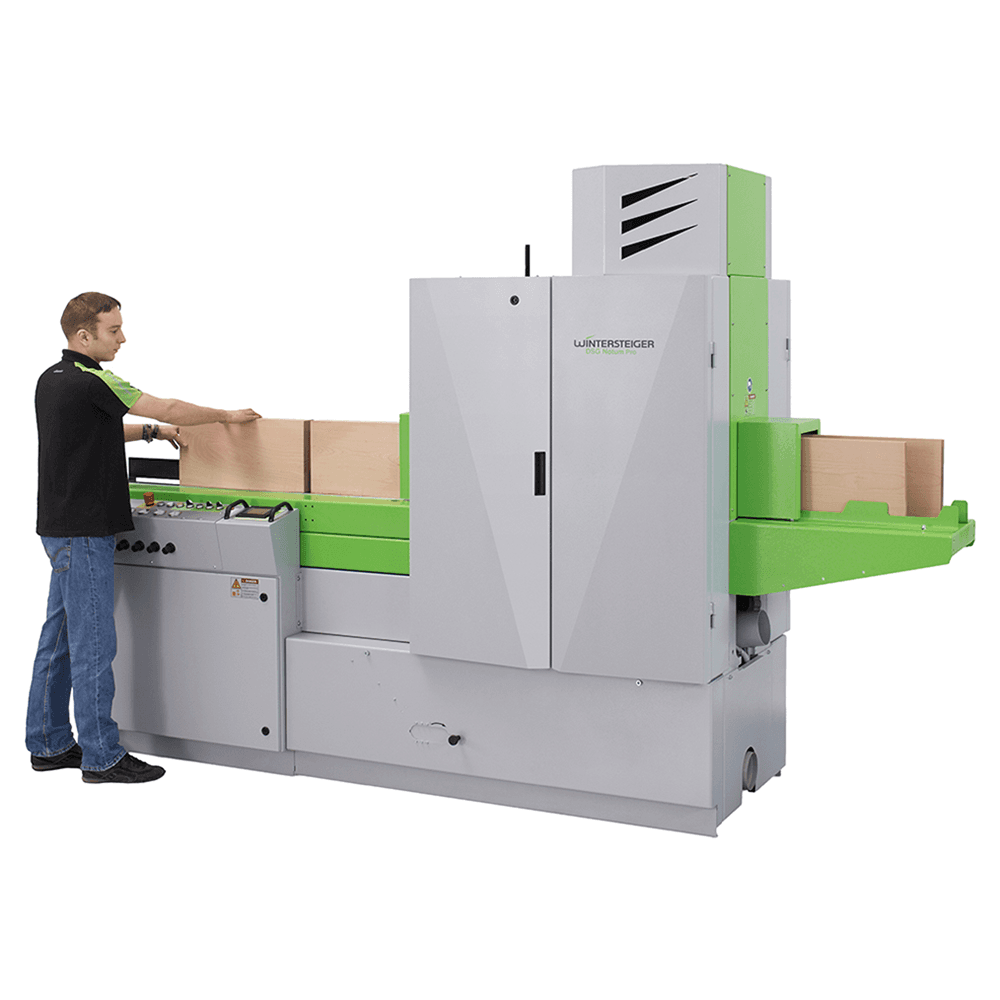

DSG Notum Pro, Thin Cutting Frame Saw
Product Details
With the DSG Notum, WINTERSTEIGER has crafted the perfect synthesis of decades of experience and state-of-the-art technology. Our aim is to deliver the best technology at the best prices and provide cost-effective access to the premium segment in the process. The DSG Notum showcases its strengths in day-to-day use with its characteristic reliability and efficiency. Features: • Engineered Wood Flooring • Multilayer Boards • Doors • Windows • Furniture • Pencil Slats • Musical Instruments Notum-The Experience: • From the inventor of the thin-cutting frame saw • Precision and performance for all requirements • Expertise and know-how in use all around the world Proven & Innovative: • Electronically controlled precision feed • Centric saw frame tensioning • 266 mm cutting height • Advanced frame guide system • Optimized air-jet system User-Friendly Operation: • Optimum accessibility thanks to modular machine design • Electrically adjustable down pressure system • Easy operation via touch screen display • Central control cockpit Product Features at a Glance: • Magazine: The magazine guarantees continu ous feeding of the wooden blocks. It is possible for one person to operate several machines. • FU Controlled Feed System • Electrical Down Pressure System: The electrically adjustable down pressure system provides optimum operating comfort and minimises set up times. • Center Guide • Side Guide • Channel System • Splinter Guard: The built-in splinter guard ensures optimum stabilisation of the underside of the block on exiting the saws. • Air Jet: The Air Jet supplies a continuous flow of air directly into the cutting area, cleaning the sawdust out of each saw tooth during the cutting process. This ensures minimum friction and blunting of the saw teeth which means in turn that the saw blades do not heat up. Advantages for the user: longer saw blade lifetimes, a largely dust-free lamella and the ability to cut difficult wood species containing silica or other irregular grown contents. • Spraying System:Spraying on a biological anti-stick agent prevents resinous sawdust from sticking to the saw blade. The spray-ing intervals can be set individually depending on the type of wood and the customer’s requirements. • Wet Cutting System: In addition to the air jet and the spray-ing system, it is possible to remove the fresh heavy sawdust on the lower underside of the saw frame with compressed air. • Double Planer: The newly developed double planer is impressively accessible due to the unilateral bearing arrangement of all the components, its compact design and ease of tool change. • Advantages for the use: Accurate joining edge for gluing, no transport marks on the top side of the lamellas, perfect parallelism of the lamellas.
Downloads
Specifications
| Box Quantity | 1 |
| Blade Diameter | |
| Battery Voltage | |
| Amps | |
| Battery Capacity | |
| Blade Type | |
| Product Type | Frame Saw |
| Battery Type | |
| Power Type | |
| Depth of Cut | |
| Speed |
