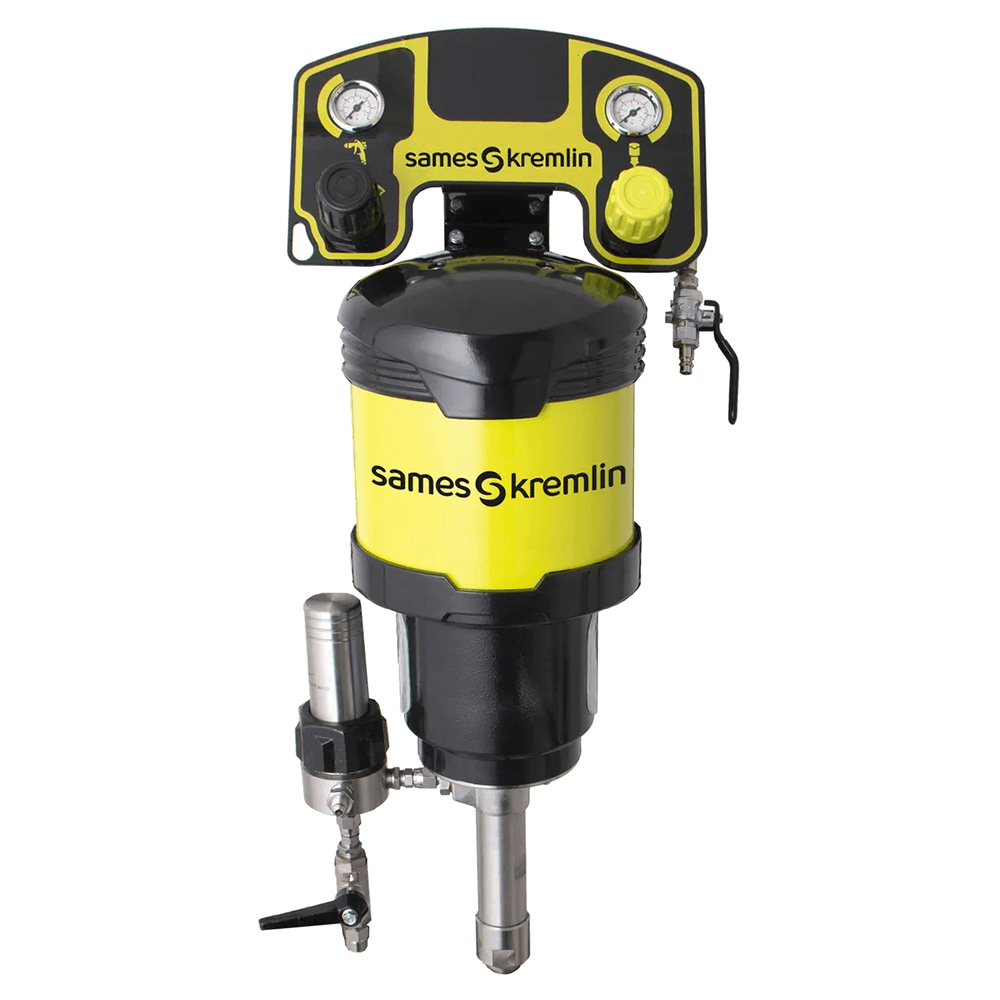

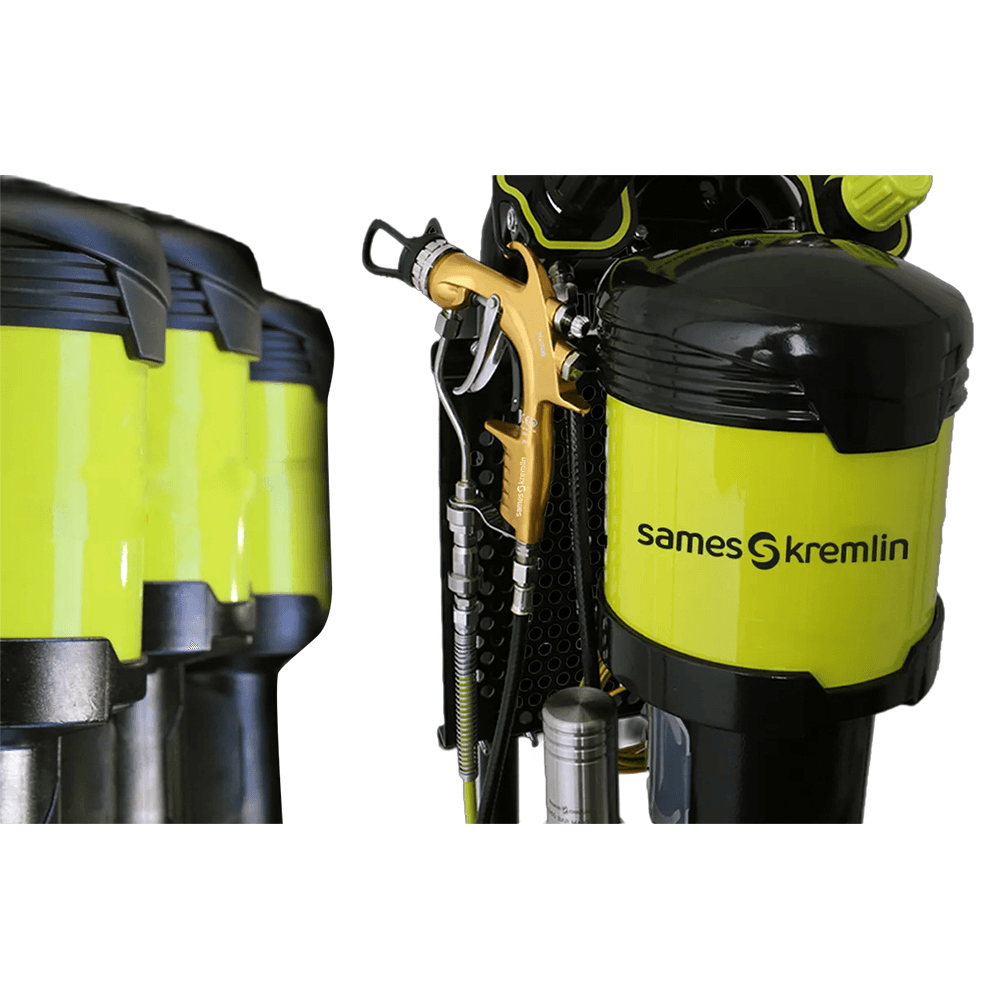

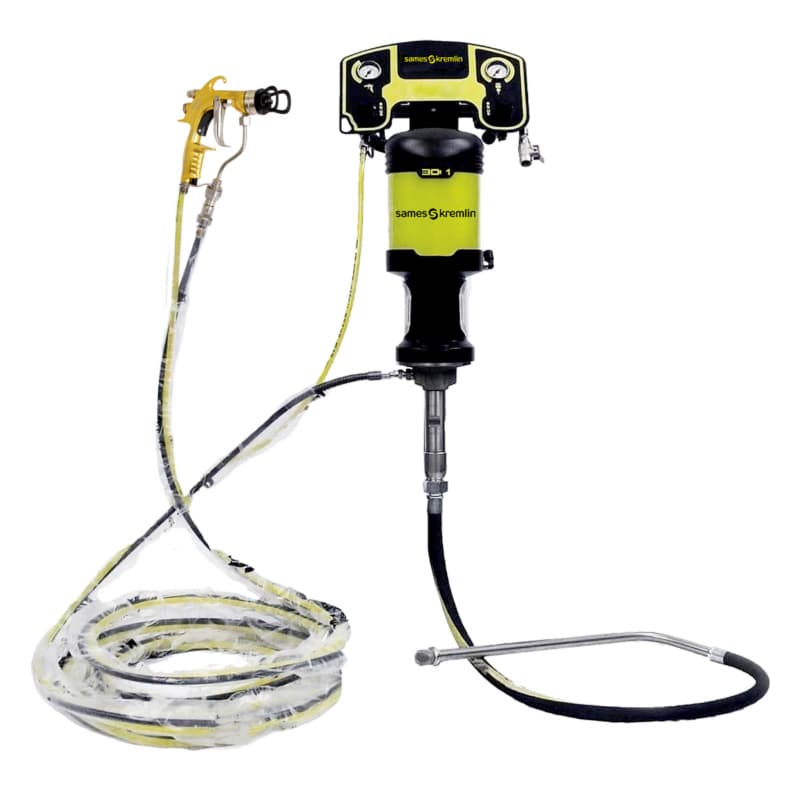

30C25 Wall-Mount Airmix Paint Pump System
Product Details
The 35C50 pump is a medium-range, all purpose pump for medium to high viscosity products. Up to 210 bar of fluid pressure allows Airmix or Airless applications. Features: • Quiet and balanced air motor for constant delivery • There is minimal pulsation due to quick air motor change over at low air pressures • Stainless-steel fluid section compatible with a wide range of materials including water-based paints • Designed to eliminate dead zones for quick color changes • Pulse-free for a superior finish • Able to flush and prime at very low air pressures (0.6 bar/8.5 psi) • Large foot valve to handle high viscosity materials up to 5,000 cPs - carbide seat • Small fluid section, minimal material loss during color changes • Closed construction decreases the risk of injuries and protects the lubricant from external contamination • Leak indicator weep hole for fast visual inspection • Easy rotating outlet fitting to fit various configurations • Stall-free Differential Air Motor won′t ice up • Easy to service with direct access to the suction valve • Single piece built-in cartridge with no dead zone • Easy coupling for a quick disassembling • Mobile seal located on the piston ensures the cleaning of the fluid section internal wall while the pump is in operation • Low maintenance, no external air distributor assembly. 45% fewer parts vs competition • Triple chrome-plated piston parts compatible with most materials • Magnetic reversing valve to eliminate pump surge • Reduced spare parts: 50% fewer parts vs competition • Power Source: Pneumatic • Depth: 9.05 in • Height: 23.6 in • Width: 9.05 in • Pressure ratio: 35/1
Specifications
| Box Quantity | 1 |
| Product Type | Paint Pump System |
| Material | Hard Chrome Stainless Steel/Polyethylene/Stainless Steel 303/Tungsten Carbide |
| Air Inlet | F3/8" BSP |
| Maximum Pressure | 3045 psi |
Product Details
The 35C50 pump is a medium-range, all purpose pump for medium to high viscosity products. Up to 210 bar of fluid pressure allows Airmix or Airless applications. Features: • Quiet and balanced air motor for constant delivery • There is minimal pulsation due to quick air motor change over at low air pressures • Stainless-steel fluid section compatible with a wide range of materials including water-based paints • Designed to eliminate dead zones for quick color changes • Pulse-free for a superior finish • Able to flush and prime at very low air pressures (0.6 bar/8.5 psi) • Large foot valve to handle high viscosity materials up to 5,000 cPs - carbide seat • Small fluid section, minimal material loss during color changes • Closed construction decreases the risk of injuries and protects the lubricant from external contamination • Leak indicator weep hole for fast visual inspection • Easy rotating outlet fitting to fit various configurations • Stall-free Differential Air Motor won′t ice up • Easy to service with direct access to the suction valve • Single piece built-in cartridge with no dead zone • Easy coupling for a quick disassembling • Mobile seal located on the piston ensures the cleaning of the fluid section internal wall while the pump is in operation • Low maintenance, no external air distributor assembly. 45% fewer parts vs competition • Triple chrome-plated piston parts compatible with most materials • Magnetic reversing valve to eliminate pump surge • Reduced spare parts: 50% fewer parts vs competition • Power Source: Pneumatic • Depth: 9.05 in • Height: 23.6 in • Width: 9.05 in • Pressure ratio: 35/1
Specifications
| Box Quantity | 1 |
| Product Type | Paint Pump System |
| Material | Hard Chrome Stainless Steel/Polyethylene/Stainless Steel 303/Tungsten Carbide |
| Air Inlet | F3/8" BSP |
| Maximum Pressure | 3045 psi |
