3/4" x 3-1/4" High Production Up Shear Flush Trim Plunge Template Router Bit, 3-Flute, 1/2" Shank
Item # AN45366-3US
•Mfr # 45366-3US
$65.27
/Each
Min Order: 1
Qty mult. by: 1
Product Details

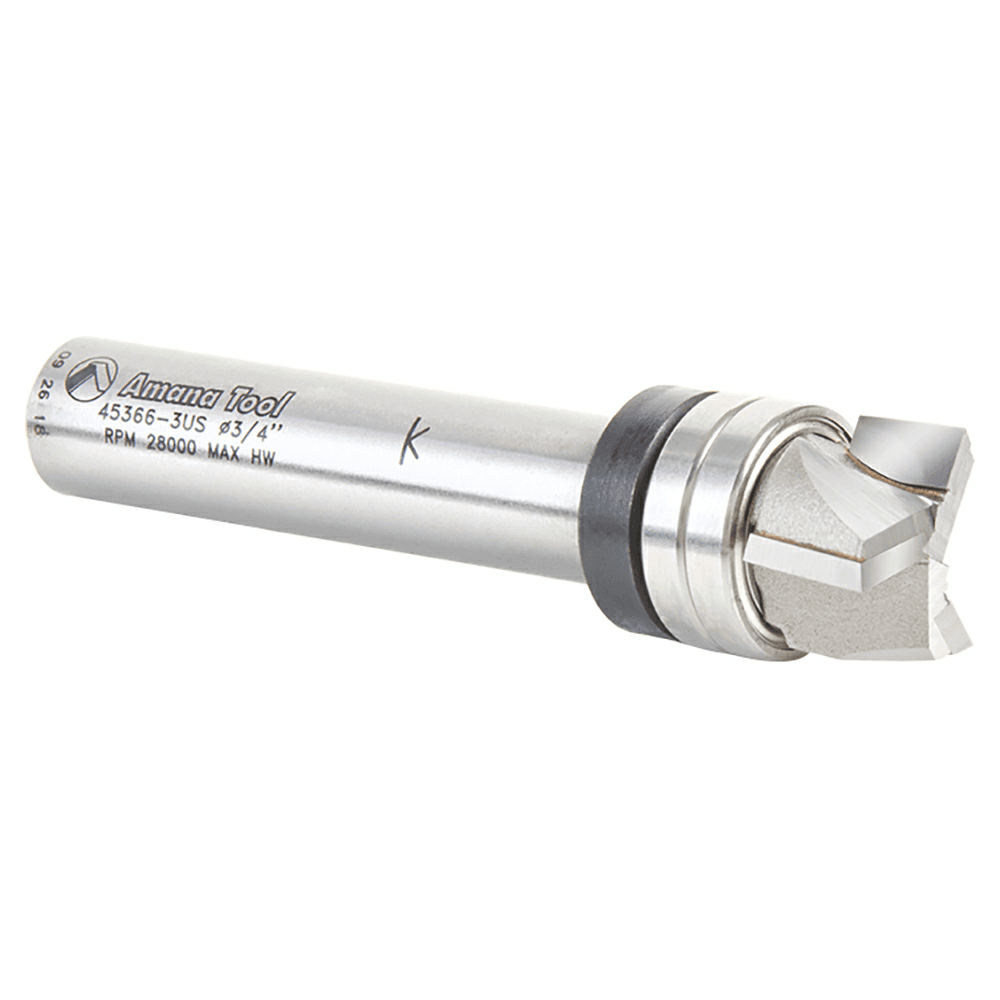

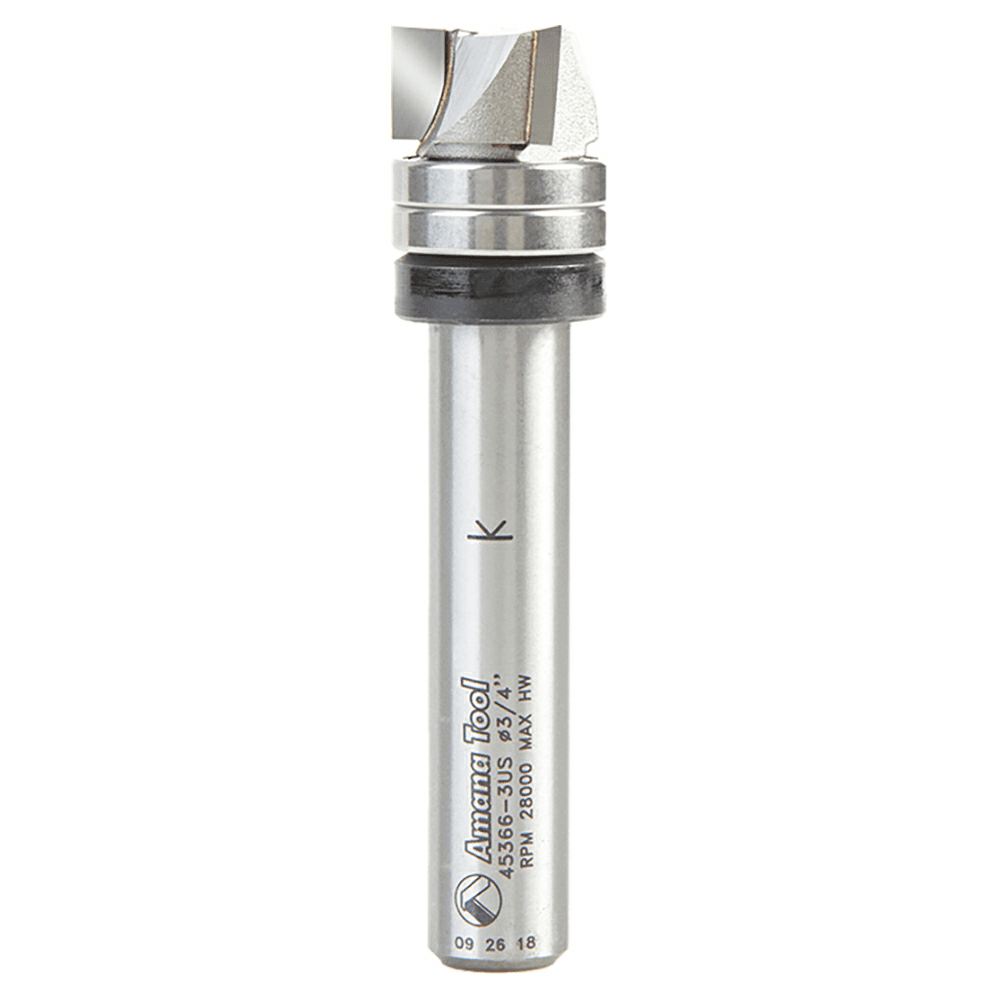

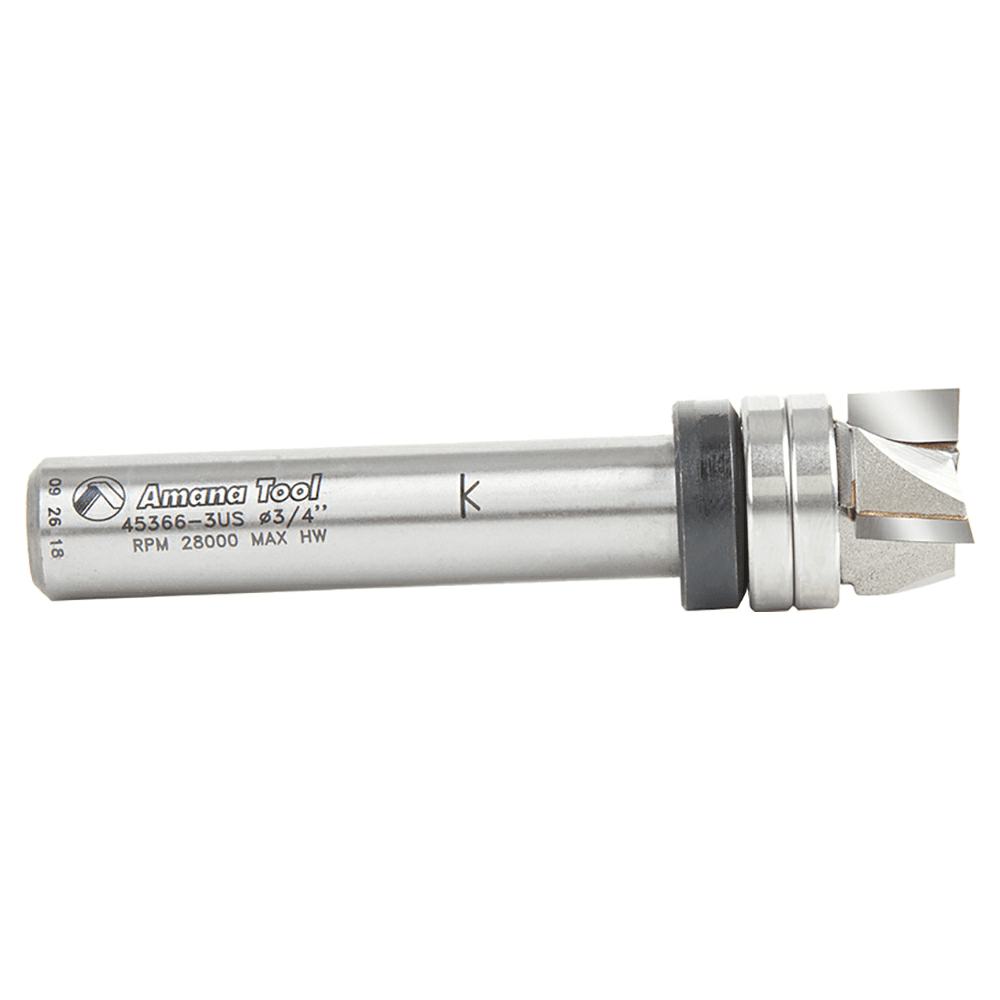

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
Features:
• Up-Shear Angle - The shear angle cuts faster, cleaner and lasts longer than straight angle because of the chip removal speed
• We recommend using shear angle in most instances especially where large diameters are used
Features:
• Up-Shear Angle - The shear angle cuts faster, cleaner and lasts longer than straight angle because of the chip removal speed
• We recommend using shear angle in most instances especially where large diameters are used
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | |
| Width | |
| Cutting Diameter | 3/4" |
| Application | |
| Material | Carbide Tipped |
| Product Type | Flush Trim Plunge Template Router Bit |
| Length | 3-1/4" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
