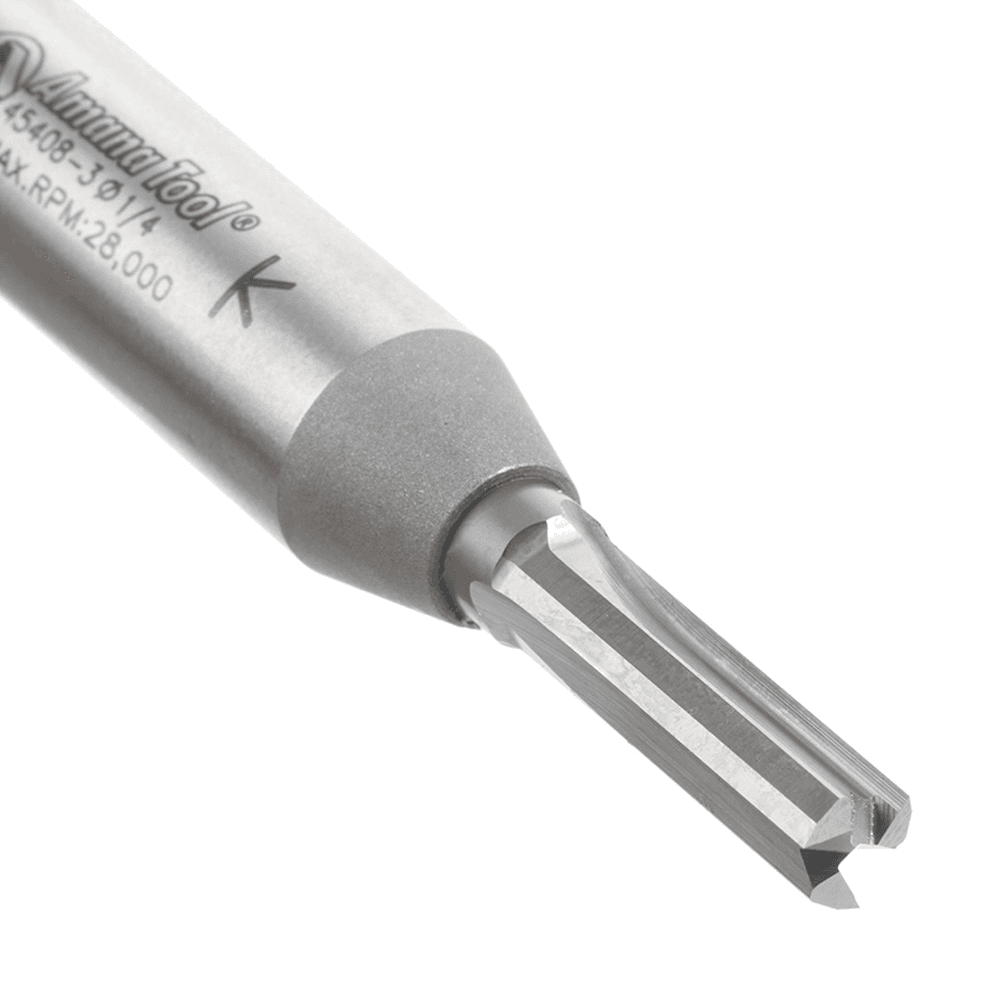

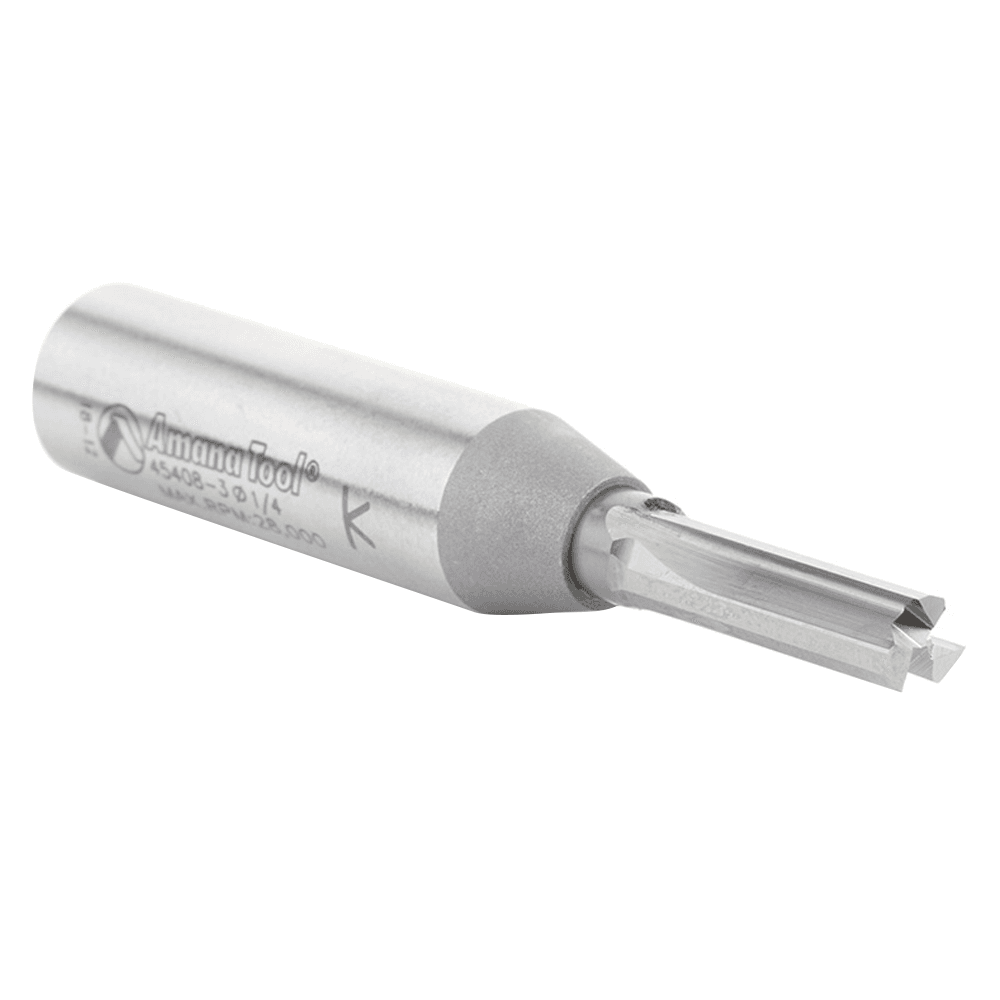

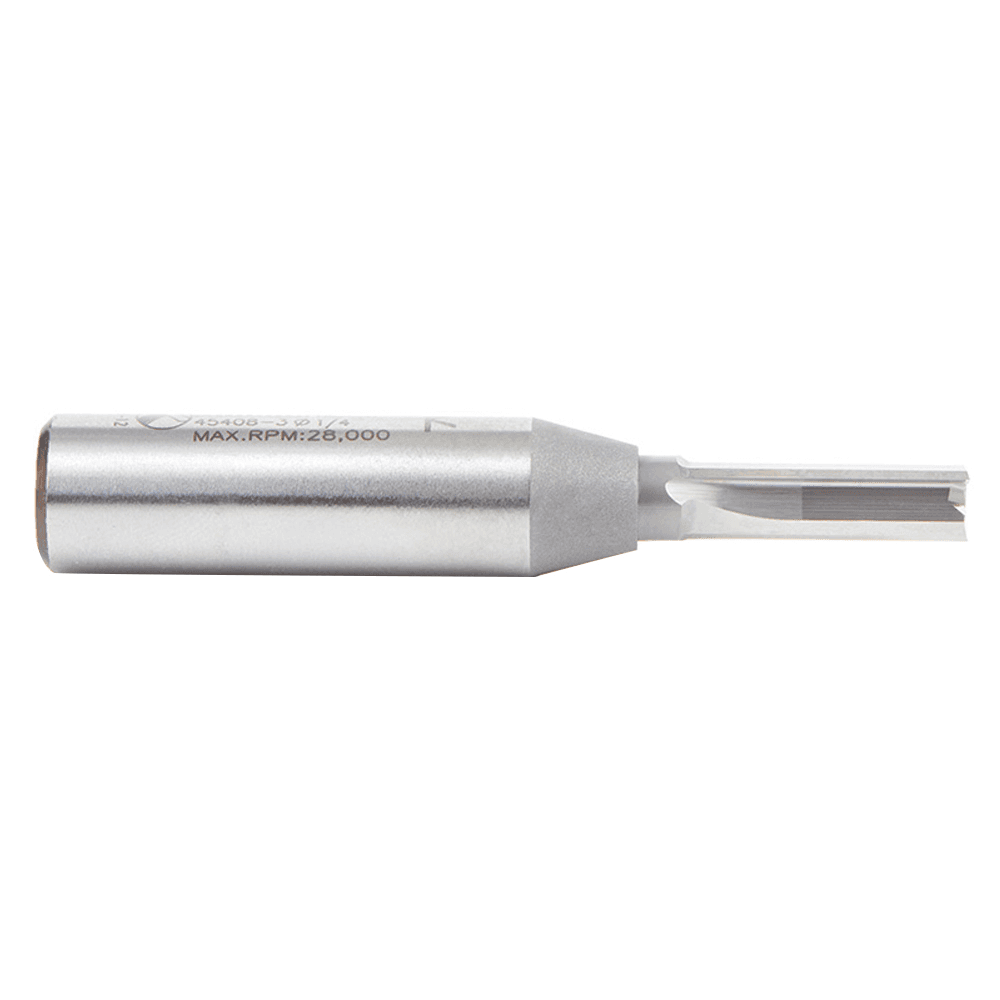

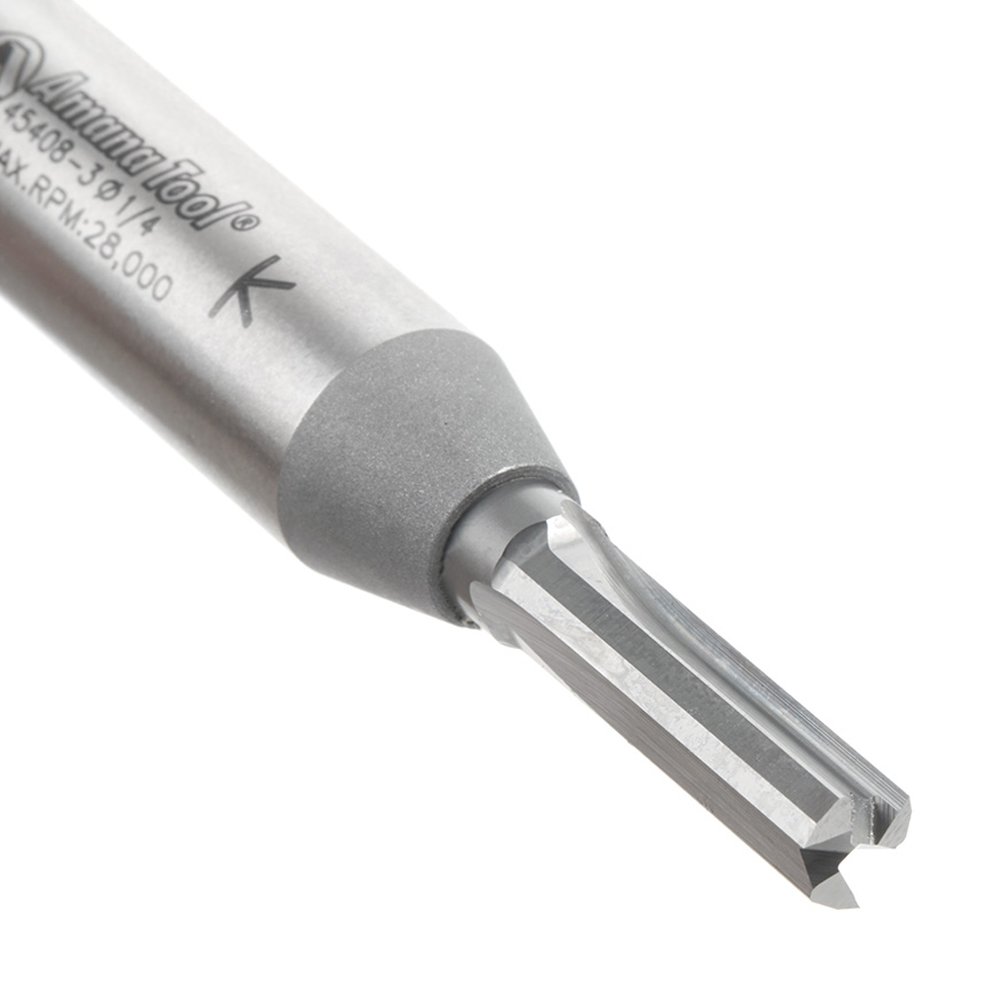

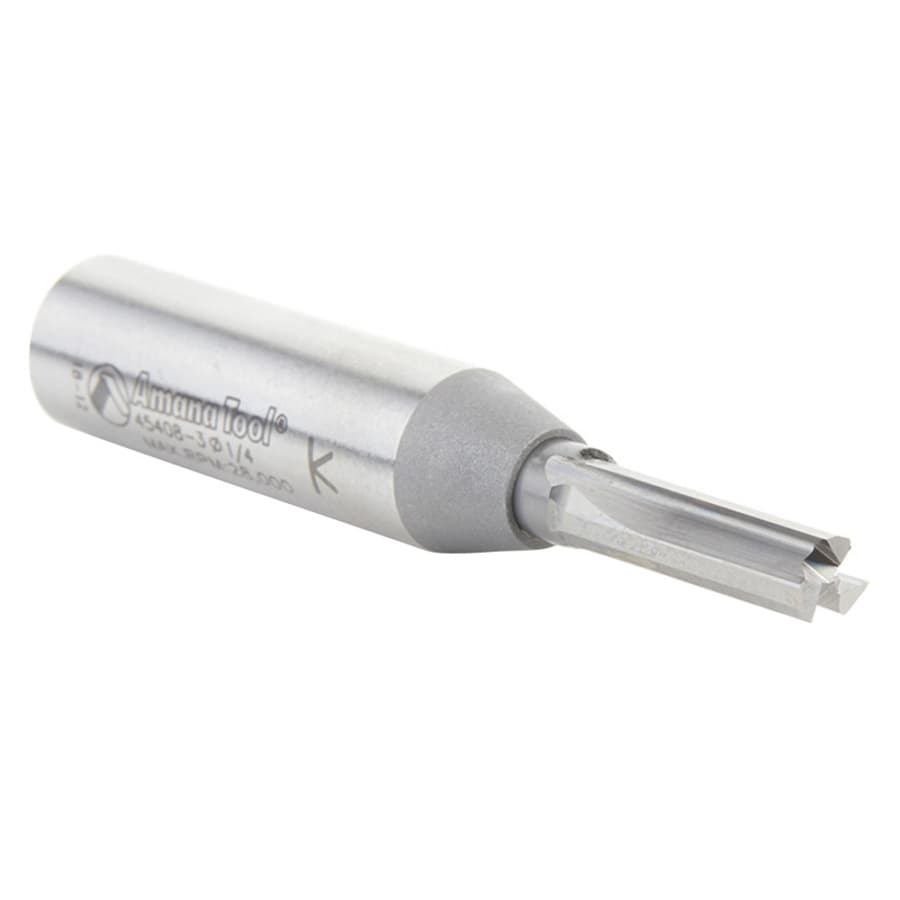

1/4" x 3" In-Presta High Production Cutting Edge Straight Plunge Router Bit, 3-Flute, 1/2" Shank
Item # AN45408-3
•Mfr # 45408-3
$52.26
/Each
Min Order: 1
Qty mult. by: 1
Product Details
Use a three-flute bit where fine finish is paramount. Three flutes balance the bit, eliminating vibration that degrades the cut finish. Three cuts per revolution yield a smooth surface and increased feed rates. 45408-3 features a solid carbide cutting edge.
Features:
• 3/4" of cutting height
• Excellent for nesting and grooving at an extremely fast feed rate which increases cost savings
• 1/4" cutting diameter CNC nesting router bit with solid carbide cutting edges brazed into steel 1/2" shank
• The unique design contributes to superb performance and excellent cutting results
• Designed primarily for high speed CNC production
• Long lasting, fine micro grain extra hard carbide resulting in long tool life before re-sharpening
• Up to 800" per minute
• For cutting 3/4" material thickness in one pass
• 3 flute for improved surface finish
• Only 1/4" diameter equals minimal material waste
• Up to 800 IPM feed rate at 18,000 RPM cutting laminated particle board
• Rate may change depending on material and CNC machine type
Excellent for Cutting:
• Laminated Particle Board, MDF & Melamine feed rate up to 800 IPM at 18,000 RPM
• Plywood feed rate up to 500 IPM at 18,000 RPM
Features:
• 3/4" of cutting height
• Excellent for nesting and grooving at an extremely fast feed rate which increases cost savings
• 1/4" cutting diameter CNC nesting router bit with solid carbide cutting edges brazed into steel 1/2" shank
• The unique design contributes to superb performance and excellent cutting results
• Designed primarily for high speed CNC production
• Long lasting, fine micro grain extra hard carbide resulting in long tool life before re-sharpening
• Up to 800" per minute
• For cutting 3/4" material thickness in one pass
• 3 flute for improved surface finish
• Only 1/4" diameter equals minimal material waste
• Up to 800 IPM feed rate at 18,000 RPM cutting laminated particle board
• Rate may change depending on material and CNC machine type
Excellent for Cutting:
• Laminated Particle Board, MDF & Melamine feed rate up to 800 IPM at 18,000 RPM
• Plywood feed rate up to 500 IPM at 18,000 RPM
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | |
| Width | |
| Cutting Diameter | 1/4" |
| Application | |
| Material | Solid Carbide |
| Product Type | Straight Plunge Router Bit |
| Length | 3" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
