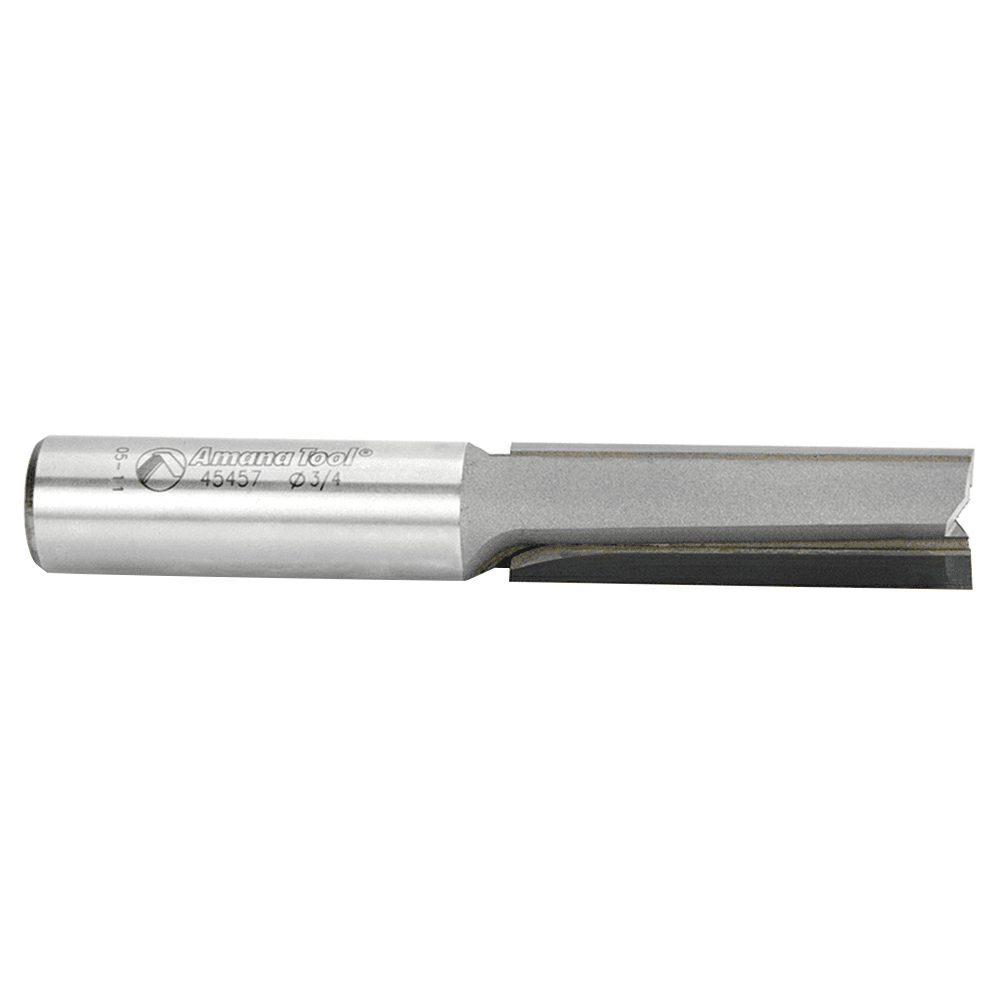

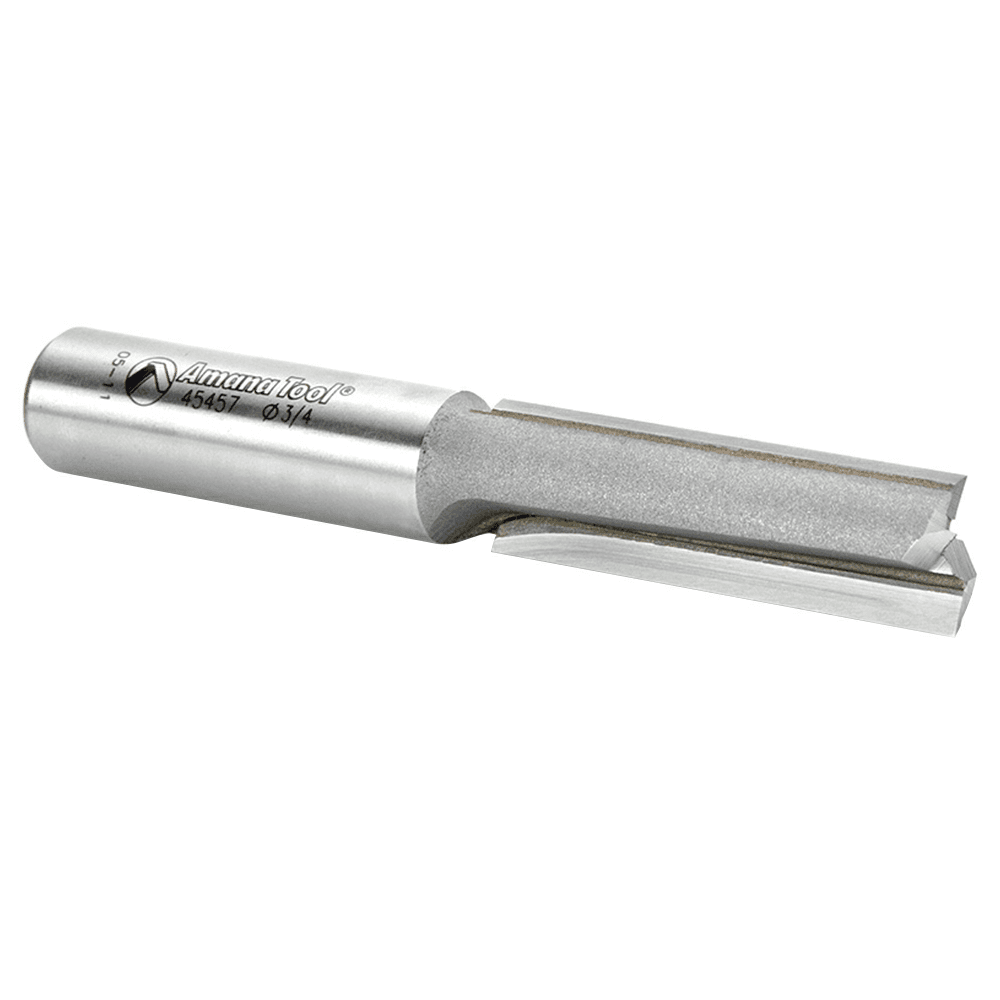

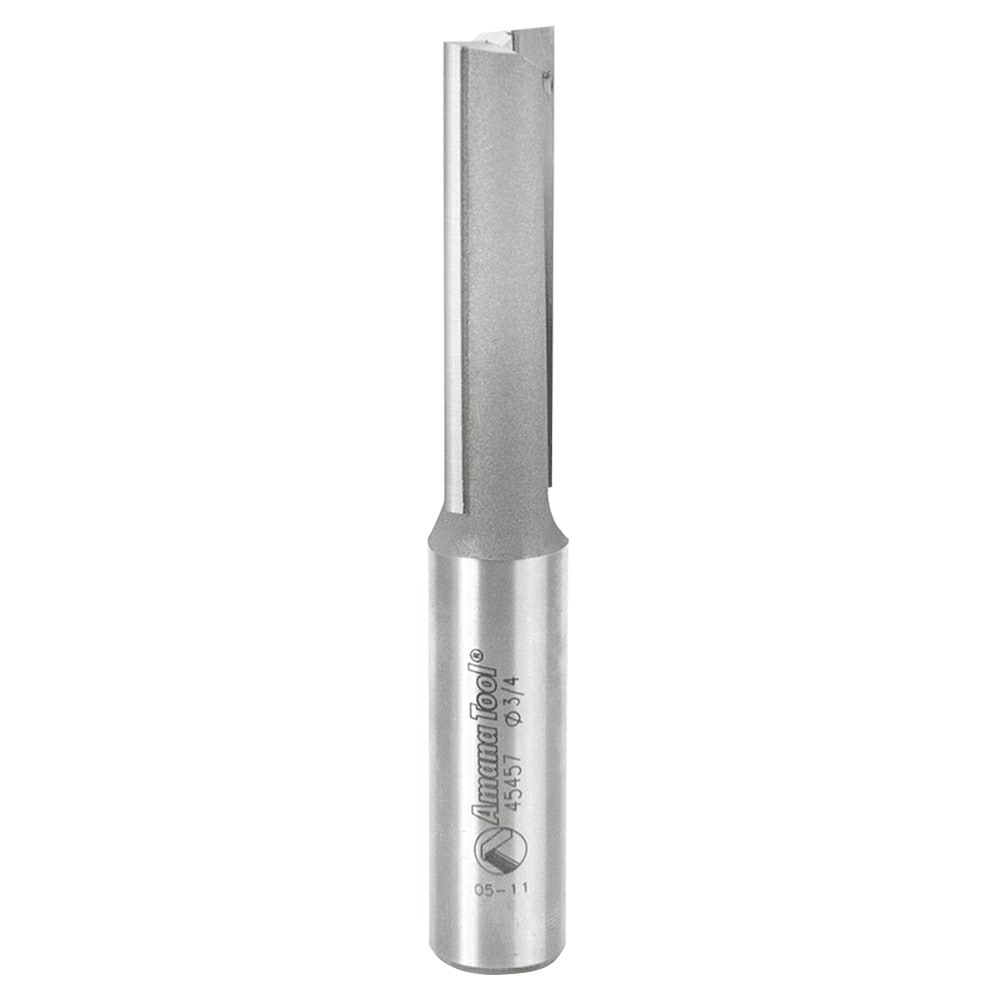

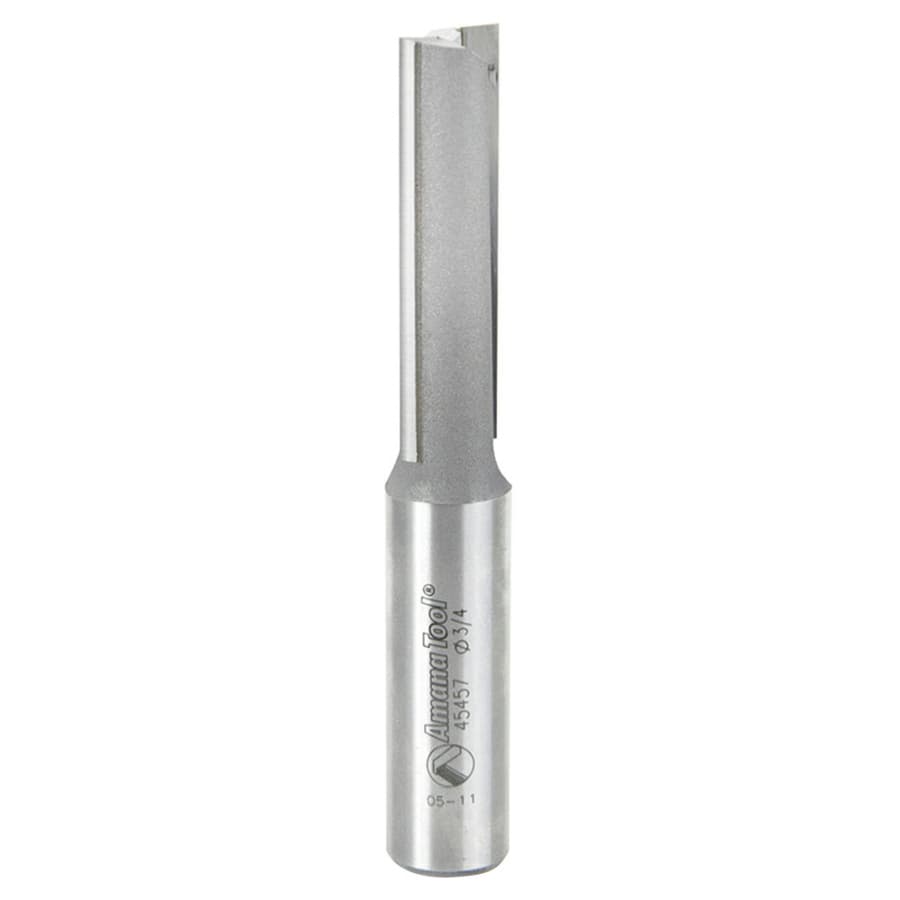

3/4" x 5" CNC High Production Straight Plunge Router Bit, 2-Flute, 3/4" Shank
Item # AN45457
•Mfr # 45457
$72.07
/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
For high-volume production work with a CNC router use one of these plunge-cutting straights. Long, 3/4" shanks extend the bit's reach enhancing its versatility. Open-flute design promotes rapid chip clearance, necessary for high feed rates. Left-hand configuration for counter-clockwise rotation "Top master" machines.
Features:
• Left hand straight plunge router bit
• 2-1/2" of cutting height
Note: Chip breaker option (special order): Designed to cut chipboard and MDF at high automatic feed rates found on CNC machines. Each flute is ground so that the chip breakers are staggered to each other, giving a straight cut. To order, add `CB' suffix (i.e.: #45454-CB).
Features:
• Left hand straight plunge router bit
• 2-1/2" of cutting height
Note: Chip breaker option (special order): Designed to cut chipboard and MDF at high automatic feed rates found on CNC machines. Each flute is ground so that the chip breakers are staggered to each other, giving a straight cut. To order, add `CB' suffix (i.e.: #45454-CB).
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Height | |
| Width | |
| Cutting Diameter | 3/4" |
| Application | |
| Material | Carbide Tipped |
| Product Type | Straight Plunge Router Bit |
| Length | 5" |
| Degree of Cut | |
| Shank Diameter | 3/4" |
