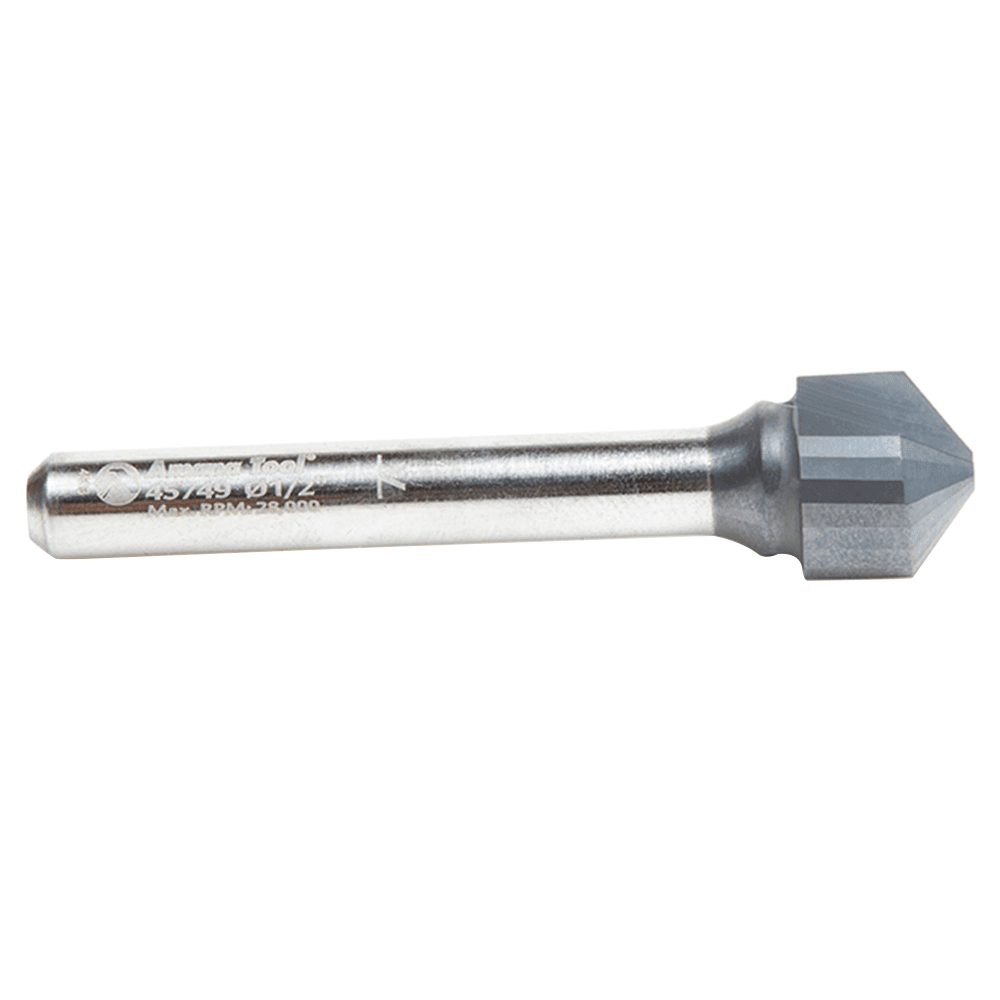

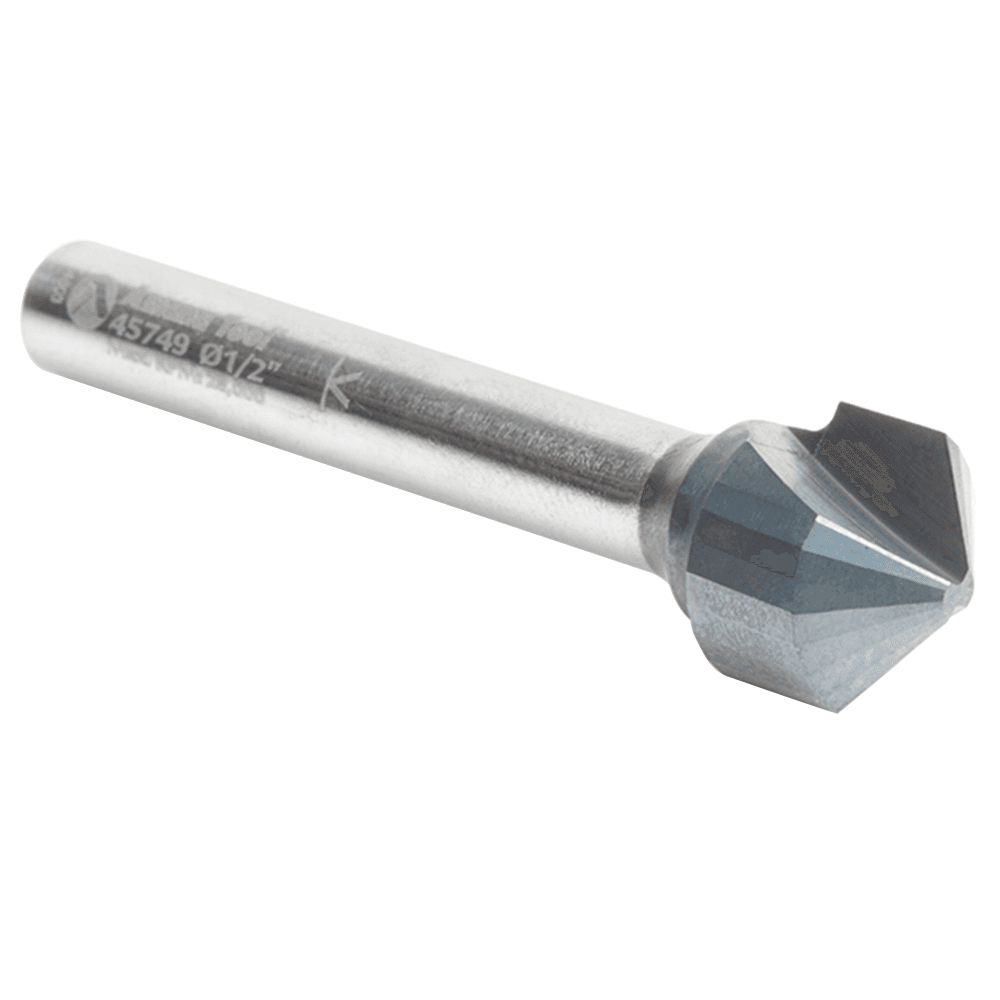

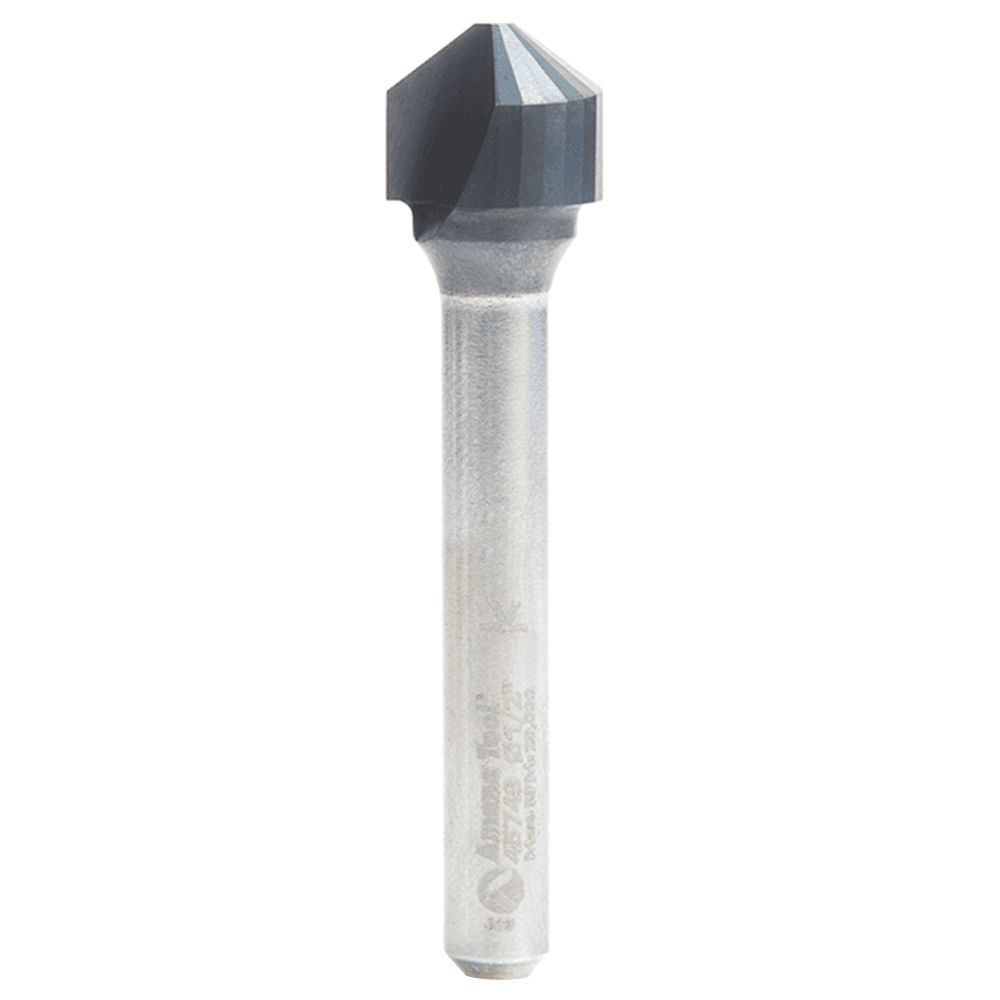

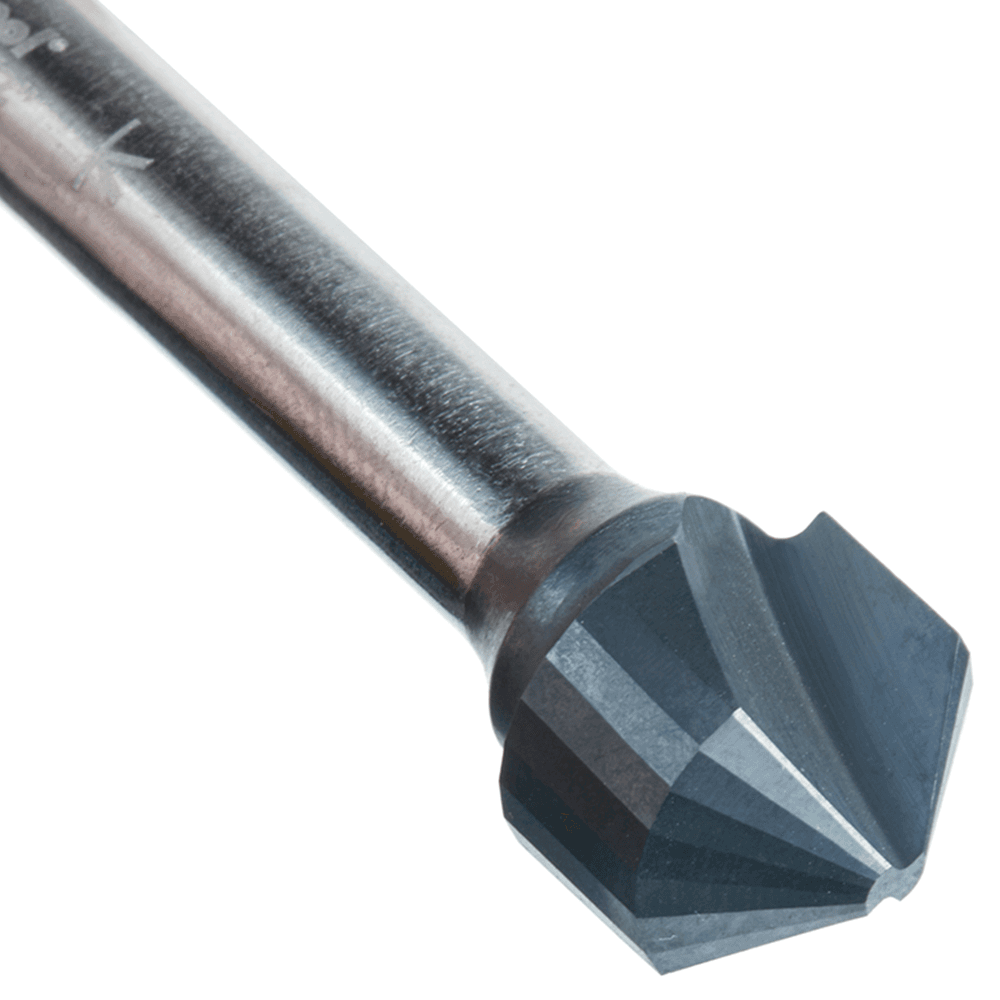

1/2" x 2-1/8" AlTiN Coated V-Groove Router Bit, 2-Flute, 1/4" Shank
Item # AN45749
•Mfr # 45749
$78.39
/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
The carbide cutting tip is brazed to a steel shank specially designed to cut grooves in composite building materials. These bits are widely used as cladding for many diverse applications such as office buildings, hospitals, convention centers, airports, hotels. Routing V-shaped grooves, whereby the steel cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand.
AlTiN Coating Benefits:
• Extra wear resistance
• Allows for faster feed and speed rates
• Cutting edge protected from wear
• Better chip evacuation
• Less heat build up
• Superior cutting quality and extended tool life
Designed for Cutting and Scoring Steel Sandwich Materials Including:
• Metal Composite Material (MCM)
• Steel Composite Material (SCM)
• Titanium Composite Material (TCM)
AlTiN Coating Benefits:
• Extra wear resistance
• Allows for faster feed and speed rates
• Cutting edge protected from wear
• Better chip evacuation
• Less heat build up
• Superior cutting quality and extended tool life
Designed for Cutting and Scoring Steel Sandwich Materials Including:
• Metal Composite Material (MCM)
• Steel Composite Material (SCM)
• Titanium Composite Material (TCM)
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Height | |
| Width | |
| Cutting Diameter | 1/2" |
| Application | |
| Material | Carbide Tipped |
| Product Type | V-Groove Router Bit |
| Length | 2-1/8" |
| Degree of Cut | 108° |
| Shank Diameter | 1/4" |
