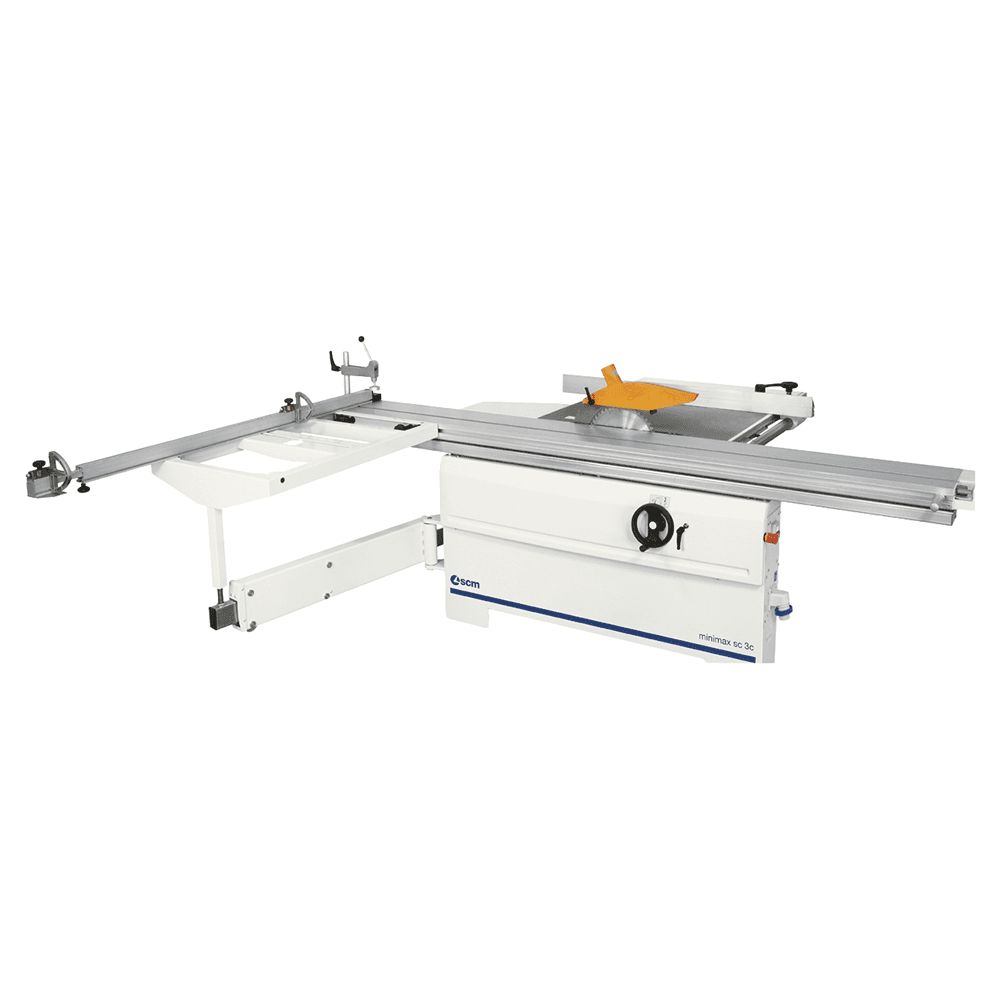

SCM Minimax SC3 1-Phase 4.8 HP 8.5' Sliding Table Saw
Product Details

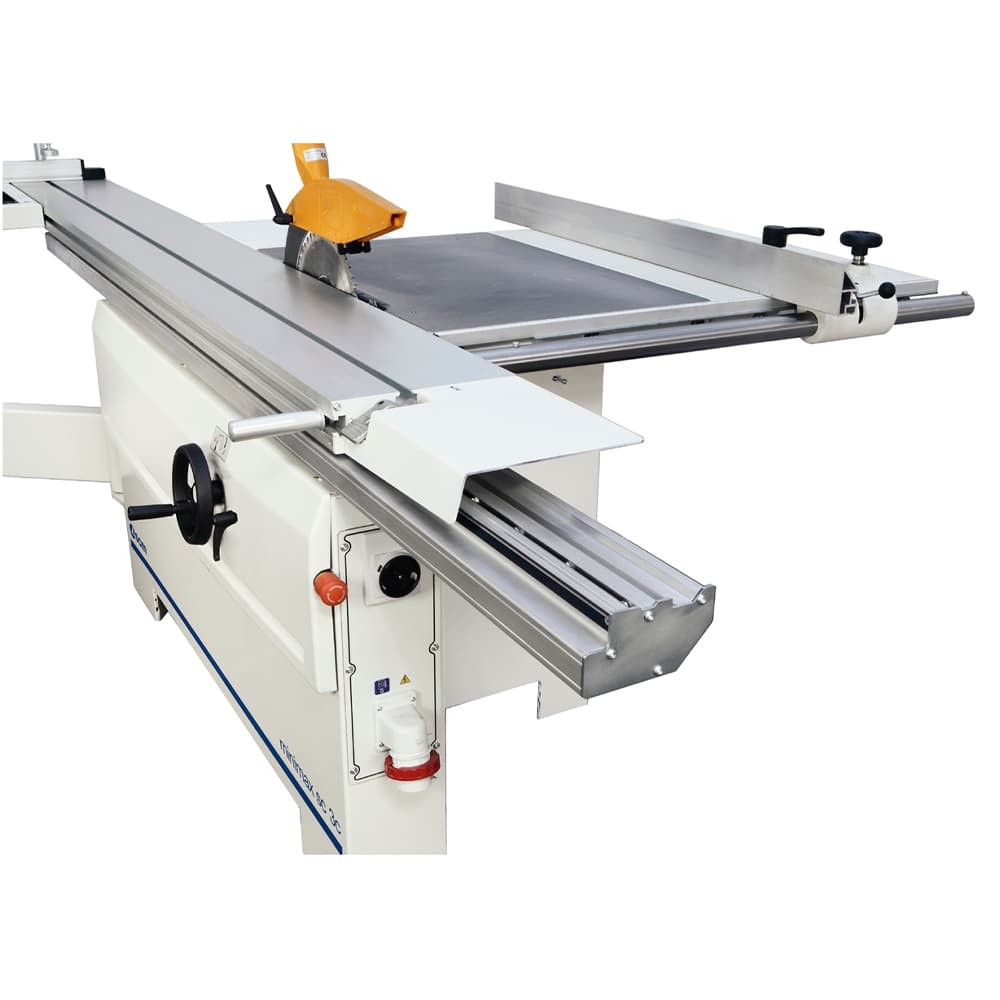

The minimax sc 3c is a precise, compact and with a low investment circular saw with tilting blade, ideal for small spaces and for those who do not want to give up the reliability of SCM joinery machines. An important feature is the presence of the scoring unit, which can be easily adjusted from the outside of the machine, as well as a surprising cut of both thick solid wood and even upgraded panels, with the saw unit with a 315mm (12.37")maximum diameter blade which guarantees a 100mm cutting height with installed scorer. Features: • SCM SC3 1-Phase 4.8 HP in 8.5′ Sliding Table Saw • Cast iron worktable dimensions is 33.06 x 22" • Maximum squaring stroke is 62.94" • Exhaust outlets diameter is 4.75" • Section of electrical cable is 0.25" • Power absorption is 20 A • Frequency is 60Hz • Very high effective saw unit exhaust hood: the emission level is 90% lower with respect to the maximum level allowed by the European safety regulations • The sliding carriage ensures top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustments required • The sliding carriage is equipped with an additional table for the support of large dimensioned panels • The telescopic squaring rule is equipped with 2 flip-over stops which allow to have precise references that can be used for both profiles • The angular cutting device with flip-over stops allows to rapidly perform mitre cuts without moving the squaring fence and it is very useful for small work pieces • Absolute precision and rapid positioning of the parallel fence which slides on a ground steel round bar • Extruded aluminum fences with support and rapid locking guarantee maximum practicality Advantages: • An incredible cutting with the saw unit with 315mm maximum blade diameter with the scoring blade installed • The scoring unit adjustment complete with blade is carried out from outside the machine by means of with special knobs and without the necessity of keys • Large squaring frame with professional telescopic swinging arm support
Specifications
| Box Quantity | 1 |
| Product Type | Sliding Table Saw |

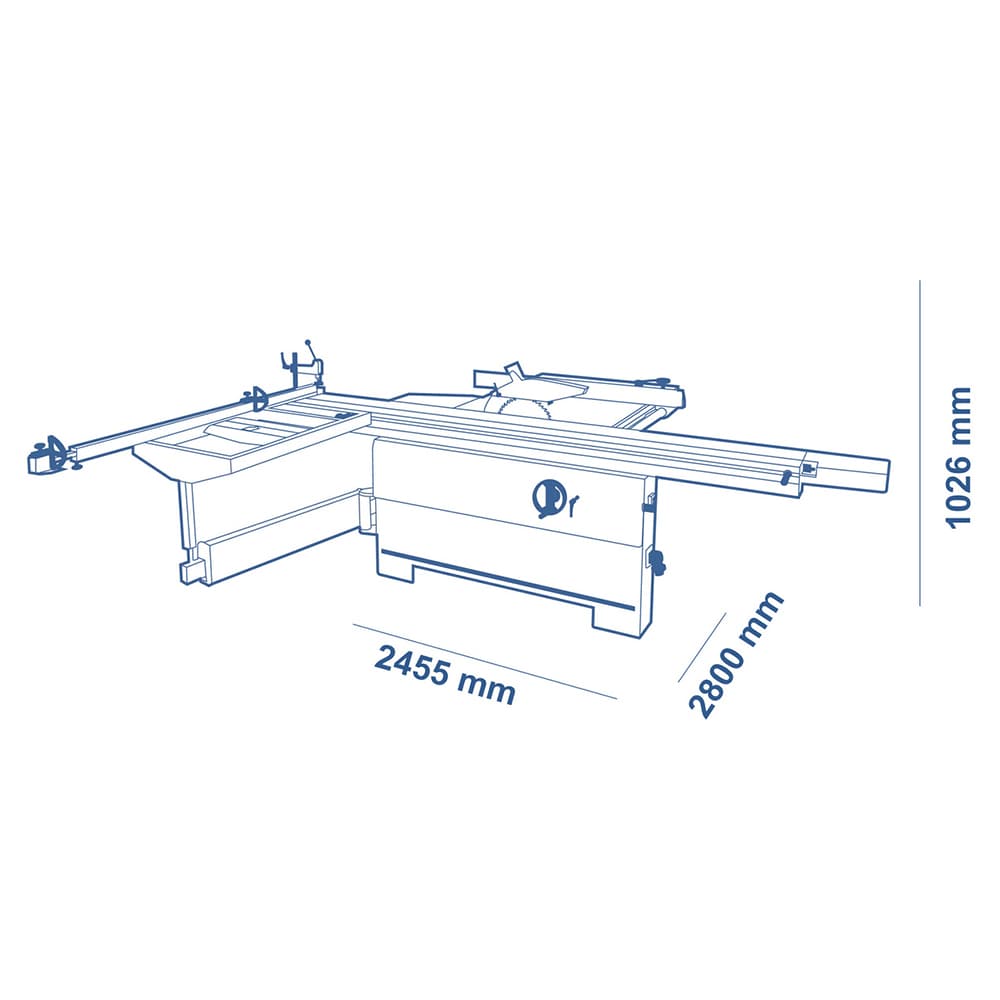

| Height | 44" |
| Width | 46" |
| Length | 93" |
| Horsepower | 4.8 HP |
| Voltage | 230 V |
| Blade Diameter | 12.37" |
| Phase | 1 PH |
| Maximum Tilt | 90° |
| Style | Sliding Table |
| Prewired Voltage (V.) | 230 V |
| Motor Power | 3.6 kW |
| Table Type | Sliding Table |
| Maximum Depth of Cut at 90 Degrees (In.) | 100 mm |
| Maximum Depth of Cut at 45 Degrees (In.) | 78 mm |
