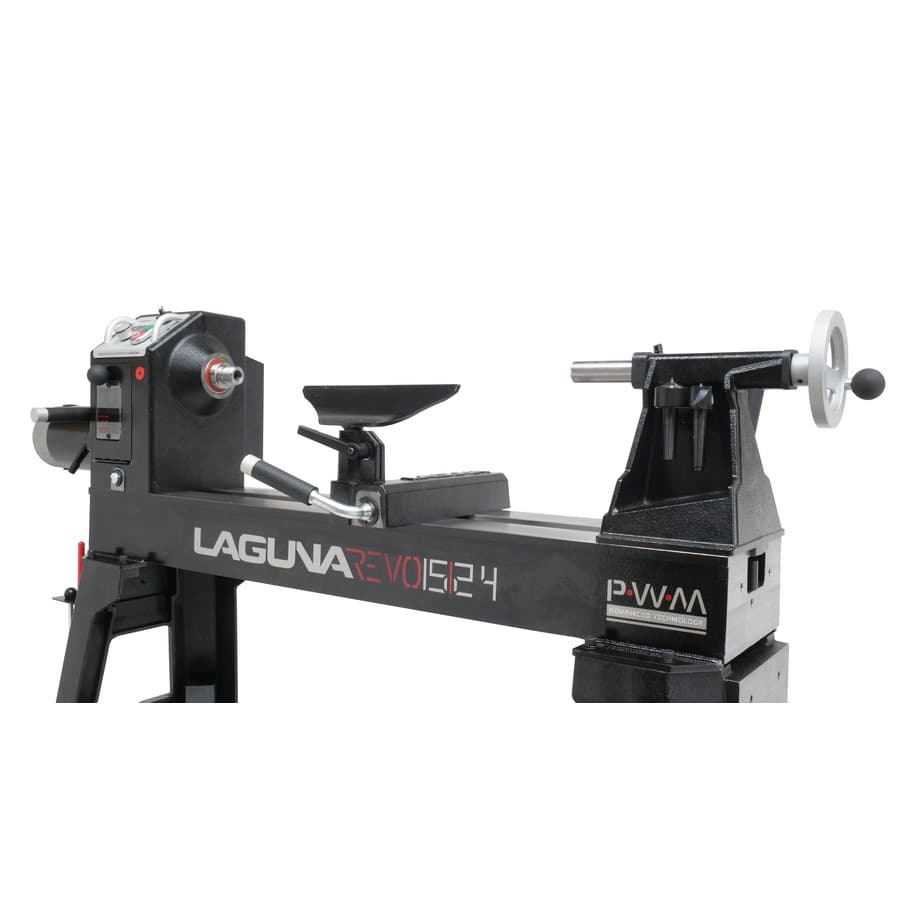

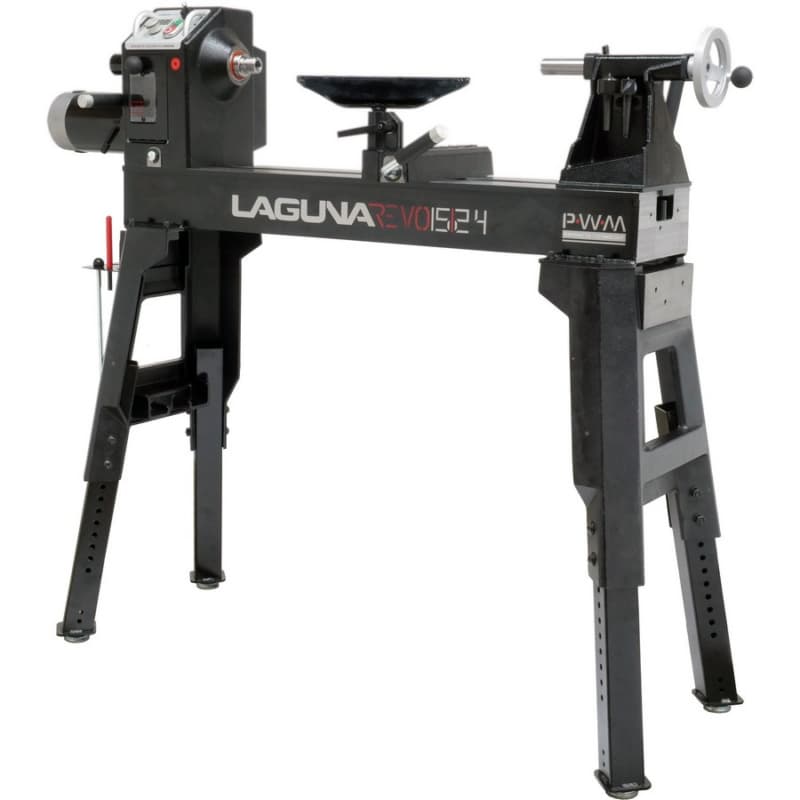

Laguna 415241 Revo 15|24 Lathe 110V 1.5HP
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
With the launch of the Revo 15|24 Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space constrained users with more power and capacity.
Features:
- World-class fit and finish Laguna is known for

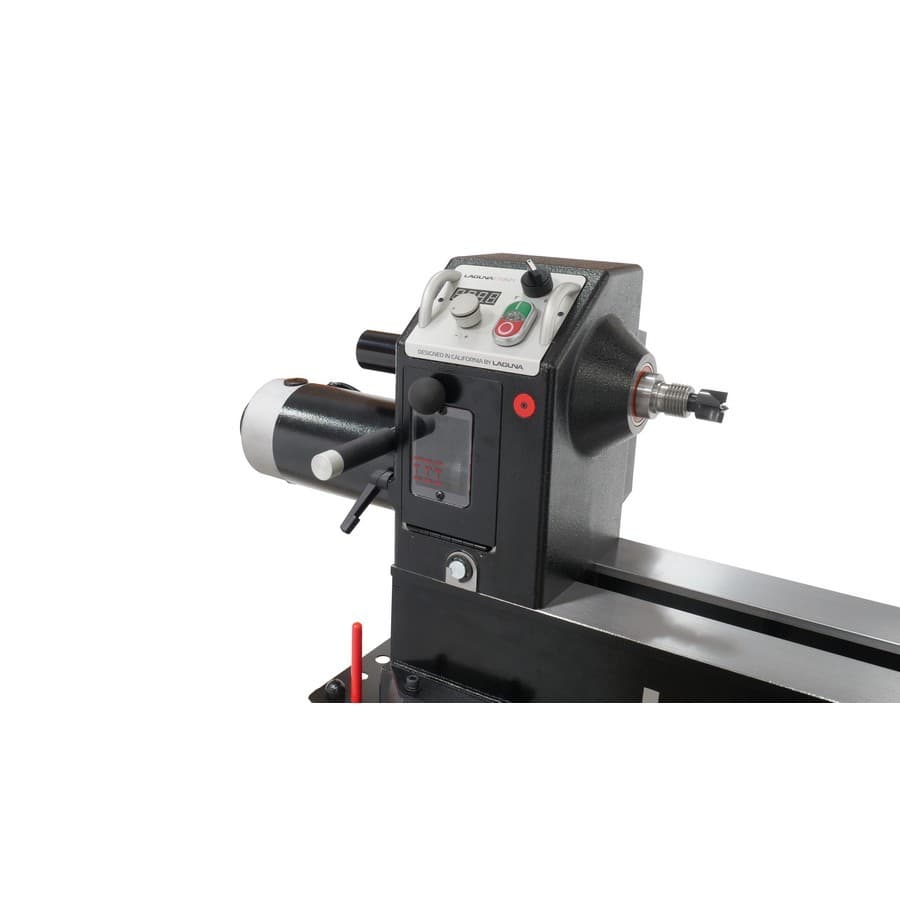

- Sliding headstock for ergonomic outboard bowl turning
- Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
- Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
- Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
- Steel bed provides strength, stability and a surface that the banjo will glide across smoothly

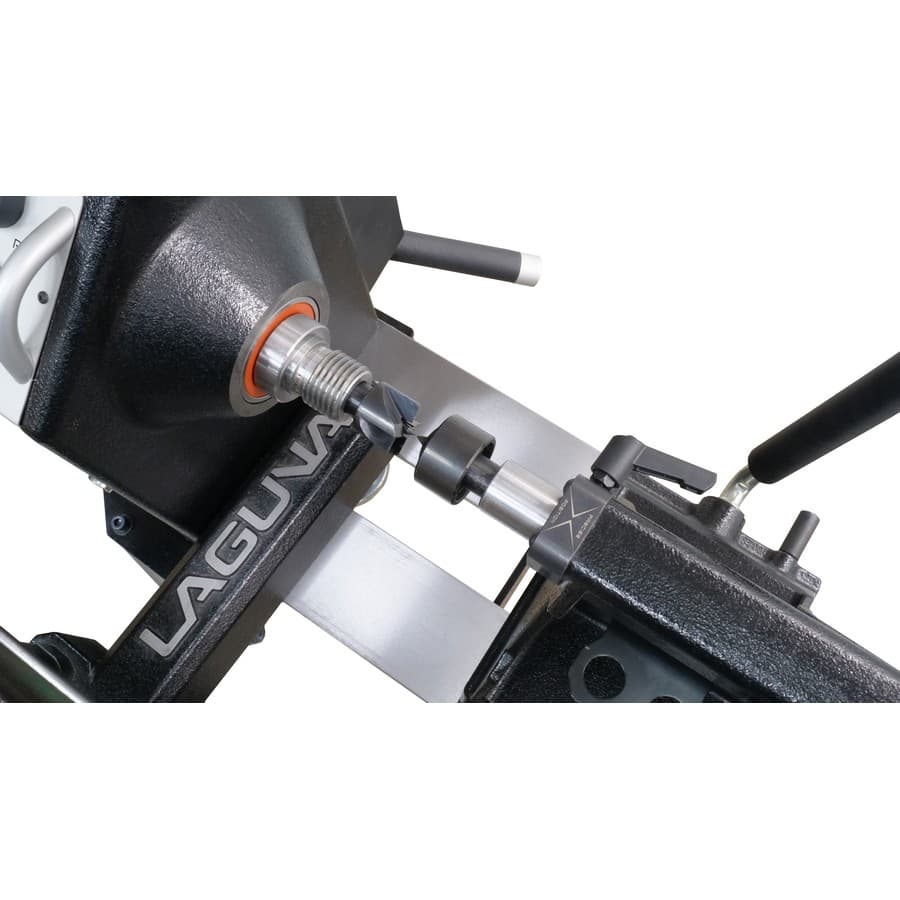

- A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
Additional Details
- Electrical: 1.5HP, 110 Volt, 8 Amp, 60Hz.
- Motor: Permanent Magnet DC, 2150 RPM
- PWM: Pulse Width Module Speed Control
- Recommended Breaker: 15 Amp
- Spring Loaded Spindle Lock
- Swing Over Bed: 15-½″
- Swing Over Banjo: 11-3/32″
- Max. Outboard Swing with optional accessory: 25″
- Tool-Rest Post Size: 1″
- Tool-Rest Length: 12″
- Spindle Taper: MT#2
- RPM High: 650-4200
- RPM Mid: 325-2100
- RPM Low: 50-650
- Accepts Vacuum Chuck: No
- Tailstock Quill: 4-½″, Self-Ejecting
- Floor To Spindle Center Low: 36-13/32″
- Floor To Spindle Center High: 51-13/32″
- Floor To Bed Min.: 25-19/32″
- Floor To Bed Max.: 43-19/32″
- Front Bearing: TPI Taiwan 6206LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Index #: 24 w/ Lock
- Distance Between Centers: 24″
- Headstock/Tailstock Through-Bore: â…œ″
- Headstock Travel: Full Length
- Tailstock Storage Of Centers
- Spindle Size: 1-¼″ x 8TPI RH
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
